Product Overview

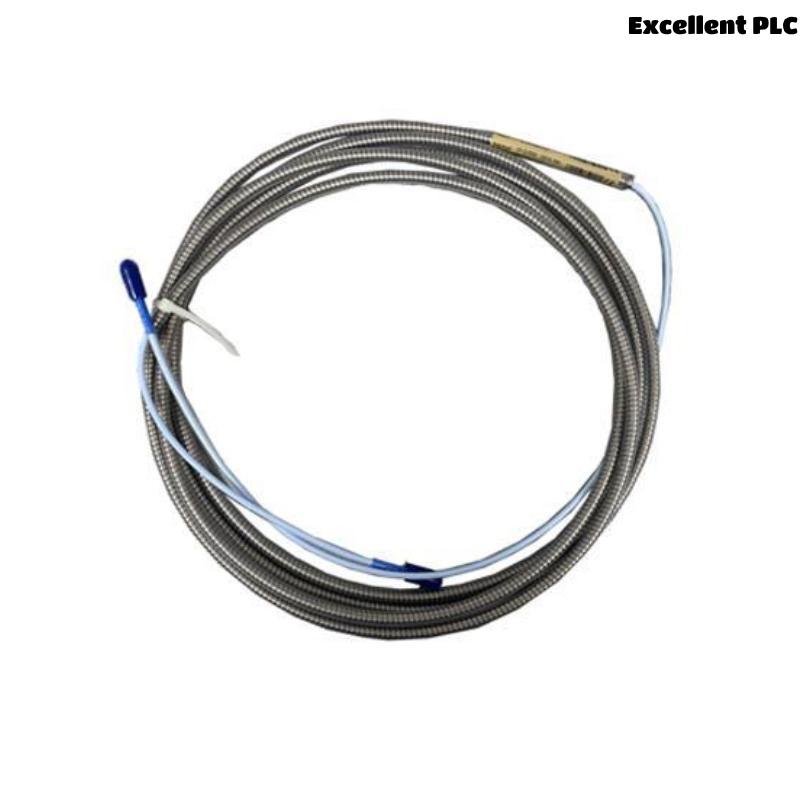

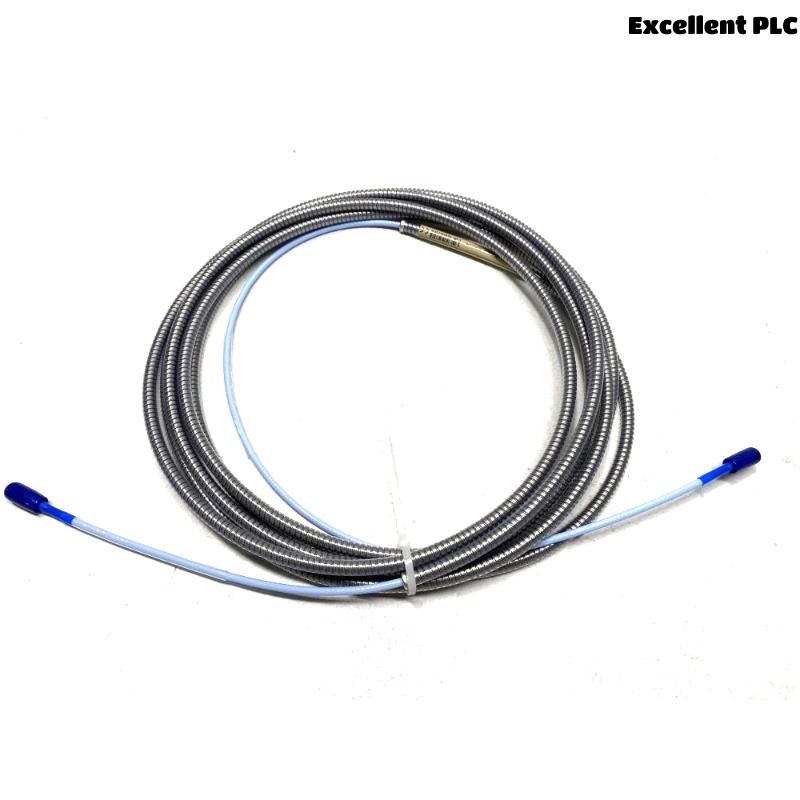

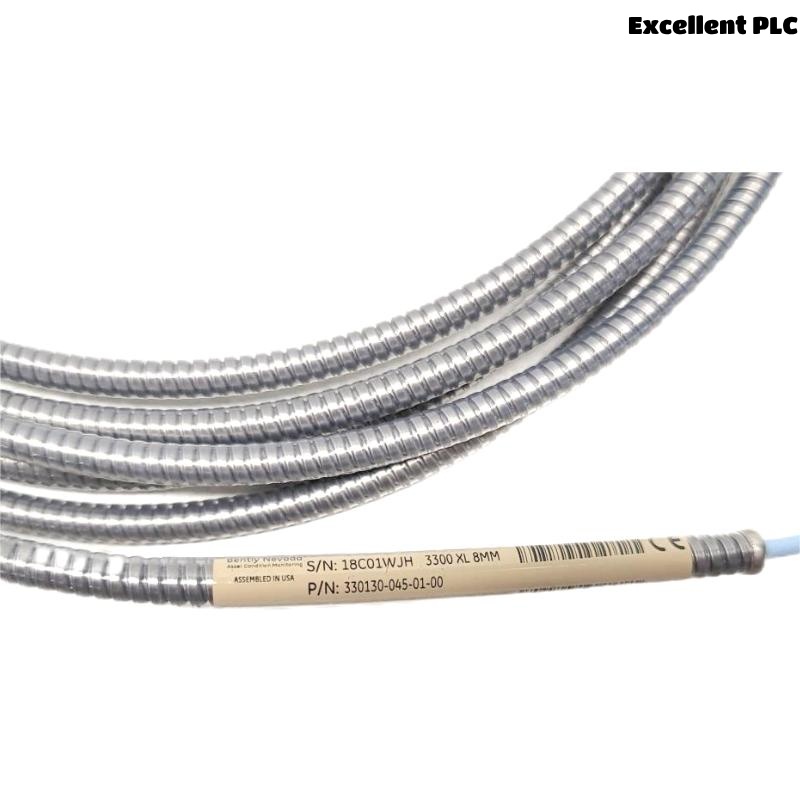

The Bently Nevada 330130-045-01-00 is a high-performance standard extension cable from the Bently Nevada 3300 XL series, designed to extend the connection between proximity probes and the monitoring system over longer distances. This extension cable is perfect for vibration monitoring and other condition monitoring applications in large industrial setups. With its 4.5-meter length and 0.464 kg weight, this cable provides the flexibility and reliability needed for efficient system setup and data acquisition in critical machinery monitoring systems.
The 330130-045-01-00 extension cable ensures seamless integration with the Bently Nevada 3300 XL series probes, delivering precise measurements of vibration and displacement in rotating machinery such as motors, turbines, compressors, and pumps. It is engineered to maintain signal integrity, even at extended lengths, ensuring that your vibration monitoring system remains accurate and effective, even in large or complex industrial environments.
Whether you’re working in oil and gas, power generation, mining, manufacturing, or water treatment, the 330130-045-01-00 extension cable provides a cost-effective and reliable solution for connecting sensors to monitoring systems. It also features shielding to protect the signal from electrical interference, ensuring that data transmission remains precise even in electrically noisy environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330130-045-01-00 |
| Cable Length | 4.5 meters |
| Weight | 0.464 kg |
| Cable Type | Standard extension cable for Bently Nevada probes |
| Compatibility | Compatible with Bently Nevada 3300 XL series probes |
| Operating Temperature | -40°C to +120°C |
| Cable Shielding | Shielded for noise protection |
| Connector Type | Lemo or equivalent (depending on system configuration) |
| Construction | High-quality materials for durability and longevity |
| Application | Used for extending the reach of proximity probes and other monitoring components |
| Certification | CE, UL, ATEX certified |
Applications
The 330130-045-01-00 extension cable is used in a variety of industries to ensure reliable connections between Bently Nevada proximity probes and vibration monitoring systems. Some key applications include:
-
Power Generation: The cable is used to connect proximity probes to monitoring systems in turbines, generators, and compressors for real-time vibration and condition monitoring.
-
Oil and Gas: Used in upstream and downstream operations, connecting vibration sensors to monitoring systems in pumps, compressors, and turbines.
-
Mining: Helps extend the connection between vibration sensors and monitoring systems in heavy-duty machinery, crushers, mills, and conveyors.
-
Manufacturing: Provides an extension for sensors in industrial machinery such as motors, conveyors, and robotic arms in factory setups.
-
Water Treatment: Extends sensor connections in water treatment facilities, monitoring critical equipment such as pumps, valves, and motors.
-
Transportation: Used in transportation systems to connect vibration sensors in railways, automated machinery, and other transportation infrastructure to central monitoring systems.
The 4.5-meter length ensures versatility, providing enough distance for installation even in large or complex systems, while maintaining the integrity of signal transmission.
Key Advantages
-
Long Cable Length: The 4.5-meter length provides ample distance to install sensors in larger systems or in difficult-to-reach locations without compromising the integrity of the signal.
-
Signal Integrity: The shielded design ensures that the cable maintains the integrity of the signal even in noisy industrial environments, providing accurate data transmission for reliable condition monitoring.
-
High-Quality Construction: The 330130-045-01-00 extension cable is built from durable materials that ensure long-term performance, even in harsh industrial environments with high vibration and fluctuating temperatures.
-
Wide Temperature Range: With an operating temperature range of -40°C to +120°C, the cable is suitable for use in both freezing cold and high-heat conditions.
-
Low Weight: The 0.464 kg weight makes the cable easy to handle and install, even in confined or tight spaces.
-
Versatile Use: The extension cable is compatible with a wide range of Bently Nevada 3300 XL probes, ensuring its utility in different machinery and industrial environments.
-
Easy Integration: Designed to integrate seamlessly with existing Bently Nevada systems, the cable allows for easy installation and expansion of monitoring systems.
-
Durable Shielding: The cable’s shielding protects the signal from electrical noise and electromagnetic interference, ensuring high accuracy even in environments with high electrical activity.
-
Reliable Performance: Designed for continuous operation, the extension cable provides reliable performance with minimal maintenance.
-
Cost-Effective: The 330130-045-01-00 offers an affordable solution for extending the reach of Bently Nevada probes, allowing you to extend your monitoring system without needing to replace or upgrade existing equipment.
Frequently Asked Questions (FAQ)
-
What is the length of the Bently Nevada 330130-045-01-00 extension cable?
The cable length is 4.5 meters. -
What is the weight of the 330130-045-01-00 extension cable?
The weight of the cable is 0.464 kg. -
What type of cable is the 330130-045-01-00?
It is a standard extension cable designed for use with Bently Nevada 3300 XL series probes. -
What is the purpose of the extension cable?
The extension cable is used to extend the distance between Bently Nevada probes and the monitoring system, ensuring reliable signal transmission over longer distances. -
Does the 330130-045-01-00 cable provide noise protection?
Yes, the cable is shielded, protecting the signal from electrical interference and ensuring reliable data transmission. -
What temperature range can the 330130-045-01-00 cable withstand?
The cable operates within a temperature range of -40°C to +120°C. -
What is the connector type for the 330130-045-01-00 extension cable?
The cable is compatible with Lemo connectors or equivalent, depending on the system configuration. -
Can the extension cable be used in hazardous environments?
Yes, the extension cable is certified for use in hazardous environments and meets CE, UL, and ATEX standards. -
What industries can use the 330130-045-01-00 extension cable?
The extension cable is used in industries like power generation, oil and gas, mining, manufacturing, water treatment, and transportation. -
How easy is it to install the 330130-045-01-00 extension cable?
The cable is lightweight and flexible, making it easy to install in various industrial environments.
Recommended Related or Series Models
| Model | Description |
|---|---|
| 330130-025-00 | Standard extension cable for 3300 XL probes (2.5 meters) |
| 330130-060-00 | Extension cable for 3300 XL probes (6 meters) |
| 330130-070-00 | Extension cable for 3300 XL probes (7 meters) |
| 330130-100-00 | Extended version of standard 3300 XL extension cable (10 meters) |
| 330130-030-00 | Extension cable for general purpose industrial applications |
| 330130-150-00 | Heavy-duty extension cable for 3300 XL probes (15 meters) |
