Product Overview

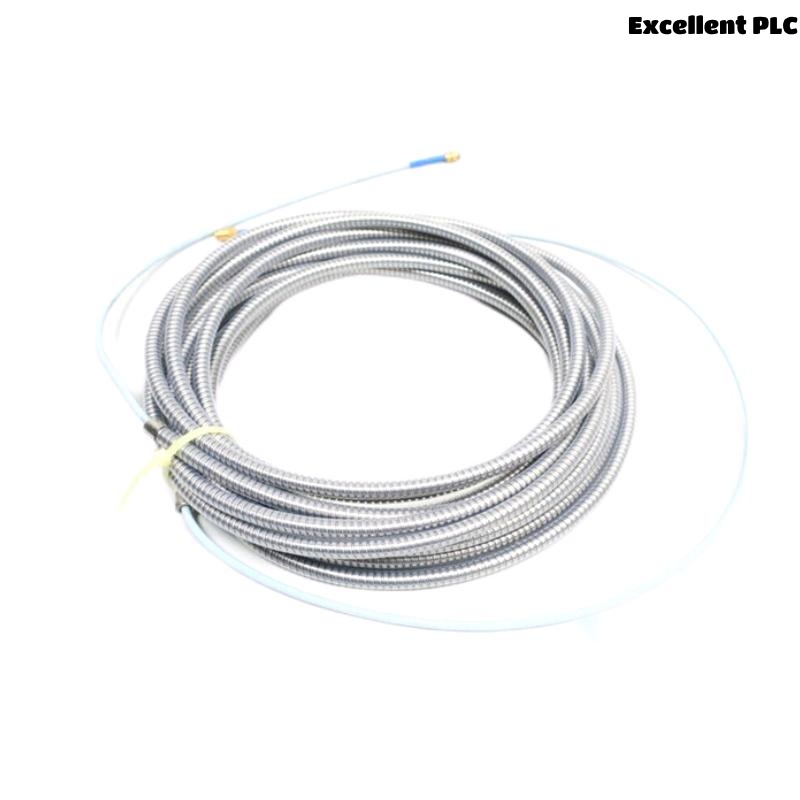

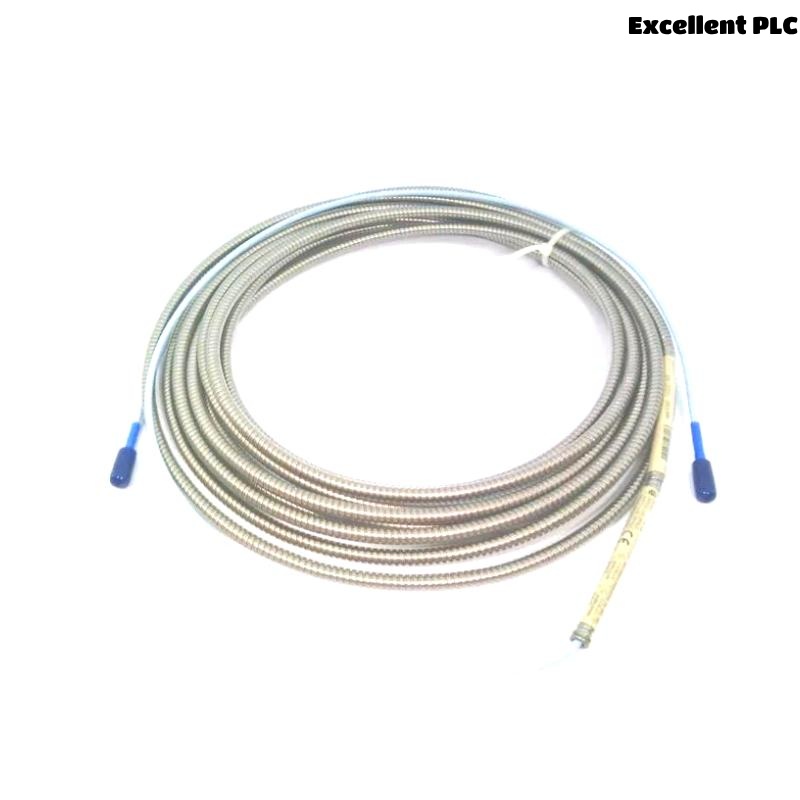

The Bently Nevada 330130-045-01-CN is a standard extension cable designed for use with the Bently Nevada 3300 XL series proximity probes. This high-quality extension cable is intended to extend the reach between proximity probes and the central monitoring system, offering reliable signal transmission over long distances. The 330130-045-01-CN is a critical component for vibration monitoring, enabling accurate measurement of displacement and vibration in critical machinery such as motors, pumps, turbines, and compressors.
With a cable length of 4.5 meters and a weight of 0.464 kg, this extension cable provides the necessary flexibility for use in various industrial environments. Whether used in oil and gas, power generation, mining, manufacturing, or water treatment, the 330130-045-01-CN ensures that your vibration monitoring system performs optimally even in large-scale or difficult-to-reach installations.
In addition to its length and reliability, this extension cable also features shielding to protect the signal from electrical interference, ensuring that the data remains accurate even in electrically noisy environments. This feature is essential for maintaining the integrity of measurements in industrial settings.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330130-045-01-CN |
| Cable Length | 4.5 meters |
| Weight | 0.464 kg |
| Cable Type | Standard extension cable for Bently Nevada 3300 XL probes |
| Compatibility | Fully compatible with Bently Nevada 3300 XL series probes |
| Operating Temperature | -40°C to +120°C |
| Cable Shielding | Shielded for noise protection |
| Connector Type | Lemo or equivalent (depending on system configuration) |
| Construction | High-quality materials for durability and longevity |
| Certification | CE, UL, ATEX certified |
| Application | Extends the reach of proximity probes and other monitoring components |
Applications
The 330130-045-01-CN extension cable is primarily used for extending the connections between Bently Nevada 3300 XL series proximity probes and monitoring systems. It is suitable for various industries, including:
-
Power Generation: Used to connect vibration sensors to monitoring systems in turbines, generators, and compressors for real-time condition monitoring.
-
Oil and Gas: Essential in upstream and downstream operations, connecting sensors in pumps, compressors, turbines, and other critical equipment.
-
Mining: Helps extend the reach between vibration sensors and monitoring systems in machinery like crushers, mills, and conveyors.
-
Manufacturing: Used in industrial machinery, providing flexible sensor connections in motors, conveyors, and assembly lines.
-
Water Treatment: Extends sensor connections in water treatment plants, monitoring pumps, valves, and motors.
-
Transportation: Connects vibration sensors to monitoring systems in railways, automated machinery, and other transportation infrastructure.
The 4.5-meter cable length provides ample flexibility to position sensors optimally, even in complex and large systems, without compromising the quality of the signal.
Key Advantages
-
Long Cable Length: The 4.5-meter cable length offers the flexibility to install sensors in large industrial setups and difficult-to-reach locations without losing signal integrity.
-
Shielded for Signal Protection: The shielded cable design ensures that the signal remains accurate and free from electrical interference, even in noisy environments.
-
Durable Construction: Built from high-quality materials, the extension cable is designed for long-term durability and reliable performance in harsh industrial conditions.
-
Wide Temperature Range: With an operating temperature range of -40°C to +120°C, the cable is suited for use in a variety of environmental conditions, from freezing temperatures to high heat.
-
Lightweight: At just 0.464 kg, the extension cable is easy to handle and install in tight spaces.
-
Versatile Compatibility: Fully compatible with the Bently Nevada 3300 XL series probes, the cable integrates seamlessly with your existing monitoring systems.
-
Long-Term Reliability: Designed for continuous, long-term use, the cable requires minimal maintenance and ensures high uptime for monitoring systems.
-
Easy Integration: The extension cable can be easily added to existing systems, ensuring quick installation and integration with minimal disruption.
-
Ideal for Harsh Environments: Its robust construction allows the cable to be used in industrial environments with high vibration and fluctuating temperatures.
-
Cost-Effective: The 330130-045-01-CN offers an affordable solution for extending the reach of your Bently Nevada monitoring system, improving system flexibility without costly replacements.
Frequently Asked Questions (FAQ)
-
What is the length of the Bently Nevada 330130-045-01-CN extension cable?
The cable length is 4.5 meters. -
What is the weight of the extension cable?
The weight of the 330130-045-01-CN is 0.464 kg. -
What type of cable is the 330130-045-01-CN?
The 330130-045-01-CN is a standard extension cable designed for Bently Nevada 3300 XL series probes. -
Is the 330130-045-01-CN compatible with other Bently Nevada equipment?
Yes, it is fully compatible with the Bently Nevada 3300 XL series probes. -
Does the cable have any shielding?
Yes, the cable is shielded to protect the signal from electrical interference. -
What is the temperature range for the 330130-045-01-CN?
The cable operates within a temperature range of -40°C to +120°C. -
What industries can use this extension cable?
It is used in various industries, including oil and gas, power generation, mining, manufacturing, water treatment, and transportation. -
What type of connector is used with this cable?
The cable uses Lemo connectors or equivalent, depending on the system configuration. -
Can this extension cable be used in hazardous environments?
Yes, the 330130-045-01-CN is CE, UL, and ATEX certified, ensuring it meets the standards for use in hazardous environments. -
How easy is it to install the 330130-045-01-CN extension cable?
The cable is lightweight and flexible, making it easy to handle and install in various industrial environments.
