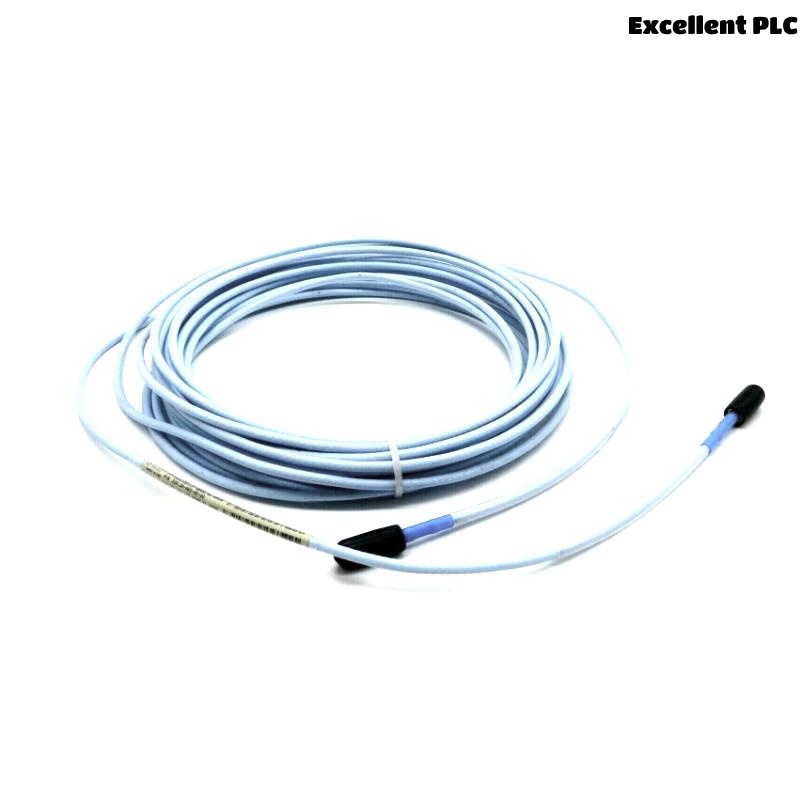

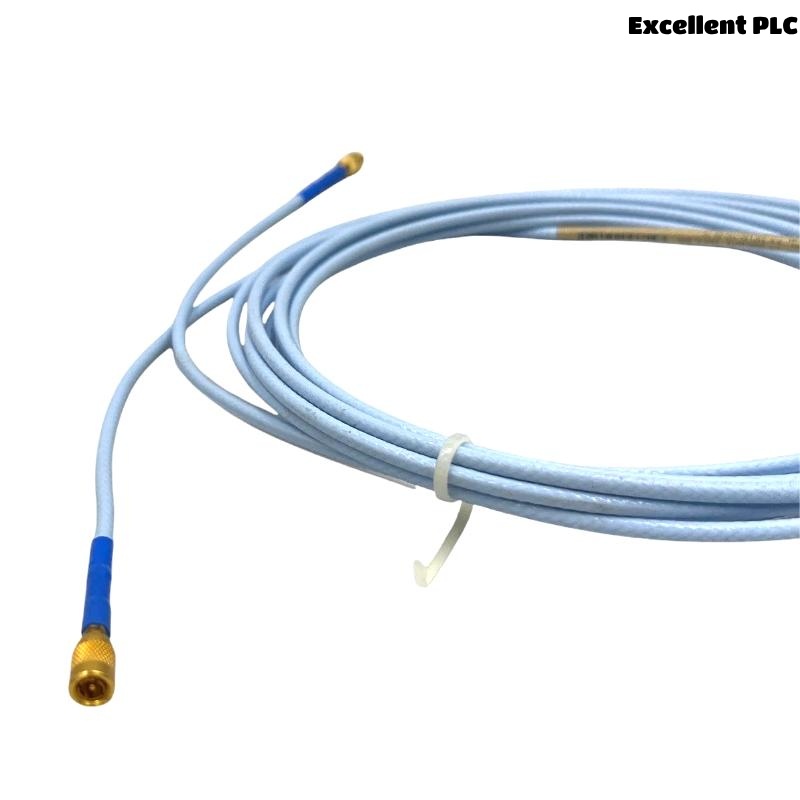

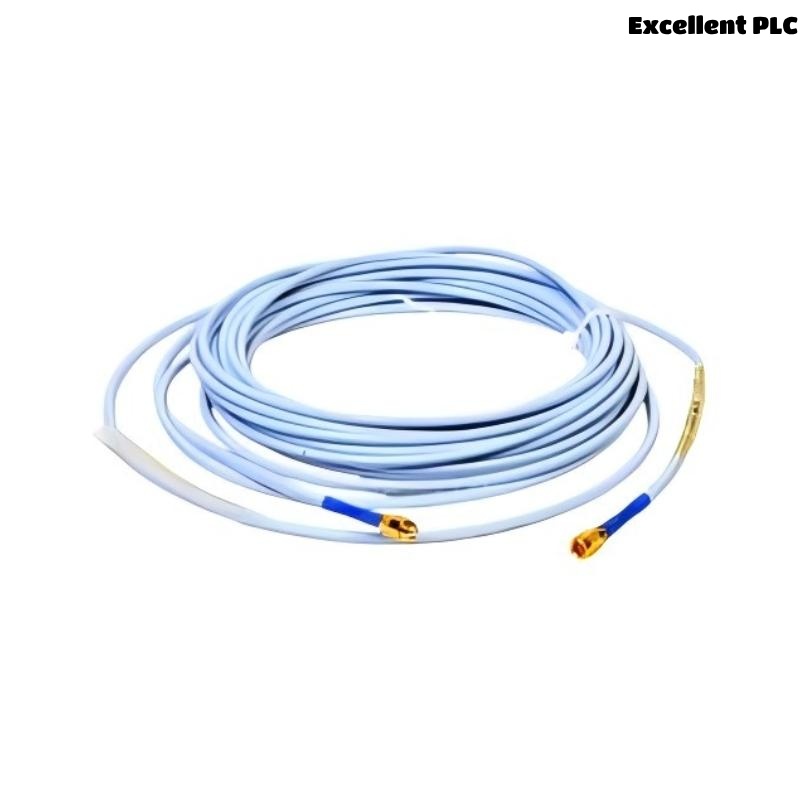

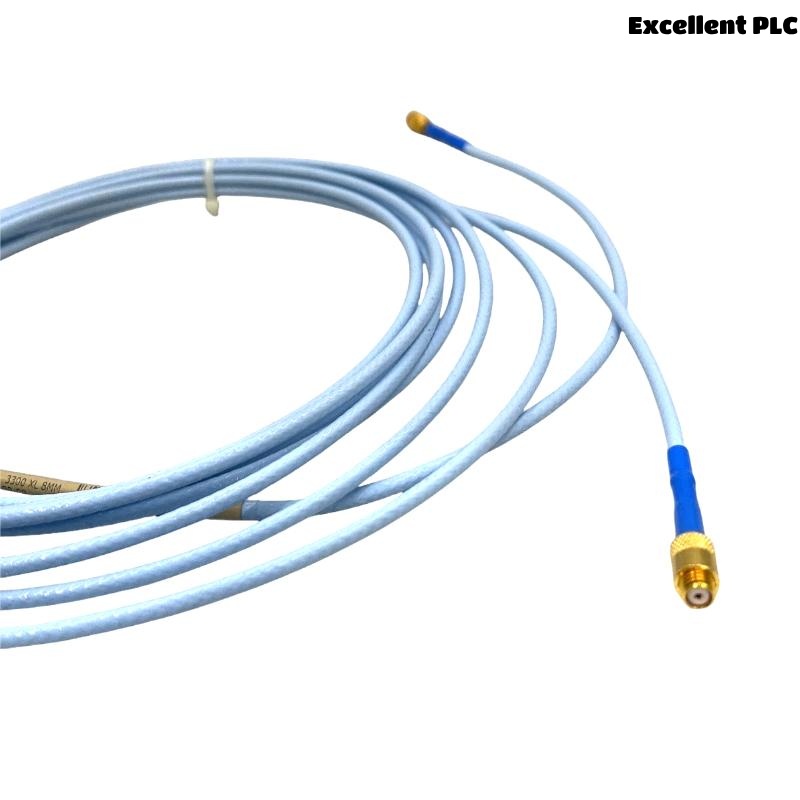

The Bently Nevada 330130-045-02-00 is a 4.5-meter standard extension cable used in the 3300 XL 8 mm Proximity Transducer System. It forms part of a system that includes a proximity probe and a Proximitor sensor. Designed for high reliability in industrial environments, it provides robust electrical connections between probe and sensor, ensuring accurate vibration and position measurements in machinery monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-045-02-00 |
| Cable Length | 4.5 meters |
| Weight | 0.153 kg (approx. 0.34 lb) |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Connector Type | Gold-plated miniature ClickLoc coaxial connector |
| Connector Protection | Included (Option 02) |
| Cable Capacitance | 69.9 pF/m typical |
| DC Resistance (Center Conductor) | 0.99 ± 0.15 Ω |
| DC Resistance (Shield) | 0.30 ± 0.06 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
Applications
-
Vibration monitoring in rotating machinery
-
Shaft position detection on fluid-film bearing machines
-
Speed and phase reference measurements
-
Integration in API 670-compliant systems
-
Machinery health monitoring in turbines, compressors, and pumps
Advantages
-
ClickLoc Connectors: Easy to install, finger-tight, and secure with audible “click” feedback
-
High Accuracy: Ensures precise signal transmission for dynamic and static measurements
-
Robust Design: Withstands harsh industrial environments, oil ingress, and mechanical stress
-
Compatibility: Interchangeable with other 3300 XL and non-XL series components
-
Low Capacitance: Maintains signal integrity over longer distances
-
Field-Proven Durability: Suitable for extended operation in high-temperature zones
Frequently Asked Questions (FAQ)
Q1: What systems is the 330130-045-02-00 cable compatible with?
A1: It is compatible with all 3300 XL 8 mm Proximity Transducer Systems.
Q2: Is the cable interchangeable with older 3300 series components?
A2: Yes, it is both electrically and mechanically interchangeable with non-XL 3300 series 8 mm components.
Q3: What does the ’02’ in the model number signify?
A3: It indicates the cable is a standard version with connector protectors installed.
Q4: Can this extension cable be used in high-temperature environments?
A4: Yes, it operates reliably up to 177°C (350°F).
Q5: Does it require any special tools for installation?
A5: No, the ClickLoc connectors allow finger-tight installation without tools.
Q6: What is the typical resistance of this cable?
A6: Around 0.99 ± 0.15 Ω for the center conductor and 0.30 ± 0.06 Ω for the shield.
Q7: Is it suitable for use in hazardous areas?
A7: Yes, when used with properly rated system components and barriers.
Q8: How is the environmental sealing ensured?
A8: Through connector protectors and FEP insulation to prevent oil ingress.
Q9: Can the cable be armored?
A9: Not this model. For armored versions, use options like 330130-045-01-00 or 03-00.
Q10: What is the minimum bend radius?
A10: 25.4 mm (1 inch), ensuring flexible routing without signal degradation.
Related Models in the Same Series
| Model Number | Description | Length | Cable Type | Weight |
|---|---|---|---|---|
| 330130-030-02-00 | Standard Extension Cable with protector | 3.0 m | FEP | 0.102 kg |
| 330130-035-02-00 | Standard Extension Cable with protector | 3.5 m | FEP | 0.119 kg |
| 330130-040-02-00 | Standard Extension Cable with protector | 4.0 m | FEP | 0.136 kg |
| 330130-060-02-00 | Standard Extension Cable with protector | 6.0 m | FEP | 0.204 kg |
| 330130-070-02-00 | Standard Extension Cable with protector | 7.0 m | FEP | 0.238 kg |
| 330190-045-00-00 | ETR Extension Cable for high-temp applications | 4.5 m | PFA (ETR) | 0.153 kg |
Popular Bently Nevada Models
| Model Number | Description | Function | Weight |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe | Proximity Probe | ~0.09 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor (9m, DIN mount) | Signal Conversion | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | ~0.75 kg |
| 3500/22M-01-01-00 | Transient Data Interface Module | System Interface | ~0.68 kg |
| 3500/94-02-00-00 | Display Interface Module | Display/Control | ~1.2 kg |
| 330103-00-05-10-02-00 | 3300 XL Probe (M10 thread) | Proximity Probe | ~0.1 kg |
