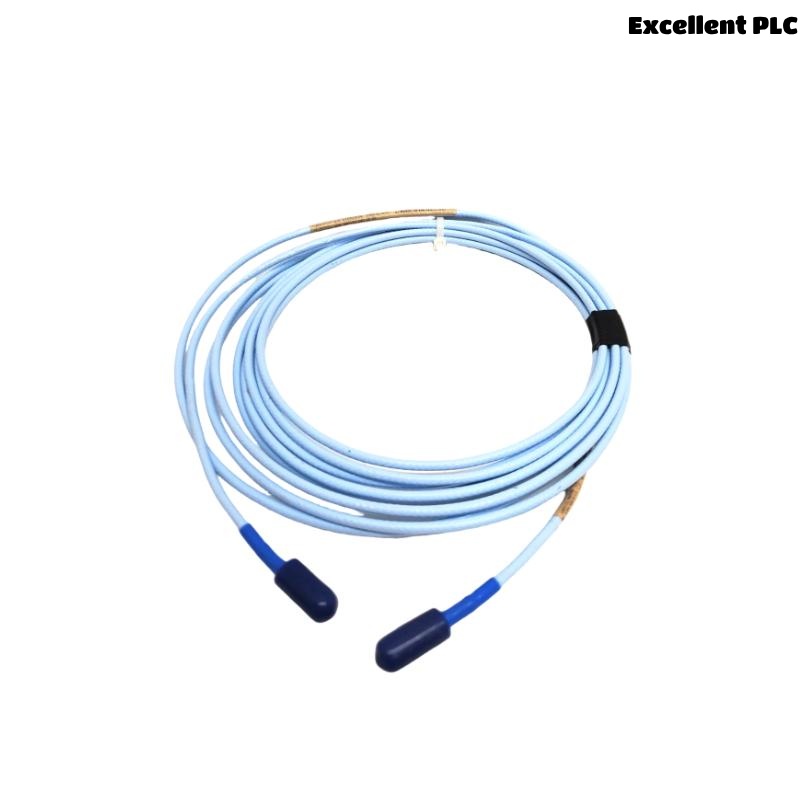

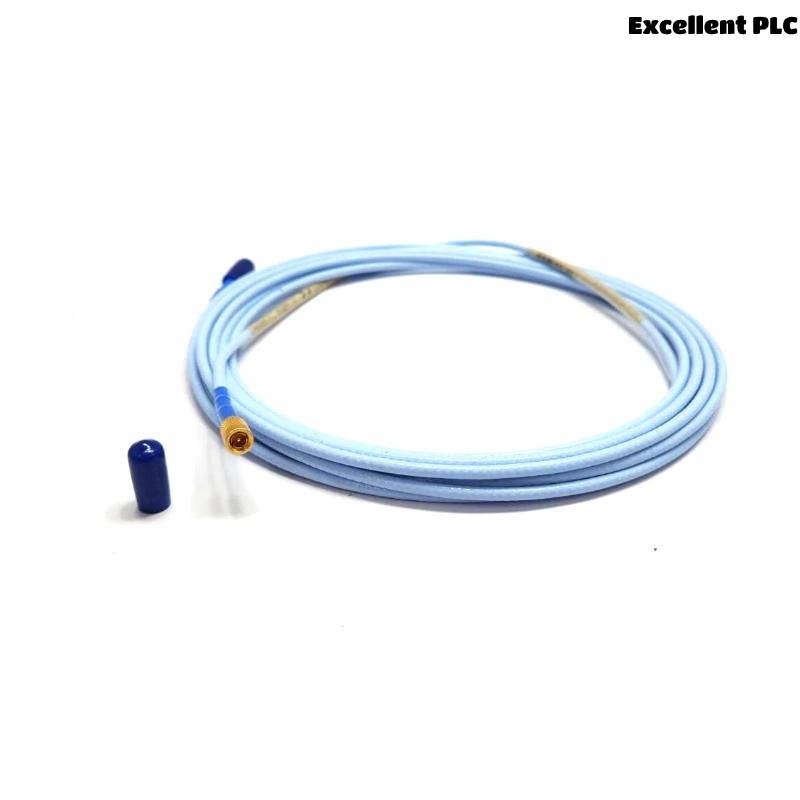

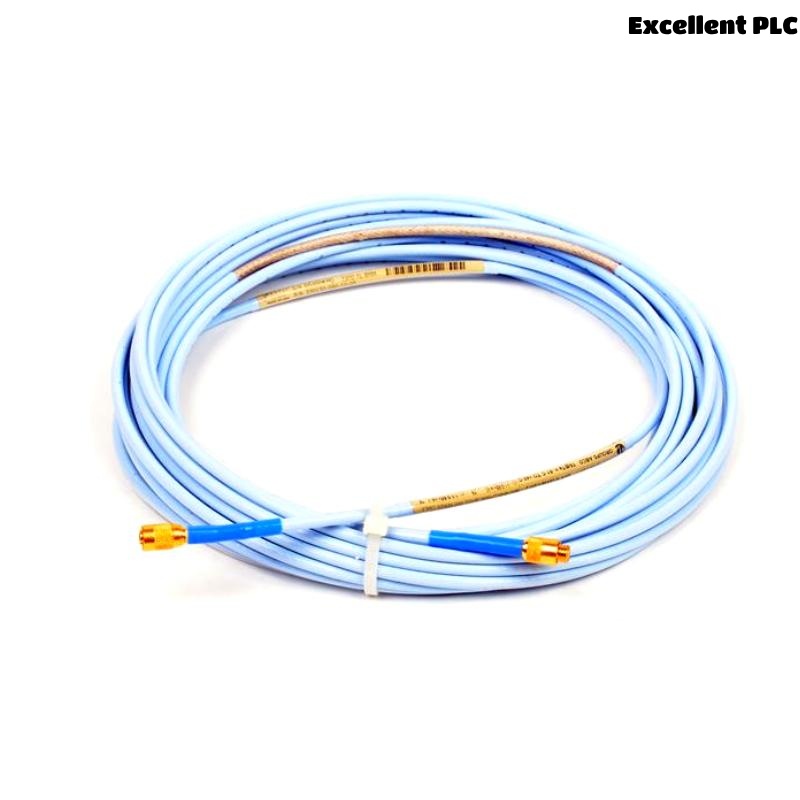

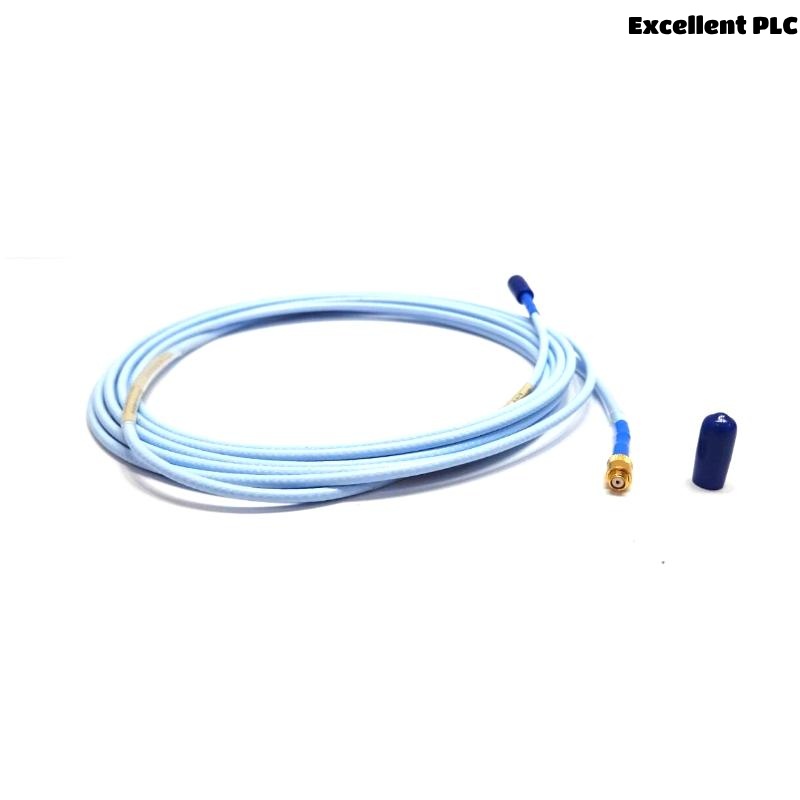

The Bently Nevada 330130-045-02 is a 4.5-meter standard extension cable used in the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor Sensor, enabling accurate vibration and position measurements for rotating machinery. This cable ensures signal integrity and supports high-reliability installations in industrial environments.
Applications
-
Fluid-film bearing machines
-
Turbine and compressor monitoring
-
Shaft vibration and position detection
-
Keyphasor® reference signal transmission
-
Critical machinery health monitoring systems
Advantages
-
High signal fidelity with low resistance and capacitance
-
Rugged construction with optional armored and FluidLoc™ versions
-
Gold-plated ClickLoc connectors with secure locking and corrosion resistance
-
Easy tool-free installation
-
Interchangeable with other Bently Nevada XL/non-XL 3300 series components
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330130-045-02 |
| Cable Type | Standard Extension Cable |
| Cable Length | 4.5 meters |
| Weight | 0.153 kg |
| Resistance (RCORE) | 0.99 ± 0.15 Ω |
| Jacket Resistance (RJACKET) | 0.30 ± 0.06 Ω |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Connector Type | ClickLoc, gold-plated |
| Cable Insulation | FEP (standard) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature | -52°C to +177°C (standard version) |
| Compatibility | 3300 XL 8 mm Probes and Proximitor Sensors |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330130-045-02 extension cable?
A1: It links the 3300 XL probe to the Proximitor Sensor, transmitting accurate position and vibration data.
Q2: Can this cable be used in high-temperature environments?
A2: The standard version supports up to 177°C; an Extended Temperature Range (ETR) version is available for higher temperatures.
Q3: What is the length of the 330130-045-02 cable?
A3: It is 4.5 meters (14.8 feet) in length.
Q4: Is the cable armored?
A4: The standard 330130-045-02 is non-armored. Armored versions are available with different part numbers.
Q5: Are the connectors secure?
A5: Yes, it uses gold-plated ClickLoc connectors that click into place and resist loosening.
Q6: Can this cable be used with older 3300 series components?
A6: Yes, it is backward-compatible and interchangeable with non-XL 3300 5 mm and 8 mm systems.
Q7: What is the weight of the 330130-045-02 cable?
A7: Approximately 0.153 kg.
Q8: Does it require special tools for installation?
A8: No special tools are needed; it installs easily with finger-tightened connectors.
Q9: Is environmental protection available?
A9: Connector protectors can be included or purchased separately to enhance protection.
Q10: What insulation is used on the standard cable?
A10: The standard cable is insulated with FEP for durability and resistance.
Related Models in the Same Series
| Model Number | Cable Length | Type | Weight |
|---|---|---|---|
| 330130-030-00 | 3.0 m | Standard | 0.102 kg |
| 330130-035-00 | 3.5 m | Standard | 0.119 kg |
| 330130-040-00 | 4.0 m | Standard | 0.136 kg |
| 330130-060-00 | 6.0 m | Standard | 0.204 kg |
| 330130-070-00 | 7.0 m | Standard | 0.238 kg |
| 330190-045-00 | 4.5 m | Extended Temp Range | 0.153 kg |
Popular Models from Bently Nevada
| Model Number | Description | Key Feature | Weight |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe (M10 thread) | Armor + FluidLoc | ~0.35 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor (9 m, DIN mount) | SIL3 certified, DIN-rail mount | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | 4-channel vibration monitoring | 0.45 kg |
| 3500/22M-01-01 | Transient Data Interface Module | TDI with configuration capability | 0.6 kg |
| 330101-00-08-10-02-00 | 3300 XL Probe (3/8-24 thread) | 8 mm tip, standard cable | ~0.3 kg |
| 330130-060-03 | 6 m Extension Cable, armored with protector | High durability, EMI-resistant | ~0.25 kg |
