Product Introduction

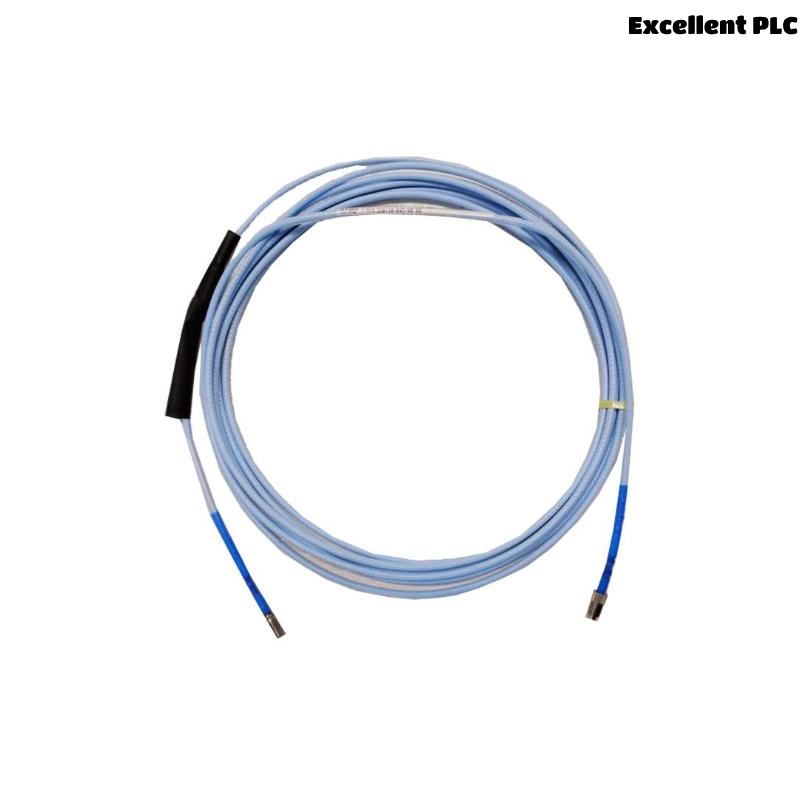

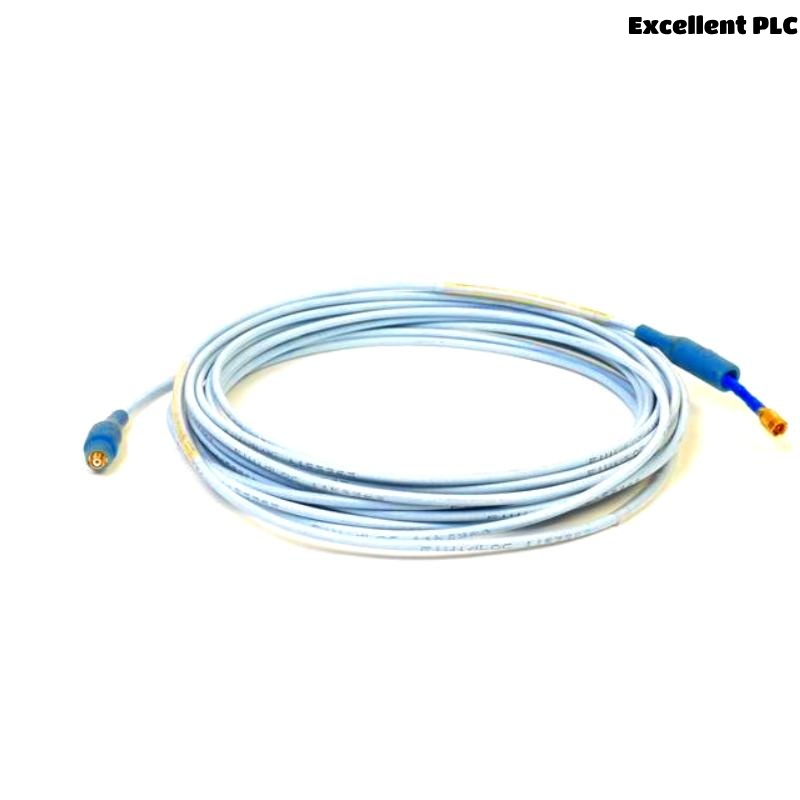

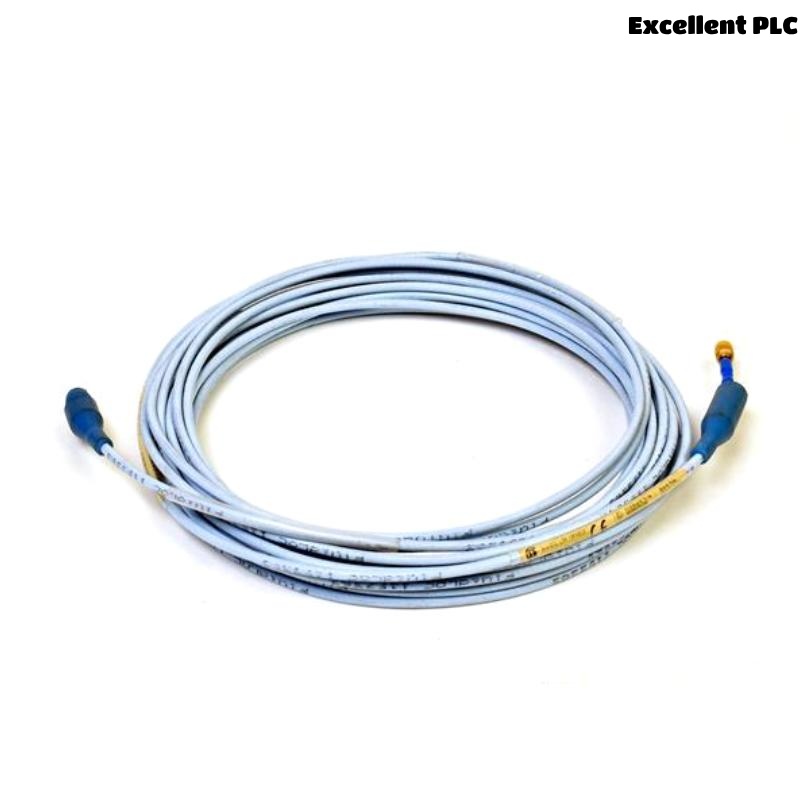

The Bently Nevada 330130-045-12-05 3300 XL Standard Extension Cable is a crucial component in the Bently Nevada 3300 series of vibration and proximity measurement systems. This extension cable is designed for use with the 3300 XL proximity probes to extend their reach while maintaining high-quality, reliable signal transmission. The 3300 XL extension cable ensures that proximity probes can be installed in machinery setups where the sensor is positioned far from the monitoring equipment, providing the flexibility needed for diverse industrial applications.
Manufactured to meet Bently Nevada’s high standards of quality and reliability, the 3300 XL Standard Extension Cable ensures seamless integration with the 3300 XL Proximity Probes, making it an essential accessory for effective condition monitoring, predictive maintenance, and vibration analysis. This cable is engineered to provide robust performance even in the most challenging industrial environments, such as high-vibration, high-temperature, or moisture-laden spaces.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-045-12-05 |
| Cable Type | 3300 XL Standard Extension Cable |
| Cable Length | 4.5 meters |
| Temperature Range | -40°C to +120°C (Operating) |
| Cable Insulation | High-quality thermoplastic elastomer |
| Weight | 0.153 kg |
| Conductors | 2 conductors (for 2-wire proximity probe connections) |
| Resistance | 100 MΩ @ 500 V DC |
| Connection Type | Compatible with Bently Nevada 3300 XL probes and systems |
| Environmental Protection | IP65 (Water-resistant) |
| Voltage Rating | 500 V DC |
| Certifications | CE, UL, RoHS |
| Compatibility | Works with all 3300 XL Proximity Probes from Bently Nevada |
Product Applications
The Bently Nevada 330130-045-12-05 3300 XL Standard Extension Cable is used in a wide range of industrial applications that require reliable vibration and displacement monitoring. Some of the key applications include:
-
Proximity Probe Extension: Extends the reach of Bently Nevada 3300 XL probes, enabling them to be placed in hard-to-reach areas while maintaining optimal signal quality.
-
Condition Monitoring: Provides connectivity between the proximity probe and the monitoring system, helping track the health of rotating machinery components like shafts, turbines, and motors.
-
Predictive Maintenance: Essential for use in systems where machinery components need continuous monitoring. The extension cable allows sensors to be positioned correctly for accurate measurements, which helps in early detection of failures.
-
Rotating Equipment Monitoring: Ideal for use in industrial plants where rotating equipment such as pumps, compressors, and turbines are monitored for vibration and displacement.
-
Power Generation: Commonly used in power plants to extend the probes to turbines, generators, and other critical machinery to monitor their performance and condition.
-
Oil & Gas Industry: In drilling rigs, compressors, and other equipment, the extension cable facilitates monitoring of machinery in remote or hard-to-reach locations.
-
Water Treatment Plants: Used to monitor critical pumps and motors in water treatment facilities, ensuring that they remain in optimal working condition.
-
Mining and Manufacturing: In mines and factories, the cable allows for continuous monitoring of equipment like crushers, conveyors, and mills.
Product Advantages
-
Flexible Installation: The 3300 XL extension cable offers flexible installation options, allowing proximity probes to be placed in difficult-to-reach areas without sacrificing performance or accuracy.
-
Reliable Signal Transmission: Designed for consistent and high-quality signal transmission over long distances, ensuring that there is no loss in data quality when connecting the probe to the monitoring system.
-
Durability and Protection: The cable is constructed with high-quality materials, offering protection against moisture, dust, and other environmental factors, making it suitable for use in harsh industrial environments.
-
Wide Temperature Range: With an operational temperature range of -40°C to +120°C, the cable is designed to function reliably even in extreme temperature conditions.
-
Compatibility: Fully compatible with all Bently Nevada 3300 XL proximity probes, ensuring seamless integration into existing monitoring systems.
-
Easy to Use: The standard extension cable is straightforward to install, allowing users to extend the proximity probes quickly and efficiently without complex setup.
-
Long Lifespan: Built to withstand continuous operation, this cable has a long service life and is resistant to wear and tear, reducing the need for frequent replacements.
-
Water and Dust Resistance: With an IP65 rating, the cable offers excellent protection against water and dust ingress, ensuring reliable performance in challenging environments.
-
High Voltage Rating: Rated for 500 V DC, the cable can be used in high-voltage applications without compromising safety or performance.
-
Cost-Efficient: The cable provides a cost-effective way to extend the functionality of proximity probes, enabling comprehensive monitoring of machinery without the need for more expensive alternative solutions.
Frequently Asked Questions (FAQ)
-
Q: What is the length of the Bently Nevada 330130-045-12-05 extension cable?
A: The extension cable is 4.5 meters in length. -
Q: What is the temperature range of the 3300 XL extension cable?
A: The cable operates within a temperature range of -40°C to +120°C. -
Q: How many conductors are in the 3300 XL extension cable?
A: The cable contains 2 conductors for connecting to a 2-wire proximity probe. -
Q: What type of environmental protection does the cable have?
A: The extension cable has an IP65 rating, meaning it is resistant to dust and water. -
Q: What is the outer diameter of the 3300 XL extension cable?
A: The outer diameter of the cable is approximately 10 mm. -
Q: What is the voltage rating for the 3300 XL extension cable?
A: The cable is rated for 500 V DC. -
Q: Is the 3300 XL extension cable compatible with all Bently Nevada proximity probes?
A: Yes, it is compatible with all 3300 XL Proximity Probes from Bently Nevada. -
Q: What is the weight of the extension cable?
A: The extension cable weighs 0.153 kg. -
Q: Can the 3300 XL extension cable be used in power generation plants?
A: Yes, it is commonly used in power generation plants to extend the reach of proximity probes for monitoring turbines and generators. -
Q: What materials are used for the insulation of the cable?
A: The cable uses high-quality thermoplastic elastomer for insulation, ensuring durability and flexibility.
Related Models and Variants
| Model Number | Description | Key Feature |
|---|---|---|
| 330130-045-12-10 | 3300 XL Extension Cable (10 meters) | Longer cable for larger installations |
| 330130-045-12-20 | 3300 XL Extension Cable (20 meters) | Extended length for remote equipment |
| 330130-045-12-50 | 3300 XL Extension Cable (50 meters) | Ideal for very large installations |
| 330130-045-12-03 | 3300 XL Extension Cable (3 meters) | Shorter cable for compact setups |
| 330130-045-12-06 | 3300 XL Extension Cable (6 meters) | Mid-length cable for standard setups |
| 330130-045-12-02 | 3300 XL Extension Cable (2 meters) | Short extension for tight spaces |
