Product Description

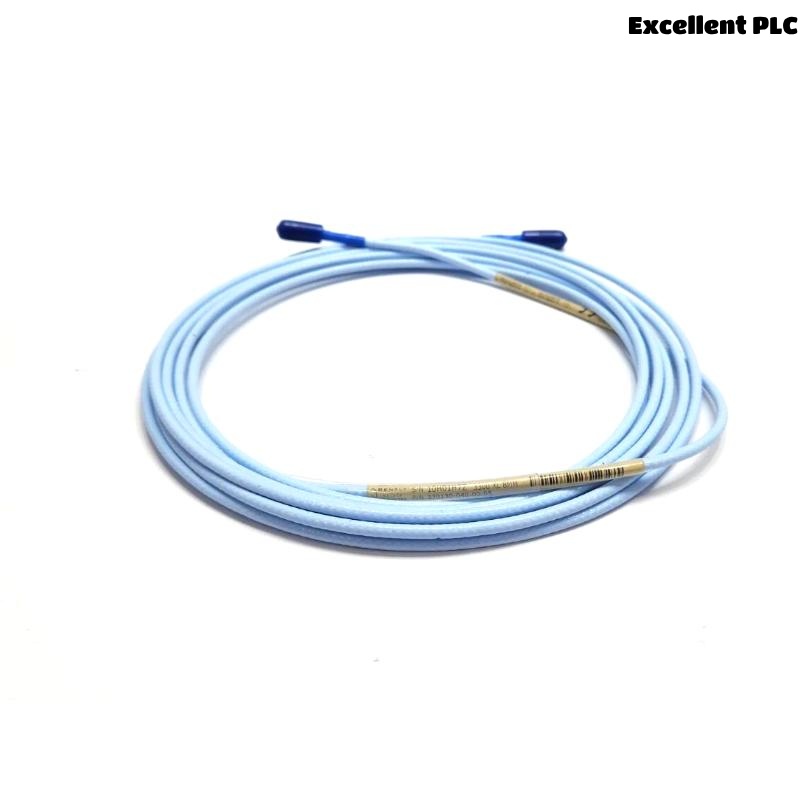

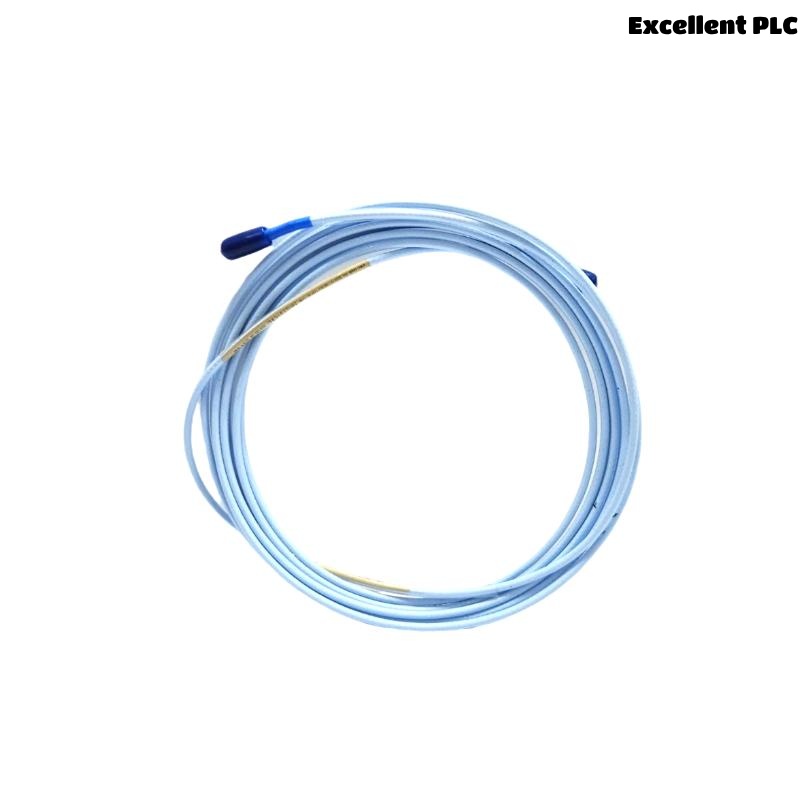

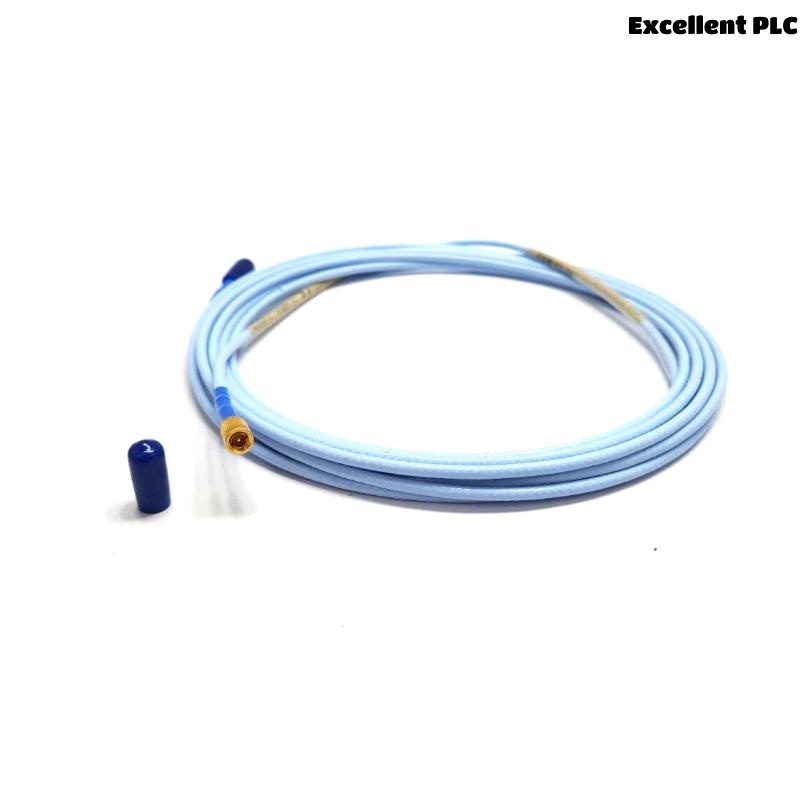

The Bently Nevada 330130-060-00-05 is a 6.0-meter standard extension cable used in the 3300 XL 8 mm Proximity Transducer System. This cable serves as a vital connection between the proximity probe and the Proximitor Sensor. Designed for superior mechanical durability, signal integrity, and environmental resistance, it ensures reliable performance in harsh industrial environments.
Product Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Position sensing for rotating machinery shafts
-
Condition monitoring of fluid-film bearing machines
-
Integration in Keyphasor systems for rotational speed referencing
-
Use in both panel and DIN rail Proximitor Sensor installations
Product Advantages
-

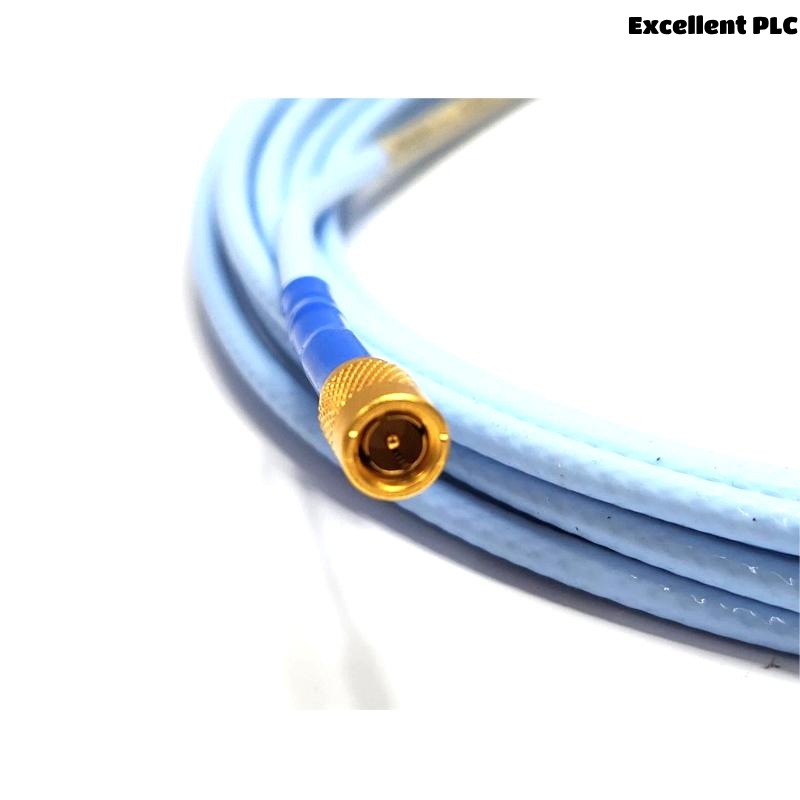

ClickLoc Connector: Gold-plated and corrosion-resistant, offering secure finger-tight installation
-
CableLoc Design: Enhanced tensile strength (330 N), preventing accidental detachment
-
Flexible Use: Compatible with standard and ETR systems, backward-compatible with non-XL components
-
FluidLoc Option: Prevents oil seepage into instrumentation
-
High EMI/RFI Immunity: No need for shielded conduit in typical installs
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Extension Cable |
| Model Number | 330130-060-00-05 |
| Cable Length | 6.0 meters |
| Weight | 0.204 kg |
| Capacitance | 69.9 pF/m typical |
| DC Resistance (RCORE ±0.21Ω) | 1.32 Ω |
| Outer Shield Resistance (RJACKET ±0.08Ω) | 0.39 Ω |
| Cable Insulation | FEP (Standard), Optional PFA (ETR) |
| Bend Radius | Minimum 25.4 mm (1.0 in) |
| Connector Material | Gold-plated brass or beryllium copper |
| Max Connector Torque | 0.565 N•m (5 in•lbf) |
| Operating Temperature (Standard) | -52°C to +177°C (-62°F to +350°F) |
| Operating Temp. (ETR Version) | Up to +260°C (+500°F) |
FAQ – Frequently Asked Questions
Q1: Is the 330130-060-00-05 compatible with older non-XL Bently systems?
Yes, it is electrically and physically backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q2: What is the recommended minimum bend radius of this cable?
The minimum permissible bend radius is 25.4 mm (1.0 inch).
Q3: Can the cable be used in high-temperature environments?
Yes, the standard version supports up to 177°C. The ETR version supports up to 260°C.
Q4: Does this model include a connector protector?
No, but versions with connector protectors are available separately or pre-installed.
Q5: What is the tensile strength of the cable’s connections?
The cable features 330 N (75 lbf) pull strength between the probe and cable.
Q6: Can this extension cable be used with the 3300 XL ETR Probes?
Yes, it is compatible with ETR probes but will default to the ETR system’s accuracy specification.
Q7: Is any special tool required to install the ClickLoc connector?
No tools are required. The connectors are designed for finger-tight installation.
Q8: What materials are used for the cable insulation?
Standard version uses FEP, and ETR version uses high-temperature PFA insulation.
Q9: How is signal quality preserved over 6 meters?
Low resistance and shielding maintain signal integrity; capacitance is kept low at 69.9 pF/m.
Q10: Is this extension cable RoHS and CE compliant?
Yes, it complies with RoHS Directive 2011/65/EU and EMC Directive 2014/30/EU.
Related Models (Same Series or Compatible)
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330130-030-00-00 | Standard Extension Cable | 3.0 m | 0.102 kg |
| 330130-045-00-00 | Standard Extension Cable | 4.5 m | 0.153 kg |
| 330130-070-00-00 | Standard Extension Cable | 7.0 m | 0.238 kg |
| 330130-085-00-00 | Standard Extension Cable | 8.5 m | 0.289 kg |
| 330130-060-01-00 | Armored Extension Cable | 6.0 m | 0.618 kg |
| 330190-060-00-00 | ETR Extension Cable (High Temp) | 6.0 m | 0.204 kg |
Popular Bently Nevada Models
| Model Number | Description | Application Type | Weight |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Shaft Vibration | 0.132 kg |
| 330180-91-00 | Proximitor Sensor (9 m system, DIN mount) | Panel/DIN Mount | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 0.45 kg |
| 3500/22M | Transient Data Interface | System Interface | 0.4 kg |
| 3500/20 | Rack Interface Module | Data Communication | 0.5 kg |
| 3500/15 | Power Supply Module | System Power | 0.9 kg |
