Product Introduction

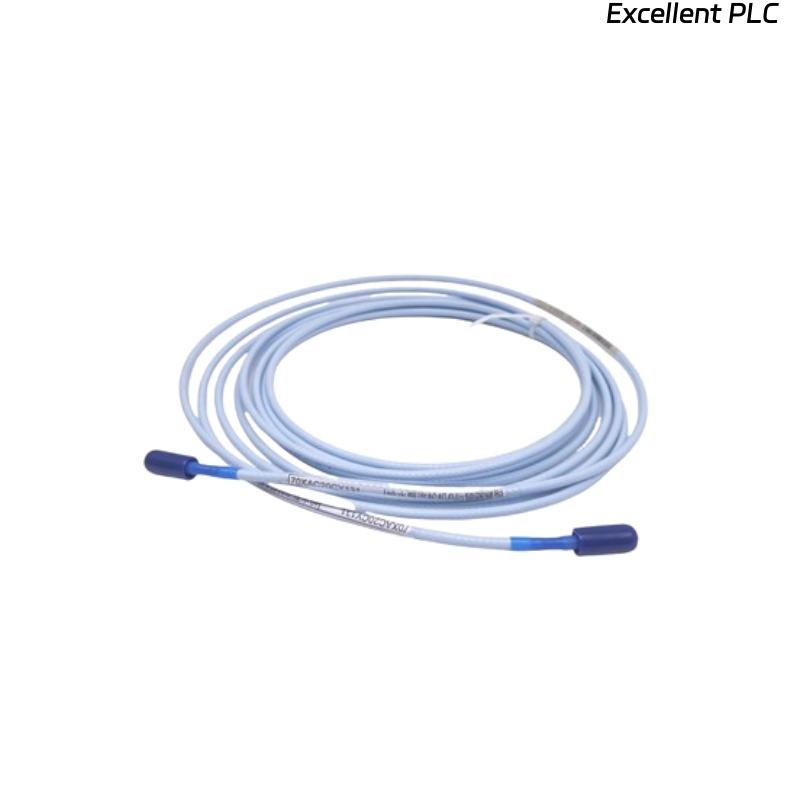

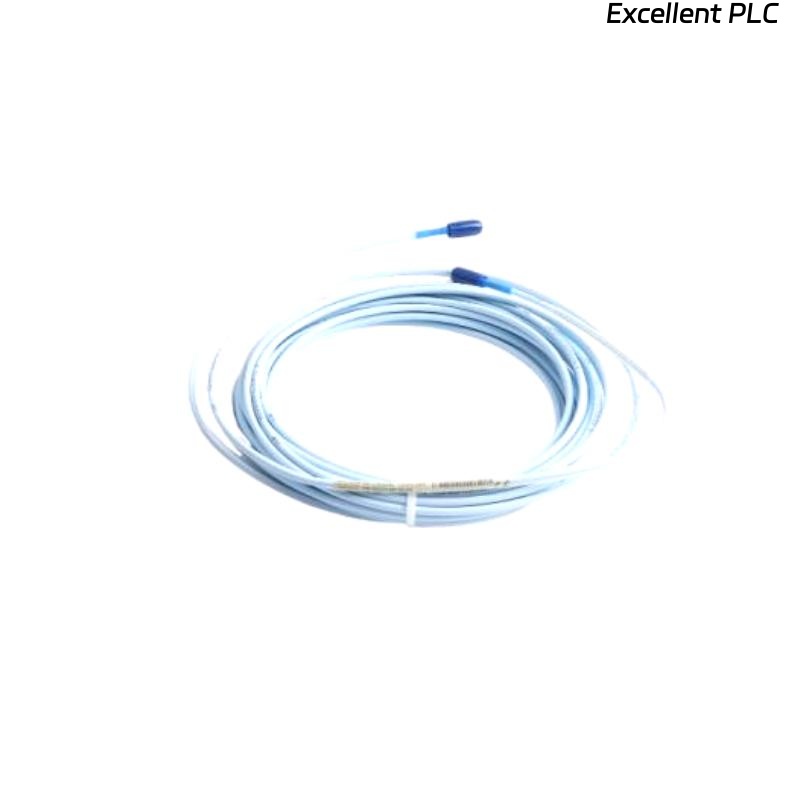

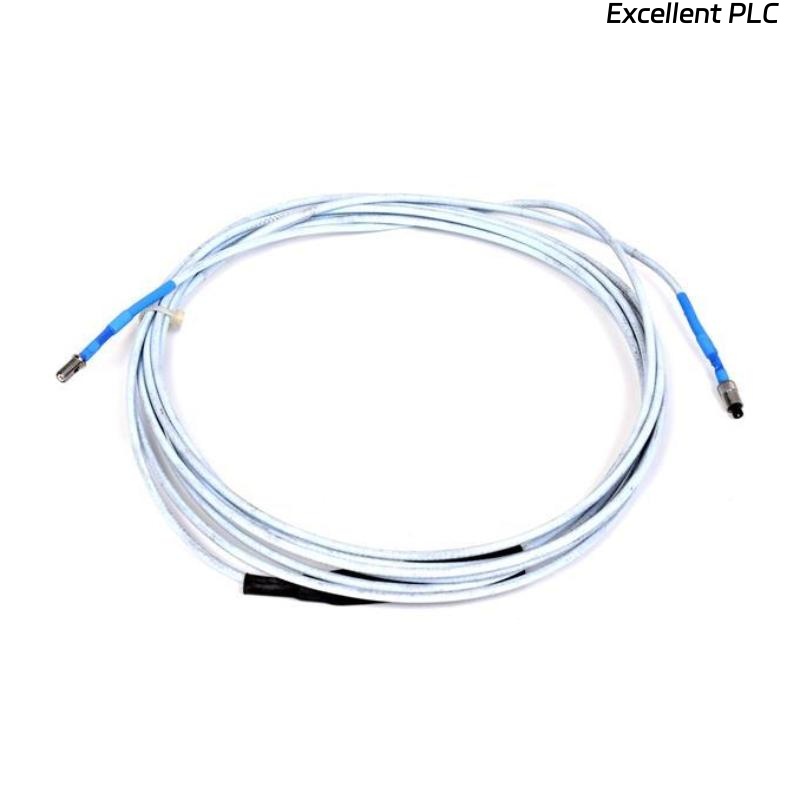

The Bently Nevada 330130-060-01-00 3300 XL Standard Extension Cord is designed as a high-quality extension solution for the 3300 XL Machinery Protection System. This extension cord ensures reliable signal transmission between proximity probes and the monitoring system, maintaining the integrity of vibration and position measurements critical for industrial machinery monitoring. It is manufactured with precision to provide excellent electrical shielding, flexibility, and environmental resistance, making it suitable for demanding industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-060-01-00 |
| System Compatibility | 3300 XL Machinery Protection System |
| Total Length | 6 m |
| Weight | 0.204 kg |
| Connector Type | M12 / Standard Bently connectors |
| Cable Type | Shielded twisted pair |
| Operating Temperature | -40°C to 85°C |
| Insulation Material | PVC / TPE |
| Voltage Rating | 30 V DC nominal |
| Environmental Rating | IP67 |
Product Applications
-
Extension of Bently Nevada 3300 XL proximity probes for machinery vibration monitoring.
-
Industrial rotating equipment such as turbines, motors, compressors, and generators.
-
Use in high-reliability monitoring systems for condition-based maintenance.
-
Critical environments requiring low-noise, shielded signal transmission.
-
Ideal for retrofitting or extending existing 3300 XL system installations.
Product Advantages
-
Reliable Signal Transmission: Maintains accuracy of vibration and displacement readings over extended distances.
-
Durable Construction: High-quality shielding and insulation resist industrial contaminants and mechanical stress.
-
Flexible Installation: Lightweight and flexible for easy routing around complex machinery layouts.
-
Compatibility: Fully compatible with the 3300 XL system, ensuring plug-and-play integration.
-
Environmental Resistance: Rated for harsh industrial conditions with resistance to moisture, oil, and temperature variations.
-
Cost-Effective Maintenance: Reduces downtime by providing a reliable extension option without needing full system reconfiguration.
FAQ
Q1: Can this extension cord be used with any Bently Nevada system?
A1: It is specifically designed for the 3300 XL system and may not be compatible with older or different Bently systems.
Q2: What is the maximum distance over which this cord can reliably transmit signals?
A2: The cord is designed for reliable signal transmission up to its total length of 6 meters. Longer runs may require signal amplification or additional cabling considerations.
Q3: Is the cable shielded to prevent electromagnetic interference?
A3: Yes, the 330130-060-01-00 features a fully shielded twisted pair design to minimize noise and EMI.
Q4: What connector types are used on this cord?
A4: Standard 3300 XL system connectors, including M12 style, are used for plug-and-play integration.
Q5: Can this extension cord be used in outdoor applications?
A5: Yes, it has an IP67 rating and can withstand moisture, dust, and typical outdoor conditions.
Q6: What temperature ranges can this cable operate in?
A6: The operating range is -40°C to 85°C.
Q7: Is this cable compatible with both single and dual probe setups?
A7: Yes, it supports the standard 3300 XL single and dual probe configurations.
Q8: How resistant is the cord to chemicals or oils in industrial settings?
A8: The PVC/TPE insulation provides high resistance to oils, greases, and common industrial chemicals.
Q9: Can multiple extension cords be connected in series?
A9: It is recommended to avoid daisy-chaining multiple extensions beyond the system specifications to prevent signal degradation.
Q10: Does the cord support high-frequency vibration signals?
A10: Yes, the cord maintains signal fidelity suitable for the high-frequency range used in 3300 XL monitoring applications.
