Product Overview

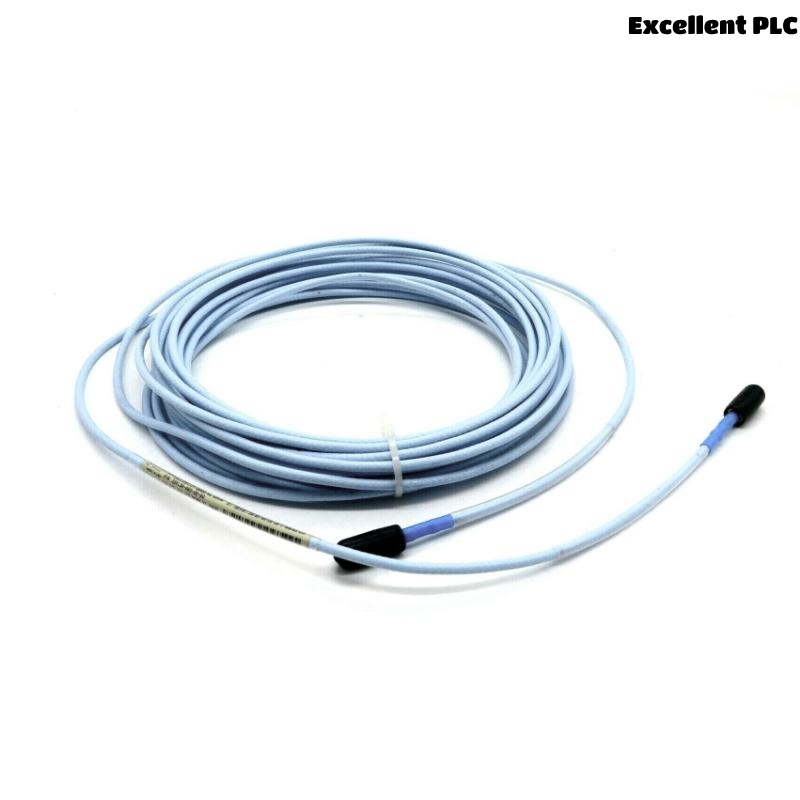

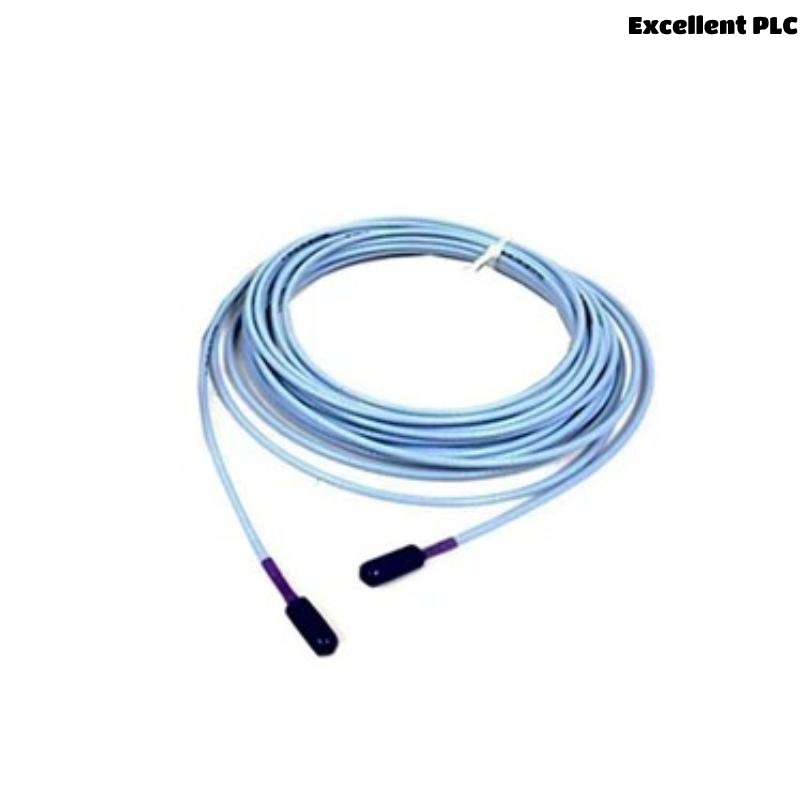

The Bently Nevada 330130-070-00-00 3300 XL Standard Extension Cord is a factory-engineered cable designed for use in conjunction with the 3300 XL series proximity transducer systems. This high-performance extension cord provides a durable and reliable electrical connection between the proximity probe and the proximitor sensor, forming a critical part of Bently Nevada’s non-contact vibration monitoring and shaft position measurement system.
Manufactured to strict specifications, the 330130-070-00-00 is designed for maximum signal integrity, noise immunity, and long-term stability even in extreme industrial environments. With its 7-meter (approximately 23 feet) length, it is ideal for applications where standard spacing between probe and sensor is required. It supports accurate signal transmission across turbines, compressors, pumps, motors, and other rotating machinery.
Key Features
-
Precise Length: Fixed 7-meter (23 feet) length, eliminating guesswork and ensuring consistent installations.
-
Rugged Construction: Built with industrial-grade insulation and shielding to protect against mechanical damage, electrical interference, and environmental factors.
-
Excellent Signal Integrity: Maintains accurate signal transmission between the probe and proximitor sensor across long distances.
-
Plug-and-Play Compatibility: Fully compatible with Bently Nevada 3300 XL proximity probes and proximitor sensors.
-
Color-Coded Connectors: Ensures error-free installation and maintenance with color-matched and key-aligned connectors.
-
Temperature Resistant: Designed to operate reliably in harsh thermal conditions typical of heavy industry.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330130-070-00-00 |
| Cable Length | 7 meters (23 feet) |
| Cable Type | Coaxial, low-noise, shielded |
| Connector Type | BNC-style connectors, factory-installed |
| Compatible Systems | Bently Nevada 3300 XL Proximity Transducer Systems |
| Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Bend Radius | Minimum 25.4 mm (1.0 inch) |
| Outer Jacket Material | FEP (Fluorinated Ethylene Propylene) |
| Insulation Resistance | >10 GΩ @ 500 VDC |
| Weight | 0.238kg |
| Dimensions | Cable Length: 7.0 meters |
| Color Code | Blue (3300 XL Series Standard) |
Industry Applications
The 330130-070-00-00 extension cord is essential for a wide range of industries where proximity measurement and vibration monitoring are critical to operational reliability:
-
Oil & Gas: Used in compressors, turbines, and pumps for condition monitoring in refineries and pipelines.
-
Power Generation: Installed in steam and gas turbines for shaft displacement and vibration measurements.
-
Chemical Processing: Supports safe and efficient operation of critical rotating equipment.
-
Marine & Shipping: Ensures reliability of propulsion and auxiliary equipment.
-
Mining & Minerals: Used in crushers and mill equipment for health monitoring.
-
Manufacturing: Provides equipment protection for motors and rotating machines.
Product Advantages
-
High Reliability: Factory-assembled, tested, and certified for use with 3300 XL series, ensuring maximum reliability.
-
Signal Accuracy: Prevents signal degradation and interference for precise vibration and position readings.
-
Thermal Endurance: Rated for high temperatures, suitable for harsh industrial environments.
-
Ease of Installation: Color-coded and keyed connectors reduce human error and speed up field installation.
-
Mechanical Durability: Resistant to oil, chemicals, abrasions, and physical damage.
-
Maintenance Friendly: Plug-and-play architecture facilitates quick replacements without requiring recalibration.
Frequently Asked Questions (FAQ)
-
What is the primary use of the 330130-070-00-00 extension cord?
It is used to connect a Bently Nevada 3300 XL proximity probe to a proximitor sensor in vibration monitoring systems. -
Is the cable length customizable?
This specific model is fixed at 7 meters; however, other lengths are available under different part numbers. -
Can this extension cord be used outdoors?
Yes, it is designed with durable materials suitable for outdoor and industrial environments. -
What is the temperature rating of the cable?
It operates from -51°C to +177°C, making it suitable for high-temperature environments. -
Is it compatible with non-3300 XL systems?
No, this cable is designed specifically for the 3300 XL system and may not be compatible with older or different systems. -
Does the cable require special tools for installation?
No, it comes with factory-installed connectors that do not require any additional tools for standard installations. -
Can the cable be reused after removal?
Yes, provided the cable and connectors are undamaged and meet insulation resistance specifications. -
What happens if the cable is bent beyond its radius?
Bending beyond the minimum radius can damage the cable and degrade signal quality or cause failure. -
Is the cable shielded against EMI/RFI?
Yes, it includes a braided shield for excellent protection against electromagnetic and radio frequency interference. -
What is the significance of the blue color?
The blue jacket indicates standard configuration within the 3300 XL product family, aiding quick field identification.
Recommended Related Models
| Model Number | Description |
|---|---|
| 330130-040-00-00 | 3300 XL Extension Cord, 4 meters |
| 330130-085-00-00 | 3300 XL Extension Cord, 8.5 meters |
| 330130-XXX-00-00 | Custom-length 3300 XL Extension Cord |
| 330180-90-00 | 3300 XL Probe Cable |
| 330106-05-30-10-02-00 | 3300 XL Proximity Probe, 5m cable |
| 3300 XL 8mm | Standard 8mm Proximity Transducer System |
