Description

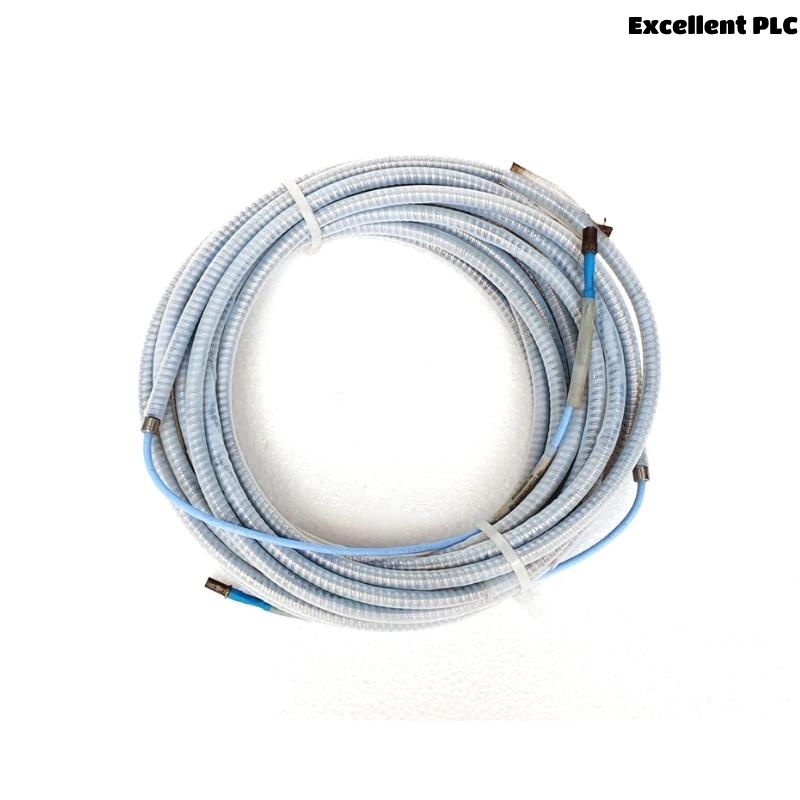

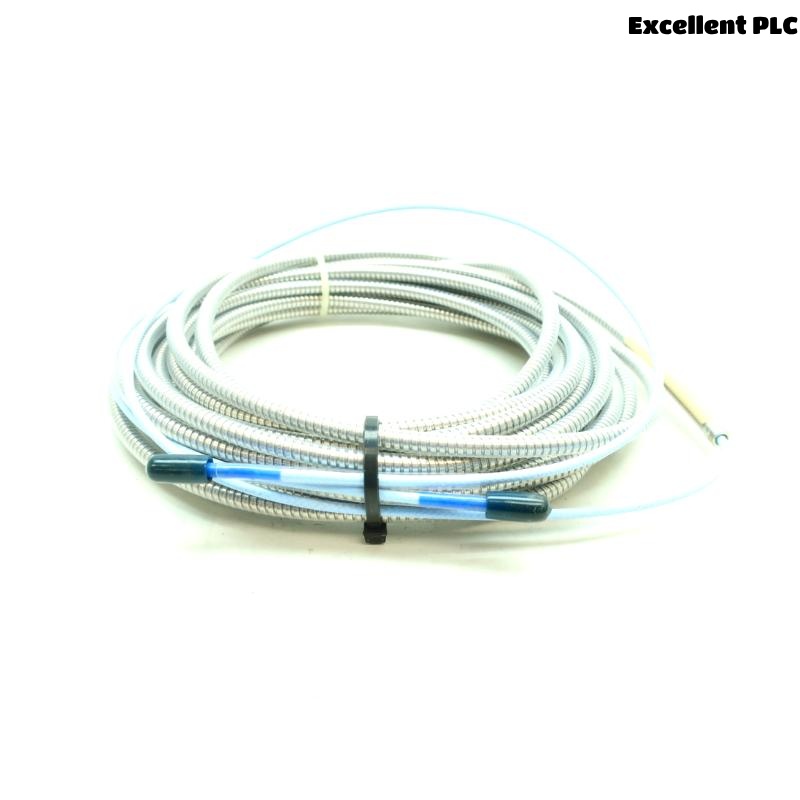

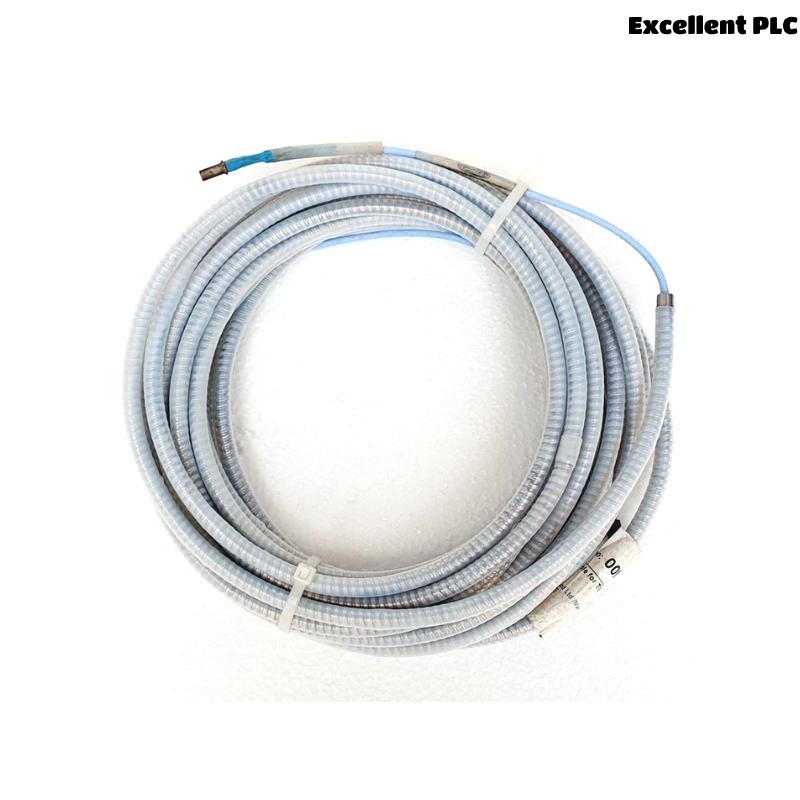

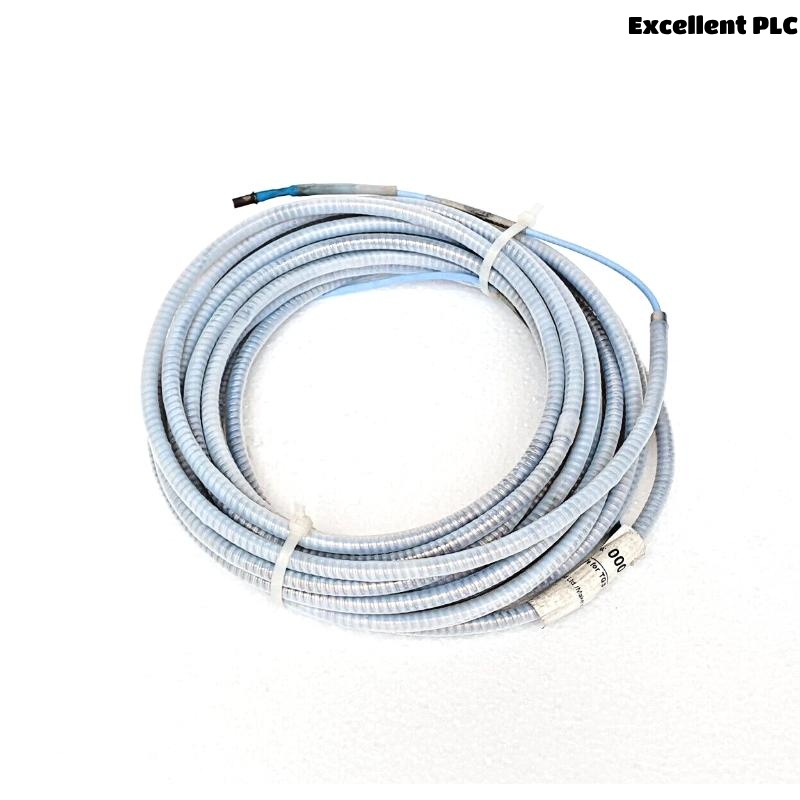

The Bently Nevada 330130-070-01-05 is a 7.0-meter standard extension cable designed for the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor Sensor, enabling accurate vibration and position monitoring in fluid-film bearing machines. It uses ClickLoc connectors for secure, tool-free installation and supports robust performance in industrial environments.
Applications
-
Vibration monitoring on rotating machinery
-
Shaft position detection
-
Overspeed and Keyphasor reference measurements
-
Turbine, compressor, and pump health monitoring
-
Integration in hazardous or high-temperature environments
Advantages
-
Interchangeable Design: Fully compatible with all 3300 XL components
-
Reliable Connection: Gold-plated ClickLoc connectors ensure durability and easy handling
-
Environmental Resistance: Optional armored or FluidLoc versions available
-
High Performance: Maintains signal integrity across long cable runs
-
Flexible Mounting: Supports panel or DIN-rail configurations
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330130-070-01-05 |
| Cable Type | 75Ω triaxial FEP insulated |
| Length | 7.0 meters |
| Weight | 0.721 kg |
| Capacitance | 69.9 pF/m (typical) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Resistance (Core) | 1.54 ± 0.23 Ω |
| Resistance (Jacket) | 0.46 ± 0.09 Ω |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature Range | -52°C to +177°C (standard cable) |
| Cable Material | Fluoroethylene Propylene (FEP) |
| Optional Features | Armored, FluidLoc, Connector Protector |
FAQ – Frequently Asked Questions
Q1: What is the function of the 330130-070-01-05 cable?
A1: It links the proximity probe to the Proximitor Sensor in Bently Nevada’s 3300 XL system.
Q2: Can this extension cable be used with high-temperature probes?
A2: Yes, but the standard cable supports up to +177°C. For higher temperatures, use the ETR version.
Q3: What makes the ClickLoc connector unique?
A3: It offers secure, tool-free, finger-tight installation with a locking click sound.
Q4: Is the cable backward compatible?
A4: Yes, with non-XL 3300-series 5 mm and 8 mm components.
Q5: Does the cable require calibration with the probe?
A5: No. All components in the 3300 XL system are fully interchangeable.
Q6: What environments is this cable suitable for?
A6: It supports harsh and hazardous environments with optional armor and fluid seals.
Q7: What is the typical use case?
A7: Monitoring vibration and shaft position in rotating machinery like turbines and compressors.
Q8: Can this cable be field-installed with a connector protector?
A8: Yes, protectors can be installed in the field or ordered pre-installed.
Q9: What is the cable’s bending limitation?
A9: Minimum bend radius is 25.4 mm to maintain signal integrity.
Q10: How is this cable different from ETR cables?
A10: ETR cables have PFA insulation for higher temperature tolerance (up to +260°C).
Related Models (Same Series)
| Model Number | Cable Length | Cable Type | Weight (approx.) |
|---|---|---|---|
| 330130-060-01-05 | 6.0 m | Standard FEP | 0.618 kg |
| 330130-075-01-05 | 7.5 m | Standard FEP | 0.773 kg |
| 330130-080-01-05 | 8.0 m | Standard FEP | 0.825 kg |
| 330130-070-11-05 | 7.0 m | Armored FluidLoc | ~1.236 kg |
| 330190-070-01-05 | 7.0 m | Extended Temp (PFA) | ~0.740 kg |
| 330130-070-03-05 | 7.0 m | Armored w/ connector | ~1.014 kg |
Popular Models from Bently Nevada
| Model Number | Description | Application |
|---|---|---|
| 3300 XL 8mm Probe | 330101-00-08-10-02-05 | Standard proximity probe |
| 330180-91-05 | 3300 XL Proximitor Sensor, 9 m, DIN mount | Sensor for vibration systems |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Machinery condition monitoring |
| 3500/22M-01-01 | Transient Data Interface Module | Data acquisition |
| 3500/20-01-00-00 | Rack Power Supply Module | Power supply for 3500 racks |
| 330106-05-30-10-02-00 | Reverse Mount Probe, 9 m, M10 Thread | Compact probe for tight spaces |
