Product Description

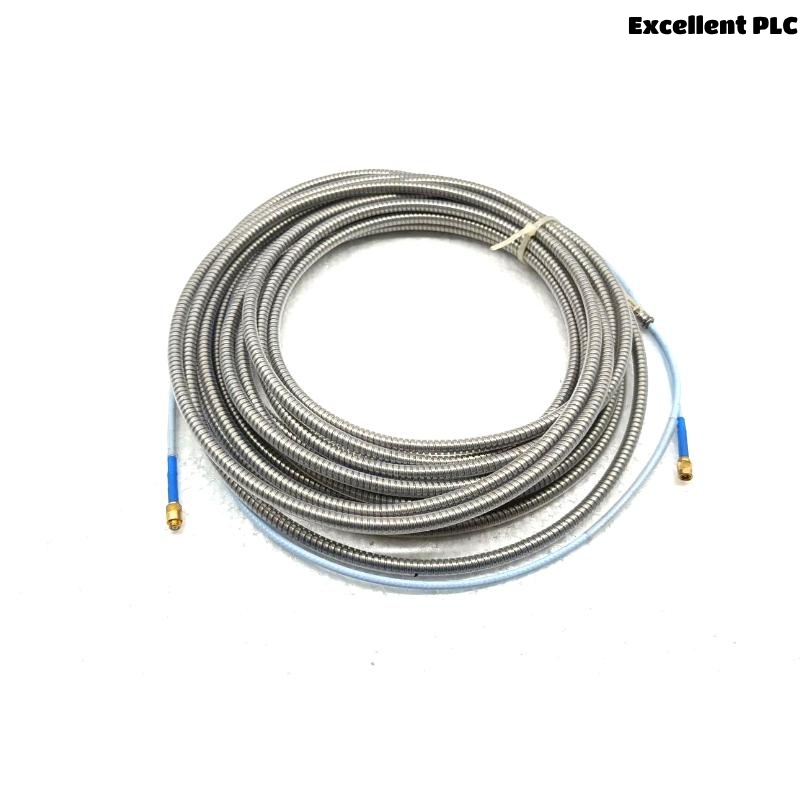

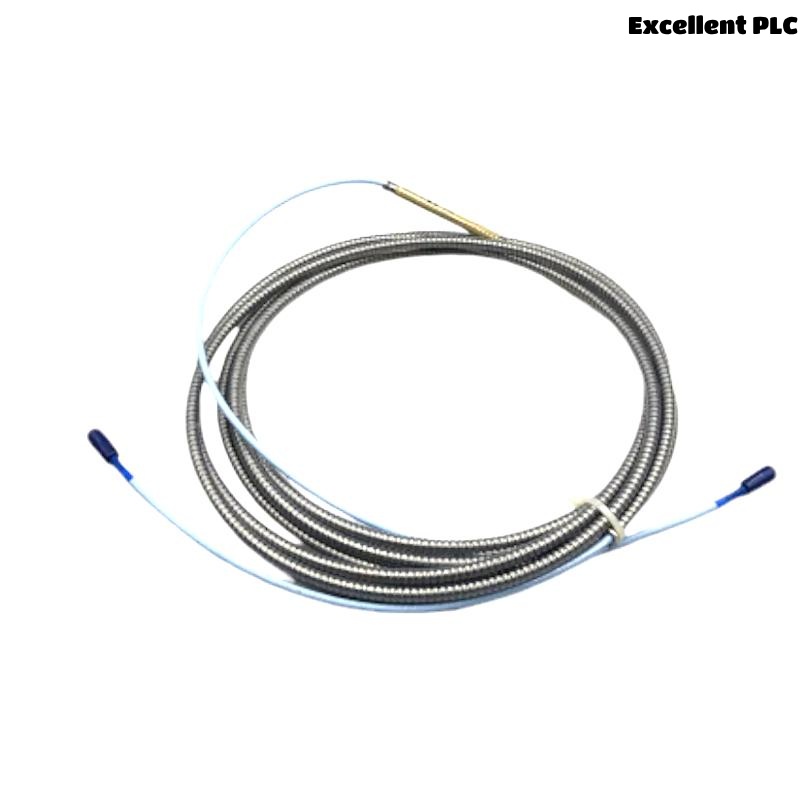

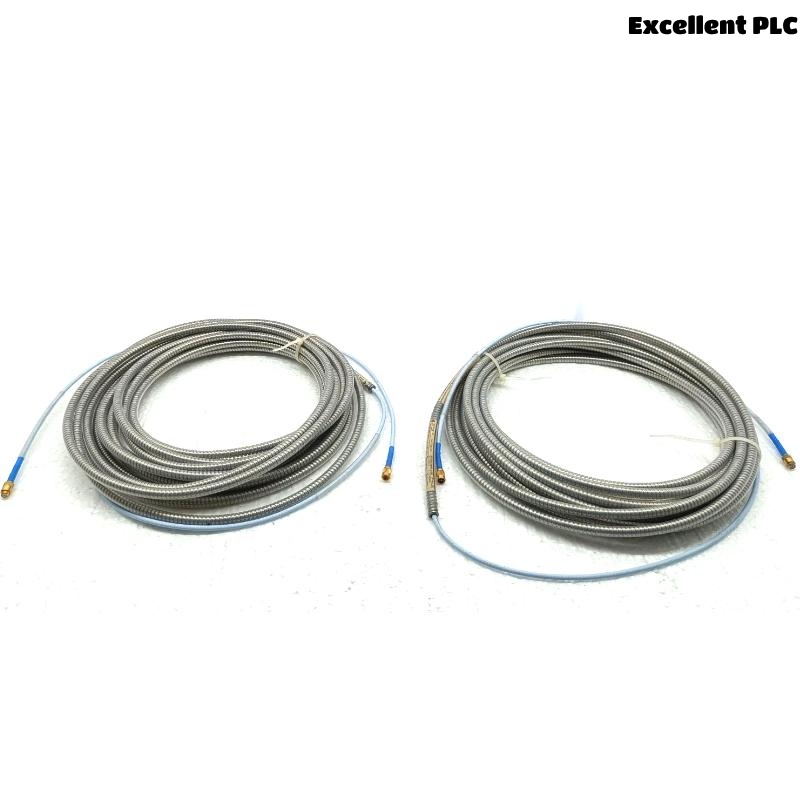

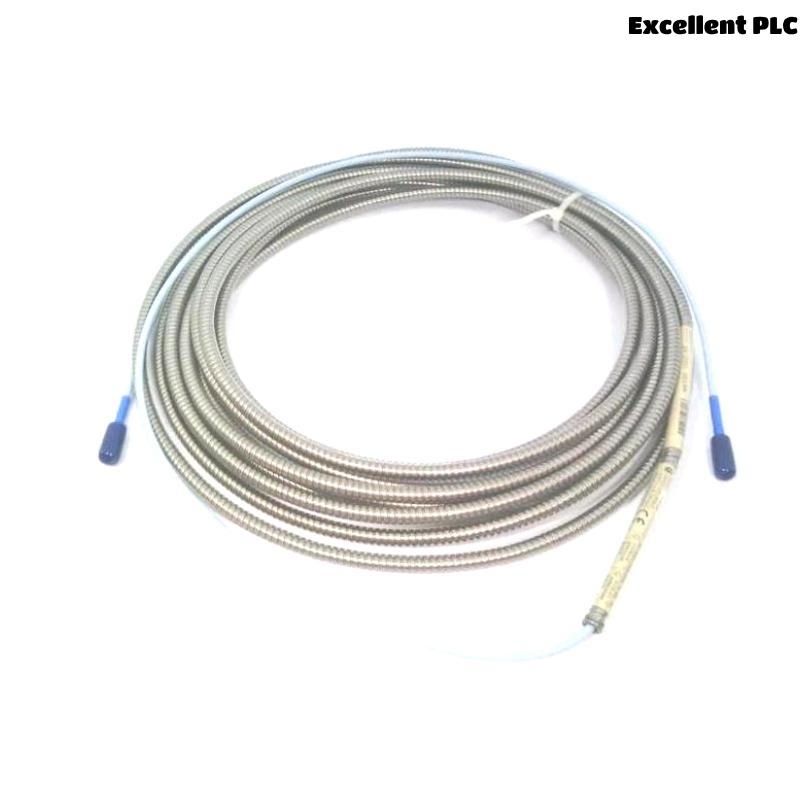

The Bently Nevada 330130-075-03-00 is a 7.5-meter standard extension cable used in the 3300 XL 8 mm Proximity Transducer System. It serves as the connection between the proximity probe and the Proximitor sensor, transmitting dynamic vibration and static position signals accurately. Designed for demanding industrial environments, this extension cable provides reliable mechanical durability and electrical performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Standard Extension Cable |
| Model Number | 330130-075-03-00 |
| Cable Length | 7.5 meters |
| Weight | 0.255 kg |
| Cable Type | 75Ω triaxial FEP insulated |
| Capacitance | 69.9 pF/m |
| Connector Type | Gold-plated ClickLoc (finger-tight) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Jacket Resistance (7.5 m) | 0.49 ± 0.10 Ω |
| Core Resistance (7.5 m) | 1.65 ± 0.25 Ω |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
Product Applications
-
Industrial Machinery Monitoring
-
Turbine Vibration Measurement
-
Axial/Radial Position Detection
-
Fluid-Film Bearing Equipment
-
Rotating Shaft Monitoring
-
Keyphasor or Overspeed Signal Transmission
Product Advantages
-
Rugged Design: High tensile strength with CableLoc and TipLoc enhancements.
-
ClickLoc Connector: Secure, tool-free installation with a tactile locking click.
-
Reliable Signal Quality: Low resistance and low capacitance ensure signal integrity.
-
Flexible Configuration: Compatible with both standard and extended temperature probes.
-
Interchangeability: Backward-compatible with non-XL series.
-
Environmental Protection: Optional connector protectors and fluid-resistant options.
Frequently Asked Questions (FAQ)
Q1: What is the total length of this extension cable?
A1: The model 330130-075-03-00 has a length of 7.5 meters.
Q2: Is this cable compatible with older 3300 series systems?
A2: Yes, it is backward-compatible with 3300 5 mm and 8 mm series components.
Q3: What type of connector is used?
A3: It uses a gold-plated ClickLoc connector that requires only finger-tightening.
Q4: Can this cable handle high temperatures?
A4: Yes, it supports up to +177°C for standard cables.
Q5: Does it come armored?
A5: No, model 330130-075-03-00 is standard (non-armored). For armored, select a different configuration.
Q6: Can this be used with the ETR probe?
A6: Yes, it is compatible with the ETR probe but limits system accuracy to ETR standards.
Q7: What installation tools are required?
A7: No tools are needed for the ClickLoc connectors—just finger-tight installation.
Q8: Does it include connector protectors?
A8: Not by default; however, versions with protectors are available.
Q9: Is it suitable for outdoor or harsh environments?
A9: Yes, especially when used with connector protectors for added environmental resistance.
Q10: How much does it weigh?
A10: The total weight is approximately 0.255 kg.
Related Models in the Same Series
| Model Number | Cable Length | Cable Type | Weight |
|---|---|---|---|
| 330130-060-00-00 | 6.0 m | Standard | ~0.204 kg |
| 330130-070-00-00 | 7.0 m | Standard | ~0.238 kg |
| 330130-080-00-00 | 8.0 m | Standard | ~0.272 kg |
| 330130-075-02-00 | 7.5 m | With Connector Protector | ~0.255 kg |
| 330130-075-01-00 | 7.5 m | Armored Cable | ~0.77 kg |
| 330130-075-12-00 | 7.5 m | FluidLoc + Connector Protector | ~0.255 kg |
