Product Introduction

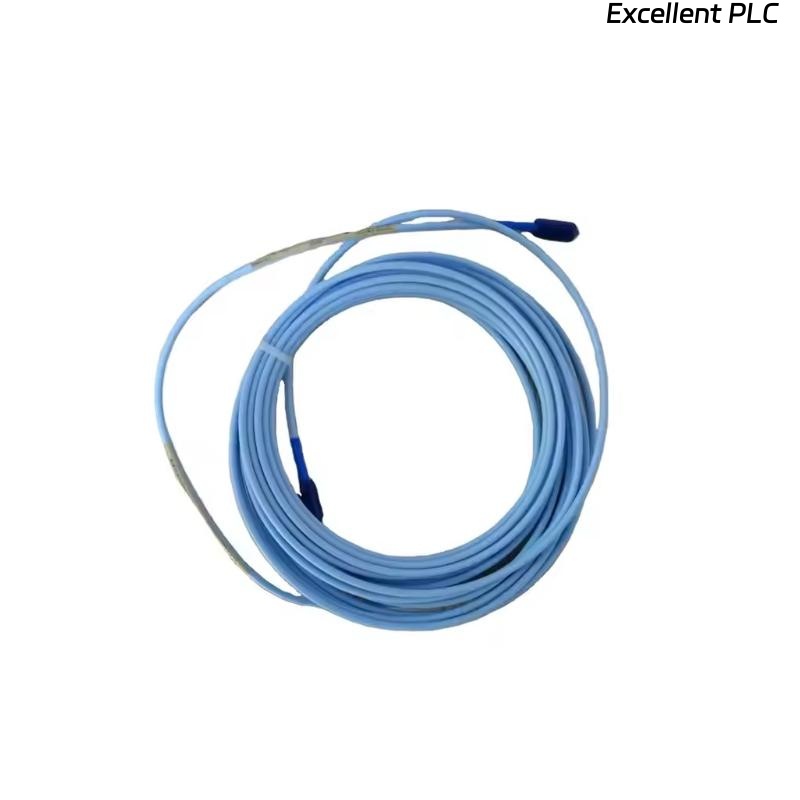

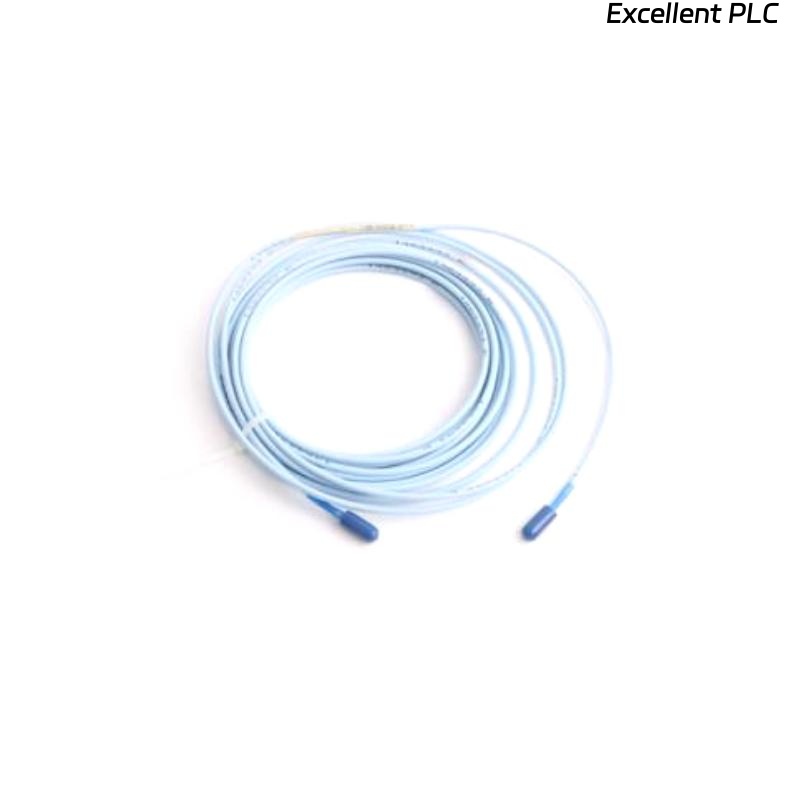

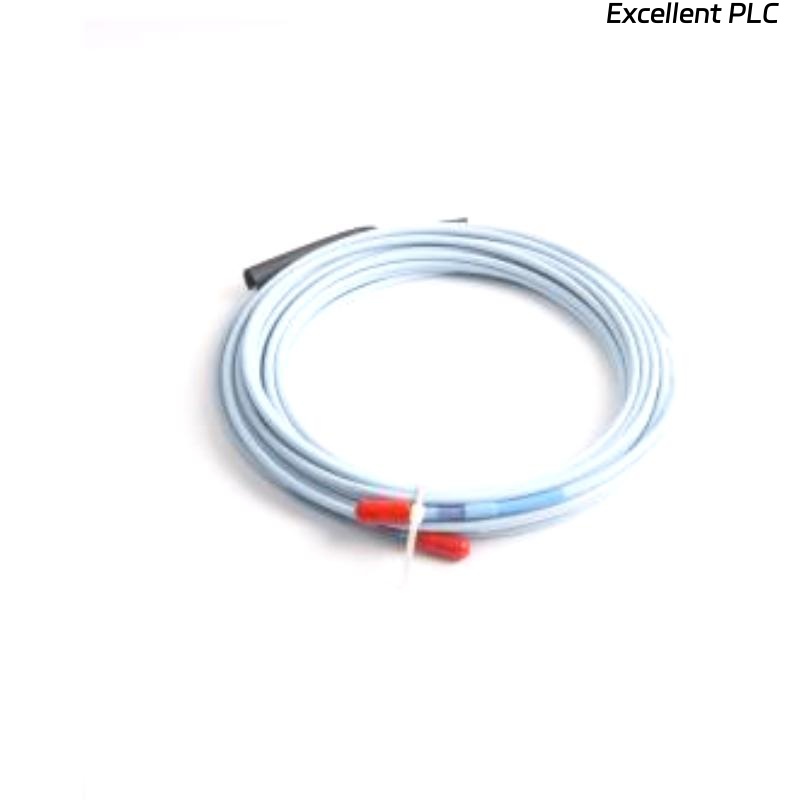

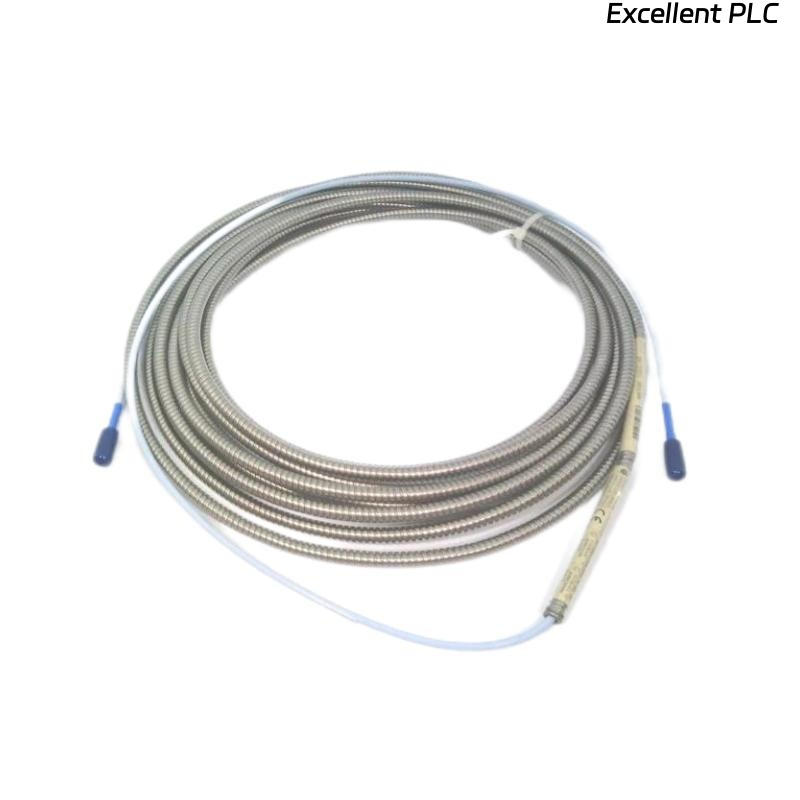

The Bently Nevada 330130-075-03-05 3300 XL Standard Extension Cord is a high-quality extension cable designed for use with the 3300 XL vibration monitoring system. It provides reliable signal transmission and ensures accurate sensor data collection over extended distances. Engineered to meet industrial standards, this extension cord supports continuous monitoring of critical machinery, enabling predictive maintenance and minimizing unplanned downtime.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330130-075-03-05 |
| System Compatibility | 3300 XL Vibration Monitoring System |
| Connector Type | Standard 3300 XL connector |
| Total Length | 7.5 m |
| Weight | 0.255 kg |
| Cable Type | Shielded, flexible industrial cable |
| Operating Temperature | -40°C to 85°C |
| Insulation Material | High-grade PVC |
| Signal Integrity | Maintains low-noise analog signal |
| Environmental Rating | IP65 (dust and water resistant) |
Product Applications
-
Extending the connection distance between 3300 XL sensors and monitoring modules
-
Industrial machinery vibration monitoring and diagnostics
-
Predictive maintenance programs in turbines, compressors, and generators
-
Rotating equipment monitoring in oil & gas, power generation, and manufacturing plants
-
Data acquisition in harsh industrial environments
-
Remote sensor installations where signal integrity is critical
Product Advantages
-
Reliable Signal Transmission: Shielded cable design minimizes electrical noise and interference.
-
Durable Construction: High-quality materials ensure resilience in industrial environments.
-
Easy Installation: Standardized connectors allow quick plug-and-play setup.
-
Extended Reach: 7.5 m length enables flexible sensor placement.
-
Compatibility: Fully compatible with the 3300 XL vibration monitoring system.
-
Environmental Protection: Designed to withstand dust, moisture, and temperature extremes.
-
Lightweight: At only 0.255 kg, the cord is easy to handle and route without strain.
FAQ
Q1: What type of signals does this extension cord support?
A1: It supports analog vibration signals used by 3300 XL proximity and velocity probes.
Q2: Can this cord be used in high EMI environments?
A2: Yes, the shielded cable minimizes electromagnetic interference to maintain signal integrity.
Q3: Is this extension cord compatible with non-3300 XL sensors?
A3: It is designed specifically for the 3300 XL system; compatibility with other sensors is not guaranteed.
Q4: What is the maximum allowable distance using this cord in a daisy-chain configuration?
A4: The maximum distance depends on the sensor type and signal requirements; consult Bently Nevada guidelines for multi-cord connections.
Q5: Can the cord operate in extreme temperatures?
A5: Yes, it is rated for -40°C to 85°C operating temperature.
Q6: How resistant is the cord to industrial fluids?
A6: The PVC insulation provides good resistance to oils, hydraulic fluids, and mild chemicals.
Q7: Does the cord provide grounding for the sensor?
A7: Yes, the shielded design maintains proper grounding and reduces electrical noise.
Q8: Is there a recommended bend radius for installation?
A8: Yes, to prevent damage, a minimum bend radius of 5 times the cable diameter is recommended.
Q9: Can this cord be installed outdoors?
A9: Yes, it is rated IP65, offering protection against dust and water ingress.
Q10: How does the cord affect measurement accuracy?
A10: When properly installed, it does not degrade measurement accuracy and preserves signal quality over the 7.5 m length.
Related Models
| Model Number | Description |
|---|---|
| 330130-030-01-05 | 3 m Standard Extension Cord |
| 330130-050-01-05 | 5 m Standard Extension Cord |
| 330130-075-01-05 | 7.5 m Standard Extension Cord (alternate) |
| 330130-100-01-05 | 10 m Standard Extension Cord |
| 330130-150-01-05 | 15 m Standard Extension Cord |
| 330130-200-01-05 | 20 m Standard Extension Cord |
