Product Overview

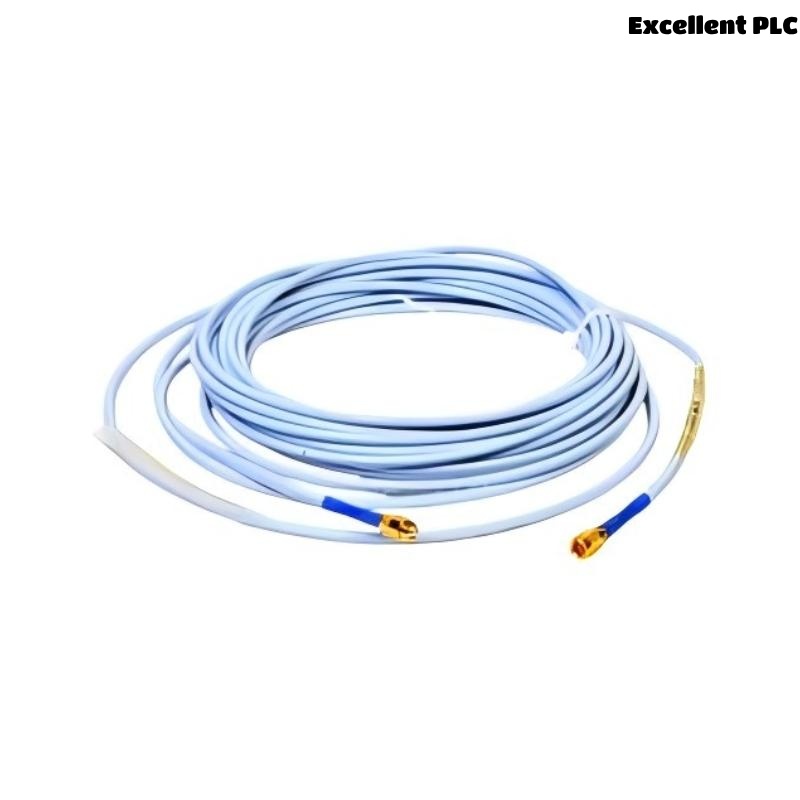

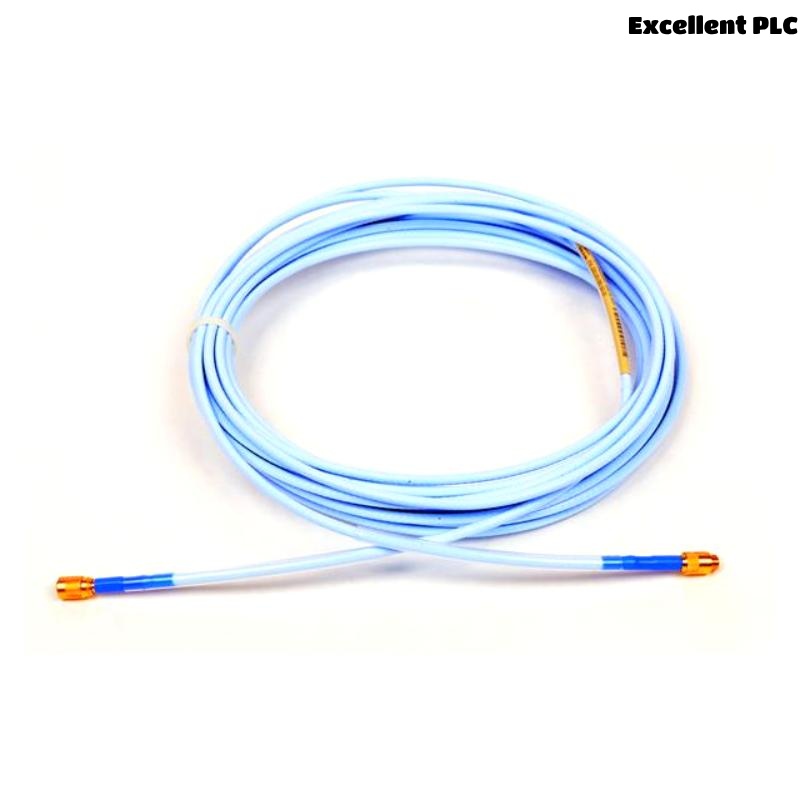

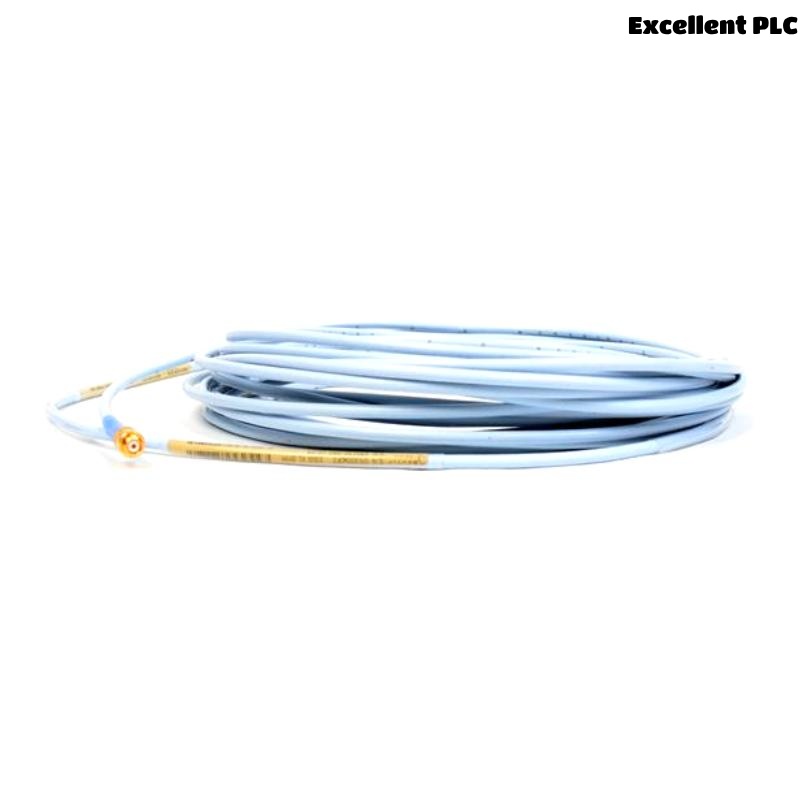

The Bently Nevada 330130-080-00-00 is a standard extension cable used as part of the 3300 XL 8 mm Proximity Transducer System. It is engineered for use with non-contacting proximity probes and Proximitor sensors, enabling precise vibration and position monitoring in critical rotating machinery. This specific model has a cable length of 8.0 meters.
Applications
-
Vibration and position monitoring in turbines, compressors, pumps, and motors
-
Shaft speed and Keyphasor measurements
-
Use in hazardous environments with ATEX, CSA, and IECEx compliance
-
Integration in condition monitoring systems for predictive maintenance
Product Advantages
-
Reliable Interchangeability: Fully compatible with all 3300 XL and legacy 3300 8 mm/5 mm systems
-
High Mechanical Strength: Patented CableLoc and connector design with 330 N (75 lbf) pull strength
-
Enhanced Environmental Protection: Optional FluidLoc to prevent oil migration
-
User-Friendly Connectors: Gold-plated ClickLoc connectors with finger-tight locking
-
Durable Design: Resistant to high temperature, pressure, and electromagnetic interference
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330130-080-00-00 |
| Product Type | Standard Extension Cable (FEP insulated) |
| Cable Length | 8.0 meters |
| Weight | 0.272 kg |
| Resistance (RCORE) | 1.76 ± 0.26 Ω |
| Resistance (RJACKET) | 0.53 ± 0.11 Ω |
| Capacitance | 69.9 pF/m |
| Minimum Bend Radius | 25.4 mm |
| Operating Temperature Range | -52°C to +177°C |
| Connector Type | ClickLoc Gold-plated Miniature Coaxial |
| Compliance | CSA, ATEX, IECEx |
FAQ – Frequently Asked Questions
Q1: What is the primary use of the 330130-080-00-00 cable?
A1: It connects the proximity probe to the Proximitor sensor in the 3300 XL 8 mm system.
Q2: Can this cable be used in high-temperature environments?
A2: Yes, the standard version supports up to +177°C. For higher temperatures, ETR versions are available.
Q3: Is the cable compatible with older 3300 series systems?
A3: Yes, it is backward compatible with non-XL 5 mm and 8 mm systems.
Q4: How do I ensure environmental protection?

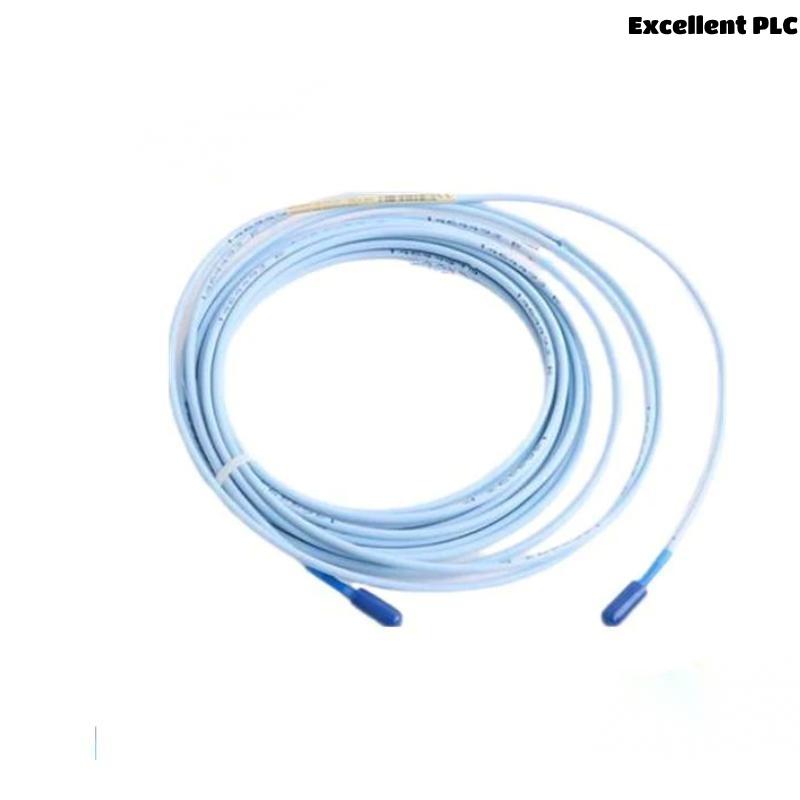

A4: Use optional connector protectors or FluidLoc versions to seal the cable ends.
Q5: What kind of connectors does this cable use?
A5: It uses gold-plated ClickLoc miniature coaxial connectors.
Q6: Is this cable armored?
A6: The standard model is not armored. Armored versions are available under different part numbers.
Q7: What is the significance of the CableLoc design?
A7: It enhances mechanical strength, ensuring a secure bond and high pull resistance.
Q8: Can I install the cable without special tools?
A8: Yes, the ClickLoc connectors are tool-free and click to confirm proper installation.
Q9: What happens if the cable exceeds the minimum bend radius?
A9: Bending below the 25.4 mm radius may compromise signal integrity or damage the cable.
Q10: Is this cable certified for use in hazardous areas?
A10: Yes, with appropriate approvals (CSA, ATEX, IECEx), it meets global hazardous area standards.
Related Bently Nevada 3300 XL Series Models
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330130-060-00-00 | Standard Extension Cable | 6.0 m | 0.204 kg |
| 330130-070-00-00 | Standard Extension Cable | 7.0 m | 0.238 kg |
| 330130-090-00-00 | Standard Extension Cable | 9.0 m | 0.306 kg |
| 330130-080-10-00 | FluidLoc Extension Cable | 8.0 m | 0.274 kg |
| 330190-080-00-00 | ETR Extension Cable (High Temp) | 8.0 m | 0.272 kg |
| 330130-080-01-00 | Armored Standard Extension Cable | 8.0 m | 0.824 kg |
