Product Overview

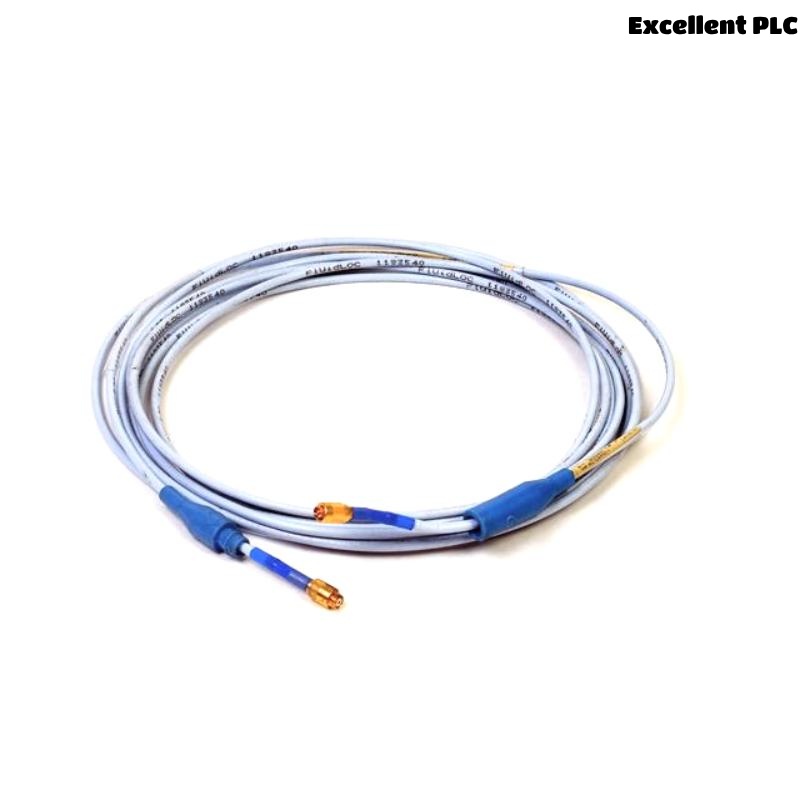

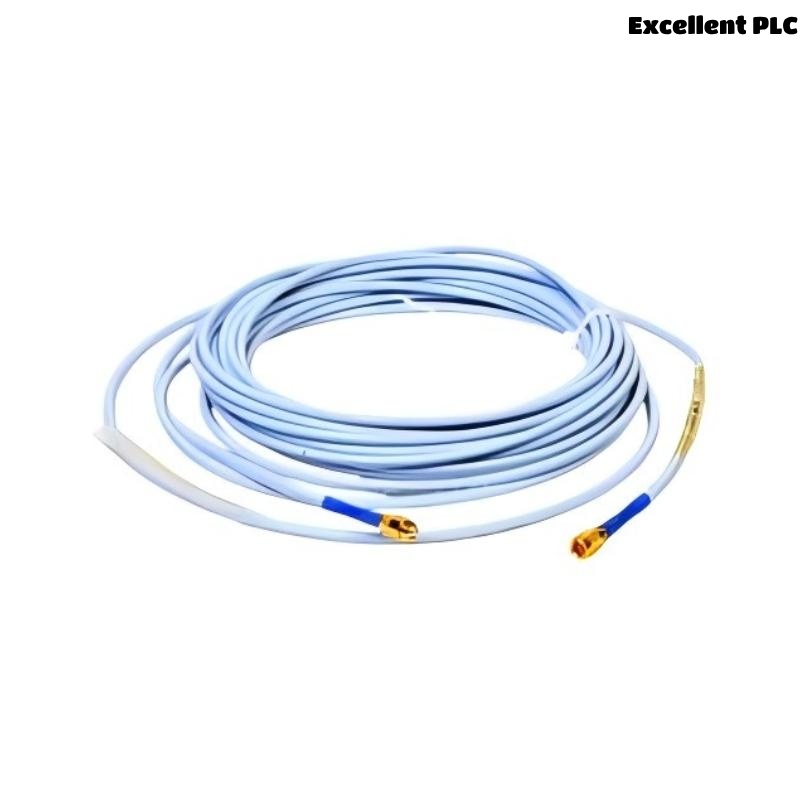

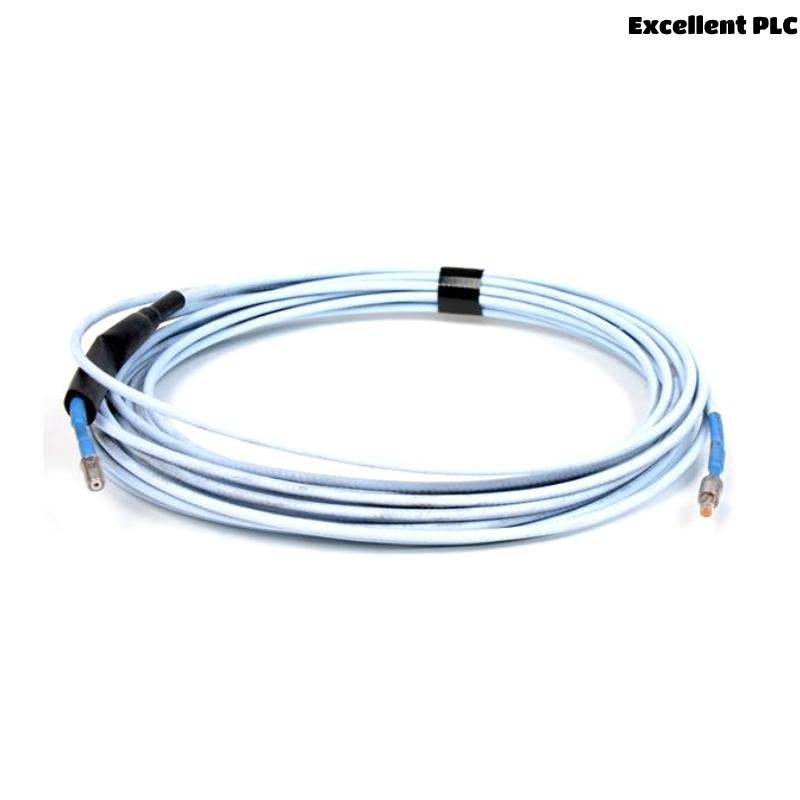

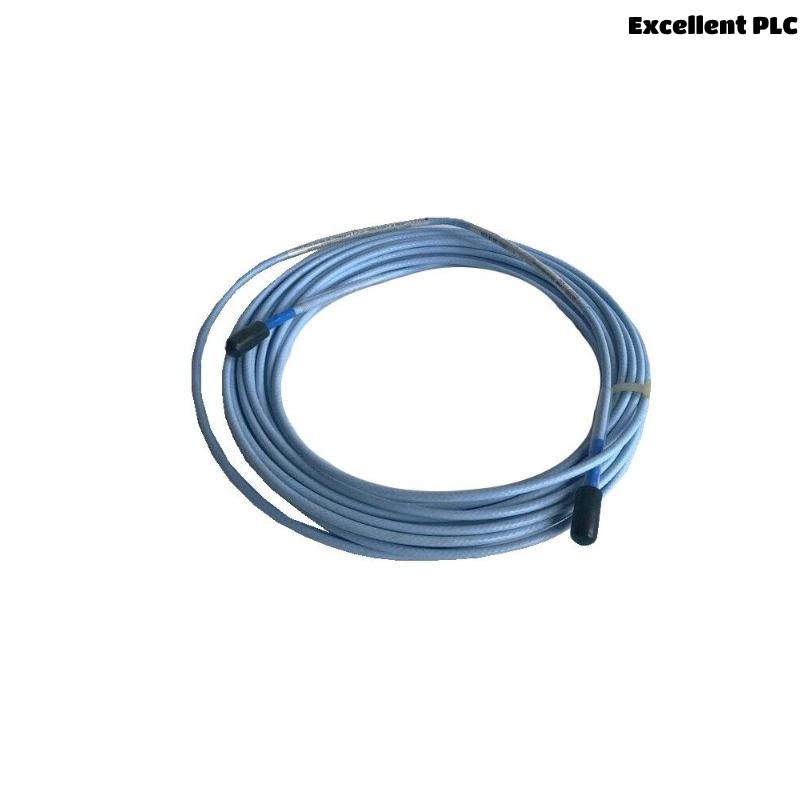

The Bently Nevada 330130-080-00 is an 8.0-meter extension cable designed for the 3300 XL 8 mm Proximity Transducer System. It enables accurate vibration and position measurements in fluid-film bearing machinery by transmitting signals between the proximity probe and the Proximitor Sensor. This cable offers robust construction, gold-plated ClickLoc connectors, and compatibility with standard and extended temperature systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 330130-080-00 |
| Cable Length | 8.0 meters (26.2 feet) |
| Weight | 0.272 kg (0.6 lb) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Resistance (Center Conductor) | 1.76 ± 0.26 Ω |
| Resistance (Outer Conductor) | 0.53 ± 0.11 Ω |
| Temperature Range (Standard) | –52°C to +177°C (–62°F to +350°F) |
| Temperature Range (ETR) | –52°C to +260°C (–62°F to +500°F) |
| Insulation Material | FEP (Standard), PFA (ETR) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | ClickLoc miniature coaxial |
| Connector Torque (Max) | 0.565 N·m (5 in·lbf) |
Applications
-
Turbomachinery vibration monitoring
-
Shaft position and Keyphasor signal acquisition
-
Overspeed and rotational speed detection
-
Machinery protection systems in power plants, refineries, and compressors
-
Ideal for hazardous zones when installed per Bently Nevada certifications
Key Advantages
-
Interchangeable Design: Seamless fit with other 3300 XL and legacy 3300 components
-
Rugged Durability: Patented CableLoc design ensures 330 N tensile strength
-
High EMI/RFI Immunity: Reliable performance in harsh industrial environments
-
Extended Temperature Compatibility: Optional ETR variants up to 260°C
-
Secure Connections: ClickLoc connectors provide secure, tool-free installation
Frequently Asked Questions (FAQ)
Q1: What is the exact length of the 330130-080-00 extension cable?
A1: It is 8.0 meters (26.2 feet) long.
Q2: Can I use this cable with non-XL 3300 components?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: Is the cable suitable for high-temperature environments?
A3: Yes, when ordered as an ETR version, it supports up to 260°C (500°F).
Q4: What is the weight of the 8.0-meter cable?
A4: The weight is approximately 0.272 kg.
Q5: What type of insulation is used?
A5: Standard models use FEP insulation; ETR models use PFA insulation.
Q6: Are connector protectors included?
A6: Connector protectors are optional and may be ordered separately or pre-installed.
Q7: What kind of connector is used?
A7: It uses a gold-plated ClickLoc miniature coaxial connector.
Q8: What is the minimum bend radius of the cable?
A8: The minimum bend radius is 25.4 mm (1.0 inch).
Q9: Can this cable be used in Zone 0 or Zone 2 hazardous areas?
A9: Yes, with proper installation and approvals, it is certified for hazardous areas.
Q10: Is calibration required for each cable?
A10: No. The system components are fully interchangeable and do not require individual calibration.
Recommended Related Models (Same Series)
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330130-060-00 | Standard Extension Cable | 6.0 m | ~0.204 kg |
| 330130-070-00 | Standard Extension Cable | 7.0 m | ~0.238 kg |
| 330130-075-00 | Standard Extension Cable | 7.5 m | ~0.255 kg |
| 330130-085-00 | Standard Extension Cable | 8.5 m | ~0.289 kg |
| 330190-080-00 | Extended Temp. Range Extension Cable | 8.0 m | ~0.272 kg |
| 330101-00-08-10-02-05 | 3300 XL 8 mm Probe with armor and protector | 1.0 m | ~0.323 kg |
