Product Overview

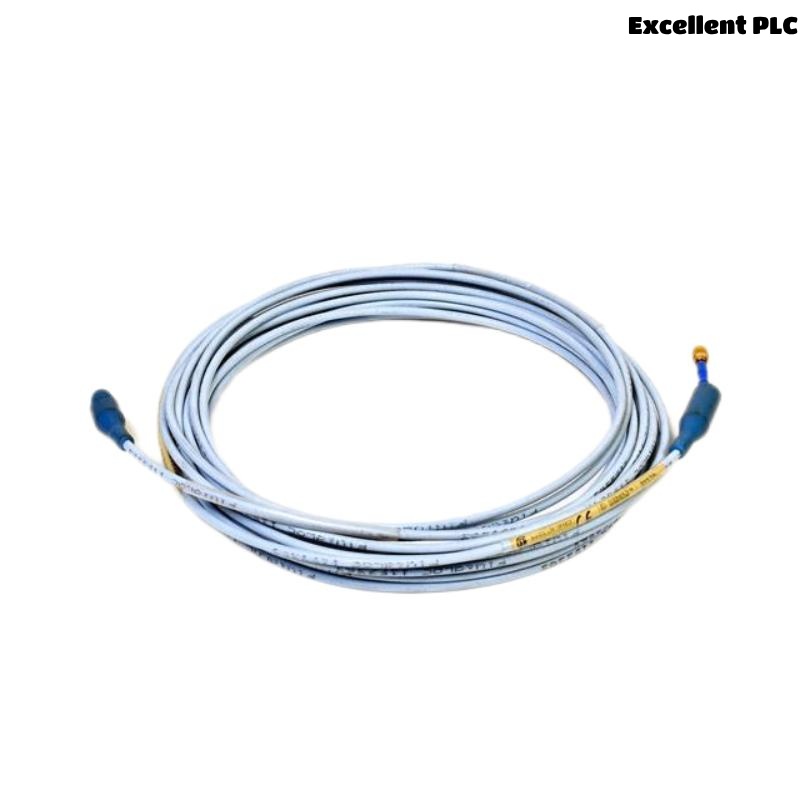

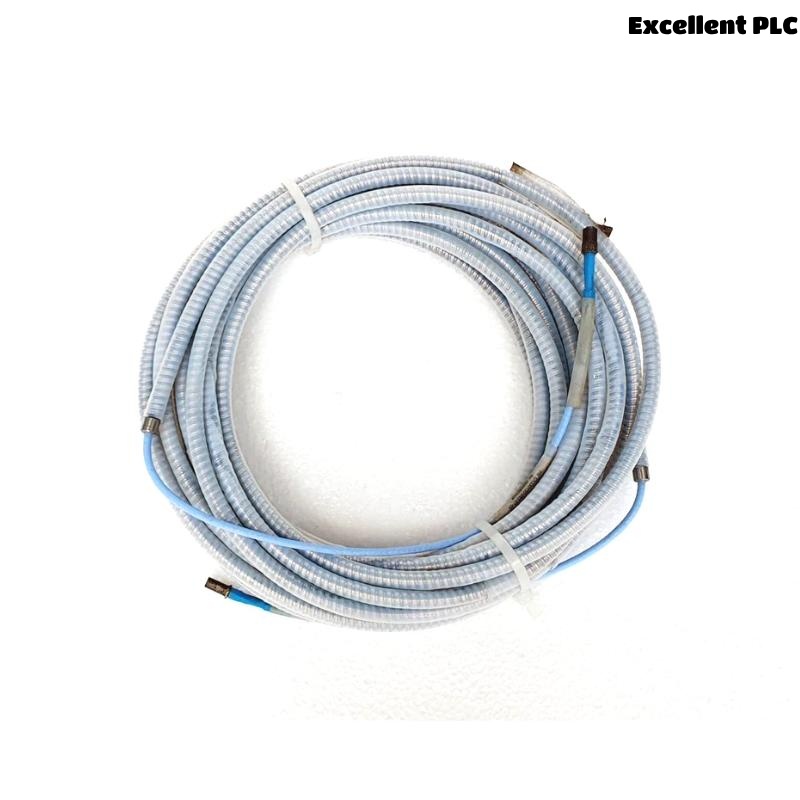

The Bently Nevada 330130-080-01-05 is an 8.0-meter 3300 XL Standard Extension Cable designed for use in 3300 XL 8 mm Proximity Transducer Systems. It connects the proximity probe to the Proximitor sensor, enabling accurate vibration and position measurements in machinery monitoring.
Key Applications
-
Turbomachinery position and vibration monitoring
-
Fluid-film bearing machines
-
Shaft vibration and Keyphasor speed measurements
-
Applications requiring high EMI/RFI immunity and robust installation
Product Advantages
-
High Durability: CableLoc™ and TipLoc™ ensure strong mechanical bonding and resistance to pull-out forces (up to 330 N).
-
Reliable Environmental Sealing: Optional FluidLoc™ prevents oil ingress, improving longevity in harsh environments.
-
Easy Installation: Gold-plated ClickLoc™ connectors with audible locking mechanism require no special tools.
-
EMI/RFI Resistance: Robust shielding allows operation near strong radio frequencies.
-
Backward Compatibility: Interchangeable with non-XL series 5 mm and 8 mm components.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | 330130-080-01-05 |
| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 8.0 meters (26.2 feet) |
| Weight | 0.824 kg (1.82 lb) |
| Outer Jacket Material | FEP insulated (standard) |
| Connector Type | Miniature coaxial ClickLoc |
| Connector Protector | Optional |
| Capacitance | 69.9 pF/m |
| RCORE (DC Resistance) | 1.76 ± 0.26 Ω |
| RJACKET (DC Resistance) | 0.53 ± 0.11 Ω |
| Operating Temp. (Standard) | -52°C to +177°C |
| Min. Cable Bend Radius | 25.4 mm (1.0 in) |
| Pull Strength | 270 N (connector), 330 N (probe end) |
| Compatibility | With all 3300 XL 8 mm probes & Proximitor units |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 330130-080-01-05 cable?
A1: It transmits signals from the proximity probe to the Proximitor sensor in vibration monitoring systems.
Q2: Is the cable compatible with non-XL 3300 systems?
A2: Yes, it’s both electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: Can this cable be used in high-temperature applications?
A3: Standard cable supports up to +177°C. Use ETR (Extended Temp Range) version for higher ratings.
Q4: What type of connectors are used?
A4: Gold-plated ClickLoc connectors, which provide secure, tool-free locking.
Q5: Is additional sealing required during installation?
A5: Connector protectors are recommended for enhanced environmental sealing.
Q6: Does the cable come armored?

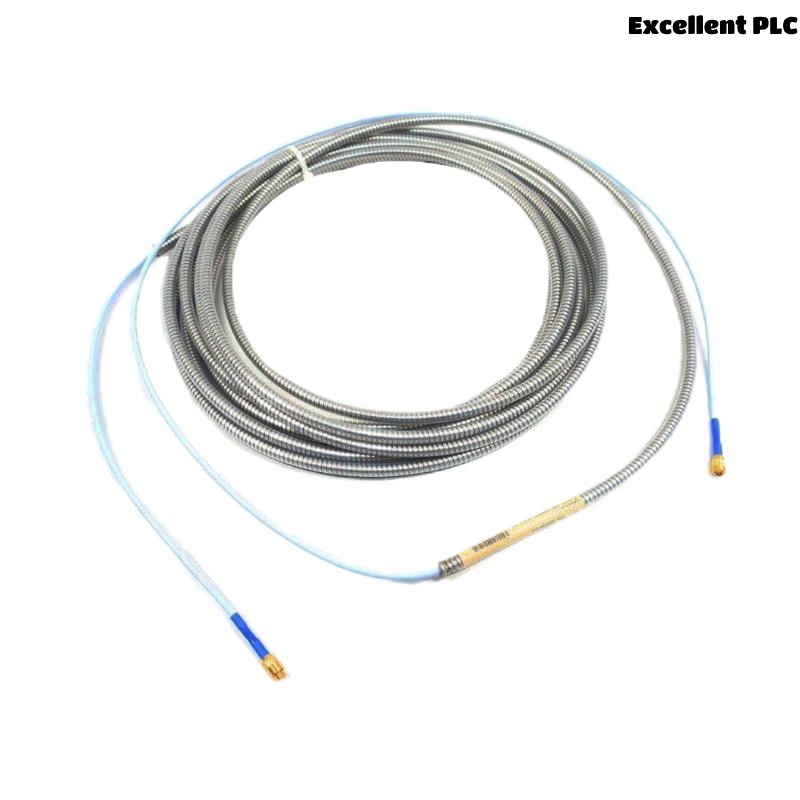

A6: This version does not, but armored variants are available.
Q7: Can oil ingress through the cable?
A7: Not with the optional FluidLoc version, which prevents leakage through the cable interior.
Q8: How should the cable be routed?
A8: Avoid sharp bends; minimum bend radius is 25.4 mm.
Q9: What are the maximum cable lengths allowed?
A9: Cable lengths are configured in combinations to match system lengths of up to 9 meters.
Q10: Does the cable affect signal quality?
A10: Not significantly within the rated length; it is designed to maintain consistent capacitance and low resistance.
Related Bently Nevada Models (Same Series)
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330130-060-01-00 | Standard Extension Cable | 6.0 m | 0.618 kg |
| 330130-070-01-00 | Standard Extension Cable | 7.0 m | 0.721 kg |
| 330130-085-01-00 | Standard Extension Cable | 8.5 m | 0.876 kg |
| 330190-080-00-00 | ETR Extension Cable | 8.0 m | ~0.840 kg |
| 330180-90-00 | Proximitor Sensor, 9.0 m system | 9.0 m | 246 g |
| 330101-00-08-10-02-00 | 3300 XL 8 mm Probe, 1.0 m, std. cable | 1.0 m | ~323 g/m |
Popular Bently Nevada Models
| Model Number | Description | Application |
|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | Vibration Monitoring |
| 3500/22M | Transient Data Interface Module | Data Acquisition |
| 3500/20 | Rack Interface Module | Communication Gateway |
| 3500/05 | System Rack | Module Housing |
| 330104 | 8 mm Probe with Armor | Harsh Environment Applications |
| 330180-50-05 | Proximitor Sensor, 5.0 m system, panel | General Vibration Measurement |
