Product Introduction

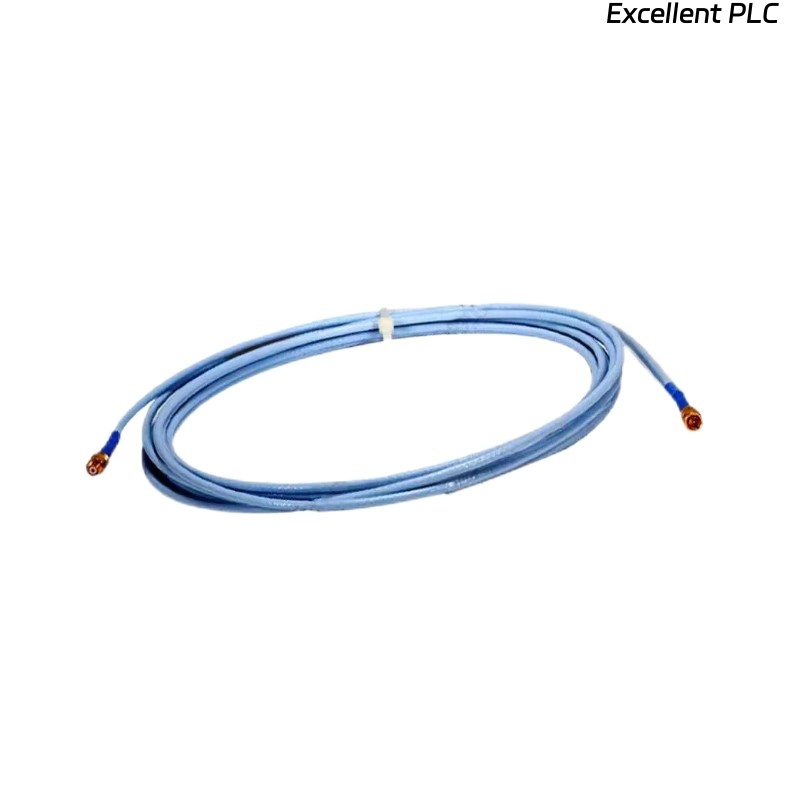

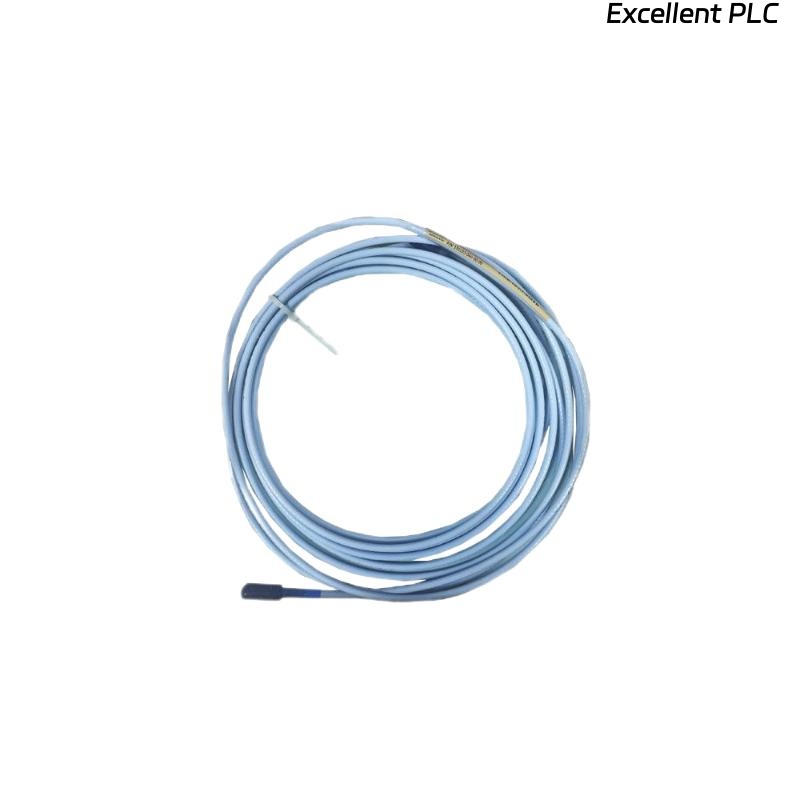

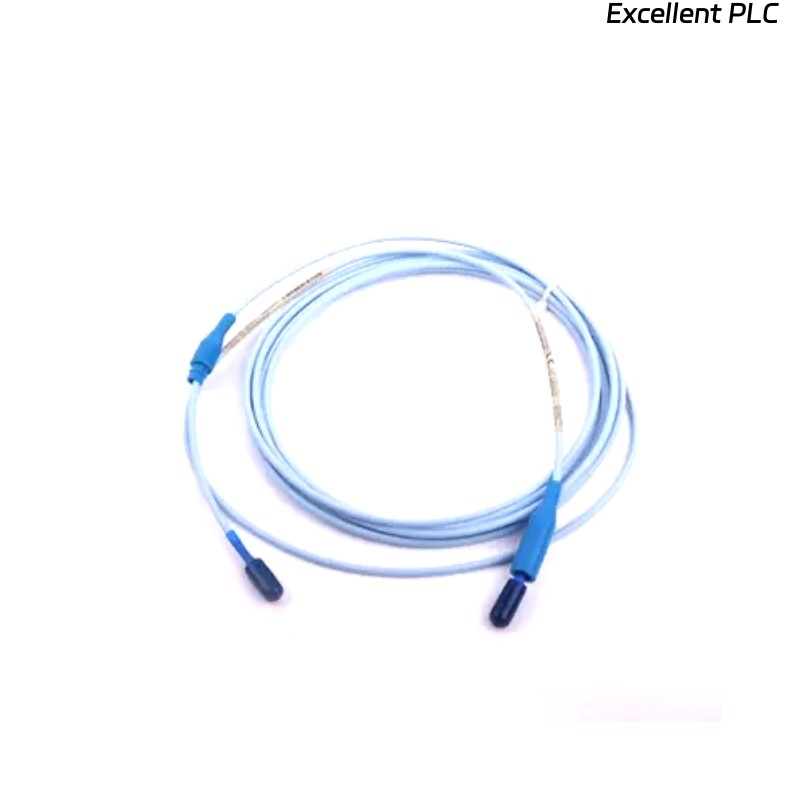

The Bently Nevada 330130-080-02-CN 3300 XL Standard Extension Cord is a high-performance accessory designed for industrial vibration monitoring systems. Specifically engineered for use with the 3300 XL Machinery Protection System, this extension cord ensures reliable and accurate signal transmission between sensors and monitors. Its robust construction makes it suitable for harsh industrial environments, maintaining signal integrity over extended distances.
Product Advantages
-
High Signal Fidelity: Maintains accurate vibration signal transmission without interference.
-
Durable Construction: Built to withstand harsh industrial environments including temperature variations and mechanical stress.
-
Plug-and-Play Compatibility: Seamlessly integrates with 3300 XL sensors and monitors.
-
Flexible Application: Can be used in a variety of industrial machinery monitoring setups.
-
Extended Reach: Provides 8 meters of cable length for flexible sensor placement.
-
Lightweight Design: At only 0.272 kg, it reduces installation effort and stress on connectors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-080-02-CN |
| Type | Standard Extension Cord |
| Compatible System | Bently Nevada 3300 XL |
| Connector Type | Industry standard 2-pin LEMO |
| Total Length | 8 m |
| Weight | 0.272 kg |
| Operating Temperature | -40°C to +85°C |
| Cable Material | High-flex, industrial-grade PVC |
| Shielding | Braided for EMI/RFI protection |
| Environmental Rating | IP65 |
Product Applications
-
Connecting proximity probes and sensors to the 3300 XL monitor system.
-
Extending the distance between machinery vibration sensors and monitoring systems in industrial environments.
-
Ideal for use in turbines, compressors, motors, pumps, and other rotating equipment.
-
Suitable for installations requiring flexible sensor placement without signal loss.
FAQ
Q1: Can this extension cord be used with non-3300 XL systems?
A1: It is specifically designed for 3300 XL sensors; compatibility with other systems is not guaranteed.
Q2: What is the maximum distance this extension cord can support without signal degradation?
A2: The standard length is 8 m; signal quality is optimized within this range. Longer distances may require signal conditioning.
Q3: Does the cord have shielding to prevent electromagnetic interference?
A3: Yes, it has braided shielding to protect against EMI/RFI.
Q4: Is this cable rated for outdoor or harsh industrial environments?
A4: Yes, it is rated IP65 and constructed with industrial-grade PVC to withstand harsh conditions.
Q5: Can it handle high-vibration environments?
A5: Yes, it is designed to maintain signal integrity in high-vibration areas typical of industrial machinery.
Q6: What is the connector type on both ends of the cable?
A6: The cord uses industry-standard 2-pin LEMO connectors compatible with 3300 XL sensors and monitors.
Q7: Can multiple extension cords be daisy-chained?
A7: Bently Nevada recommends limiting connections to maintain signal quality; consult the system manual for maximum recommended extensions.
Q8: What is the operating temperature range of this cord?
A8: The cord operates reliably between -40°C to +85°C.
Q9: Is this extension cord shielded against mechanical wear?
A9: Yes, the PVC jacket provides protection against abrasion, while maintaining flexibility.
Q10: How should the cable be routed to avoid signal interference?
A10: Avoid running parallel to high-power cables and sources of electromagnetic noise. Maintain separation where possible.
Related or Same-Series Models
| Model Number | Description | Total Length | Weight |
|---|---|---|---|
| 330130-040-02-CN | 3300 XL Extension Cord 4 m | 4 m | 0.136 kg |
| 330130-060-02-CN | 3300 XL Extension Cord 6 m | 6 m | 0.204 kg |
| 330130-100-02-CN | 3300 XL Extension Cord 10 m | 10 m | 0.340 kg |
| 330130-150-02-CN | 3300 XL Extension Cord 15 m | 15 m | 0.510 kg |
| 330130-200-02-CN | 3300 XL Extension Cord 20 m | 20 m | 0.680 kg |
| 330130-025-02-CN | 3300 XL Extension Cord 2.5 m | 2.5 m | 0.085 kg |
