Product Introduction

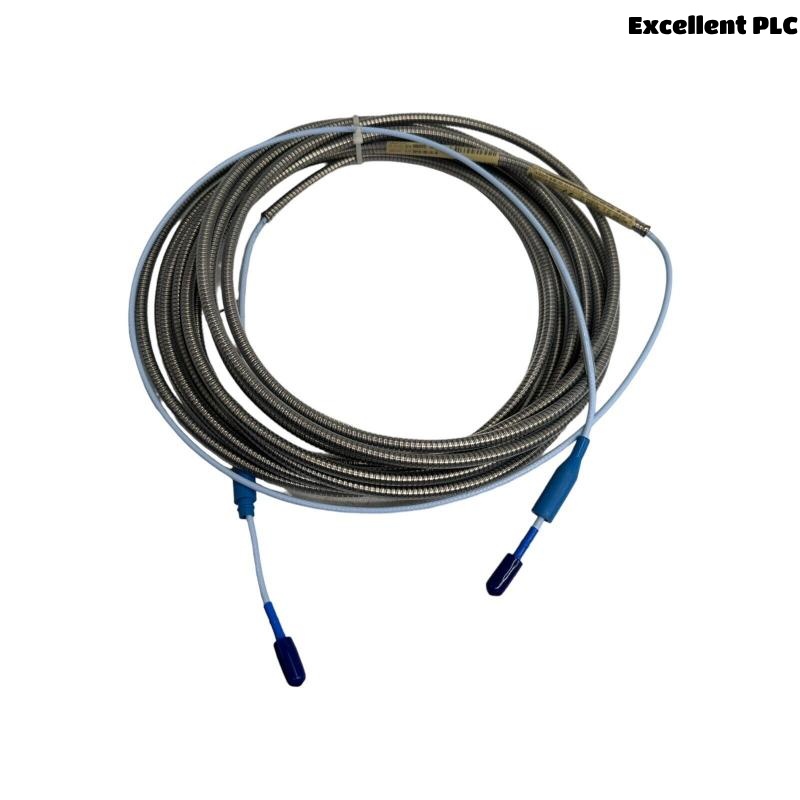

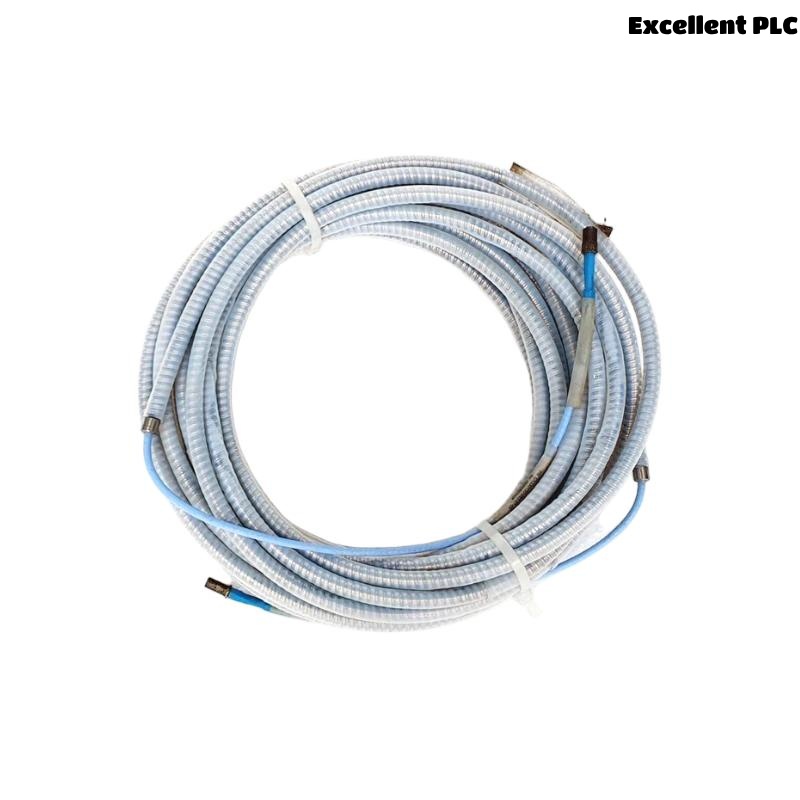

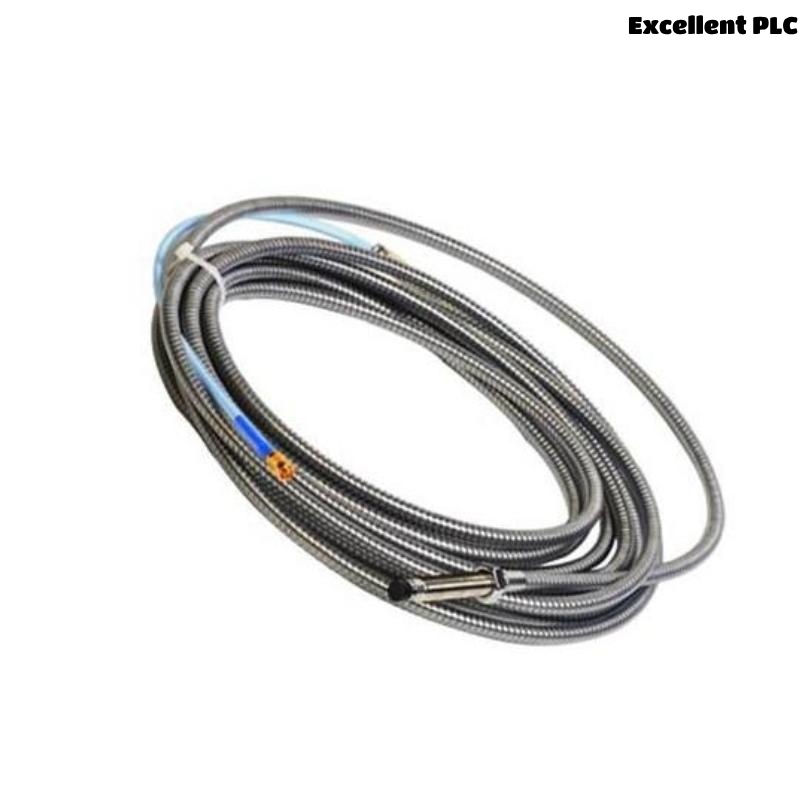

The Bently Nevada 330130-080-03-00 3300 XL Standard Extension Cable is a key component in extending the capabilities of the 3300 XL proximity probes. This extension cable is designed to maintain optimal signal transmission over longer distances, enabling flexibility in the placement of proximity probes in industrial machinery. With high-quality construction and advanced materials, the 3300 XL extension cable ensures reliable performance in various industrial applications.
This extension cable is an integral part of Bently Nevada’s 3300 XL series, known for its precision in vibration and displacement monitoring for machinery such as pumps, turbines, and motors. The 3300 XL extension cable extends the monitoring reach without compromising signal integrity, which is critical for continuous condition monitoring, predictive maintenance, and machinery protection systems. By allowing probes to be placed further from the monitoring unit, this extension cable provides greater flexibility in machinery monitoring, especially in larger or complex systems.
The 330130-080-03-00 extension cable is ideal for environments where precise and reliable measurements are essential for machinery health and performance, ensuring that early detection of faults and potential failures can be made before they impact operations.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-080-03-00 |
| Cable Type | 3300 XL Standard Extension Cable |
| Cable Length | 8 meters |
| Temperature Range | -40°C to +120°C (Operating) |
| Cable Insulation | Thermoplastic Elastomer |
| Weight | 0.824 kg |
| Conductors | 2 conductors (for 2-wire proximity probe connections) |
| Resistance | 100 MΩ @ 500 V DC |
| Connection Type | Compatible with Bently Nevada 3300 XL probes and systems |
| Environmental Protection | IP65 (Water-resistant) |
| Voltage Rating | 500 V DC |
| Certifications | CE, UL, RoHS |
| Compatibility | Works with all 3300 XL Proximity Probes from Bently Nevada |
Product Applications
The Bently Nevada 330130-080-03-00 3300 XL Standard Extension Cable is used in various industries where rotating equipment is monitored for condition assessment. Its key applications include:
-
Proximity Probe Extension: This cable allows 3300 XL proximity probes to be placed further from the monitoring system, expanding the range of measurement and providing flexibility in probe placement.
-
Condition Monitoring: Essential for real-time condition monitoring systems that rely on proximity probes to measure shaft displacement and vibration, this extension cable allows for continuous and reliable data transfer over extended distances.
-
Predictive Maintenance: By extending the monitoring range, this extension cable helps reduce unplanned downtime by allowing early detection of mechanical issues before they lead to equipment failures.
-
Rotating Equipment Monitoring: Used to monitor a variety of rotating machinery, including motors, pumps, compressors, and turbines, the extension cable helps ensure the ongoing performance and health of critical equipment.
-
Power Generation: The cable is ideal for power generation plants where proximity probes need to be positioned at various points along turbines, generators, and other key machinery.
-
Oil & Gas: This cable is used in harsh environments such as offshore platforms, drilling rigs, and compressor stations to extend the reach of proximity probes and improve overall system monitoring.
-
Water Treatment: In water treatment facilities, the extension cable helps place proximity probes on critical pumps, motors, and valves, ensuring efficient operation and reducing the risk of failure.
-
Mining: The extension cable provides flexibility in the monitoring of equipment such as crushers, mills, and conveyors, which are critical to mining operations.
Product Advantages
-
Extended Reach: The extension cable increases the installation flexibility of proximity probes, allowing them to be placed further from the monitoring system without compromising data quality.
-
High Signal Integrity: Designed to ensure reliable and accurate signal transmission over long distances, ensuring that the monitoring system can receive precise data for analysis.
-
Durability: The cable is built to last, with thermoplastic elastomer insulation that is resistant to wear and environmental factors, making it suitable for harsh industrial settings.
-
Wide Temperature Range: The cable can function in temperatures ranging from -40°C to +120°C, making it suitable for a wide variety of environments, from cold storage facilities to hot industrial areas.
-
Compatibility: It is compatible with all 3300 XL proximity probes, providing seamless integration with existing equipment and monitoring systems.
-
Compact Design: The cable features a 10mm diameter, allowing it to be installed in confined spaces without taking up excessive room.
-
Water and Dust Resistance: Rated IP65, the extension cable is protected from dust and water ingress, ensuring it can withstand outdoor conditions and harsh factory environments.
-
High Voltage Rating: The 500 V DC voltage rating allows the cable to handle high-voltage applications safely.
-
Cost-Effective Solution: The extension cable allows for the extension of probe reach without requiring additional monitoring equipment, providing a cost-effective solution for monitoring systems.
-
Long Lifespan: Built for continuous use in tough environments, the cable’s durability ensures a long service life, reducing the need for frequent replacements.
Frequently Asked Questions (FAQ)
-
Q: What is the length of the Bently Nevada 330130-080-03-00 extension cable?
A: The extension cable is 8 meters in length. -
Q: What temperature range does the 3300 XL extension cable support?
A: The cable can operate in temperatures ranging from -40°C to +120°C. -
Q: What type of insulation is used in the 3300 XL extension cable?
A: The cable uses thermoplastic elastomer insulation, ensuring durability and flexibility. -
Q: How many conductors are in the extension cable?
A: The cable has 2 conductors, which are used to connect to 2-wire proximity probes. -
Q: Is the 3300 XL extension cable compatible with all Bently Nevada proximity probes?
A: Yes, the extension cable is compatible with all 3300 XL proximity probes. -
Q: What is the outer diameter of the extension cable?
A: The outer diameter is approximately 10 mm. -
Q: What is the weight of the extension cable?
A: The extension cable weighs 0.824 kg. -
Q: What voltage rating does the 3300 XL extension cable have?
A: The extension cable has a 500 V DC voltage rating. -
Q: Is the 3300 XL extension cable suitable for outdoor use?
A: Yes, the cable is rated IP65, making it resistant to water and dust ingress, ideal for outdoor and industrial environments. -
Q: Can the 3300 XL extension cable be used in hazardous environments?
A: Yes, the cable is designed to perform in harsh industrial settings, including high moisture and temperature environments.
Related Models and Variants
| Model Number | Description | Key Feature |
|---|---|---|
| 330130-080-03-10 | 3300 XL Extension Cable (10 meters) | Extended length for larger setups |
| 330130-080-03-20 | 3300 XL Extension Cable (20 meters) | Longer cable for remote monitoring |
| 330130-080-03-30 | 3300 XL Extension Cable (30 meters) | Suitable for very large machinery |
| 330130-080-03-03 | 3300 XL Extension Cable (3 meters) | Shorter cable for compact setups |
| 330130-080-03-06 | 3300 XL Extension Cable (6 meters) | Mid-length cable for standard setups |
| 330130-080-03-02 | 3300 XL Extension Cable (2 meters) | Compact extension for confined spaces |
