Product Introduction

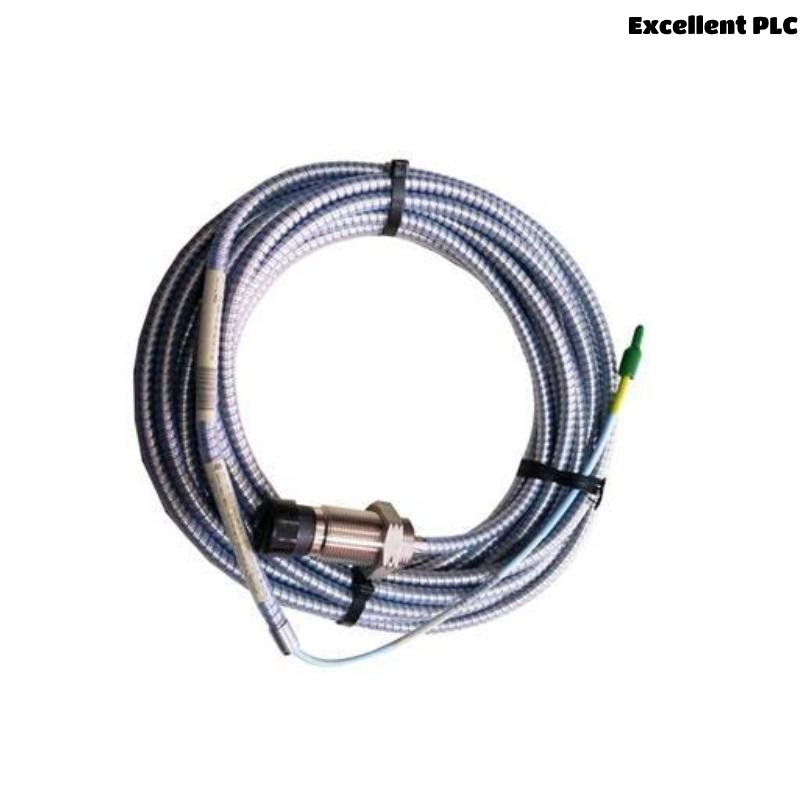

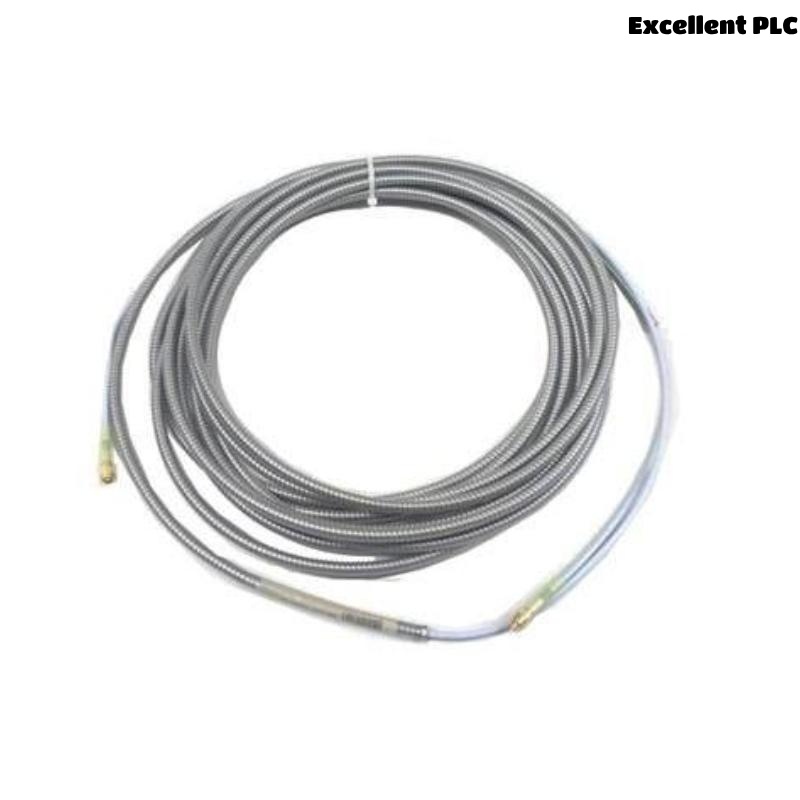

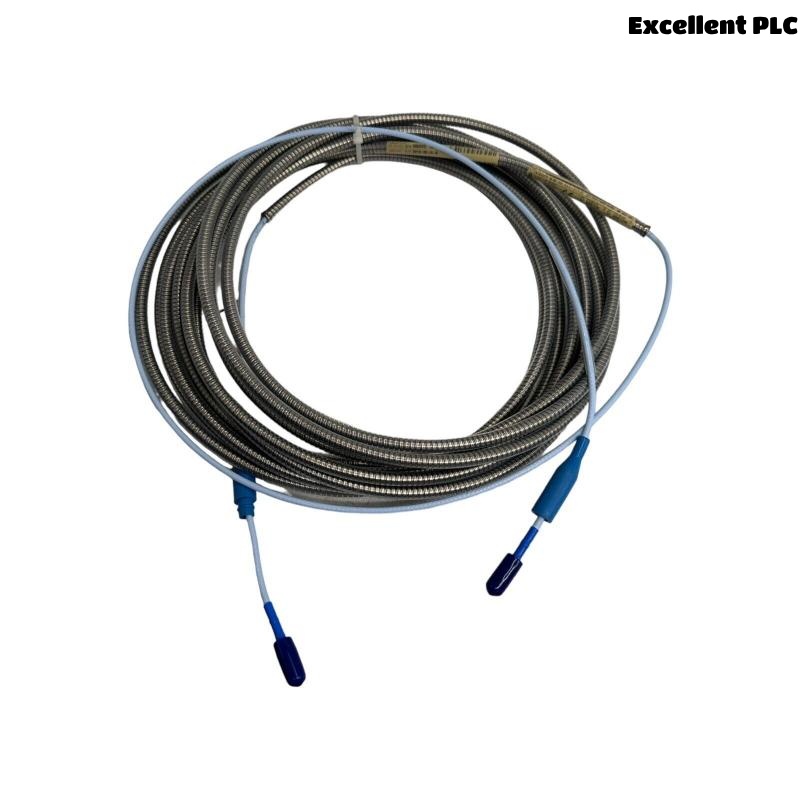

The Bently Nevada 330130-080-11-05 3300 XL Standard Extension Cable is designed to facilitate the proper connection of 3300 XL proximity probes to monitoring systems over longer distances. This extension cable provides enhanced flexibility by allowing users to place probes at optimal positions on machinery while maintaining high signal integrity. The 3300 XL series is renowned for its accuracy and robustness in condition monitoring, and this extension cable is no different in terms of ensuring reliability and longevity.
The 330130-080-11-05 extension cable is an ideal choice for extending the reach of proximity probes, particularly in industrial environments where accurate vibration and displacement data is critical. Whether for machinery monitoring in power plants, manufacturing facilities, or in the field of predictive maintenance, the extension cable ensures that the proximity probes continue to provide precise data for performance optimization.
This 8 meters extension cable helps connect the probes over longer distances, maintaining signal quality without any loss of data. The 330130-080-11-05 is compatible with the full range of 3300 XL proximity probes, ensuring seamless integration with existing monitoring systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-080-11-05 |
| Cable Type | 3300 XL Standard Extension Cable |
| Cable Length | 8 meters |
| Temperature Range | -40°C to +120°C (Operating) |
| Cable Insulation | Thermoplastic Elastomer |
| Weight | 0.824 kg |
| Conductors | 2 conductors (for 2-wire proximity probe connections) |
| Resistance | 100 MΩ @ 500 V DC |
| Connection Type | Compatible with Bently Nevada 3300 XL probes and systems |
| Environmental Protection | IP65 (Water-resistant) |
| Voltage Rating | 500 V DC |
| Certifications | CE, UL, RoHS |
| Compatibility | Works with all 3300 XL Proximity Probes from Bently Nevada |
Product Applications
The Bently Nevada 330130-080-11-05 3300 XL Standard Extension Cable is ideal for use in applications where proximity probes need to be placed away from the monitoring system or in challenging environments. Its primary applications include:
-
Proximity Probe Extension: This cable allows for easy and efficient extension of the proximity probes, making it ideal for installations where probes need to be placed further from the monitoring system.
-
Condition Monitoring: It is an essential component for condition monitoring systems, enabling continuous and accurate data collection on machinery vibration and displacement, helping to predict failures before they occur.
-
Predictive Maintenance: The extension cable supports predictive maintenance systems by enabling the installation of probes in strategic locations to monitor critical equipment such as motors, turbines, and compressors.
-
Power Generation: In power plants, the extension cable is used to extend probes to key machinery, such as turbines and generators, ensuring the performance of vital equipment is continuously monitored.
-
Oil and Gas Industry: This cable is highly valuable in the oil and gas industry, where machinery is often located in remote or difficult-to-reach places. It helps ensure optimal performance of pumps, compressors, and other rotating equipment.
-
Manufacturing Plants: In industrial and manufacturing settings, the extension cable is used to install probes on rotating machinery, allowing for constant monitoring of vibration and shaft displacement to optimize equipment performance.
-
Mining Equipment: The cable is used in mining industries to ensure the proper functioning of critical equipment such as crushers and conveyors, where real-time monitoring is essential for maintaining efficient operations.
-
Water Treatment: In water treatment plants, the extension cable is used to connect probes to pumps and motors, enabling the system to detect any anomalies or inefficiencies in the equipment.
Product Advantages
-
Extended Reach: The 3300 XL extension cable allows for greater flexibility in probe placement, extending the reach of the probes while maintaining signal integrity.
-
Signal Integrity: The cable ensures high-quality signal transmission even over longer distances, preserving the accuracy of the data being collected by the proximity probes.
-
Durable Construction: Made with thermoplastic elastomer insulation, the cable is built to withstand the challenges of harsh industrial environments, including temperature fluctuations, moisture, and physical wear.
-
Wide Temperature Range: The -40°C to +120°C operating temperature range allows the cable to perform effectively in both extreme cold and heat, making it suitable for use in various industrial environments.
-
High Compatibility: The cable is fully compatible with all 3300 XL proximity probes from Bently Nevada, offering seamless integration with existing systems.
-
Water and Dust Resistant: With an IP65 rating, the cable is resistant to water and dust ingress, ensuring reliable operation even in wet and dusty environments.
-
Compact Design: The cable’s 10mm diameter allows it to be easily installed in tight spaces without taking up too much room, making it suitable for compact machinery setups.
-
High Voltage Rating: The cable is rated for 500 V DC, providing safety in high-voltage applications and ensuring it can be used in industrial environments that require higher voltage thresholds.
-
Cost-Effective Solution: By extending the reach of the proximity probes, the extension cable helps reduce the need for additional monitoring equipment, making it a more cost-effective solution for expanding monitoring systems.
-
Long Lifespan: Built to last, the extension cable provides a long service life, reducing the frequency of replacements and minimizing downtime and maintenance costs.
Frequently Asked Questions (FAQ)
-
Q: How long is the Bently Nevada 330130-080-11-05 extension cable?
A: The extension cable is 8 meters long. -
Q: What is the temperature range for the 3300 XL extension cable?
A: The cable operates in a temperature range from -40°C to +120°C. -
Q: What kind of insulation is used in the 3300 XL extension cable?
A: The extension cable uses thermoplastic elastomer insulation, offering durability and flexibility. -
Q: How many conductors are there in the 3300 XL extension cable?
A: The cable has 2 conductors, which are designed to connect with 2-wire proximity probes. -
Q: Is the 3300 XL extension cable compatible with other Bently Nevada probes?
A: Yes, the extension cable is compatible with all 3300 XL proximity probes from Bently Nevada. -
Q: What is the outer diameter of the 3300 XL extension cable?
A: The outer diameter of the extension cable is approximately 10 mm. -
Q: What is the weight of the 3300 XL extension cable?
A: The extension cable weighs 0.824 kg. -
Q: What voltage rating does the 3300 XL extension cable have?
A: The cable is rated for 500 V DC, ensuring safe use in high-voltage environments. -
Q: Is the 3300 XL extension cable suitable for outdoor use?
A: Yes, the cable is rated IP65, meaning it is resistant to water and dust, making it suitable for outdoor and industrial environments. -
Q: Can the extension cable be used in hazardous environments?
A: Yes, the cable is designed for use in harsh environments and can withstand challenging conditions, including extreme temperatures and humidity.
Related Models and Variants
| Model Number | Description | Key Feature |
|---|---|---|
| 330130-080-11-10 | 3300 XL Extension Cable (10 meters) | Extended length for larger setups |
| 330130-080-11-20 | 3300 XL Extension Cable (20 meters) | Long cable for expansive systems |
| 330130-080-11-30 | 3300 XL Extension Cable (30 meters) | Ideal for very large equipment |
| 330130-080-11-03 | 3300 XL Extension Cable (3 meters) | Shorter cable for compact setups |
| 330130-080-11-06 | 3300 XL Extension Cable (6 meters) | Mid-length extension for standard setups |
| 330130-080-11-02 | 3300 XL Extension Cable (2 meters) | Compact extension for tight spaces |
