Product Introduction

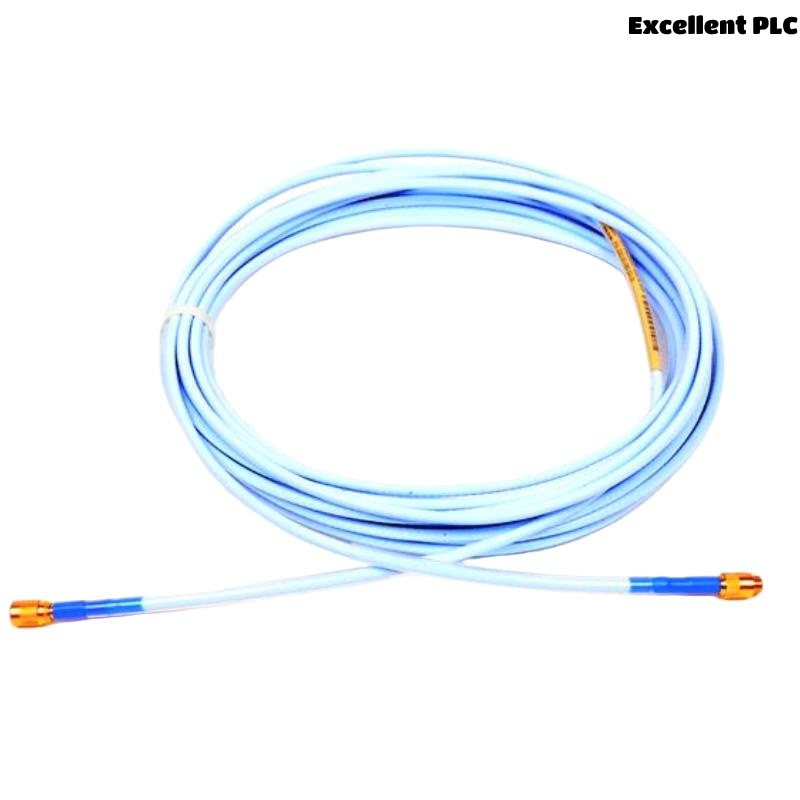

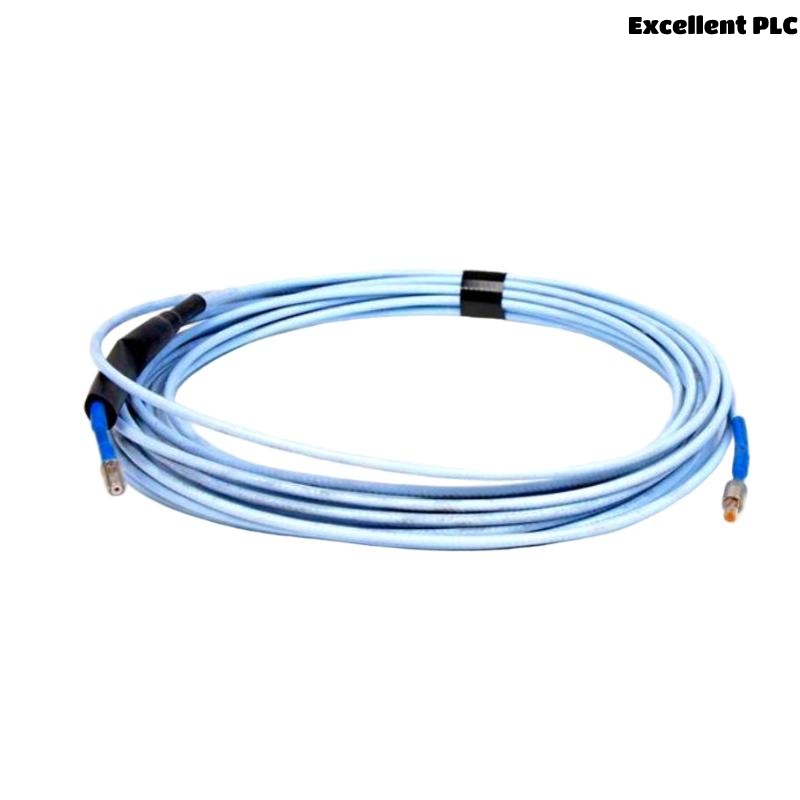

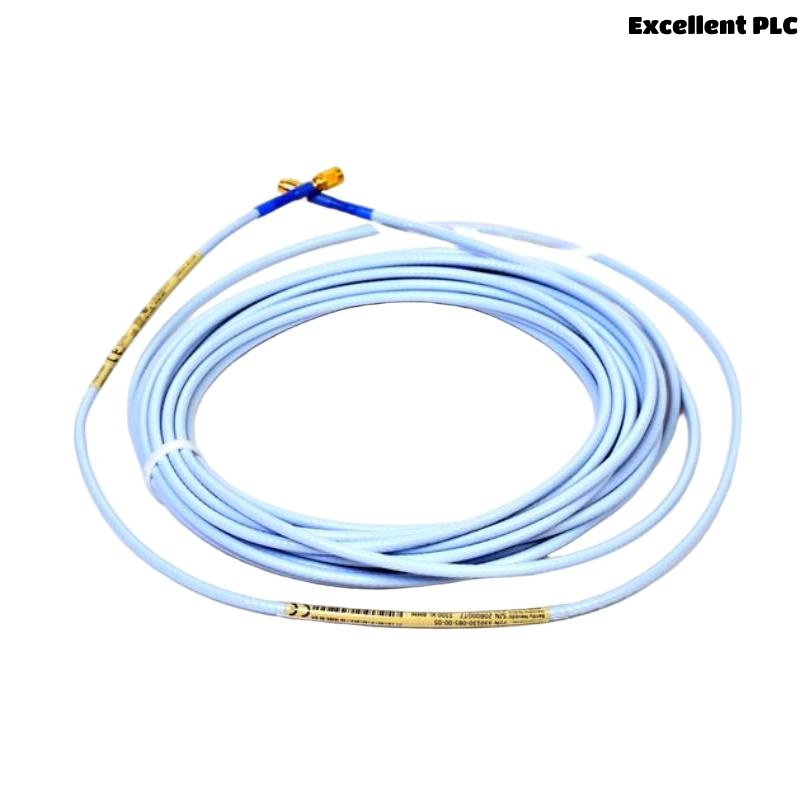

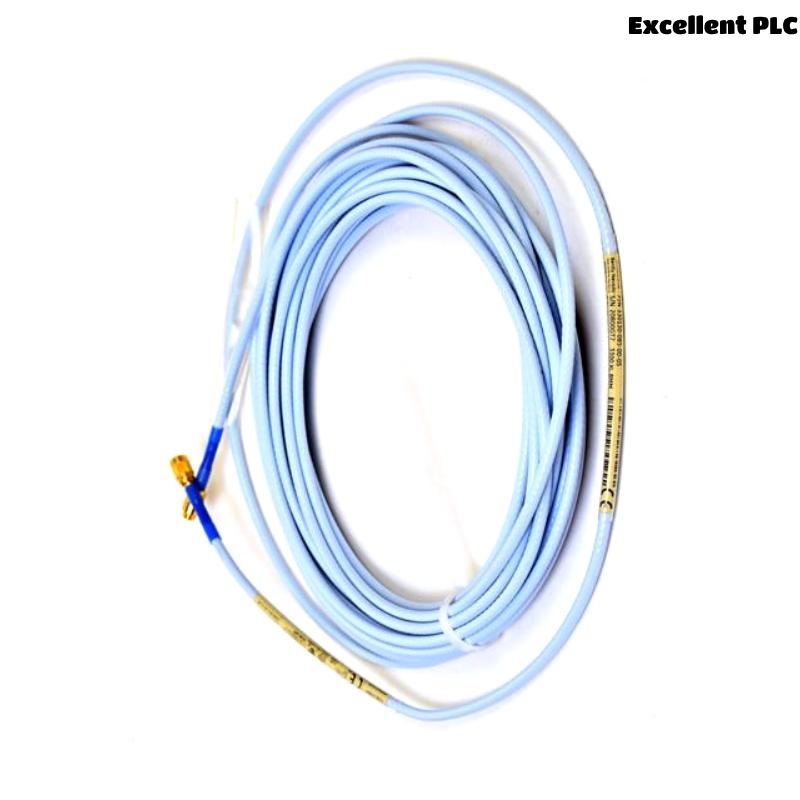

The Bently Nevada 330130-085-02-00 is a standard extension cord designed for use with the 3300 XL series proximity probes and associated monitoring equipment. This extension cord provides a reliable and high-quality connection between proximity probes and the monitoring system, allowing for flexible installation and longer cable runs without loss of signal fidelity.
Constructed with shielded, low-noise cable and robust connectors, the extension cord is engineered to perform reliably in harsh industrial environments where electromagnetic interference and mechanical stresses are common. Its sturdy design helps preserve the accuracy of critical displacement and vibration data gathered by Bently Nevada’s renowned monitoring systems.
Ideal for installations requiring extended cable lengths or convenient sensor positioning, the 330130-085-02-00 extension cord supports efficient machinery condition monitoring and helps reduce downtime by enabling precise data collection from rotating equipment.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330130-085-02-00 |
| Product Type | Standard Extension Cord for 3300 XL Proximity Probes |
| Compatible Series | Bently Nevada 3300 XL |
| Cable Length | 8.5 meters |
| Connector Type | MIL-C-26482 Style Connectors |
| Cable Construction | Shielded, low-noise, multi-conductor cable |
| Operating Temperature | -40°C to +90°C |
| Weight | 0.289 kg |
| Shielding | Foil and braid shielding for EMI/RFI protection |
| Typical Application | Extending probe cable length for rotating machinery condition monitoring |
| Compliance Standards | Complies with IEC and ISO standards for vibration monitoring systems |
Applications
The 330130-085-02-00 Standard Extension Cord is widely used across several industries for reliable condition monitoring of rotating equipment, including:
-
Power Generation: Extending connections for turbine, generator, and motor vibration probes.
-
Oil and Gas: Monitoring pumps, compressors, and rotating equipment in demanding environments.
-
Mining: Heavy machinery, conveyors, crushers, and mills condition monitoring.
-
Pulp and Paper: Extending sensor cables to monitor equipment health and avoid failures.
-
Manufacturing: Heavy motors, gearboxes, and rotating shafts requiring precise monitoring.
-
Aerospace & Defense: Rotating machinery testing and signal extension applications.
Advantages
-
Preserves Signal Integrity: Shielded design prevents interference, ensuring precise data transmission.
-
Robust and Durable: Constructed to endure harsh industrial conditions including abrasion and chemical exposure.
-
Flexible Installation: Extends cable length without degrading probe signal quality.
-
Reliable Connection: Military-grade MIL-C-26482 connectors provide secure and consistent connections.
-
Wide Temperature Compatibility: Operates effectively in a broad temperature range from -40°C to +90°C.
-
Seamless Compatibility: Fully compatible with all 3300 XL proximity probes and system components.
-
Quick and Easy Installation: Plug-and-play connectors minimize installation time and errors.
-
EMI/RFI Protection: Superior shielding reduces the impact of electromagnetic and radio frequency interference.
-
Low Maintenance: High-quality materials ensure long service life with minimal upkeep.
Frequently Asked Questions (FAQs)
1. What is the length of the Bently Nevada 330130-085-02-00 extension cord?
The standard cable length is 8.5 meters.
2. What type of connectors does this extension cord use?
It uses MIL-C-26482 military-style connectors for durability and reliability.
3. Is the cable shielded to reduce interference?
Yes, it features foil and braid shielding to protect against EMI and RFI.
4. What is the operating temperature range for this cable?
It reliably operates between -40°C and +90°C.
5. Can the extension cord be used in outdoor environments?
It is designed for industrial environments; however, additional protection may be needed for prolonged outdoor use.
6. Is this extension cord compatible with all 3300 XL series probes?
Yes, it is compatible with the entire 3300 XL proximity probe family.
7. How durable is the cable jacket?
The jacket is made from durable materials designed to resist abrasion and chemical exposure.
8. Are custom lengths available?
Custom lengths might be available upon request.
9. Does the extension affect signal quality?
No, it is designed to maintain signal fidelity across the specified length.
10. How is this extension cord connected to the probes and monitors?
The cord uses plug-and-play MIL-C-26482 connectors for straightforward installation.
