Product Introduction

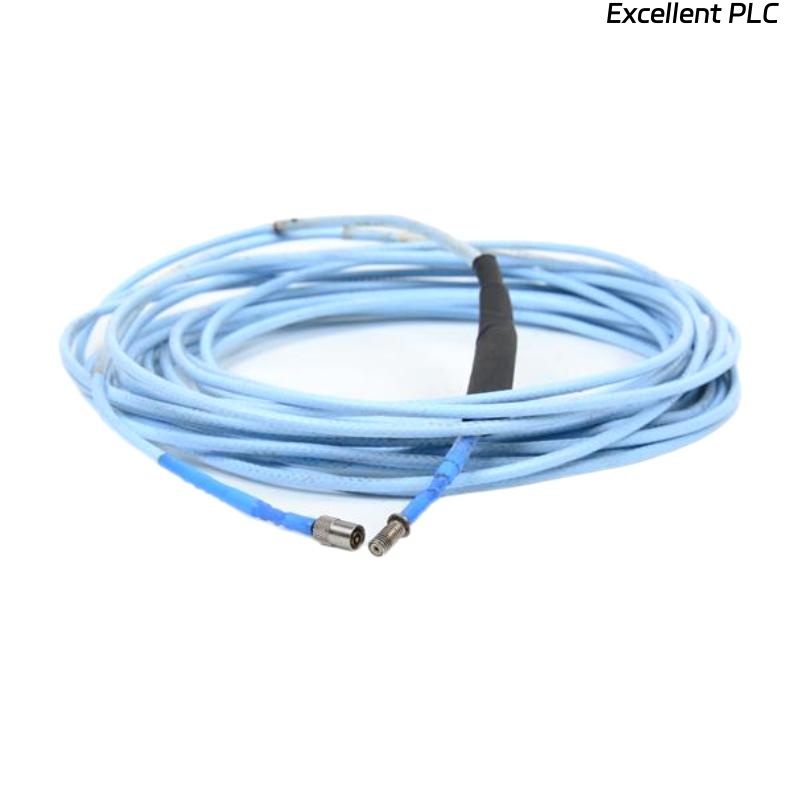

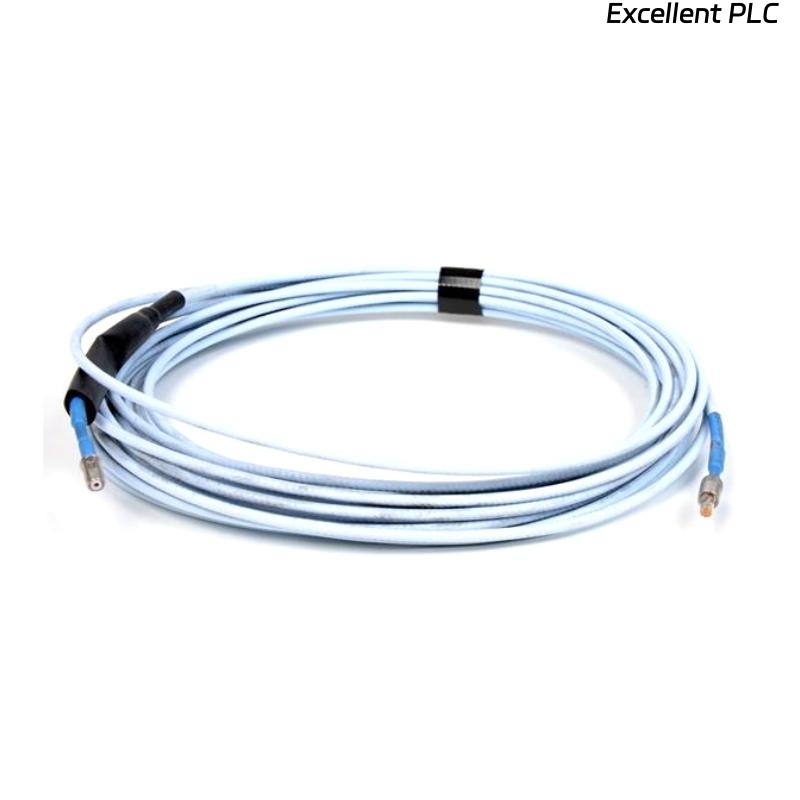

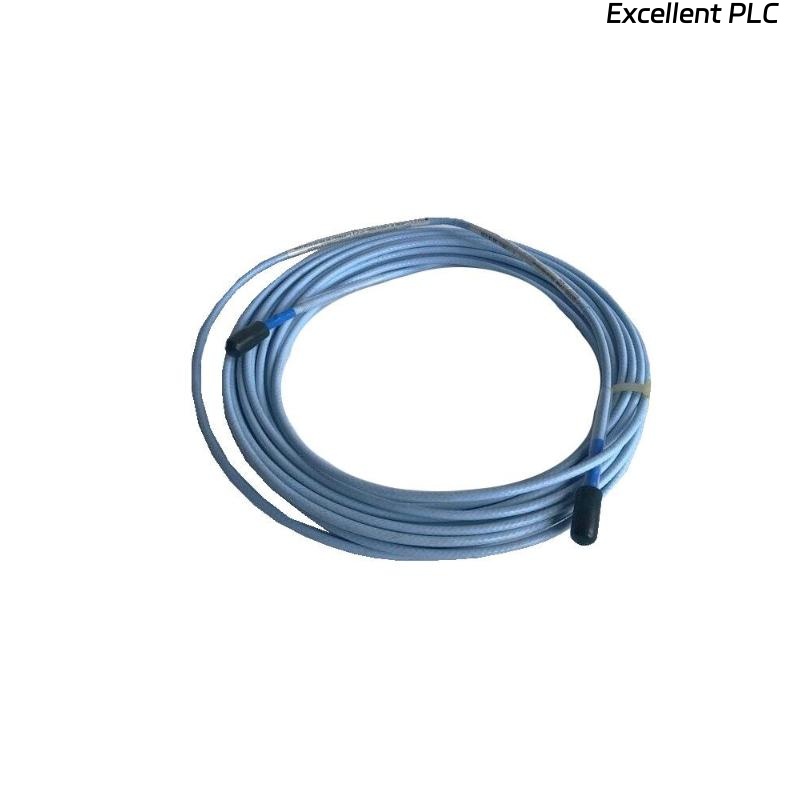

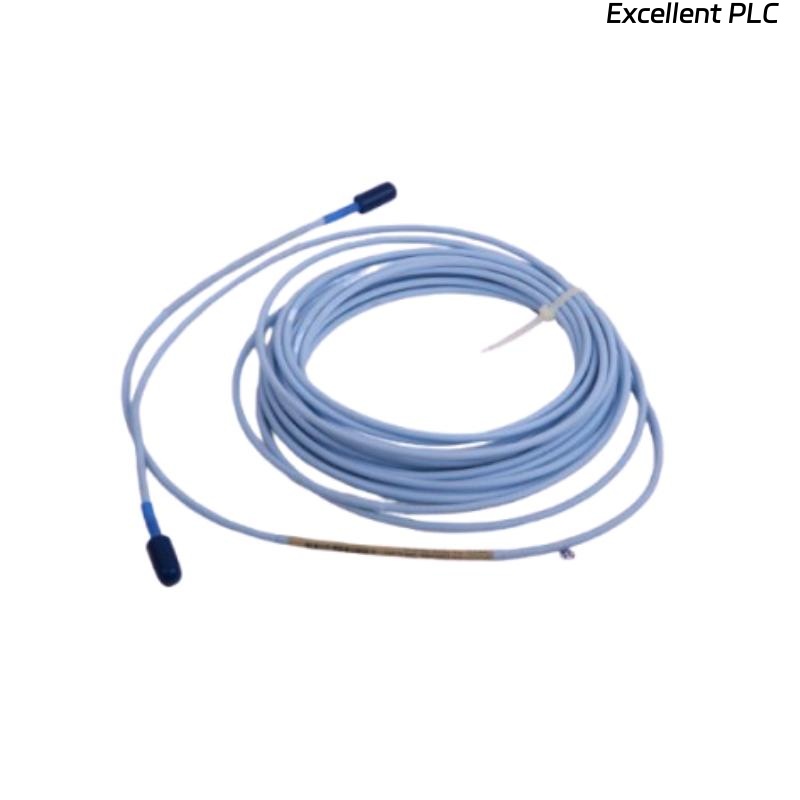

The Bently Nevada 330130-085-02-CN 3300 XL Standard Extension Cord is a high-quality accessory designed to extend the connection distance between sensors and 3300 XL monitoring systems. Manufactured with precision, this extension cord ensures reliable transmission of vibration and proximity probe signals in demanding industrial environments. Its durable construction is optimized for consistent performance in harsh conditions, including high-temperature, high-vibration, and electrically noisy environments.
This cord is compatible with 3300 XL proximity probes and sensors, maintaining signal integrity over its entire length. It is widely used in turbines, compressors, generators, and rotating machinery monitoring systems, providing flexibility in installation and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-085-02-CN |
| Product Type | Standard Extension Cord |
| Compatibility | Bently Nevada 3300 XL Sensors |
| Total Length | 8.5 m |
| Weight | 0.289 kg |
| Connector Type | Circular MIL-style connectors |
| Operating Temperature | -40°C to 125°C |
| Signal Type | Proximity/Vibration |
| Shielding | Fully shielded twisted pair |
| Environment Protection | IP65 compatible |
Applications
-
Extending connection distance for 3300 XL proximity probes.
-
Vibration monitoring in turbines, generators, compressors, and pumps.
-
Integration into machinery condition monitoring systems.
-
Industrial environments with electrical noise or high vibration.
-
Temporary or permanent installation for flexible monitoring layouts.
-
Facilitating maintenance and sensor relocation without signal loss.
Product Advantages
-
Reliable Signal Transmission: Fully shielded twisted pair ensures minimal interference.
-
Durable Construction: Designed to withstand high temperatures, vibration, and industrial contaminants.
-
Easy Integration: Compatible with all 3300 XL sensors for straightforward installation.
-
Flexible Installation: Provides 8.5 m of extension, allowing adaptable positioning of sensors.
-
Maintenance Friendly: Reduces the need to move sensors or machinery for connection adjustments.
-
High Electrical Noise Immunity: Maintains accurate readings even in electrically noisy environments.
FAQ
Q1: Can this extension cord be used with non-3300 XL probes?
A1: It is designed specifically for 3300 XL sensors; using with other probes may affect signal integrity.
Q2: What is the maximum recommended cable run when using multiple extensions?
A2: Total extension should not exceed 30 meters to maintain accurate probe signals.
Q3: Does the cable support both proximity and vibration signals?
A3: Yes, it supports both types, maintaining proper shielding and signal fidelity.
Q4: Is the cable shield grounded?
A4: Yes, the cable features a fully shielded design that must be grounded at the monitor end.
Q5: Can it operate in explosive environments?
A5: While durable, it is not rated for intrinsically safe or explosive atmospheres.
Q6: Does the connector orientation matter?
A6: Connectors are keyed; proper alignment is required to ensure signal integrity.
Q7: Can the cable be routed near power lines?
A7: Yes, but maintain minimum separation of 10 cm from high-voltage cables to reduce interference.
Q8: Is the cord flexible for tight installations?
A8: Yes, the cord is designed to bend without damaging internal shielding.
Q9: How does temperature affect the cable performance?
A9: The cable is rated for -40°C to 125°C; performance remains stable within this range.
Q10: Are replacement connectors available separately?
A10: Yes, Bently Nevada provides compatible connectors for maintenance or repairs.
Related or Same-Series Models
| Model Number | Description | Total Length | Weight |
|---|---|---|---|
| 330130-020-01-CN | 3300 XL Standard Extension Cord | 2 m | 0.08 kg |
| 330130-050-01-CN | 3300 XL Standard Extension Cord | 5 m | 0.18 kg |
| 330130-085-01-CN | 3300 XL Standard Extension Cord | 8.5 m | 0.289 kg |
| 330130-120-01-CN | 3300 XL Standard Extension Cord | 12 m | 0.4 kg |
| 330130-150-01-CN | 3300 XL Standard Extension Cord | 15 m | 0.52 kg |
| 330130-200-01-CN | 3300 XL Standard Extension Cord | 20 m | 0.7 kg |
