Product Introduction

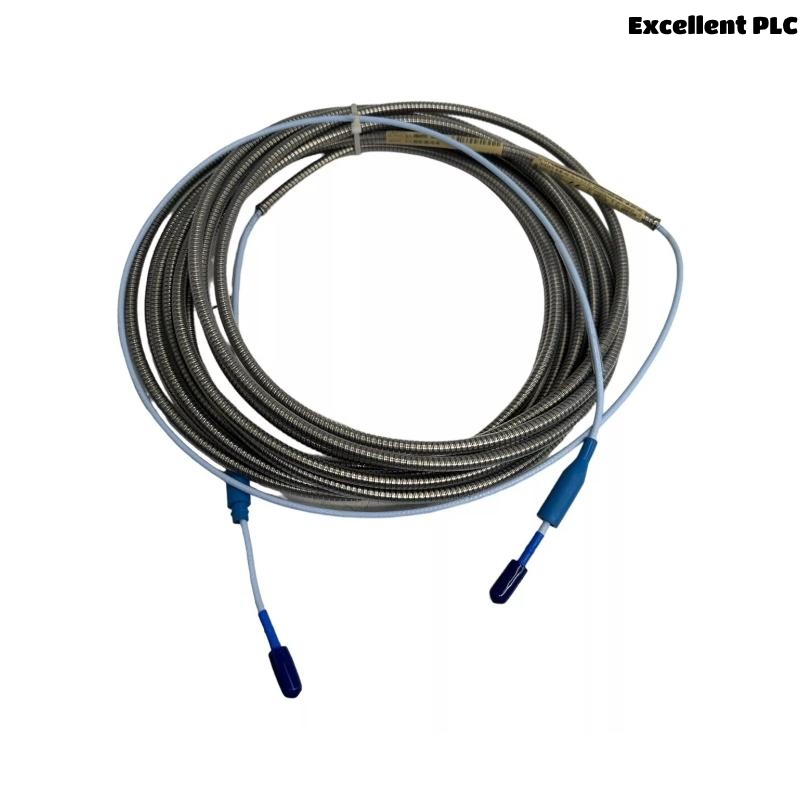

The Bently Nevada 330130-085-03-05 is a high-quality standard extension cord designed for the 3300 XL series proximity probes, facilitating reliable signal extension between probes and monitoring systems. This cord allows flexible sensor placement while maintaining signal fidelity critical for accurate machinery vibration and displacement monitoring.
Manufactured with shielded, multi-conductor cable and robust MIL-C-26482 connectors, this extension cord is engineered for industrial environments with high electromagnetic interference (EMI) and mechanical stresses. Its shielding minimizes noise and ensures the precision of data vital for predictive maintenance and operational safety.
Ideal for installations that require cable runs longer than standard probe lengths, the 330130-085-03-05 extension cord supports efficient condition monitoring of rotating machinery, helping to prevent equipment failures and downtime.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330130-085-03-05 |
| Product Type | Standard Extension Cord for 3300 XL Proximity Probes |
| Compatible Series | Bently Nevada 3300 XL |
| Cable Length | 8.5 meters |

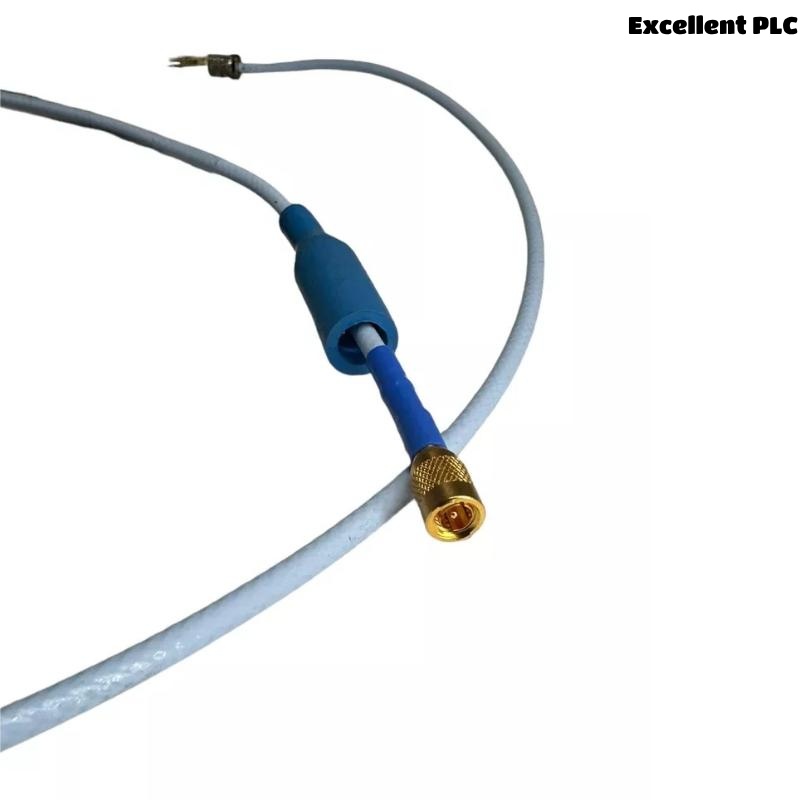

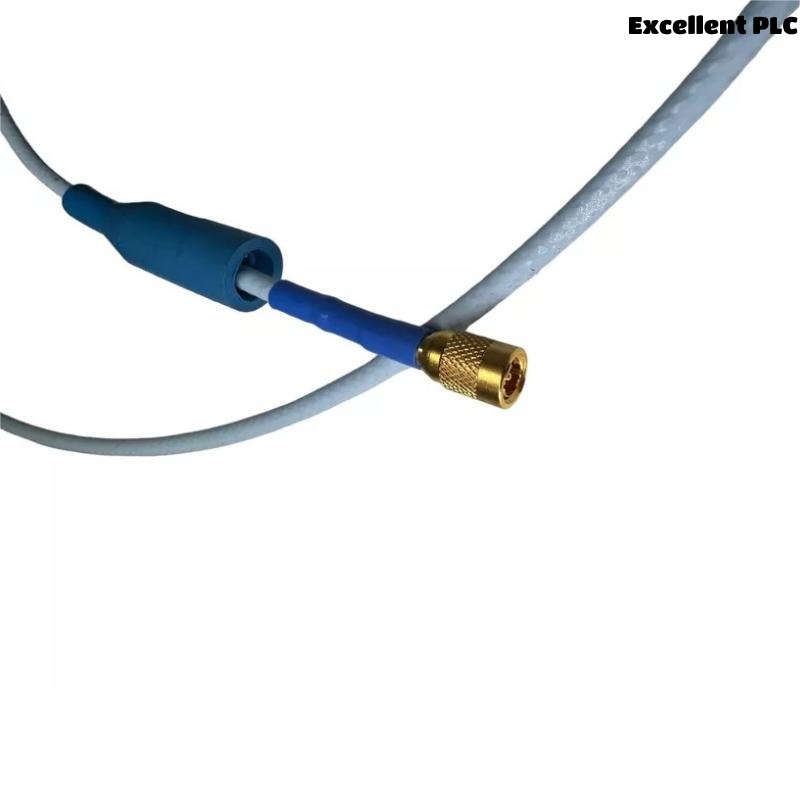

| Connector Type | MIL-C-26482 Style Connectors |

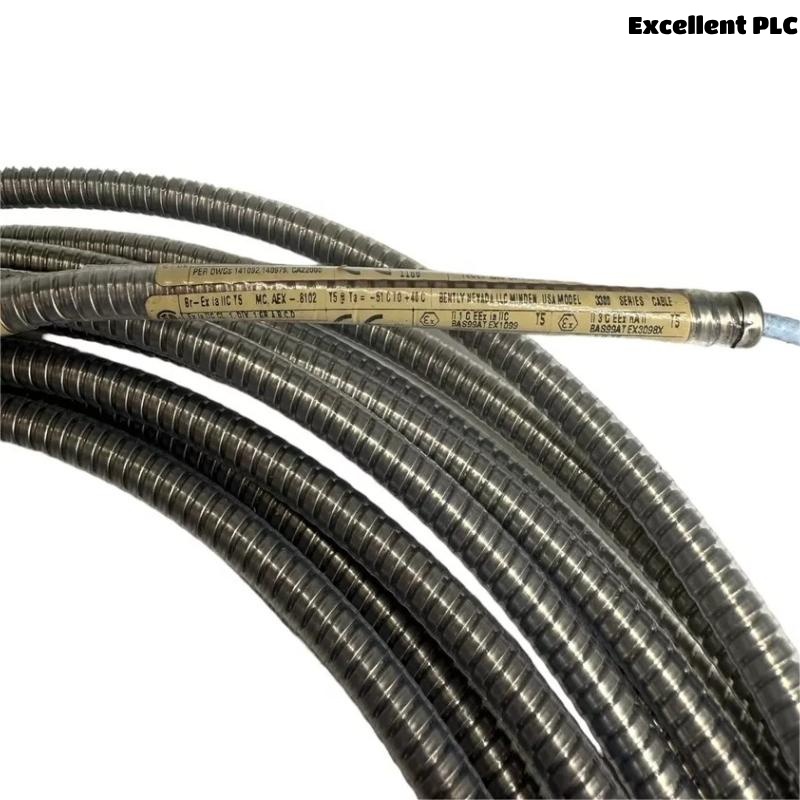

| Cable Construction | Shielded, low-noise, multi-conductor cable |
| Operating Temperature | -40°C to +90°C |
| Weight | 0.876 kg |
| Shielding | Foil and braid shielding for EMI/RFI protection |
| Typical Application | Extending probe cable length for condition monitoring of rotating machinery |
| Compliance Standards | Meets IEC and ISO standards for vibration monitoring systems |
Applications
The 330130-085-03-05 extension cord is widely used in various industries to facilitate accurate and reliable condition monitoring of rotating machinery:
-
Power Plants: Extends proximity probe cables on turbines, generators, and motors.
-
Oil & Gas: Used in pumps, compressors, and other rotating equipment in challenging environments.
-
Mining: Extends sensor cables on conveyors, crushers, and mills.
-
Pulp and Paper: Helps monitor rotating machinery to reduce unexpected downtime.
-
Manufacturing: Enables flexible sensor placement on motors and gearboxes.
-
Aerospace & Defense: Used in rotating machinery testing and monitoring setups.
Advantages
-
Maintains Signal Integrity: Shielded cable reduces electromagnetic interference and noise.
-
Durable Design: Cable and connectors are built to resist harsh industrial conditions.
-
Installation Flexibility: Provides longer cable runs without signal degradation.
-
Reliable Connectors: MIL-C-26482 connectors ensure secure and stable connections.
-
Wide Operating Temperature: Suitable for environments ranging from -40°C to +90°C.
-
Full Compatibility: Compatible with all 3300 XL series proximity probes.
-
Plug-and-Play: Quick installation reduces downtime and simplifies maintenance.
-
Effective EMI/RFI Protection: Prevents interference to ensure accurate measurements.
-
Low Maintenance: High-quality materials extend service life and reduce replacement frequency.
Frequently Asked Questions (FAQs)
1. What is the length of the 330130-085-03-05 extension cord?
It comes in a standard length of 8.5 meters.
2. What type of connectors does this extension cord use?
MIL-C-26482 military-grade connectors are used for dependable connections.
3. Is the cable shielded?
Yes, it has foil and braid shielding to protect against EMI and RFI.
4. What temperature range can this cable operate in?
It is rated for -40°C to +90°C.
5. Is this cable suitable for outdoor use?
It is designed for industrial environments; outdoor use may require additional protection.
6. Is it compatible with all 3300 XL probes?
Yes, it works with the entire 3300 XL proximity probe family.
7. How resistant is the cable jacket to wear and chemicals?
The cable jacket is durable and resistant to abrasion and chemical exposure.
8. Can I get this extension cord in custom lengths?
Custom lengths may be available upon request; contact Bently Nevada sales.
9. Will this extension cord affect signal quality?
No, it is designed to maintain signal quality over the specified length.
10. How do I connect the extension cord?
It uses plug-and-play MIL-C-26482 connectors for easy installation.
Related Models from the Same Series
| Model Number | Description | Cable Length | Connector Type | Weight |
|---|---|---|---|---|
| 330130-085-00-05 | 3300 XL Standard Extension Cord | 5 meters | MIL-C-26482 connectors | 0.25 kg |
| 330130-085-01-05 | 3300 XL Standard Extension Cord | 5 meters | MIL-C-26482 connectors | 0.25 kg |
| 330130-085-02-00 | 3300 XL Standard Extension Cord | 2 meters | MIL-C-26482 connectors | 0.12 kg |
| 330130-085-00-10 | 3300 XL Extension Cord | 10 meters | MIL-C-26482 connectors | 0.45 kg |
| 330130-085-00-15 | 3300 XL Extension Cord | 15 meters | MIL-C-26482 connectors | 0.65 kg |
| 330130-085-00-20 | 3300 XL Extension Cord | 20 meters | MIL-C-26482 connectors | 0.85 kg |
