Product Introduction

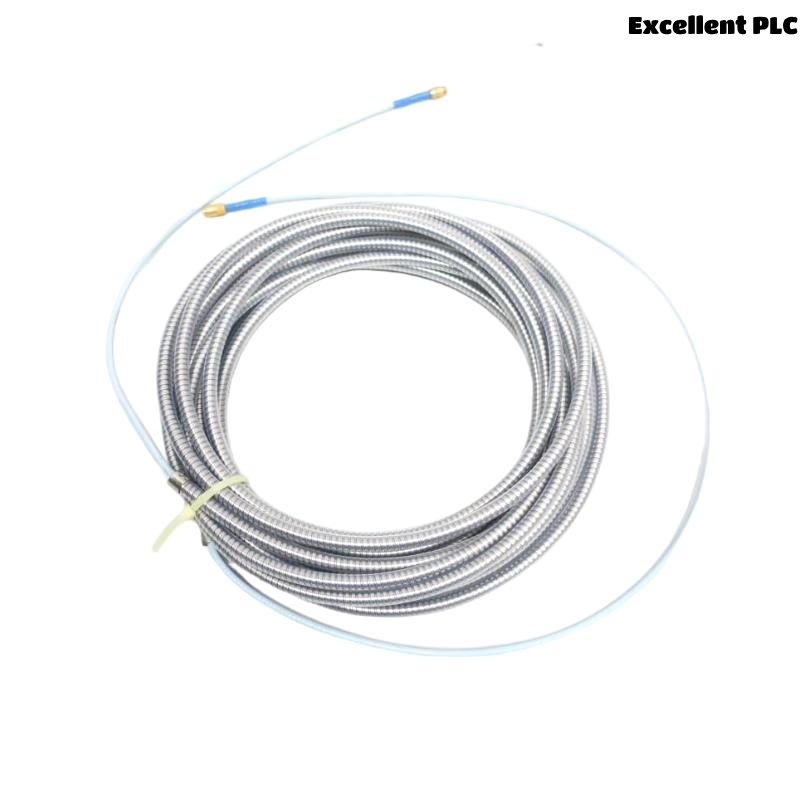

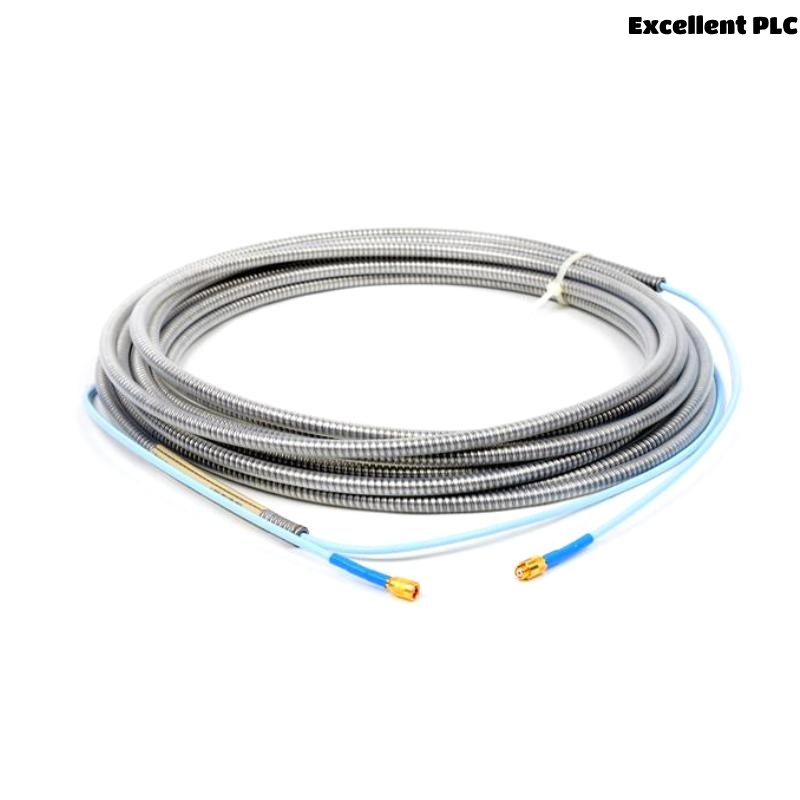

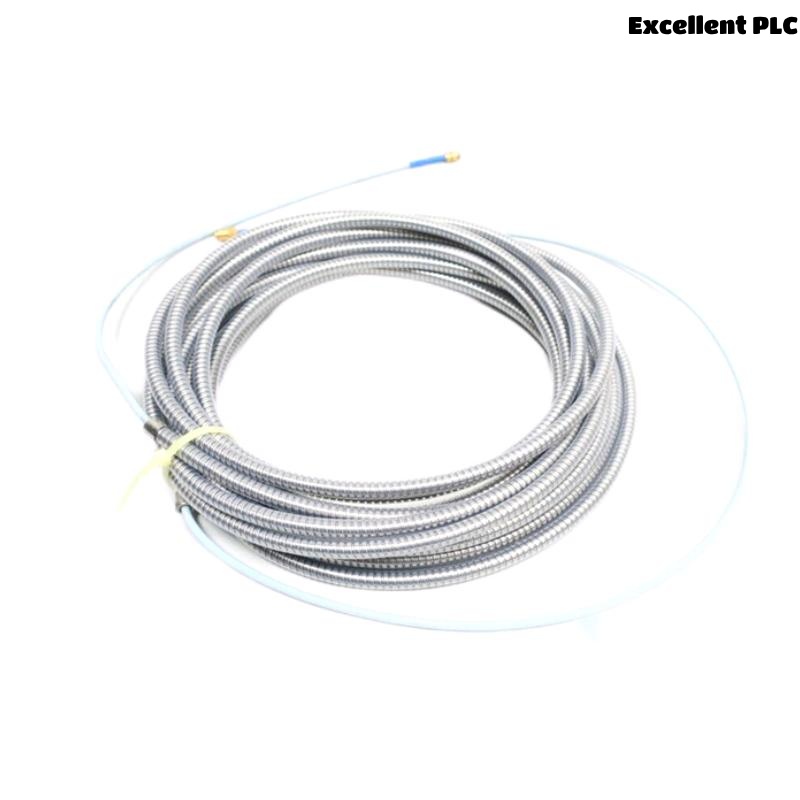

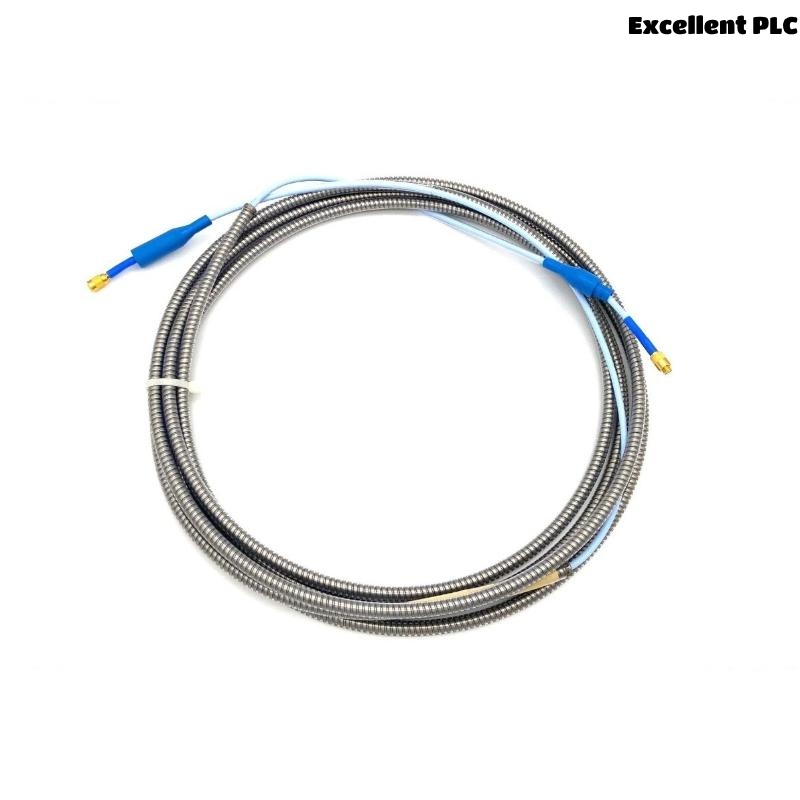

The Bently Nevada 330130-085-13-05 3300 XL Standard Extension Cord is a premium-quality accessory designed for seamless extension of proximity probes within the Bently Nevada 3300 XL monitoring system. This extension cord provides essential flexibility by allowing the probes to be placed at optimal locations while maintaining signal quality over extended distances.
It is designed with robust, shielded, low-noise cables, ensuring the integrity of the signals transmitted between the proximity probes and the monitoring system. The MIL-C-26482 connectors ensure secure, high-performance connections, while the cable’s durable construction is optimized for industrial environments with high mechanical stresses and electrical interference.
This extension cord is ideal for industries that require reliable and long-distance monitoring of rotating equipment, such as in power plants, oil refineries, manufacturing, and mining operations. By extending the probe’s reach, the extension cord helps to gather accurate vibration and displacement data critical for predictive maintenance and ensuring the health of the machinery.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330130-085-13-05 |
| Product Type | Standard Extension Cord for 3300 XL Proximity Probes |
| Compatible Series | Bently Nevada 3300 XL |
| Cable Length | 8.5 meters |
| Connector Type | MIL-C-26482 Style Connectors |
| Cable Construction | Shielded, multi-conductor low-noise cable |
| Operating Temperature | -40°C to +90°C |
| Weight | 0.876 kg |
| Shielding | Foil and braid shielding for EMI/RFI protection |
| Typical Application | Extending probe cable length for condition monitoring of rotating machinery |
| Compliance Standards | Meets IEC and ISO standards for vibration monitoring systems |
Applications
The 330130-085-13-05 extension cord is widely used across a range of industries where precise and reliable condition monitoring of rotating machinery is necessary:
-
Power Generation: Extending cables for turbines, generators, and other motor systems to enhance vibration monitoring.
-
Oil & Gas: Monitoring pumps, compressors, and other critical equipment in refineries and offshore platforms.
-
Mining: Vibration and displacement monitoring of conveyors, crushers, and mills in challenging environments.
-
Pulp and Paper: Extending cables to monitor rotary equipment such as pulpers and dryers in paper production.
-
Manufacturing: Machinery condition monitoring on motors, gearboxes, and production lines.
-
Aerospace & Defense: Used for rotating machinery testing, ensuring safety, and extending connections for accurate monitoring.
Advantages
-
Signal Integrity: The extension cord is designed with high-quality shielding to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring the highest signal accuracy.
-
Durability: Constructed from robust materials, this cord can withstand mechanical wear and exposure to industrial chemicals, making it perfect for harsh environments.
-
Extended Reach: Enables precise positioning of proximity probes, extending the length of the probes without degrading signal quality.
-
Secure Connections: The MIL-C-26482 connectors offer reliable, secure, and fast connections to minimize downtime during installation or maintenance.
-
Wide Temperature Range: Operates efficiently across a wide temperature range, from -40°C to +90°C, ensuring reliable performance in diverse conditions.
-
Full Compatibility: Fully compatible with all 3300 XL series proximity probes and related systems, making it a versatile solution.
-
EMI/RFI Shielding: Prevents signal distortion caused by external electromagnetic and radio-frequency interference.
-
Quick Installation: Designed for plug-and-play installation, the extension cord significantly reduces installation and maintenance time.
-
Low Maintenance: The robust construction and durable materials used ensure the cord requires minimal maintenance and offers a long lifespan.
Frequently Asked Questions (FAQs)
1. What is the length of the Bently Nevada 330130-085-13-05 extension cord?
The standard cable length is 8.5 meters.
2. What type of connectors does this extension cord use?
It uses MIL-C-26482 military-grade connectors for secure and reliable connections.
3. Is the extension cord shielded to protect against interference?
Yes, the cable is shielded with foil and braid to minimize EMI and RFI.
4. What is the temperature range of this extension cord?
The extension cord operates efficiently in temperatures ranging from -40°C to +90°C.
5. Can the extension cord be used outdoors?
While it is designed for industrial environments, additional weatherproofing may be required for prolonged outdoor use.
6. Is the 330130-085-13-05 extension cord compatible with all 3300 XL probes?
Yes, it is fully compatible with all 3300 XL proximity probes.
7. How resistant is the cable jacket to mechanical wear?
The cable jacket is made of durable materials resistant to abrasion, mechanical wear, and chemical exposure.
8. Can I request a custom-length extension cord?
Custom lengths may be available upon request.
9. Does the extension cord impact signal accuracy over long distances?
No, it is designed to maintain signal integrity over the entire length without compromising data quality.
10. How do I connect the extension cord to the proximity probes and monitoring system?
The extension cord uses MIL-C-26482 connectors for straightforward plug-and-play connections.
Related Models from the Same Series
| Model Number | Description | Cable Length | Connector Type | Weight |
|---|---|---|---|---|
| 330130-085-00-05 | 3300 XL Standard Extension Cord | 5 meters | MIL-C-26482 connectors | 0.25 kg |
| 330130-085-01-05 | 3300 XL Standard Extension Cord | 5 meters | MIL-C-26482 connectors | 0.25 kg |
| 330130-085-02-00 | 3300 XL Standard Extension Cord | 2 meters | MIL-C-26482 connectors | 0.12 kg |
| 330130-085-00-10 | 3300 XL Extension Cord | 10 meters | MIL-C-26482 connectors | 0.45 kg |
| 330130-085-00-15 | 3300 XL Extension Cord | 15 meters | MIL-C-26482 connectors | 0.65 kg |
| 330130-085-00-20 | 3300 XL Extension Cord | 20 meters | MIL-C-26482 connectors | 0.85 kg |
