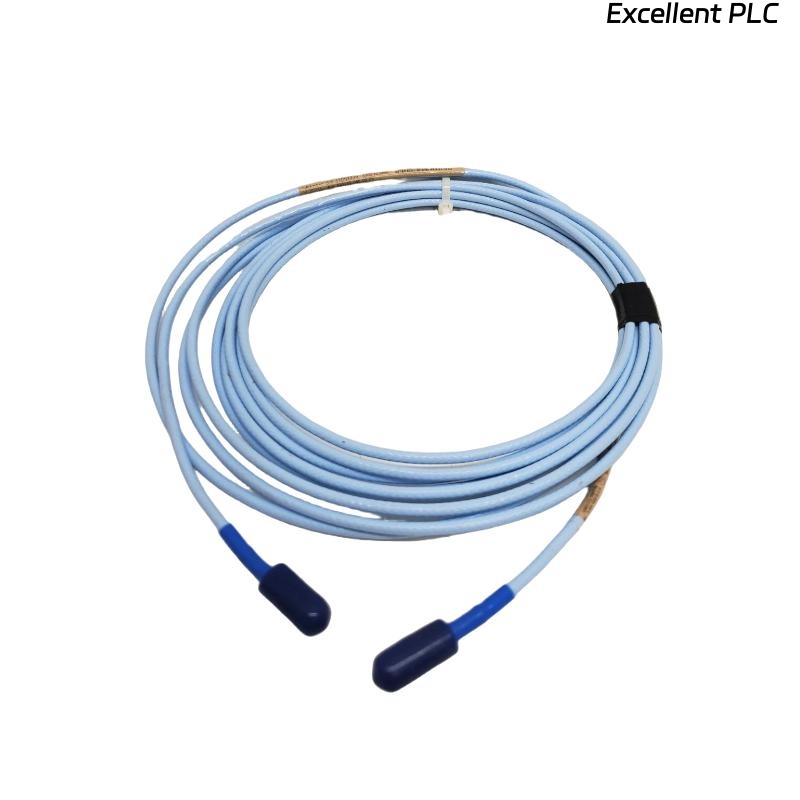

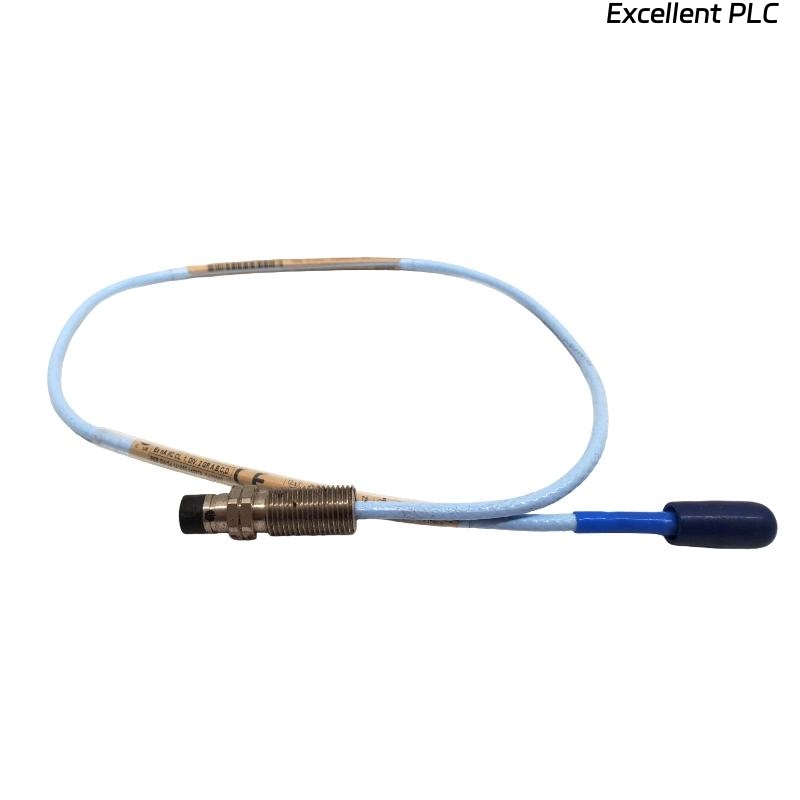

Bently Nevada 330162-01-45-45-07-07-94-01-02 Single Triaxial HP Feedthrough for 3300 System

Product Introduction

The Bently Nevada 330162-01-45-45-07-07-94-01-02 Single Triaxial HP Feedthrough is a high-performance component designed for use in the Bently Nevada 3300 system, providing a robust and reliable interface between triaxial vibration probes and the monitoring electronics. This feedthrough is engineered to maintain signal integrity under demanding industrial conditions, making it a critical part of high-performance machinery protection and condition monitoring solutions.

As part of the 3300 family, this model supports triaxial sensing configurations, allowing simultaneous measurement of vibration along three orthogonal axes. The high-pressure (HP) construction ensures mechanical resilience and leak-tight performance in pressurized or vacuum environments, making it suitable for advanced applications in turbines, compressors, motors, and other critical rotating assets.

With a rugged stainless-steel body, precision connectors, and enhanced insulation, the feedthrough ensures long-term reliability even under extreme vibration, temperature, and chemical exposure.

Product Specifications

Applications

The 330162-01-45-45-07-07-94-01-02 feedthrough plays a crucial role in transmitting accurate sensor signals while preserving integrity in demanding environments. Typical applications include:

• Gas and Steam Turbines: Provides reliable triaxial vibration measurements for advanced diagnostic accuracy.

• Compressors: Supports continuous monitoring of complex shaft and casing vibration.

• Motors and Generators: Enables early detection of misalignment, imbalance, and bearing wear.

• Vacuum and High-Pressure Systems: Ensures sealed signal transmission without leakage.

• Industrial Condition Monitoring: Facilitates comprehensive monitoring in chemical, power, and heavy industries.

• Rotating Machinery Protection Systems: Acts as a robust signal interface for shutdown and trip logic.

Advantages

• Triaxial Capability: Captures vibration data across three axes simultaneously, enabling precise diagnostics.

• High-Pressure Resilience: Hermetically sealed construction prevents leakage in pressurized or vacuum environments.

• Signal Integrity: Designed with advanced insulation and shielding to minimize noise and interference.

• Durable Materials: Stainless steel housing and robust connectors withstand harsh environments.

• Seamless Compatibility: Fully compatible with the Bently Nevada 3300 monitoring platform.

• Versatile Applications: Suitable for turbines, compressors, motors, and other critical equipment.

• Reduced Downtime: Enhances reliability of monitoring systems, reducing maintenance and unscheduled shutdowns.

• Long-Term Stability: Engineered for consistent performance in demanding operating conditions.

FAQ

1. Which monitoring systems support this feedthrough?
   It is designed for seamless integration with the Bently Nevada 3300 system.

2. What type of signals does the feedthrough transmit?
   It transmits triaxial vibration and displacement sensor signals with high fidelity.

3. Is the feedthrough hermetically sealed?
   Yes, it features hermetic sealing to ensure leak-free operation under pressure or vacuum.

4. How is electromagnetic interference minimized?
   The feedthrough uses advanced dielectric insulation and shielding to suppress external EMI.

5. Can it operate in high-vibration environments?
   Yes, the rugged stainless-steel body is designed to withstand strong mechanical vibrations.

6. What is the operating temperature range?
   It can reliably function between -40°C and +125°C.

7. Is this feedthrough compatible with triaxial probes only?
   While optimized for triaxial configurations, it can also support single-axis probes if required.

8. What makes it suitable for high-pressure applications?
   The design uses pressure-rated housing and hermetic sealing for secure operation in such conditions.

9. Can it be used in vacuum systems?
   Yes, the sealed construction allows leak-free operation in vacuum environments.

10. Does the ceramic or stainless-steel construction impact signal quality?
    No, the materials are chosen for durability without compromising electrical signal integrity.
