Product Overview

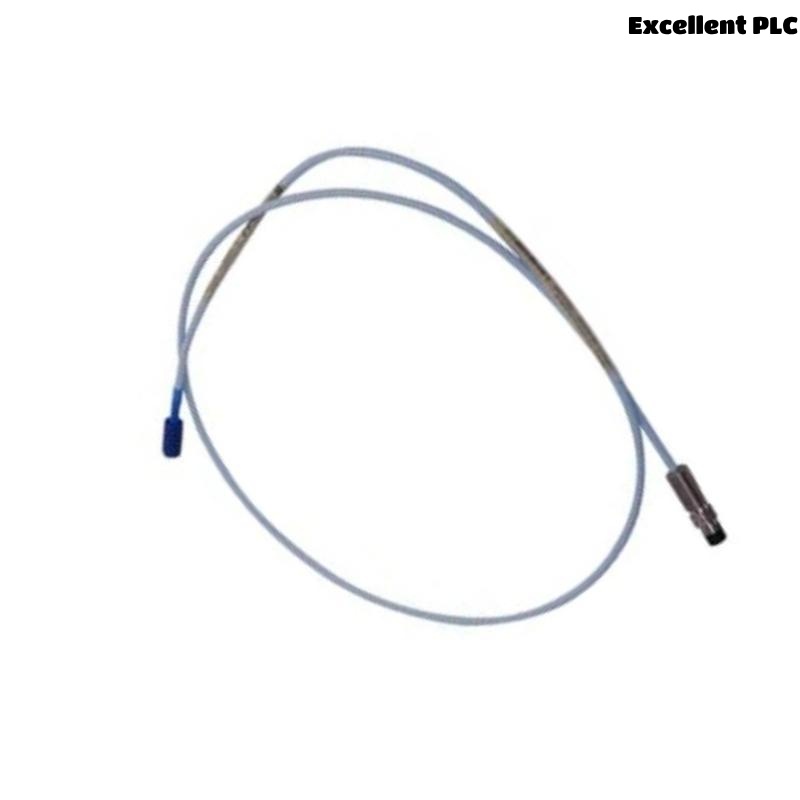

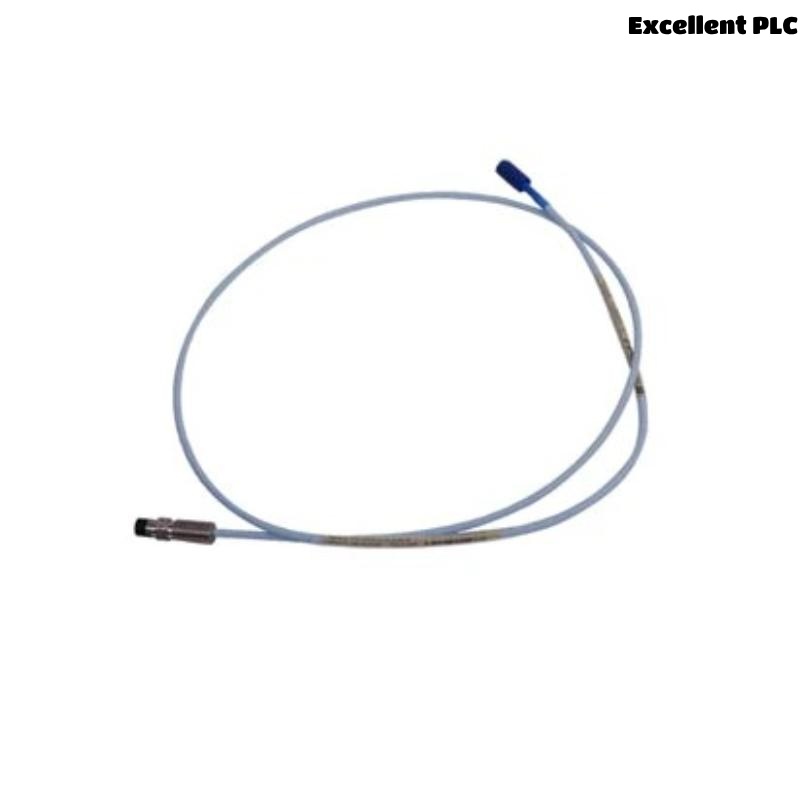

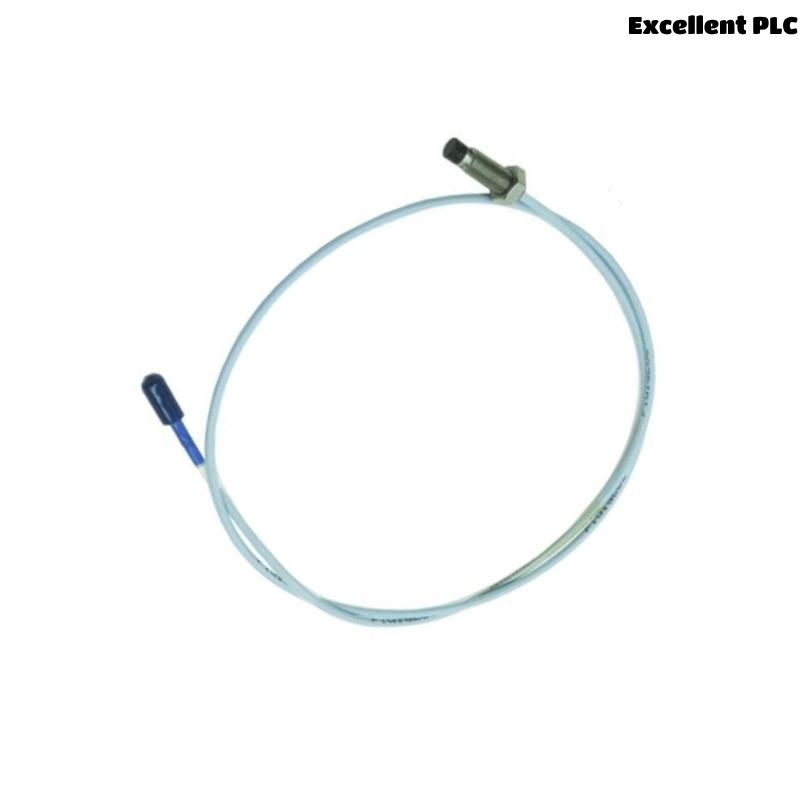

The Bently Nevada 330171-00-12-10-01-05 3300 5 mm Proximity Probe is a high-precision eddy-current displacement sensor designed for accurate monitoring of shaft position and vibration in rotating machinery. This probe delivers reliable measurement data essential for condition-based maintenance and machinery protection.
Its compact 5 mm diameter and robust stainless steel housing make it suitable for installation in tight and harsh industrial environments. The probe supports seamless integration with Bently Nevada monitoring systems, making it an ideal choice for power generation, petrochemical, and manufacturing industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330171-00-12-10-01-05 |
| Series | 3300 |
| Probe Type | Eddy-Current Displacement Probe |
| Probe Diameter | 5 mm |
| Dimensions | Total Length : 1.0 meter |
| Connector Type | MS Connector |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -55°C to +125°C |
| Frequency Response | DC to 20 kHz |
| Target Material | Conductive metals |
| Sensitivity | Approx. 15 mV/mil (0.591 mV/µm) |
| Weight | 0.323 kg |
| Housing Material | Stainless Steel |
| Mounting Style | Threaded probe body |
| Environmental Protection | IP67 |
Applications
Typical applications include:
-
Shaft displacement and vibration monitoring in turbines, compressors, and generators
-
Condition monitoring of pumps, motors, and gearboxes
-
Machinery protection in petrochemical, power generation, and manufacturing plants
-
Early fault detection to reduce downtime and maintenance costs
-
Integration with vibration analysis and machinery protection systems
Advantages
-
Compact and Robust: 5 mm diameter and stainless steel housing enable use in confined and harsh environments.
-
Accurate Measurement: Eddy-current technology ensures precise shaft position and vibration readings.
-
Wide Temperature Range: Suitable for operation from -40°C to +120°C.
-
Easy Installation: Threaded body and MS connector provide compatibility and simple mounting.
-
Low Maintenance: Designed for durability and minimal upkeep.
-
System Compatibility: Fully compatible with Bently Nevada 3300 series monitoring systems.
Frequently Asked Questions (FAQ)
-
What is the diameter and length of this probe?
Diameter is 5 mm; probe length is 12 mm. -
How long is the cable?
Cable length is 1 meter. -
What temperature range can it operate in?
From -40°C to +120°C. -
What principle does the probe use for measurement?
Eddy-current technology detecting changes in electromagnetic fields. -
What environmental protection does it have?
IP67 rating for dust and water resistance. -
Which materials can the probe detect?
Conductive metals such as steel and aluminum. -
How is it mounted?
Using a threaded probe body. -
Can it measure vibration frequencies?
Yes, up to 20 kHz frequency response. -
What maintenance is required?
Minimal maintenance; routine cleaning recommended. -
Is it compatible with other systems?
Primarily designed for Bently Nevada, but may work with others with similar connectors.
