Product Introduction

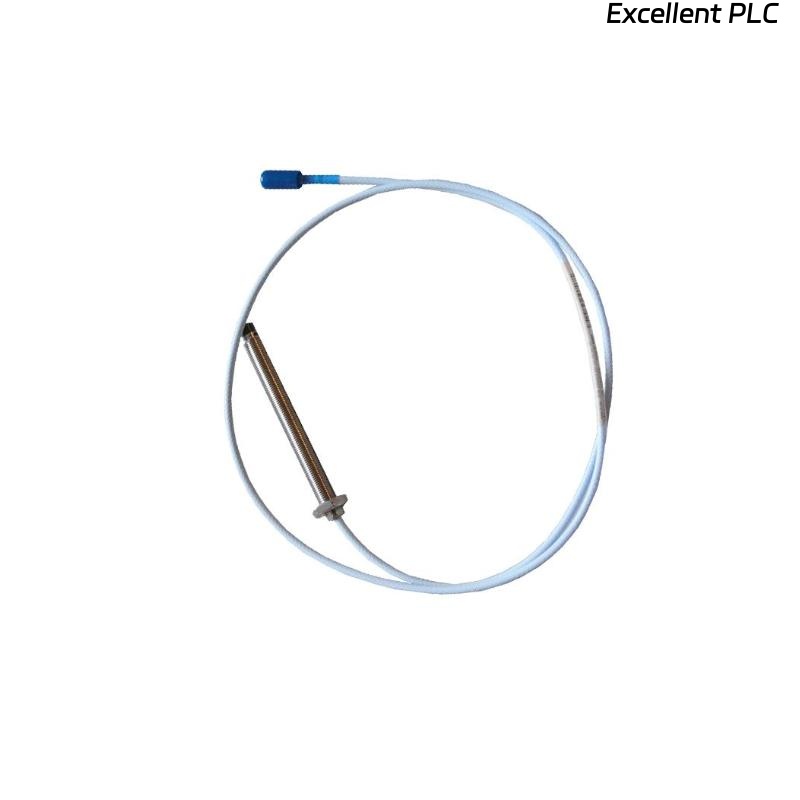

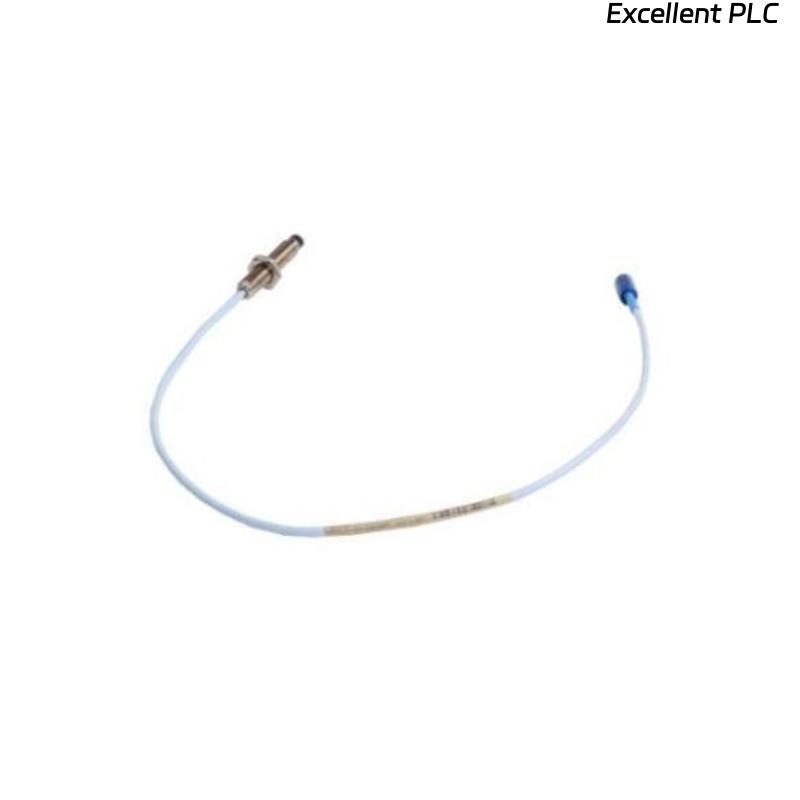

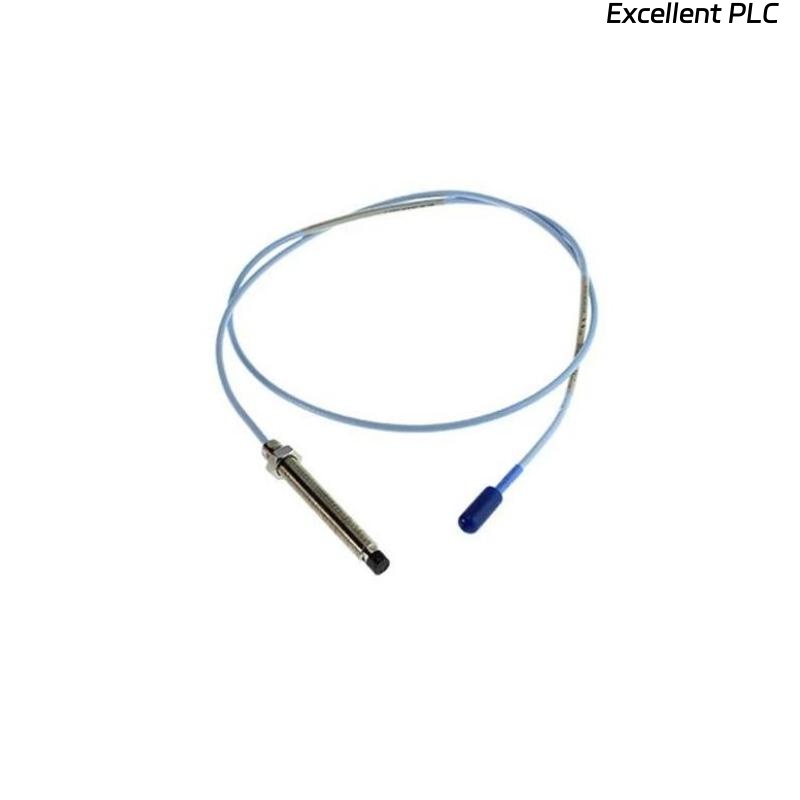

The Bently Nevada 330171-00-30-10-02-05 3300 5mm Proximity Probe is a high-precision sensor used for monitoring shaft displacement and vibration in rotating equipment. Part of the 3300 series, this proximity probe provides critical data for machinery health monitoring and predictive maintenance. It is typically used in power generation, oil and gas, manufacturing, and chemical processing plants where accurate monitoring of rotating machinery is essential.
The 5mm nominal gap of this probe enables highly accurate measurements of shaft position, vibration, and other displacement-related parameters. The probe is designed with eddy current technology to ensure reliable and precise readings, even in demanding industrial environments. With a total length of 1.0 meter and a weight of 0.323 kg, it is both compact and robust enough to be used in a variety of installations.
The 3300 series probes from Bently Nevada are trusted for their long-lasting performance, high accuracy, and ease of integration with other machinery condition monitoring systems. The 330171-00-30-10-02-05 model is perfect for applications where both displacement and vibration need to be continuously monitored in real-time.
Product Specifications
| Feature | Specification |
|---|---|
| Model | 330171-00-30-10-02-05 |
| Type | 3300 5mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Gap | 5 mm |
| Sensing Principle | Eddy Current |
| Operating Temperature | -40°C to +85°C |
| Nominal Range | ±5 mm (typical) |
| Connector Type | M12 (5-pin) |
| Mounting Type | Fixed |
| Sensitivity | High Sensitivity |
| Applications | Vibration monitoring, shaft displacement, condition monitoring |
| Output Type | Analog (Current or Voltage) |
Product Applications
The Bently Nevada 330171-00-30-10-02-05 proximity probe is suitable for a wide range of critical applications in various industries. Some of the most common uses include:
-
Turbines: Essential for monitoring shaft displacement, ensuring alignment, and preventing damage from excessive vibrations.
-
Compressors: Tracks the movement of compressor shafts, helping to detect imbalances, wear, or misalignments early on.
-
Motors and Pumps: Used for monitoring the health of motor and pump shafts, identifying faults and wear before they result in failure.
-
Rotating Equipment: Works across different rotating machinery types, including fans, conveyors, and mixers, to measure displacement and vibration.
-
Condition Monitoring Systems: Can be integrated into condition monitoring systems, providing real-time data on equipment health, which helps to reduce unplanned downtime.
-
Power Generation: Ideal for monitoring critical systems in power plants, ensuring that turbines and generators operate efficiently.
Product Advantages
-
Precise Displacement Measurement: The 5mm nominal gap ensures highly accurate measurements of shaft displacement, which is critical for detecting faults early.
-
Eddy Current Technology: The use of eddy current technology ensures reliable, precise, and consistent data collection, even under harsh conditions.
-
Compact and Lightweight: With a total length of 1.0 meter and weight of 0.323 kg, the probe is designed for easy integration into various industrial systems, without adding bulk or complexity.
-
Wide Temperature Range: The probe can operate in extreme temperatures, ranging from -40°C to +85°C, making it suitable for use in a wide range of industrial environments.
-
Easy Integration: The M12 (5-pin) connector allows for easy installation and integration into existing monitoring systems, minimizing setup time.
-
High Sensitivity: The high sensitivity of this probe ensures that even the smallest changes in shaft displacement or vibration can be detected, helping to prevent equipment failure.
-
Durability: Designed for harsh industrial environments, the 3300 series probes are built to last, offering reliable performance over extended periods.
-
Real-Time Data: Provides real-time data that can be used to monitor machinery health continuously, allowing for proactive maintenance.
-
Predictive Maintenance: Helps reduce maintenance costs and downtime by enabling predictive maintenance practices based on early fault detection.
-
Versatility: Suitable for a wide range of rotating machinery applications across various industries, making it a versatile tool in predictive maintenance programs.
FAQ
1. What is the nominal gap size of the Bently Nevada 330171-00-30-10-02-05 proximity probe?
The nominal gap size is 5mm, allowing for highly accurate displacement measurements.
2. What sensing technology is used in the Bently Nevada 330171-00-30-10-02-05 probe?
This probe uses eddy current sensing technology for precise monitoring of shaft displacement and vibration.
3. What is the operating temperature range of the Bently Nevada 330171-00-30-10-02-05?
The probe operates in temperatures from -40°C to +85°C, making it suitable for use in various industrial environments.
4. How long is the Bently Nevada 330171-00-30-10-02-05 probe?
The total length of the probe is 1.0 meter.
5. What is the weight of this proximity probe?
The Bently Nevada 330171-00-30-10-02-05 weighs 0.323 kg, making it compact and lightweight.
6. What type of output does the Bently Nevada 330171-00-30-10-02-05 provide?
The probe provides analog output, either current or voltage, depending on the system configuration.
7. Can the Bently Nevada 330171-00-30-10-02-05 probe be used with rotating equipment?
Yes, it is specifically designed to monitor rotating equipment, including turbines, compressors, motors, and pumps.
8. How does the Bently Nevada 330171-00-30-10-02-05 help with predictive maintenance?
It provides real-time data on displacement and vibration, allowing for early detection of issues and enabling proactive maintenance to avoid unplanned downtime.
9. What type of mounting does the Bently Nevada 330171-00-30-10-02-05 use?
The probe features fixed mounting, ideal for integration into permanent installations on rotating machinery.
10. What makes this probe suitable for harsh environments?
Its rugged design, wide operating temperature range, and eddy current technology ensure that it performs reliably even in demanding conditions.
Related Models from the Same Series
| Model | Description |
|---|---|
| 330171-00-30-10-02-06 | 3300 5mm Proximity Probe with enhanced performance for larger machinery. |
| 330171-00-30-10-02-07 | High-sensitivity version for monitoring small displacements in high-precision applications. |
| 330171-00-30-10-02-08 | 3300 series proximity probe for high-speed turbines with extended range. |
| 330171-00-30-10-02-09 | Proximity probe designed for use in extreme temperatures and hazardous locations. |
| 330171-00-30-10-02-10 | Compact probe for integration in small motors and pumps. |
| 330171-00-30-10-02-11 | High-precision version for vibration monitoring in high-speed rotating machinery. |
