Product Introduction

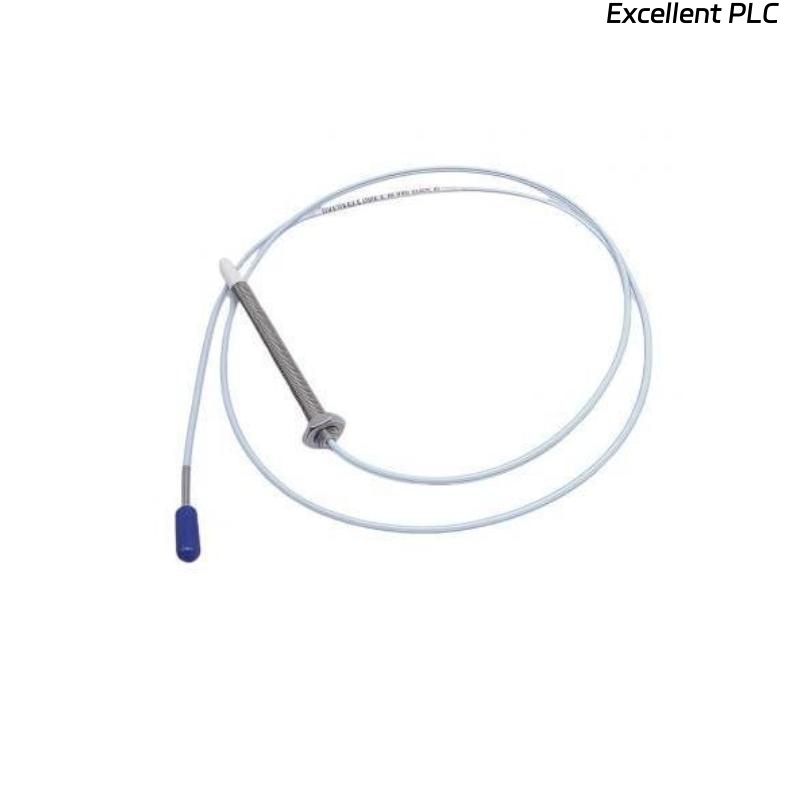

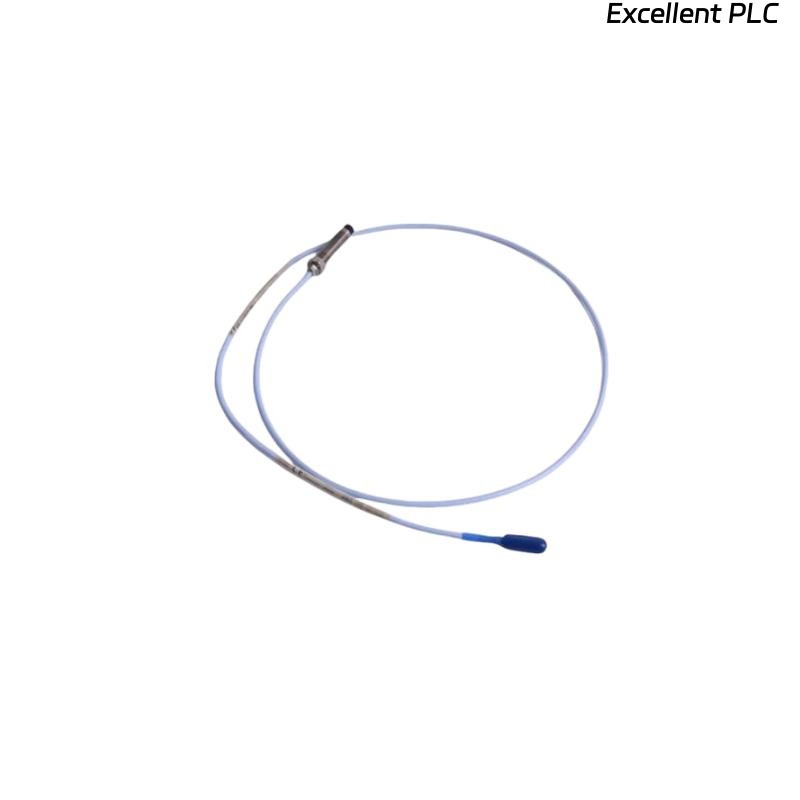

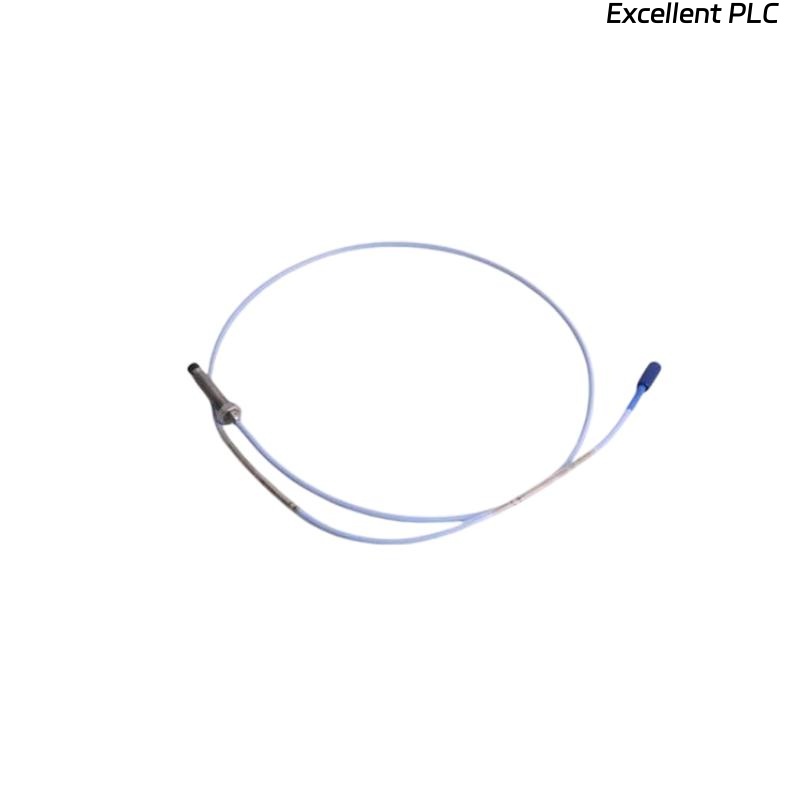

The Bently Nevada 330171-00-56-10-02-05 is a high-precision 5mm proximity probe from the 3300 series, designed for shaft displacement and vibration monitoring in rotating machinery. Utilizing eddy current technology, this probe provides highly accurate and reliable measurements in harsh industrial environments.
With a total length of 1.0 meter and a weight of 0.323 kg, it is ideal for turbines, compressors, motors, pumps, and other critical machinery, supporting condition monitoring, vibration analysis, and predictive maintenance.
Product Specifications
| Feature | Specification |
|---|---|
| Model | 330171-00-56-10-02-05 |
| Type | 3300 5mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Nominal Gap | 5 mm |
| Connector Type | Miniature Coaxial ClickLoc |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Fixed |
| Output Type | Analog (Current or Voltage) |
| Applications | Turbines, compressors, motors, pumps, vibration monitoring |
Product Applications
-
Turbine Monitoring: Accurately measures shaft displacement and vibration to ensure operational stability.
-
Compressor Monitoring: Detects shaft misalignment and imbalance for preventive maintenance.
-
Motor and Pump Monitoring: Provides real-time displacement and vibration data.
-
Rotating Machinery Analysis: Supports vibration diagnostics and machinery health assessments.
-
Condition Monitoring Systems: Integrates with continuous monitoring platforms.
-
Industrial Equipment Oversight: Suitable for monitoring critical machinery in power plants and manufacturing facilities.
Product Advantages
-
High-Precision Measurement: 5mm nominal gap ensures accurate readings.
-
Eddy Current Technology: Stable and reliable under industrial conditions.
-
Extended Length Option: 1.0 meter cable for flexible installation.
-
Wide Temperature Range: Operates from -40°C to +85°C.
-
Easy System Integration: Miniature coaxial connector simplifies connections.
-
High Sensitivity: Detects small shaft displacement variations.
-
Durable Construction: Designed to withstand harsh environments.
-
Supports Real-Time Monitoring: Continuous data collection for predictive maintenance.
-
Versatile Use: Suitable for turbines, compressors, motors, and pumps.
-
Reliable Data for Diagnostics: Supports vibration analysis and condition monitoring.
FAQ
1. What sensing technology does this probe use?
The probe uses eddy current technology to measure shaft displacement and vibration accurately.
2. What type of output signals does it provide?
It provides analog output in current or voltage format.
3. How should the probe be mounted?
The probe uses fixed mounting aligned with the shaft for accurate readings.
4. Which rotating machinery is compatible?
Suitable for turbines, compressors, motors, and pumps.
5. Can it detect both displacement and vibration?
Yes, it provides real-time monitoring of shaft displacement and vibration.
6. Is it compatible with condition monitoring systems?
Yes, it can integrate with Bently Nevada monitoring systems for predictive maintenance.
7. How does it perform in harsh environments?
Designed to maintain reliable measurement under high vibration and industrial conditions.
8. Can multiple probes be installed on a single machine?
Yes, multiple probes can be used for comprehensive shaft and vibration monitoring.
9. Does it support predictive maintenance applications?
Yes, continuous monitoring allows early detection of potential equipment faults.
10. Is it compatible with non-Bently systems?
It may be used with other systems depending on connector and signal requirements, but it is optimized for Bently Nevada systems.
Related Models from the Same Series
| Model | Description |
|---|---|
| 330171-00-56-10-02-01 | High-sensitivity version for precision monitoring. |
| 330171-00-56-10-02-02 | Explosion-proof type suitable for hazardous environments. |
| 330171-00-56-10-02-03 | High-temperature version for extreme industrial conditions. |
| 330171-00-56-10-02-04 | Extended-range version for remote measurement applications. |
| 330171-00-56-10-02-05 | Standard replacement probe for general applications. |
| 330171-00-56-10-02-06 | Compact design for small motors and pumps. |
