Product Introduction

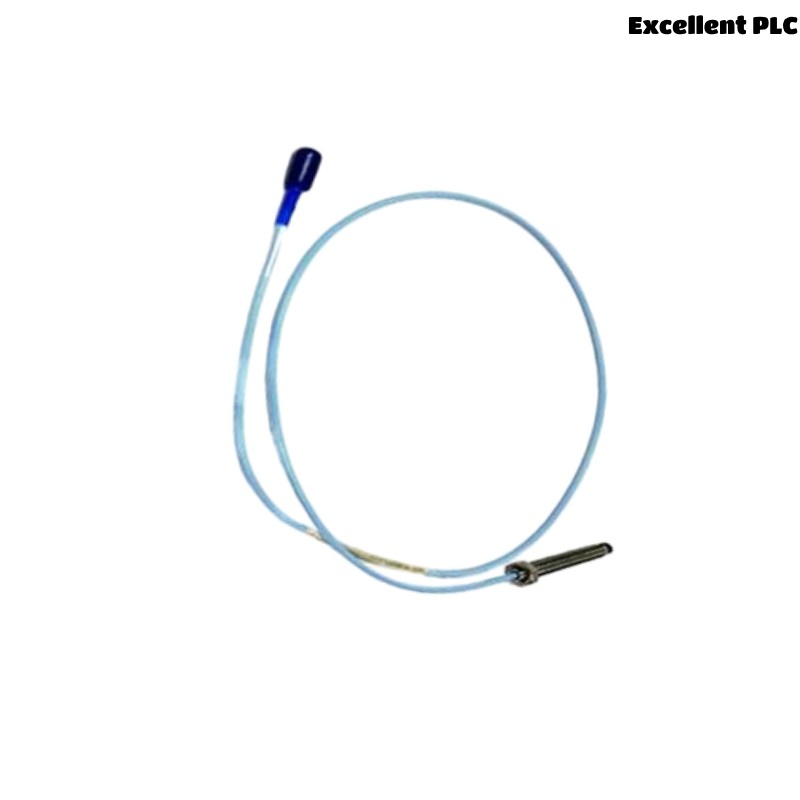

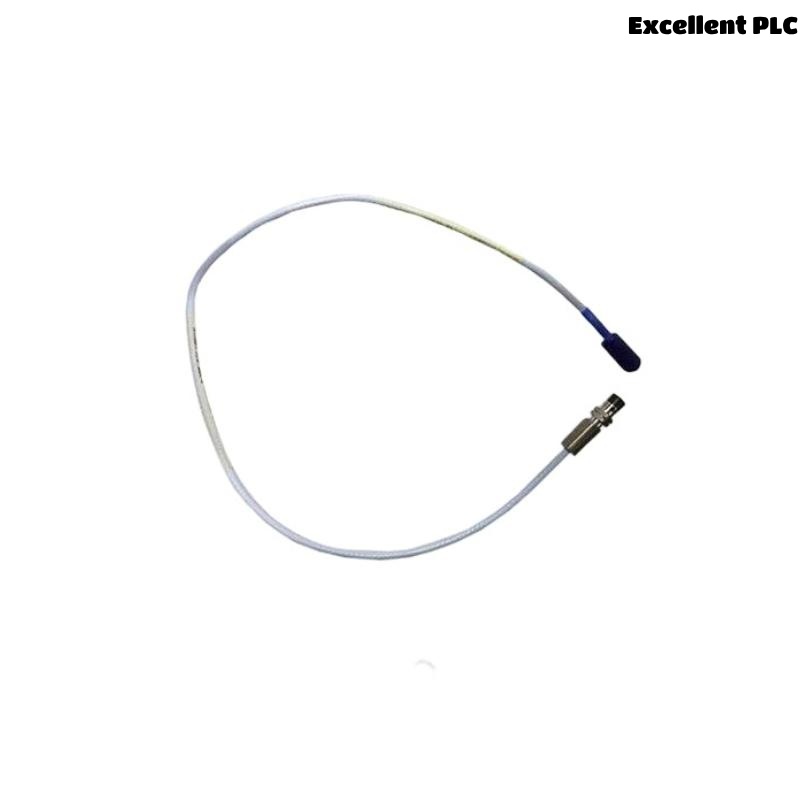

The Bently Nevada 330171-10-24-05-02-00 is a highly reliable 3300 series 5 mm Proximity Probe, designed for precise measurement of shaft vibration and displacement in critical rotating machinery. This probe is a vital component of the 3300 monitoring system, which is widely used in industrial sectors requiring continuous, accurate condition monitoring to ensure equipment integrity and prevent unplanned downtime.
With a sensing gap of 5 mm, this probe provides excellent sensitivity and precision in detecting shaft movement and vibration. It is engineered to offer stable, noise-resistant signals critical for early fault detection in turbines, compressors, motors, pumps, and other rotating machinery. The probe features a total length of 0.5 meter, making it versatile and suitable for various installation requirements, and a lightweight design at just 0.161 kg, minimizing added mechanical load on the equipment.

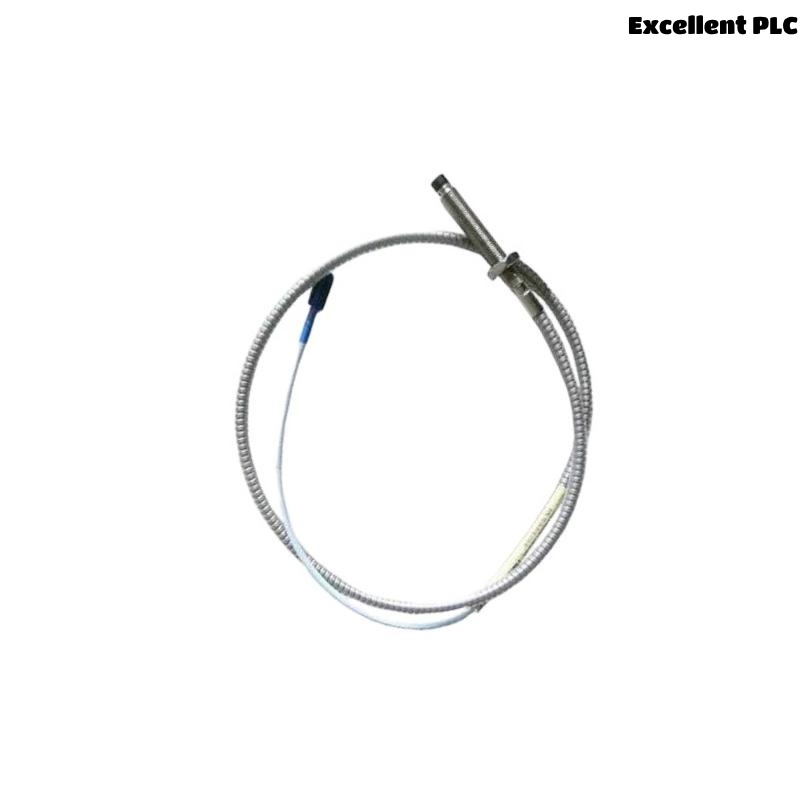

Constructed from rugged stainless steel with a shielded armored cable, the probe is designed to withstand harsh operating environments including extreme temperatures, high vibration, and mechanical shock. Its compact size and robust design make it an indispensable tool for asset protection in power generation, petrochemical, and manufacturing industries.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330171-10-24-05-02-00 |
| Series | 3300 |
| Probe Type | Proximity Probe |
| Sensing Gap | 5 mm |
| Total Length | 0.5 meter |
| Weight | 0.161 kg |
| Operating Temperature | -40°C to +120°C |
| Cable Type | Shielded stainless steel armored cable |
| Cable Length | 0.5 meter (standard) |
| Housing Material | Stainless steel |
| Output Signal | AC voltage proportional to gap distance |
| Connector Type | PT02A-10-6P (MIL-C-5015) |
| Mounting Thread | 1/2-28 UNF |
| Vibration Resistance | Up to 200 g |
| Shock Resistance | Up to 1000 g |
Product Applications
The 330171-10-24-05-02-00 proximity probe is widely applied in industries requiring continuous machinery condition monitoring, including:
-
Gas and steam turbines: For precise monitoring of rotor vibration and displacement.
-
Compressors: Helps detect early shaft misalignment and imbalance.
-
Electric motors and generators: Ensures reliable shaft position sensing to prevent mechanical failures.
-
Industrial pumps: Detects shaft vibration and potential bearing faults.
-
Fans and blowers: Controls vibration levels for smooth operation.
-
Power plants: Plays a crucial role in protecting critical rotating assets.
-
Oil and gas: Designed to handle demanding environments while providing accurate data.
-
Manufacturing: Used for predictive maintenance, reducing unplanned downtime and repair costs.
Product Advantages
-
High Measurement Accuracy: 5 mm sensing gap ensures precise detection of shaft movements and vibrations.
-
Robust and Durable: Stainless steel housing and armored cable provide protection against harsh environments and mechanical damage.
-
Wide Operating Temperature Range: Functions reliably from -40°C to +120°C.
-
Excellent Shock and Vibration Resistance: Rated for up to 1000 g shock and 200 g vibration, suitable for heavy industrial conditions.
-
Standardized Mounting and Connection: Compatible with industry-standard 1/2-28 UNF mounting threads and PT02A-10-6P connectors for easy installation.
-
Lightweight Design: At 0.161 kg, it minimizes mechanical impact on rotating equipment.
-
Stable Signal Output: Produces consistent AC voltage proportional to the proximity gap for accurate monitoring.
-
Long Cable Length Options: Flexible installation with 0.5 meter armored cable as standard.
-
Proven Reliability: Backed by Bently Nevada’s reputation and field-tested performance worldwide.
-
Reduced Maintenance Requirements: Designed for durability and minimal downtime, reducing lifecycle costs.
Frequently Asked Questions (FAQ)
-
What is the sensing gap of the 330171-10-24-05-02-00 probe?
The sensing gap is 5 mm. -
What are the total length and weight of this probe?
Total length is 0.5 meter and weight is 0.161 kg. -
What temperature conditions can this probe operate under?
It operates within the range of -40°C to +120°C. -
What output signal does the probe provide?
It outputs an AC voltage signal proportional to the distance to the target. -
What type of connector does this probe use?
It uses a PT02A-10-6P (MIL-C-5015) connector. -
Is this probe suitable for harsh industrial environments?
Yes, it has a stainless steel housing and armored cable for protection. -
What is the mounting thread size?
The mounting thread is 1/2-28 UNF. -
How resistant is this probe to shock and vibration?
It can withstand shocks up to 1000 g and vibration up to 200 g. -
Is this probe compatible with all 3300 series monitoring systems?
Yes, it is designed for full compatibility within the 3300 series. -
How does this probe contribute to equipment maintenance?
By providing accurate, real-time shaft vibration data, it enables early fault detection and preventive maintenance.
Recommended Related Models
| Model | Description | Sensing Gap | Cable Length |
|---|---|---|---|
| 330171-10-24-05-02-00 | 3300 5 mm Proximity Probe | 5 mm | 0.5 meter |
| 330171-10-24-08-02-00 | 3300 8 mm Proximity Probe | 8 mm | 0.5 meter |
| 330171-10-24-12-02-00 | 3300 12 mm Proximity Probe | 12 mm | 0.5 meter |
| 330103-00-37-05-02-05 | 3300 XL 5 mm Proximity Probe | 5 mm | 0.5 meter |
| 330104-12-20-10-02-00 | 3300 XL 8 mm Proximity Probe | 8 mm | 1.0 meter |
| 330105-06-14-05-02-05 | 3300 XL 12 mm Proximity Probe | 12 mm | 1.0 meter |
