Product Introduction

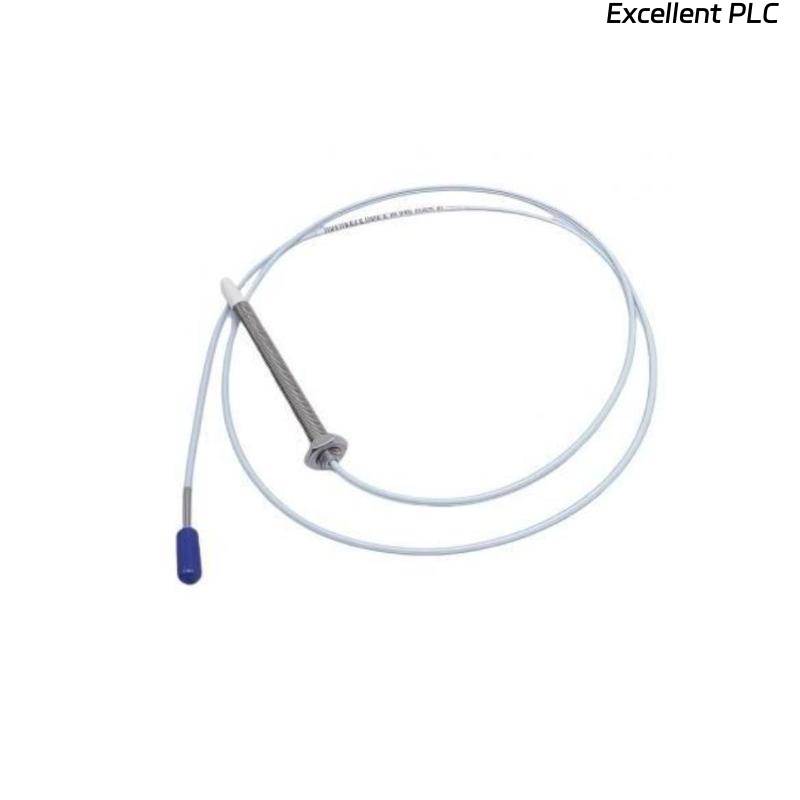

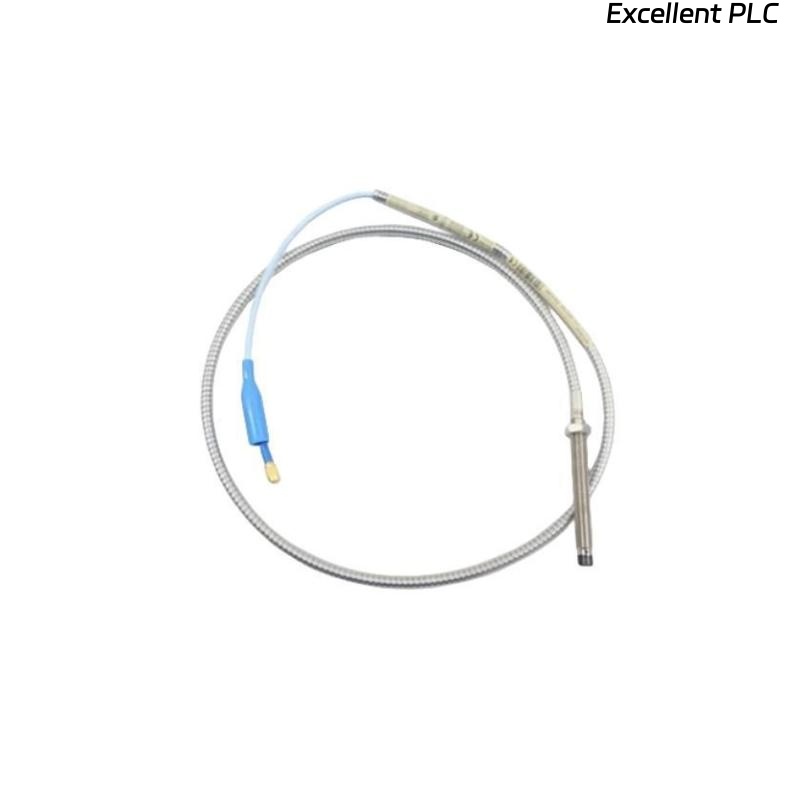

The Bently Nevada 330171-15-30-10-02-05 is a high-precision 5mm proximity probe from the Bently Nevada 3300 series, designed for non-contact measurement of vibration and displacement in rotating machinery. This probe is widely used in industrial equipment condition monitoring and predictive maintenance. Its compact size and high-performance features make it ideal for installation in space-constrained environments. The probe works seamlessly with Bently Nevada 3300 XL Proximitor sensors and extension cables, providing a stable, linear output signal for easy integration into existing monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330171-15-30-10-02-05 |
| Probe Type | 5mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Unthreaded Length | 0.0 inch (0.0 mm) |
| Housing Length | 2.4 inch (60.96 mm) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Operating Temperature | -40°C to +120°C |
| Output Signal | 4-20 mA (proportional to vibration or displacement) |
| Power Requirements | -17.5 VDC to -26 VDC, max current 12 mA |
| Linear Range | 2 mm (80 mils) |
| Probe Resistance | 7.45 ± 0.50 Ω (0.5 m length) |
| Target Material | AISI 4140 Steel |
| Mounting | Standard or custom mounting |
Applications
This 5mm proximity probe is suitable for:
-
Vibration Monitoring – Detects vibration in rotating machinery to identify potential issues.
-
Condition Monitoring – Provides real-time data on equipment operation.
-
Predictive Maintenance – Analyzes vibration data to predict possible failures and schedule maintenance.
-
Axial Displacement Measurement – Measures axial movement of shafts to ensure stable operation.
-
Keyphasor Signal Measurement – Captures synchronous signals for precise machinery monitoring.
-
Compact Space Installations – Small size allows installation in tight or confined spaces.
Advantages
-
High-Precision Measurement – Provides accurate vibration and displacement data for precise monitoring.
-
Compact Design – Ideal for installations with limited space.
-
Wide Temperature Range – Operates reliably from -40°C to +120°C.
-
Easy Integration – Compatible with 3300 XL series sensors and cables for seamless system integration.
-
Durable Construction – High-quality materials ensure long-term reliability.
-
No Separate Calibration Needed – Fully interchangeable with other 3300 series components.
-
Enhanced Protection – Optional connector protection available.
-
Electromagnetic Interference Resistant – Designed to reduce external interference impact.
-
Versatile – Suitable for a wide range of industrial environments including high-temperature and high-vibration conditions.
-
Reliable Long-Term Performance – Tested for consistent, dependable operation over time.
FAQ
Q1: What type of output signal does the probe provide?
A1: The probe provides a 4-20 mA analog output proportional to vibration or displacement.
Q2: What is the operating temperature range?
A2: The probe operates between -40°C and +120°C.
Q3: Does this probe require separate calibration?
A3: No. It is fully interchangeable with other 3300 series components without separate calibration.
Q4: What types of equipment is this probe suitable for?
A4: It is suitable for various rotating machinery, including pumps, fans, compressors, and generators.
Q5: What is the linear range of the probe?
A5: The linear range is 2 mm (80 mils).
Q6: What are the power requirements?
A6: The probe requires -17.5 VDC to -26 VDC with a maximum current of 12 mA.
Q7: Can this probe operate in high-temperature environments?
A7: Yes, it can operate reliably up to +120°C.
Q8: Does the probe offer protective features?
A8: Yes, optional connector protection is available for enhanced durability.
Q9: What mounting options are available?
A9: Standard and custom mounting options are supported.
Q10: Is this probe suitable for compact installations?
A10: Yes, its compact design allows use in space-limited environments.
Related 3300 Series Models
| Model | Description |
|---|---|
| 330171-10-38-10-02-00 | 3300 5mm proximity probe, standard version for general applications. |
| 330171-10-38-10-02-01 | 3300 5mm probe with enhanced protection. |
| 330171-10-38-10-02-02 | 3300 5mm probe for high-temperature environments. |
| 330171-10-38-10-02-03 | 3300 5mm probe for high-pressure environments. |
| 330171-10-38-10-02-04 | 3300 5mm probe suitable for tight installation spaces. |
| 330171-10-38-10-02-05 | 3300 5mm probe for high-vibration environments. |
