Product Introduction

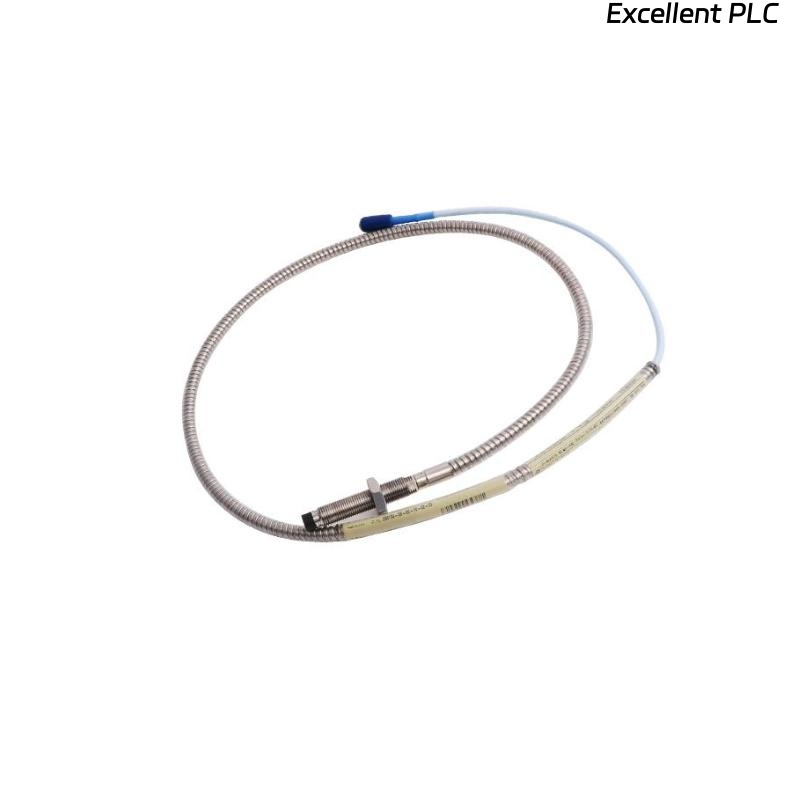

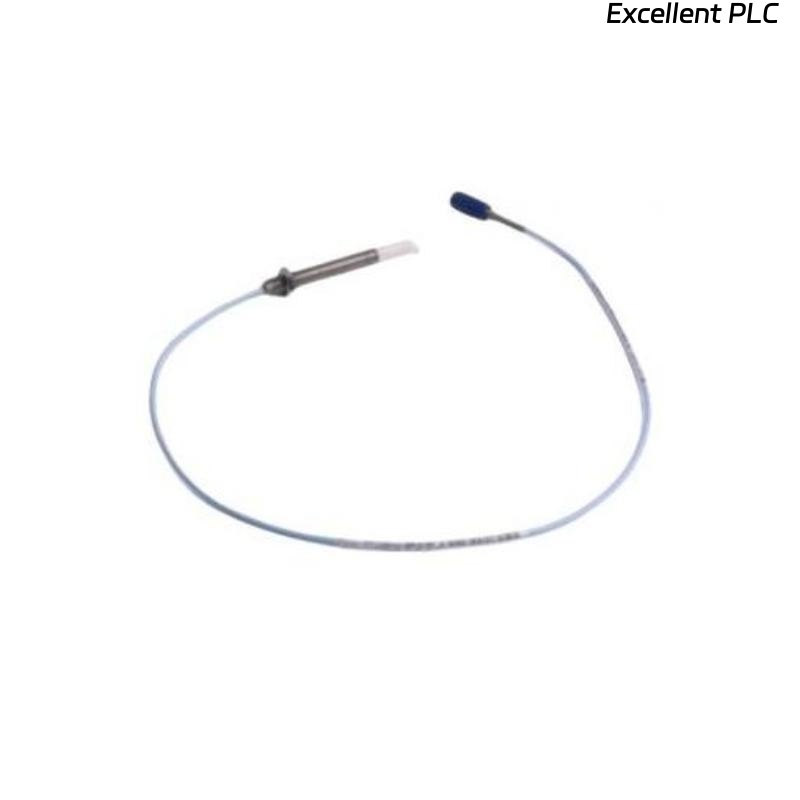

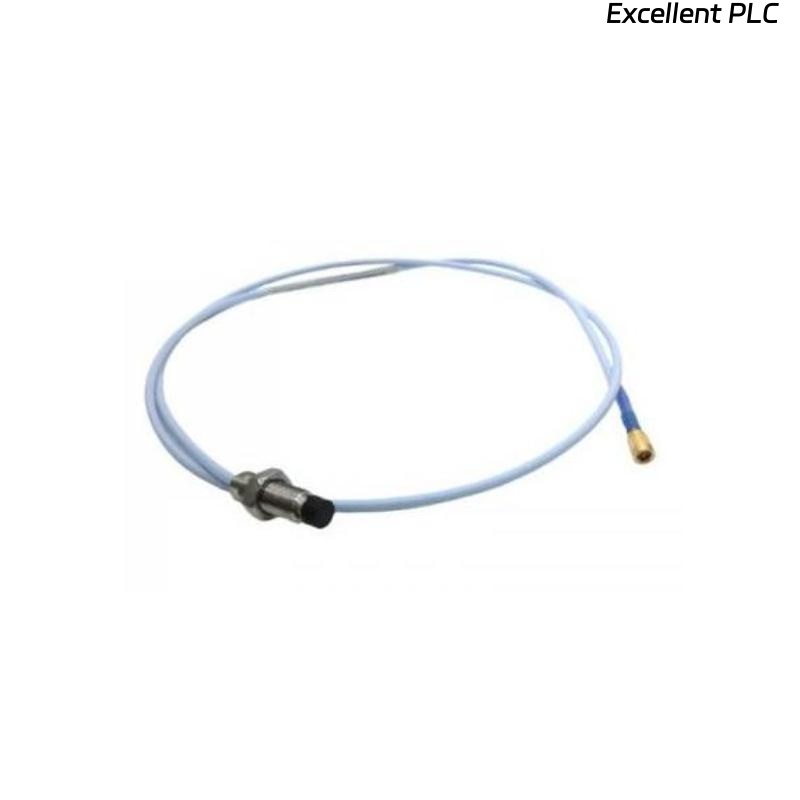

The Bently Nevada 330171-20-55-05-02-CN is a highly accurate 5mm proximity probe from the 3300 series, designed for measuring vibration and displacement in machinery, especially in environments with limited space. It is used extensively in industrial applications to monitor the health of rotating equipment like motors, pumps, turbines, and compressors. This probe works in conjunction with Bently Nevada’s 3300 XL Proximitor sensors to provide continuous, real-time feedback on machinery conditions, helping to predict potential failures before they happen.
The 3300 series proximity probes are designed to be robust, easy to install, and compatible with existing monitoring systems. With its compact design and precise measurements, this probe plays a key role in predictive maintenance, enabling operators to take proactive actions to prevent machine failure and extend the life of their assets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330171-20-55-05-02-CN |
| Probe Type | 5mm Proximity Probe |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Unthreaded Length | 0.0 inch (0.0 mm) |
| Housing Length | 2.4 inch (60.96 mm) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Operating Temperature | -40°C to +120°C |
| Output Signal | 4-20 mA (proportional to vibration or displacement) |
| Power Requirements | -17.5 VDC to -26 VDC, max current 12 mA |
| Linear Range | 2 mm (80 mils) |
| Probe Resistance | 7.45 ± 0.50 Ω (0.5 m length) |
| Target Material | AISI 4140 Steel |
| Mounting | Standard or custom mounting options available |
Applications
The Bently Nevada 330171-20-55-05-02-CN proximity probe is widely used in the following areas:
-
Vibration Monitoring – Monitors machinery vibrations to prevent breakdowns.
-
Condition Monitoring – Tracks the health of rotating equipment such as turbines, pumps, and motors.
-
Predictive Maintenance – Predicts when a machine might fail and allows operators to perform maintenance in advance.
-
Axial Displacement Measurement – Detects axial movement in machinery to ensure proper alignment and functioning.
-
Keyphasor Signal Measurement – Provides synchronous signals to accurately measure shaft speeds and alignments.
-
Compact Installations – Due to its small size, it is perfect for installations in space-constrained environments.
Advantages
-
High-Precision Measurements – Provides accurate, real-time vibration and displacement data to ensure smooth operation.
-
Compact and Robust Design – Ideal for installations in tight spaces and harsh environments.
-
Wide Operating Temperature Range – Can function in extreme temperatures, from -40°C to +120°C.
-
Easy Integration – Fully compatible with 3300 XL Proximitor sensors for seamless integration into existing systems.
-
Durable and Reliable – Built with high-quality materials, ensuring long-term reliability and consistent performance.
-
No Separate Calibration Required – The probe is fully interchangeable with other 3300 series components.
-
Enhanced Protection Features – Optional connector protection ensures the probe’s longevity.
-
Electromagnetic Interference Resistance – Designed to minimize the effects of external interference, ensuring stable performance.
-
Versatile Applications – Can be used across a wide range of industries, from power generation to manufacturing.
-
Cost-Effective – Reduces the risk of costly downtime by enabling early detection of potential failures.
FAQ
Q1: What type of output signal does this probe provide?
A1: The 330171-20-55-05-02-CN proximity probe provides a 4-20 mA analog output proportional to vibration or displacement.
Q2: What is the operating temperature range of the probe?
A2: The probe can operate in temperatures ranging from -40°C to +120°C.
Q3: Is separate calibration needed for this probe?
A3: No, this probe is fully interchangeable with other 3300 series components and does not require separate calibration.
Q4: Can this probe be used in high-temperature environments?
A4: Yes, the probe is designed to withstand temperatures up to +120°C, making it suitable for high-temperature applications.
Q5: What type of machinery can this probe be used with?
A5: This probe is ideal for use with rotating machinery such as motors, pumps, turbines, and compressors.
Q6: What is the linear range of the probe?
A6: The linear range of the probe is 2 mm (80 mils).
Q7: What are the power requirements for the probe?
A7: The probe requires a power supply of -17.5 VDC to -26 VDC, with a maximum current of 12 mA.
Q8: Can this probe be used for measuring axial displacement?
A8: Yes, this probe is designed to measure axial displacement in rotating machinery.
Q9: How is the probe mounted?
A9: The probe can be mounted using either standard or custom mounting options, depending on the application.
Q10: Does this probe provide protection against external interference?
A10: Yes, the probe is designed to be resistant to electromagnetic interference (EMI), ensuring stable performance even in harsh conditions.
Related 3300 Series Models
| Model | Description |
|---|---|
| 330171-20-55-05-02-00 | Standard 5mm proximity probe for general applications. |
| 330171-20-55-05-02-01 | Enhanced 5mm proximity probe with increased protection. |
| 330171-20-55-05-02-02 | 5mm probe for high-temperature environments. |
| 330171-20-55-05-02-03 | 5mm probe designed for high-vibration environments. |
| 330171-20-55-05-02-04 | Compact 5mm proximity probe for tight spaces. |
| 330171-20-55-05-02-05 | 5mm probe for extreme pressure conditions. |
