Product Introduction

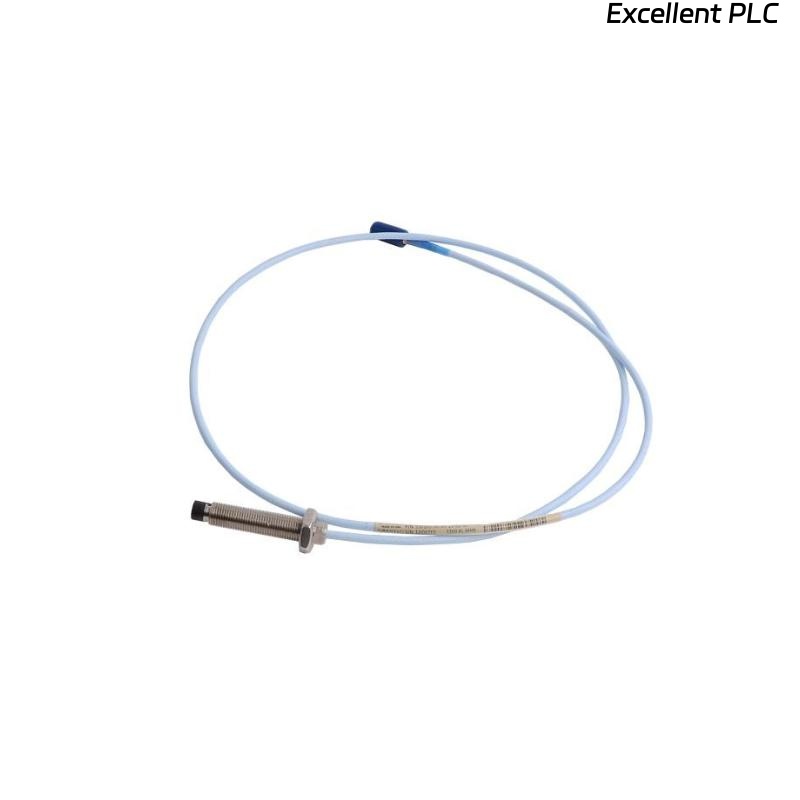

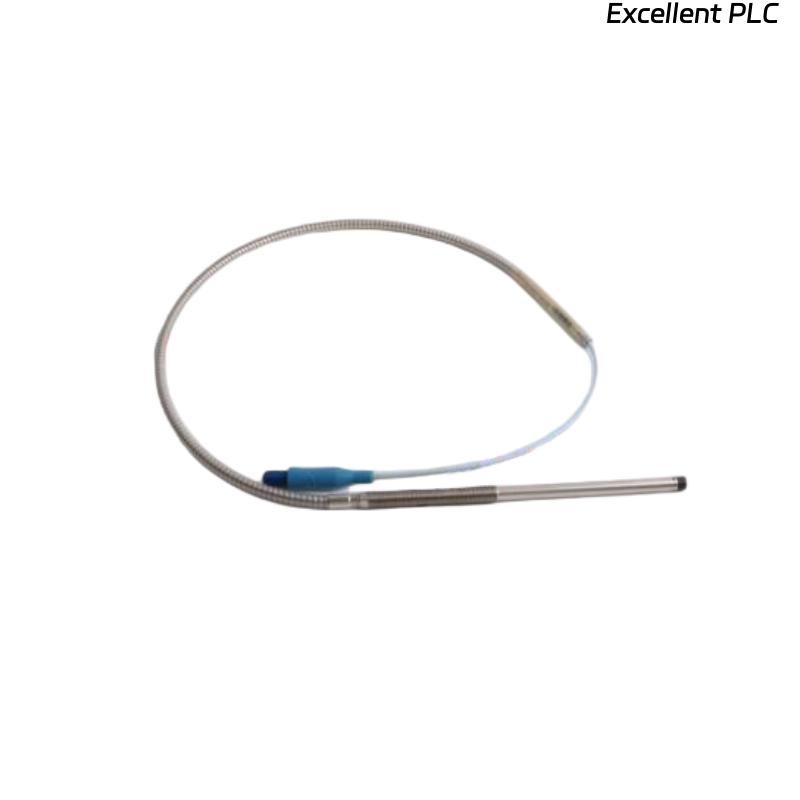

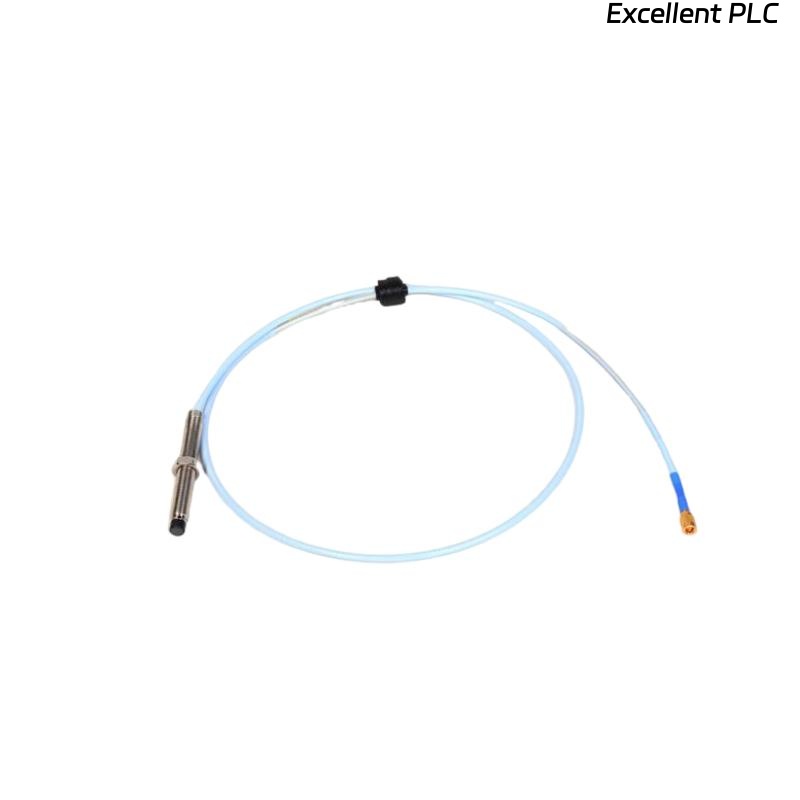

The Bently Nevada 330171-24-40-05-02-00 5mm proximity probe is part of the renowned 3300 series, designed for high-performance vibration and displacement monitoring in industrial machinery. This advanced sensor is ideal for continuous condition monitoring and predictive maintenance applications, allowing industries to monitor their rotating machinery and detect potential faults, such as misalignments, imbalances, and bearing wear, before they lead to costly failures.
The probe is widely used in critical machines like pumps, motors, compressors, turbines, and fans. Its robust design ensures reliable performance in harsh environments, providing accurate and real-time measurements for improved operational efficiency and safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330171-24-40-05-02-00 |
| Probe Type | 5mm Proximity Probe |
| Total Length | 0.5 meters |
| Weight | 0.162 kg |
| Unthreaded Length | 0.0 inches (0.0 mm) |
| Housing Length | 3.0 inches (76.2 mm) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Operating Temperature | -40°C to +120°C |
| Output Signal | 4-20 mA (proportional to vibration or displacement) |
| Power Requirements | -17.5 VDC to -26 VDC, max current 12 mA |
| Linear Range | 2 mm (80 mils) |
| Probe Resistance | 7.45 ± 0.50 Ω (2.0 m length) |
| Target Material | AISI 4140 Steel |
| Mounting | Standard or custom mounting options available |
Applications
The 330171-24-40-05-02-00 proximity probe is used in a variety of applications, including:
-
Vibration Monitoring: Essential for detecting mechanical faults like imbalances, misalignments, and bearing wear.
-
Condition Monitoring: Real-time tracking of the health of critical rotating machinery such as turbines, compressors, and motors.
-
Predictive Maintenance: Enables proactive maintenance to prevent costly downtime and extend machinery lifespan.
-
Axial Displacement Measurement: Monitors axial displacement to ensure proper alignment of rotating equipment.
-
Keyphasor Signal Measurement: Provides accurate keyphasor signals for synchronous measurements of rotational speed and alignment.
-
Compact Installations: The probe is designed for tight spaces and can be used where traditional sensors might not fit.
Advantages
-
High Precision: The 330171-24-40-05-02-00 probe delivers precise measurements of vibration and displacement for critical machine monitoring.
-
Compact and Durable: Its small form factor and rugged construction make it suitable for installation in tight spaces and harsh environments.
-
Wide Operating Temperature Range: With an operating range of -40°C to +120°C, it is ideal for diverse industrial applications, from extreme cold to high-temperature environments.
-
Easy Integration: Compatible with 3300 XL Proximitor sensors, making installation and integration straightforward.
-
Electromagnetic Interference Resistance: The probe is designed to function reliably even in environments with substantial electrical noise.
-
Cost-Effective: By enabling predictive maintenance, this probe reduces the risk of unplanned downtime and the associated repair costs.
-
Improved Safety: Continuous monitoring helps detect issues before they lead to accidents, improving overall safety in the workplace.
-
Low Power Consumption: The 330171-24-40-05-02-00 probe has low power requirements, ensuring minimal energy use during operation.
-
Versatile Measurement: Suitable for various industries, including petrochemical, power generation, and manufacturing, offering a wide range of application possibilities.
-
Interchangeability: Fully interchangeable with other 3300 series components, ensuring compatibility and ease of use in diverse setups.
FAQ
Q1: What type of output signal does this probe provide?
A1: The 330171-24-40-05-02-00 proximity probe provides a 4-20 mA output signal that is proportional to the vibration or displacement measurements.
Q2: What is the operating temperature range of this probe?
A2: The probe can operate in temperatures ranging from -40°C to +120°C.
Q3: Does this probe require separate calibration?
A3: No, the 330171-24-40-05-02-00 probe is fully interchangeable with other 3300 series components without requiring separate calibration.
Q4: What is the linear measurement range of this probe?
A4: The linear measurement range of this probe is 2 mm (80 mils).
Q5: Can this probe measure axial displacement?
A5: Yes, the 330171-24-40-05-02-00 probe can measure axial displacement in rotating machinery.
Q6: What power supply is needed for this probe?
A6: The probe requires a power supply of -17.5 VDC to -26 VDC, with a maximum current of 12 mA.
Q7: How is this probe mounted?
A7: The probe can be mounted using standard or custom mounting options, depending on the installation requirements.
Q8: What is the target material for this probe?
A8: The probe is designed to work with AISI 4140 steel targets.
Q9: Is this probe suitable for high-vibration environments?
A9: Yes, this probe is specifically designed for high-vibration environments, and is widely used in critical machinery such as turbines and compressors.
Q10: Does this probe have protection against electromagnetic interference?
A10: Yes, the 330171-24-40-05-02-00 probe is designed to function reliably in environments with significant electromagnetic interference (EMI).
