Product Overview

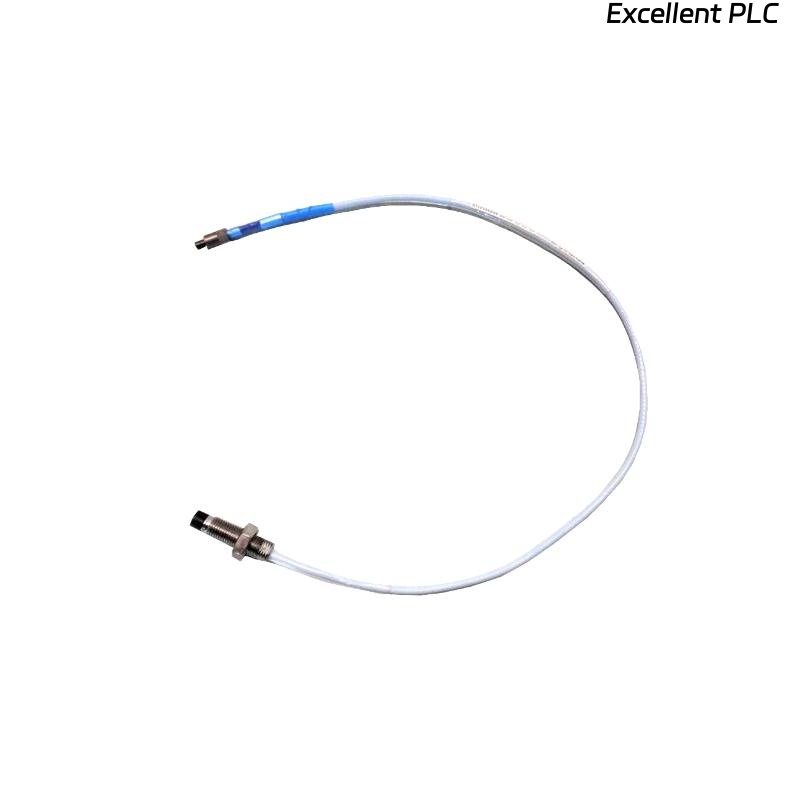

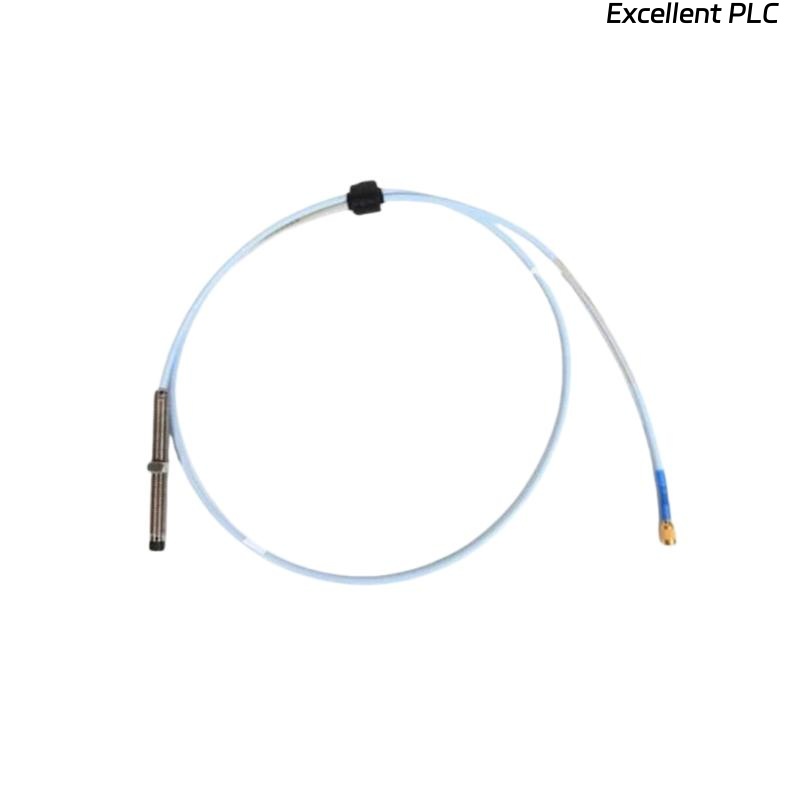

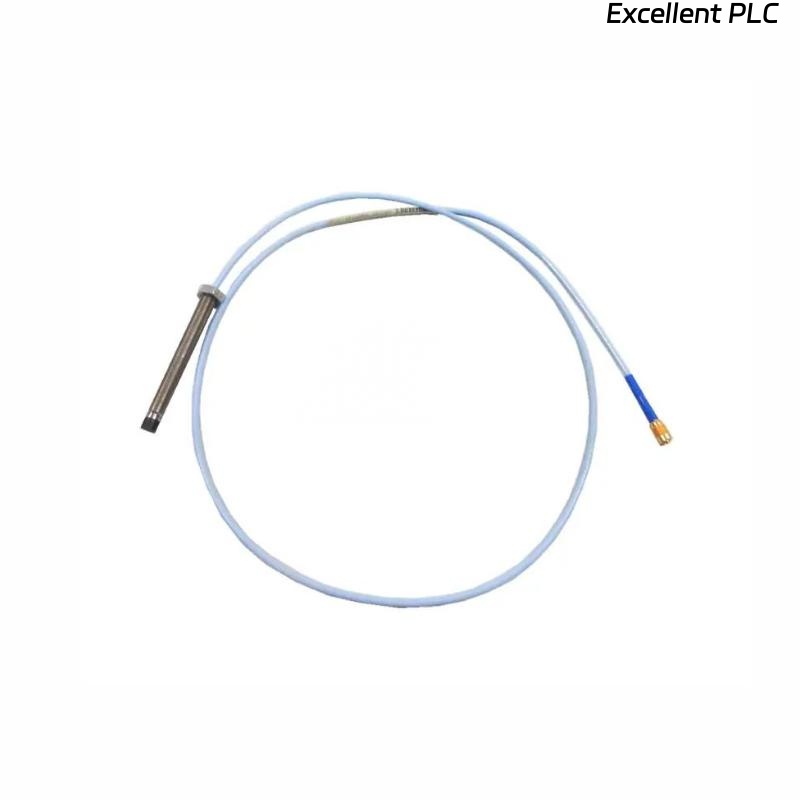

The Bently Nevada 330172-00-08-10-01-00 3300 5mm Proximity Probe is designed for high-precision monitoring of displacement, vibration, and alignment in rotating machinery. As part of the renowned Bently Nevada 3300 series, it is a reliable solution for continuous machine condition monitoring. This proximity probe is particularly useful in detecting misalignments, imbalances, or mechanical issues in machines such as turbines, compressors, and motors.
This 5mm proximity probe provides accurate measurements to monitor the radial displacement of rotating shafts and can capture even the smallest changes in machinery position. Whether it’s used in power plants, oil rigs, or manufacturing facilities, the 330172-00-08-10-01-00 is an essential tool in predictive maintenance strategies. The probe’s non-contact measurement principle ensures that it operates without wear, providing long-lasting performance in harsh industrial environments.
The 3300 5mm probe is widely recognized for its ability to deliver reliable data in a wide range of operating conditions, including high temperatures, extreme vibrations, and wet or dusty environments.
Technical Specifications
Below is a detailed summary of the technical specifications for the Bently Nevada 330172-00-08-10-01-00 3300 5mm Proximity Probe:
| Specification | Details |
|---|---|
| Model | 330172-00-08-10-01-00 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Type | 5mm proximity probe |
| Measurement Range | 5 mm |
| Output Type | Analog (4-20 mA or 0-10 V) |
| Temperature Range | -40°C to 85°C |
| Operating Frequency | Up to 20 kHz |
| Mounting | Direct mounting on machinery |
| Connector Type | Quick connect and disconnect |
| Cable Type | Shielded, multi-conductor cable |
| Protection Rating | IP67 (dust-tight, protected against immersion in water) |
| Signal Output | 4 to 20 mA or 0 to 10 V (customizable) |
Product Applications
The Bently Nevada 330172-00-08-10-01-00 3300 5mm Proximity Probe is ideal for various industrial applications, especially where monitoring displacement, vibration, and shaft alignment are crucial for equipment reliability. Typical applications include:
-
Turbine Monitoring: The proximity probe is used in turbines to detect misalignment, unbalance, or mechanical failure by continuously measuring the displacement of turbine shafts.
-
Compressor Monitoring: It ensures optimal performance in compressors by monitoring radial displacement and detecting signs of wear, misalignment, or imbalance.
-
Power Generation: In power plants, the probe is essential for monitoring critical rotating equipment like pumps, motors, and turbines, helping to avoid unscheduled downtime and maintenance.
-
Oil & Gas: The proximity probe plays a vital role in monitoring the condition of machinery in the oil and gas sector, where equipment is often exposed to harsh environments and demanding conditions.
-
Manufacturing: It is used in manufacturing facilities to monitor machinery, such as conveyor belts, presses, and robotics, ensuring seamless production and high-quality output.
-
Automotive: The probe monitors key machinery in automotive production lines, helping to prevent mechanical failures that can halt production.
Product Advantages
-
High Precision: The 5mm measurement range enables the probe to detect even the slightest changes in position or displacement, offering high accuracy for critical machinery monitoring.
-
Durability: With an IP67 rating, the probe is dust-tight and resistant to water immersion, making it suitable for operation in rugged environments.
-
Wide Temperature Range: The probe performs in extreme temperatures ranging from -40°C to 85°C, ensuring reliable data collection in various industrial conditions.
-
Fast Response: The high-frequency capability (up to 20 kHz) allows the probe to capture rapid changes in machinery condition, ideal for real-time monitoring.
-
Non-Contact Measurement: The probe’s non-contact operation eliminates wear on the probe, reducing maintenance costs and extending its operational life.
-
Flexible Signal Output: It offers customizable analog output options, such as 4-20 mA or 0-10 V, making it compatible with a wide range of monitoring systems.
-
Easy Installation: Featuring quick-connect and disconnect capabilities, the probe is simple to install and integrate into existing monitoring systems.
FAQ
1. What is the measurement range of the Bently Nevada 330172-00-08-10-01-00 proximity probe?
The measurement range of the probe is 5 mm.
2. What is the operating frequency of the 3300 5mm proximity probe?
The operating frequency of the probe is up to 20 kHz.
3. What is the temperature range of the Bently Nevada 330172-00-08-10-01-00 proximity probe?
The probe operates within a temperature range of -40°C to 85°C.
4. What type of signal output does the Bently Nevada 330172-00-08-10-01-00 proximity probe provide?
The probe typically provides an analog output, either 4-20 mA or 0-10 V, depending on the configuration.
5. How is the Bently Nevada 330172-00-08-10-01-00 proximity probe installed?
The probe is designed for direct mounting on machinery for non-contact measurement.
6. What is the total length of the Bently Nevada 330172-00-08-10-01-00 proximity probe?
The total length of the probe is 1.0 meter.
7. What is the weight of the Bently Nevada 330172-00-08-10-01-00 proximity probe?
The weight of the probe is 0.323 kg.
8. What protection rating does the Bently Nevada 330172-00-08-10-01-00 proximity probe have?
The probe has an IP67 protection rating, making it dust-tight and resistant to immersion in water.
9. Can the Bently Nevada 330172-00-08-10-01-00 proximity probe be used for vibration monitoring?
Yes, the probe is specifically designed for vibration and displacement monitoring of rotating machinery.
10. Is the Bently Nevada 330172-00-08-10-01-00 proximity probe compatible with other Bently Nevada sensors?
Yes, the probe is compatible with other Bently Nevada 3300 series sensors and condition monitoring systems.
Related Models
| Model Number | Description |
|---|---|
| 330172-00-08-05-01-00 | 3300 5mm proximity probe with shorter cable length |
| 330172-00-08-10-01-00 | 3300 5mm proximity probe with extended measurement range |
| 330172-00-08-05-01-01 | 3300 5mm proximity probe with enhanced sensitivity |
| 330172-00-08-10-02-00 | 3300 5mm proximity probe for high-frequency operation |
| 330172-00-08-10-02-01 | 3300 5mm proximity probe for high-temperature environments |
| 330172-00-08-05-01-02 | 3300 5mm proximity probe with advanced signal conditioning |
