Product Introduction

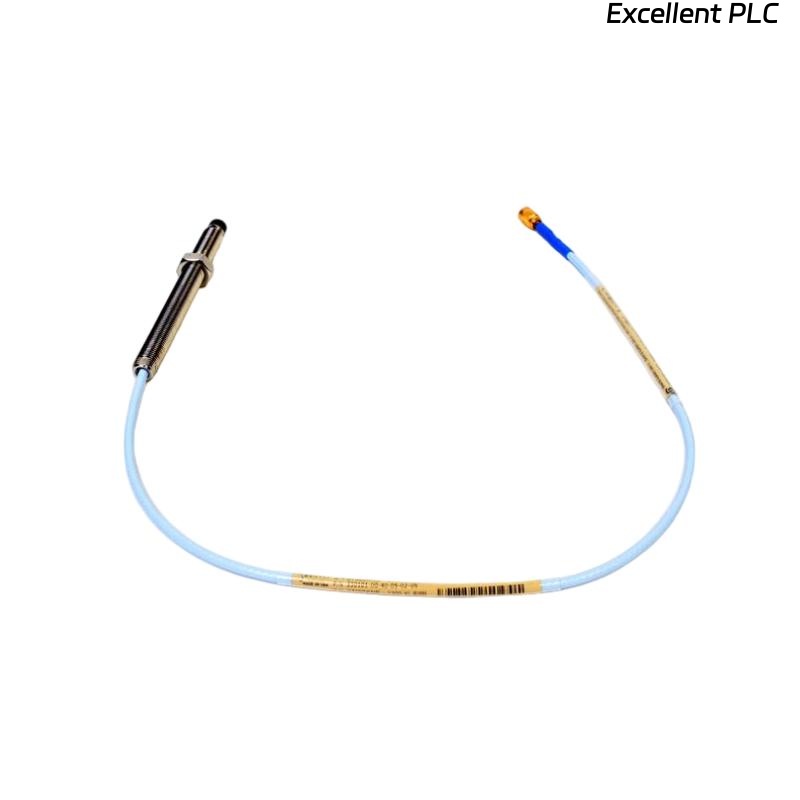

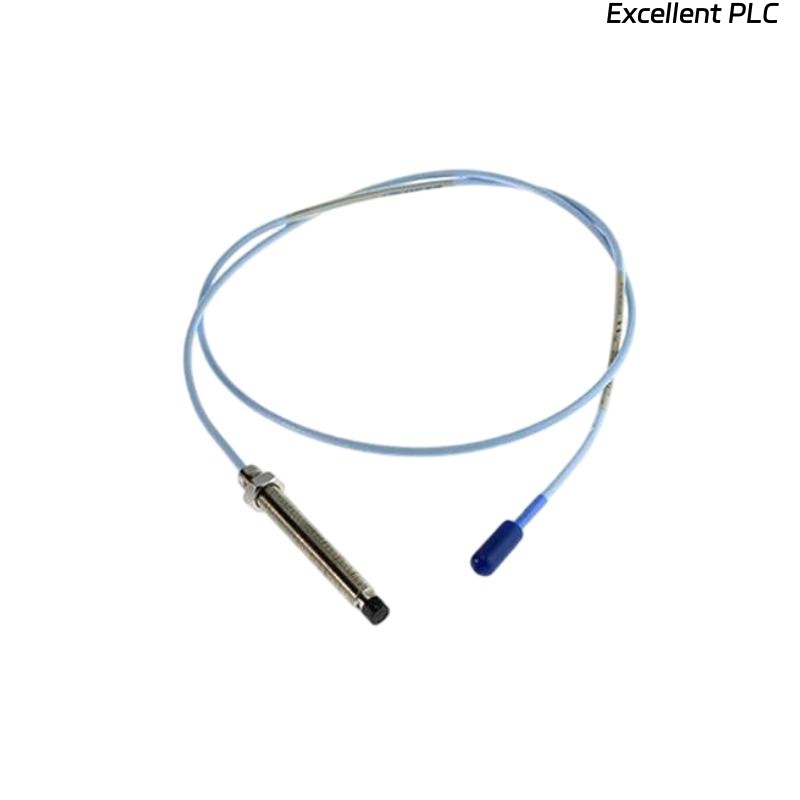

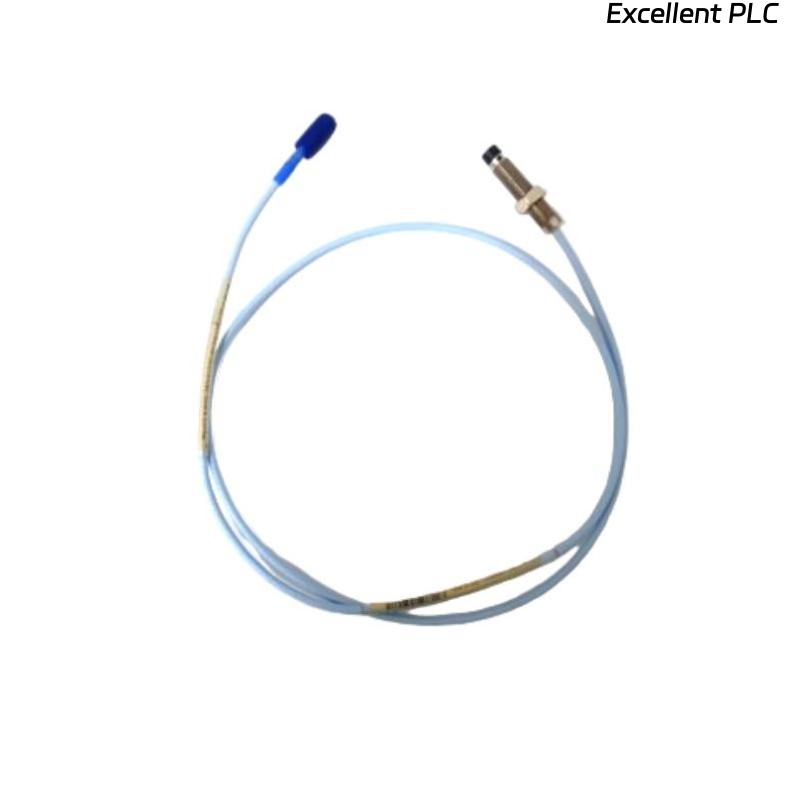

The Bently Nevada 330172-00-20-10-02-00 3300 5mm Proximity Probe is an advanced, precision displacement measurement tool used to monitor the condition of rotating machinery. It is part of the Bently Nevada 3300 series, a well-regarded line of proximity probes known for their reliability and accuracy in demanding industrial applications. The 3300 5mm proximity probe is designed for non-contact monitoring, enabling users to measure the position, vibration, and displacement of machinery components such as shafts, bearings, and other rotating parts.
With a total length of 1.0 meter and weighing only 0.323 kg, this proximity probe is lightweight and compact, making it easy to integrate into various systems for real-time monitoring. It is engineered to provide reliable performance even in harsh industrial environments, ensuring long-term accuracy and durability. The 3300 5mm proximity probe is typically used in industries such as power generation, oil and gas, and manufacturing, where machinery health is critical to maintaining operations.
Product Specifications
| Feature | Specification |
|---|---|
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Measurement Type | Proximity Measurement |
| Sensing Distance | 5mm |
| Output Type | Analog (Standard) |
| Probe Material | Stainless Steel |
| Operating Temperature Range | -40°C to +120°C |
| Frequency Range | Up to 100kHz |
| Protection Class | IP67 |
| Mounting Type | Standard flange mount |
Applications
The Bently Nevada 330172-00-20-10-02-00 3300 5mm Proximity Probe is used in a variety of applications where precise displacement and vibration monitoring are essential for machinery health and performance. Some common applications include:
-
Rotating Equipment Monitoring: Used to measure the displacement and position of rotating components in machinery like turbines, pumps, compressors, and motors.
-
Condition Monitoring: Provides continuous feedback on the condition of machinery, allowing operators to detect potential failures, misalignment, or imbalance before they cause downtime.
-
Vibration and Displacement Detection: Ideal for monitoring machinery vibrations and displacement, which can indicate issues such as wear, misalignment, and imbalance in rotating parts.
-
Turbine and Pump Monitoring: Essential in the power generation industry for monitoring turbines and pumps, ensuring they operate within acceptable vibration and displacement limits.
-
Preventive Maintenance: Enables maintenance teams to perform preventive maintenance by identifying problems early through continuous monitoring and analysis of data from the proximity probe.
-
Misalignment Detection: The probe is critical for detecting misalignment in rotating machinery, allowing for corrective actions to be taken before more significant damage occurs.
Product Advantages
-
High Accuracy: The 5mm sensing distance allows for precise measurements, ensuring that even the smallest displacements and vibrations are captured.
-
Durable Construction: Made from stainless steel, the sensor is resistant to wear, corrosion, and harsh environmental conditions, ensuring long-term durability.
-
Wide Temperature Range: With an operating temperature range from -40°C to +120°C, the sensor is suitable for a wide range of industrial environments, from very cold to high-temperature applications.
-
High Frequency Range: The probe is capable of measuring frequencies up to 100kHz, making it suitable for high-speed machinery applications.
-
Easy Integration: The 3300 5mm proximity probe is designed for easy integration into existing monitoring systems, supporting analog output for seamless data transmission.
-
IP67 Protection: The IP67 protection class ensures that the probe is resistant to dust, moisture, and other environmental contaminants, making it ideal for use in demanding environments.
-
Proactive Monitoring: The probe helps detect issues like misalignment, imbalance, and wear early, enabling proactive maintenance to avoid costly repairs and downtime.
-
Compact and Lightweight: The 1.0 meter total length and 0.323 kg weight make the probe easy to handle and install, even in tight or restricted spaces.
FAQ
1. What is the sensing distance of the Bently Nevada 3300 5mm proximity probe?
The Bently Nevada 330172-00-20-10-02-00 proximity probe has a 5mm sensing distance, which allows for highly accurate measurements of small displacements in rotating machinery.
2. What type of output does the Bently Nevada 3300 proximity probe provide?
The Bently Nevada 3300 5mm proximity probe provides analog output, which is standard for most condition monitoring systems, allowing seamless integration and real-time data capture.
3. What is the frequency range of the Bently Nevada 3300 proximity probe?
The Bently Nevada 3300 5mm proximity probe operates over a frequency range of up to 100kHz, enabling it to measure high-frequency signals from rapidly rotating machinery.
4. What is the protection class of the Bently Nevada 3300 proximity probe?
The Bently Nevada 3300 proximity probe is rated IP67, meaning it is fully protected against dust ingress and can withstand immersion in water, making it highly durable in harsh environments.
5. What is the weight of the Bently Nevada 3300 5mm proximity probe?
The Bently Nevada 3300 5mm proximity probe weighs 0.323 kg, which makes it lightweight and easy to handle during installation and maintenance.
6. Can the Bently Nevada 3300 5mm proximity probe be used for high-speed machinery?
Yes, the Bently Nevada 3300 5mm proximity probe is ideal for high-speed machinery applications, with its ability to measure frequencies up to 100kHz.
7. What is the material used for the Bently Nevada 3300 proximity probe?
The Bently Nevada 3300 5mm proximity probe is made from stainless steel, which ensures durability and resistance to corrosion, wear, and other environmental challenges.
8. What is the operating temperature range of the Bently Nevada 3300 5mm proximity probe?
The Bently Nevada 3300 5mm proximity probe can operate within a temperature range of -40°C to +120°C, making it suitable for use in a wide variety of industrial environments.
9. How is the Bently Nevada 3300 proximity probe mounted?
The Bently Nevada 3300 5mm proximity probe uses a standard flange mount, making installation simple and compatible with most machinery.
10. What types of machinery can the Bently Nevada 3300 proximity probe be used with?
The Bently Nevada 3300 5mm proximity probe is commonly used with rotating machinery such as turbines, motors, pumps, and compressors, where accurate displacement and vibration measurements are critical for operational efficiency.
