Product Introduction

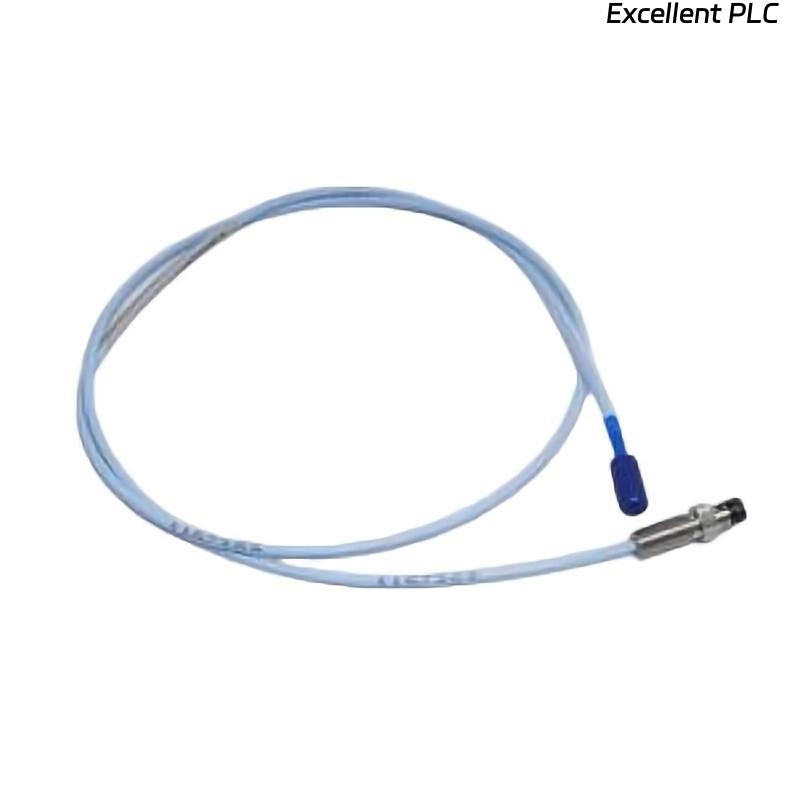

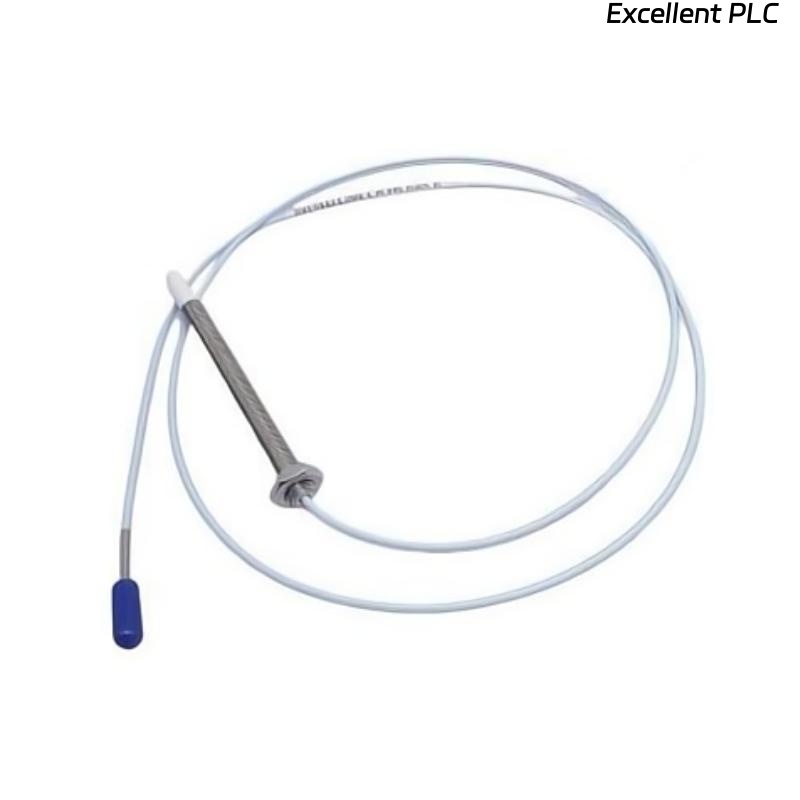

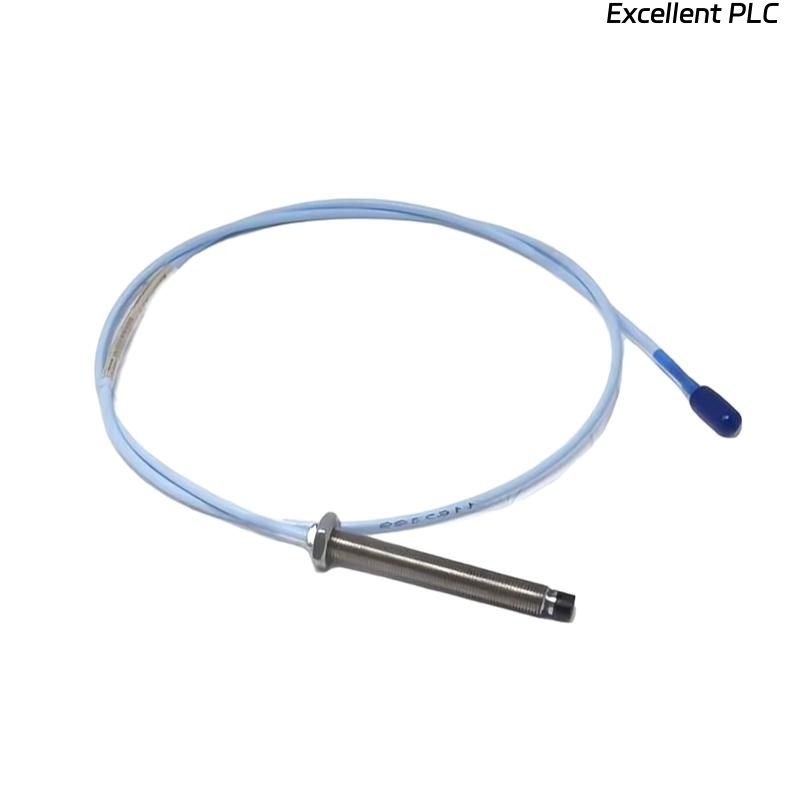

The Bently Nevada 330173-00-02-20-02-05 3300 5 mm Proximity Probe is an advanced vibration and displacement measurement probe engineered for precise monitoring of rotating machinery. Designed as part of the trusted 3300 series, this probe offers excellent performance in demanding environments, ensuring accurate shaft position and vibration data for critical equipment protection. With its robust construction and stable performance across temperature ranges, it is widely applied in turbine, compressor, and industrial motor monitoring systems.
Product Specifications
| Parameter | Specification |
| Model Number | 330173-00-02-20-02-05 |
| Series | Bently Nevada 3300 Series |
| Probe Type | 5 mm Proximity Probe |
| Total Length | 2.0 meters |
| Tip Diameter | 5 mm |
| Cable Type | Coaxial with high-reliability shielding |
| Connector Type | Standard coaxial connector |
| Material | Stainless Steel Housing |
| Frequency Response | 0 Hz to 10 kHz |
| Linearity Error | ±1% of full-scale output |
| Operating Temperature | -35°C to +120°C |
| Storage Temperature | -50°C to +150°C |
| Electrical Isolation | Ground-isolated design |
| Compliance | API 670 compliant, CE certified |
Product Applications
The 330173 5 mm Proximity Probe is suitable for a broad range of industrial and power generation applications. It is typically used in:
-
Turbomachinery: Shaft vibration and displacement monitoring in turbines, compressors, and expanders.
-
Motors & Generators: Protection against unplanned downtime by providing real-time shaft position feedback.
-
Pumps & Fans: Ensures reliable performance through continuous monitoring of shaft motion.
-
Condition Monitoring Systems: Integrated into Bently Nevada systems for machinery health analysis.
-
API 670-Compliant Protection: Used in industries requiring compliance with international monitoring standards.
Product Advantages
-
High Accuracy: ±1% linearity error ensures precise vibration and displacement measurement.
-
Robust Housing: Stainless steel design enhances durability in harsh environments.
-
Temperature Stability: Wide operating and storage ranges for versatile industrial usage.
-
System Integration: Fully compatible with Bently Nevada 3300 monitoring systems.
-
Global Standard Compliance: Meets API 670 requirements for machine protection.
-
Enhanced Reliability: Shielded coaxial cable reduces noise and ensures stable signal transmission.
FAQ
-
How does the 330173 probe interface with monitoring systems?
It connects via coaxial cabling to proximitor sensors, which then integrate into Bently Nevada monitoring racks for signal processing. -
What signal type does the probe deliver?
The probe generates a voltage signal proportional to the shaft’s distance from the probe tip, used for displacement and vibration monitoring. -
Can the probe be used in high-vibration environments?
Yes, its rugged stainless steel housing and shielding make it suitable for continuous operation in high-vibration machinery. -
How does grounding isolation benefit system performance?
Ground-isolated design reduces electrical interference, ensuring accurate and reliable measurements. -
What frequency response does the probe support?
It supports a wide response range from 0 Hz to 10 kHz, suitable for both slow- and high-speed rotating machinery. -
Is the probe compatible with all proximitor sensors?
It is specifically designed for compatibility with Bently Nevada 3300 series proximitor sensors. -
What protection does the IP65 rating provide?
The probe is resistant to dust ingress and low-pressure water jets, making it suitable for industrial field use. -
How is linearity maintained across the measuring range?
The probe’s design ensures a ±1% full-scale linearity error, maintaining consistent accuracy across shaft movements. -
Can the probe be used for both dynamic and static measurements?
Yes, it is capable of monitoring both static shaft position and dynamic vibration displacement. -
What compliance standards does the probe meet?
It fully complies with API 670 machine protection standards and CE certification for industrial use.
Related Models
| Model Number | Description | Tip Diameter | Cable Length |
|---|---|---|---|
| 330171-10-30-10-02-05 | 3300 5 mm Proximity Probe | 5 mm | 1.0 m |
| 330171-10-38-10-02 | 3300 5 mm Proximity Probe | 5 mm | 1.0 m |
| 330172-16-42-10-01-00 | 3300 5 mm Proximity Probe | 5 mm | 1.0 m |
| 330173-00-02-15-02-05 | 3300 5 mm Proximity Probe | 5 mm | 1.5 m |
| 330173-00-02-25-02-05 | 3300 5 mm Proximity Probe | 5 mm | 2.5 m |
| 330173-00-02-30-02-05 | 3300 5 mm Proximity Probe | 5 mm | 3.0 m |
