Product Introduction

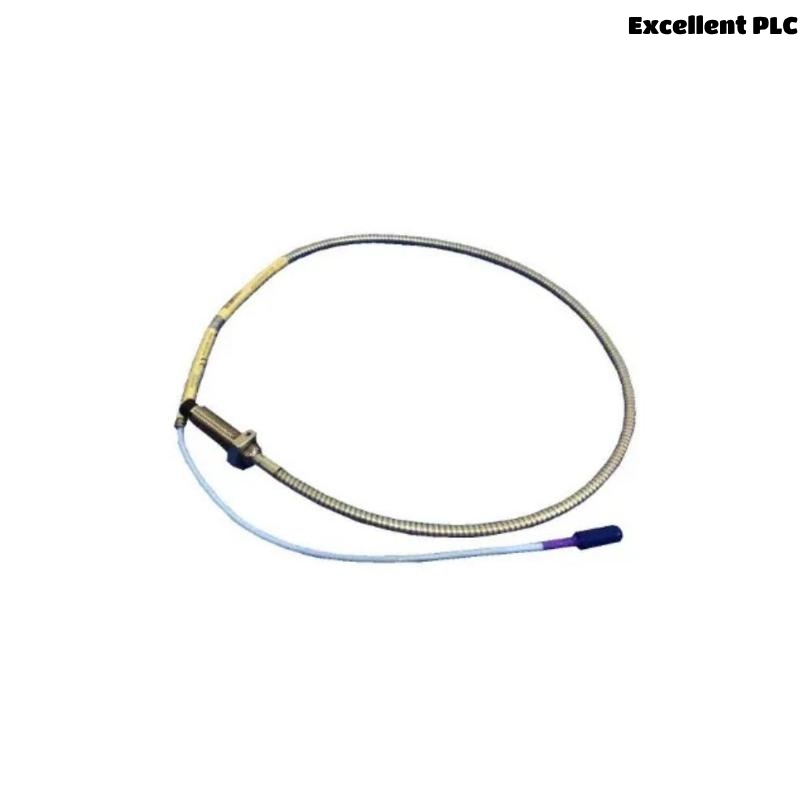

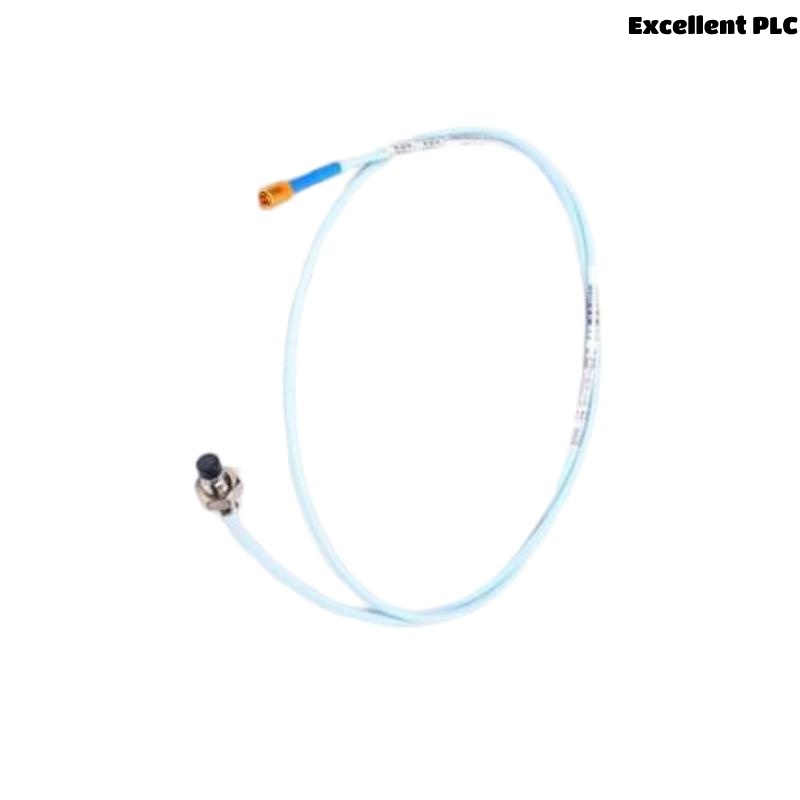

The Bently Nevada 330173-00-04-10-02-00 is a precision-engineered 3300 series 5 mm proximity probe, designed specifically for continuous condition monitoring of rotating machinery. It serves as a critical sensor for detecting shaft vibration and displacement with high accuracy, playing a key role in predictive maintenance and asset protection. This probe belongs to the renowned 3300 series, known globally for reliability and long service life in demanding industrial environments.
The probe features a sensing gap of 5 mm, suitable for machinery requiring close-range monitoring to detect subtle shaft movements. Its total length of 1.0 meter and weight of 0.323 kg make it adaptable for installations requiring extended cable lengths without compromising signal quality or mechanical stability.
Built with a rugged stainless steel housing and shielded armored cable, this probe withstands harsh operating conditions such as extreme temperatures, high vibration, and mechanical shock. The 330173-00-04-10-02-00 is widely used across various heavy industries including power generation, oil & gas, manufacturing, and petrochemical sectors, where accurate shaft position data is essential for safe, efficient operation.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330173-00-04-10-02-00 |
| Series | 3300 |
| Probe Type | Proximity Probe |
| Sensing Gap | 5 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | -40°C to +120°C |
| Cable Type | Shielded stainless steel armored cable |
| Cable Length | 1.0 meter (standard) |
| Housing Material | Stainless steel |
| Output Signal | AC voltage proportional to gap distance |
| Connector Type | PT02A-10-6P (MIL-C-5015) |
| Mounting Thread | 1/2-28 UNF |
| Vibration Resistance | Up to 200 g |
| Shock Resistance | Up to 1000 g |
Product Applications
The 330173-00-04-10-02-00 probe is widely employed in critical machinery monitoring applications, including:
-
Gas turbines and steam turbines: Providing real-time data on shaft vibration and displacement for operational safety.
-
Compressors: Monitoring shaft position to prevent mechanical damage caused by misalignment or imbalance.
-
Electric generators and motors: Ensuring continuous, accurate shaft position feedback for reliable operation.
-
Industrial pumps and fans: Early detection of abnormal vibration levels to avoid costly failures.
-
Power plants: Integral part of machinery health management systems.
-
Oil and gas facilities: Designed to withstand harsh environments while delivering precise measurements.
-
Manufacturing plants: Enables predictive maintenance and reduces unscheduled downtime through reliable condition monitoring.
Product Advantages
-
High Precision Monitoring: 5 mm sensing gap enables accurate detection of shaft vibration and displacement.
-
Rugged Construction: Stainless steel probe housing with armored cable ensures durability in severe industrial environments.
-
Extended Cable Length: 1.0 meter cable length allows flexible installation in various machinery setups.
-
Wide Temperature Range: Operational from -40°C to +120°C, suitable for extreme conditions.
-
Excellent Shock and Vibration Tolerance: Rated for shocks up to 1000 g and vibration up to 200 g.
-
Standardized Mounting: Compatible with common 1/2-28 UNF threaded mounting for straightforward integration.
-
Stable Output Signal: Produces consistent AC voltage signal proportional to gap distance, facilitating reliable monitoring.
-
Low Weight: At 0.323 kg, it adds minimal mechanical load on the monitored equipment.
-
Field-Proven Reliability: Trusted globally for reducing unplanned downtime through accurate early fault detection.
-
Ease of Maintenance: Designed for long service life with minimal upkeep requirements.
Frequently Asked Questions (FAQ)
-
What is the sensing gap of this proximity probe?
The sensing gap is 5 mm. -
What is the total length and weight of the probe?
The total length is 1.0 meter and the weight is 0.323 kg. -
What temperature range can the probe operate in?
It operates from -40°C to +120°C. -
What type of output signal does the probe provide?
It outputs an AC voltage proportional to the gap distance. -
What connector type does this probe use?
The probe uses a PT02A-10-6P (MIL-C-5015) connector. -
Is this probe suitable for harsh industrial environments?
Yes, the stainless steel housing and armored cable protect it from harsh conditions. -
What is the mounting thread specification?
It uses a 1/2-28 UNF threaded mounting. -
How resistant is the probe to shock and vibration?
It can withstand shocks up to 1000 g and vibration up to 200 g. -
Is this probe compatible with the 3300 series monitoring systems?
Yes, it is fully compatible with all 3300 series systems. -
How does this probe contribute to machinery maintenance?
By providing accurate vibration and position data, it helps detect faults early and prevent unexpected failures.
Recommended Related Models
| Model | Description | Sensing Gap | Cable Length |
|---|---|---|---|
| 330173-00-04-10-02-00 | 3300 5 mm Proximity Probe | 5 mm | 1.0 meter |
| 330171-10-24-05-02-00 | 3300 5 mm Proximity Probe | 5 mm | 0.5 meter |
| 330171-10-24-08-02-00 | 3300 8 mm Proximity Probe | 8 mm | 0.5 meter |
| 330171-10-24-12-02-00 | 3300 12 mm Proximity Probe | 12 mm | 0.5 meter |
| 330104-12-20-10-02-00 | 3300 XL 8 mm Proximity Probe | 8 mm | 1.0 meter |
| 330105-06-14-05-02-05 | 3300 XL 12 mm Proximity Probe | 12 mm | 1.0 meter |
