Product Introduction

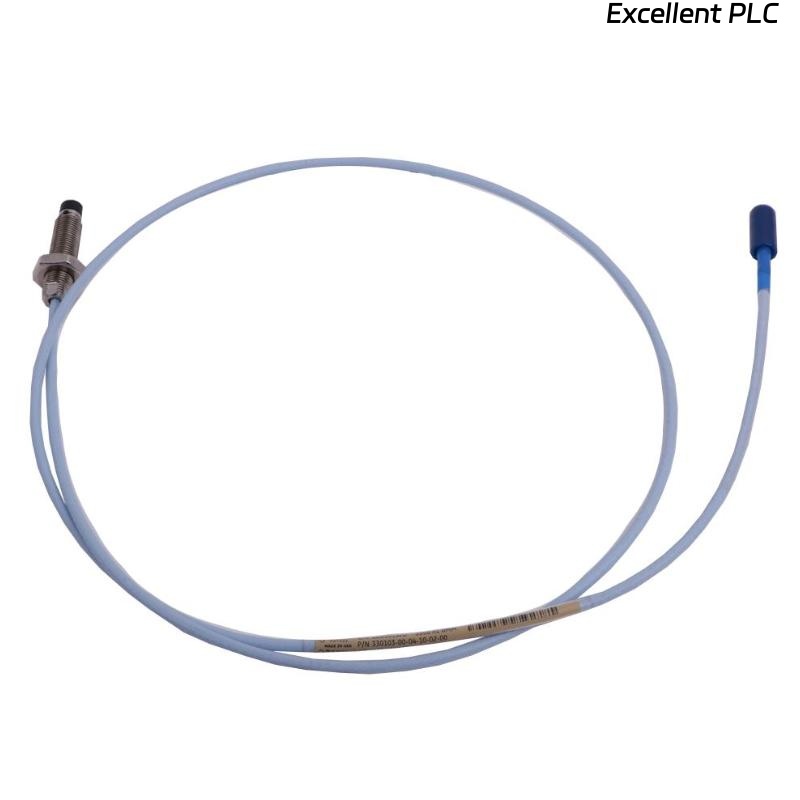

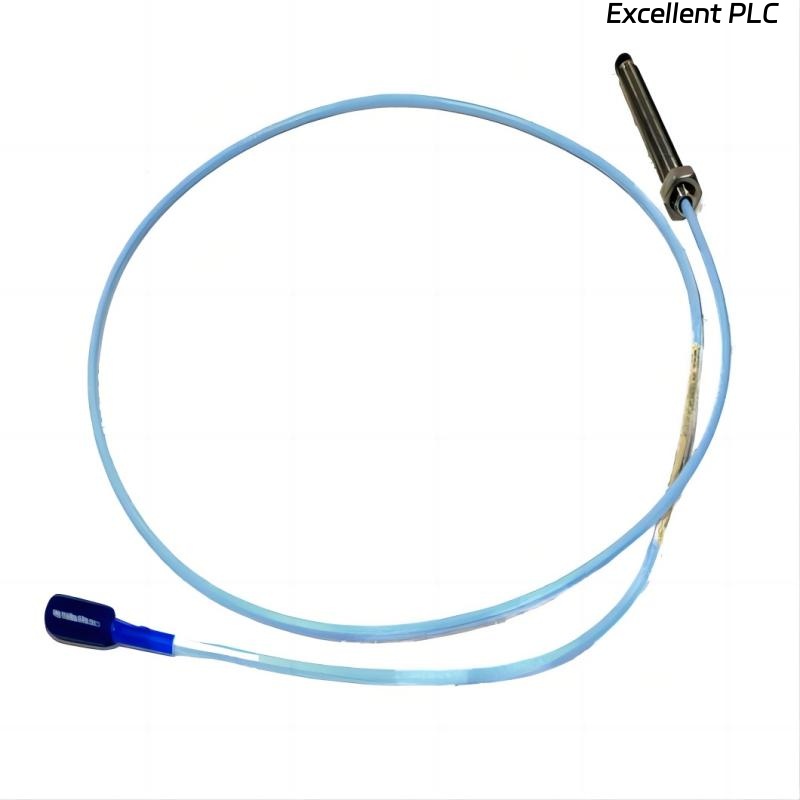

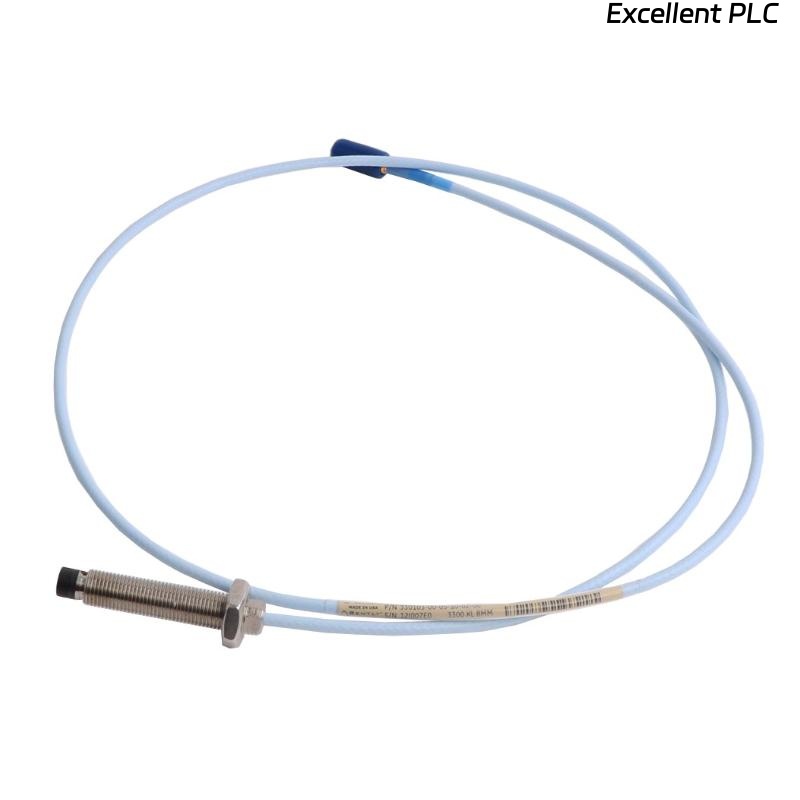

The Bently Nevada 330173-00-08-05-02-05 proximity probe is part of the renowned 3300 series of 5mm proximity probes, specifically engineered for precise, non-contact displacement measurements in industrial machinery. With a length of 0.5 meters and a weight of 0.162 kg, this probe offers outstanding accuracy for vibration and displacement measurement in critical equipment.
This proximity probe uses advanced electromagnetic technology to detect the smallest variations in position and displacement, making it ideal for monitoring machinery such as pumps, motors, generators, and turbines. The 5mm range makes it suitable for fine measurements in high-speed or high-temperature environments, ensuring operational efficiency and reducing the risk of machinery failure.
With non-contact technology, the 3300 5mm proximity probe is highly effective in preventing wear and tear on both the probe and the machinery being measured. This extends the lifetime of both the probe and the equipment it monitors. It is also compatible with Bently Nevada’s 3300 XL series and 3500 series machinery health systems.
Product Specifications
| Feature | Specification |
|---|---|
| Probe Type | 5mm Proximity Probe |
| Measurement Range | 5mm |
| Total Length | 0.5 meters |
| Weight | 0.162 kg |
| Output Type | Analog Output (compatible with 3300 XL series) |
| Sensitivity | High Sensitivity (ideal for vibration and displacement monitoring) |
| Material | Stainless Steel, Corrosion-Resistant |
| Operating Temperature Range | -40°C to +120°C |
| Signal Conditioning | Compatible with 3300 XL and 3500 series systems |
| Installation | Easy integration into existing monitoring systems |
| Accuracy | ±0.05% of full scale |
Applications
The Bently Nevada 330173-00-08-05-02-05 proximity probe is primarily used for monitoring and measuring vibration and displacement in a variety of critical industrial machinery applications. Some of its key uses include:
-
Condition Monitoring: The probe continuously monitors critical rotating machinery components such as turbines, generators, compressors, and pumps to detect mechanical problems such as misalignment, imbalance, and bearing failures before they cause significant damage.
-
Vibration Measurement: The probe is essential for measuring the vibration levels in rotating machinery, providing real-time feedback on whether components are operating within acceptable limits, helping to avoid unnecessary downtime.
-
Displacement Monitoring: The 5mm proximity probe ensures precise displacement measurements of shafts, bearings, and other rotating elements, maintaining proper alignment and operational efficiency.
-
Power Generation: In power plants, it is used to monitor gas turbines, steam turbines, and generators, ensuring safe and efficient operation, reducing wear, and preventing failures.
-
Oil & Gas Industry: The 3300 proximity probe is used in both onshore and offshore applications to monitor equipment in harsh environments, including pumps, compressors, and turbines.
-
Manufacturing: In industrial manufacturing plants, the proximity probe is critical for monitoring the health of high-speed machinery, reducing the risk of downtime, and ensuring smoother production processes.
Product Advantages
-
High Accuracy: With an accuracy of ±0.05% of full scale, the 3300 proximity probe provides high-precision measurements, essential for monitoring critical machinery.
-
Durable Construction: Built from corrosion-resistant stainless steel, the probe is ideal for use in harsh industrial environments, ensuring long-lasting performance even in challenging conditions.
-
Non-Contact Measurement: The electromagnetic measurement method used in the probe ensures that there is no physical contact between the probe and the machinery, preventing wear and tear and maintaining the integrity of both the probe and the monitored components.
-
Versatile Applications: The 3300 proximity probe can be used across various industries, including oil & gas, power generation, chemical, and manufacturing, for a wide range of applications from vibration monitoring to alignment.
-
Easy Integration: The probe integrates seamlessly with Bently Nevada 3300 XL and 3500 monitoring systems, ensuring that users can quickly set up and begin monitoring critical machinery.
-
Long-Term Reliability: Designed for continuous operation, the probe offers high reliability and is capable of functioning for extended periods without the need for frequent maintenance or recalibration.
-
Cost-Effective: Offering a combination of high performance and durability, the 3300 5mm proximity probe is a cost-effective solution for precision monitoring in critical industries.
-
Low Maintenance: Due to its durable and reliable construction, the 3300 proximity probe requires minimal maintenance, reducing costs associated with regular service and replacement.
-
Enhanced Efficiency: By detecting early warning signs of failure, the probe allows for proactive maintenance, improving overall system efficiency and reducing downtime.
FAQ
1. How does the Bently Nevada 330173-00-08-05-02-05 proximity probe work?
The 3300 proximity probe uses electromagnetic technology to detect variations in the magnetic field caused by displacement, providing real-time feedback on the position of rotating machinery components.
2. What output does the probe provide?
The probe provides an analog output, which is compatible with Bently Nevada 3300 XL and 3500 series systems, making it easy to integrate with existing monitoring systems.
3. What is the measurement range of the probe?
The 3300 proximity probe has a 5mm measurement range, making it ideal for precise displacement and vibration monitoring.
4. Can the 3300 proximity probe be used in high-temperature environments?
Yes, the 3300 proximity probe operates within a temperature range of -40°C to +120°C, making it suitable for high-temperature applications in power plants, oil rigs, and manufacturing facilities.
5. Is the probe compatible with other Bently Nevada systems?
Yes, the 3300 proximity probe is designed to work seamlessly with Bently Nevada 3300 XL and 3500 series systems, allowing easy integration into your existing machinery health monitoring setup.
6. What industries commonly use this proximity probe?
The 3300 proximity probe is widely used in industries such as oil & gas, power generation, chemical, and manufacturing, especially in applications where vibration and displacement monitoring are critical.
7. Can the probe be used for high-speed machinery?
Yes, the 3300 proximity probe is ideal for high-speed machinery, offering high-precision measurements without physical contact, ensuring accurate data collection in fast-moving systems.
8. How easy is it to install the 3300 proximity probe?
The 3300 proximity probe is designed for easy installation, allowing for quick and efficient setup in both new and existing systems, with no need for complicated adjustments.
9. What is the accuracy of the 3300 proximity probe?
The 3300 proximity probe offers an accuracy of ±0.05% of full scale, ensuring reliable and precise measurements for critical machinery monitoring.
10. Can the probe be used in offshore applications?
Yes, the 3300 proximity probe is built to withstand harsh environments, including offshore conditions, making it an ideal choice for applications in oil rigs, marine environments, and offshore power generation.
