Product Introduction

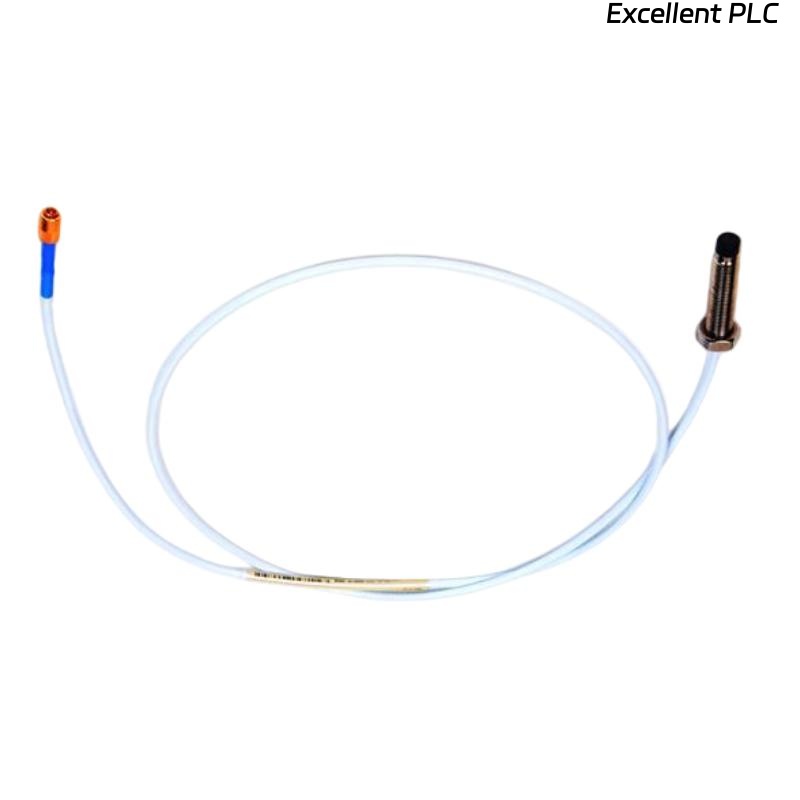

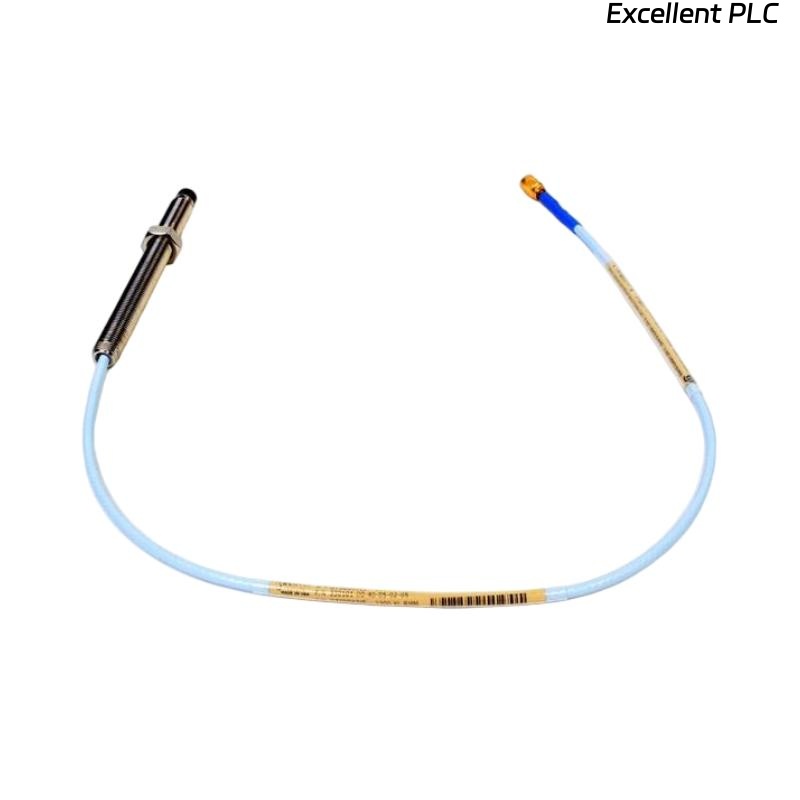

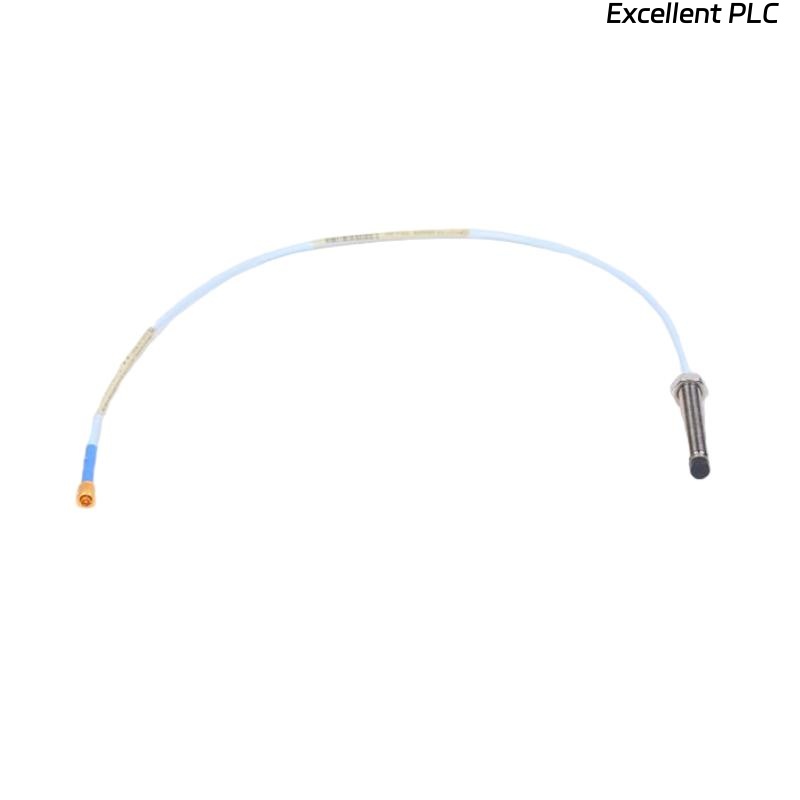

The Bently Nevada 330173-00-13-05-02-00 is a 5mm proximity probe from the 3300 series, designed for the precise measurement of vibration and displacement in rotating machinery. This high-performance sensor is engineered for use in critical industrial machinery monitoring systems where reliability and precision are paramount.
This non-contact measurement probe is widely used in industries such as power generation, oil and gas, and manufacturing to monitor the health of rotating machinery like turbines, motors, and compressors. By detecting small movements in rotating machinery components, the probe provides real-time data that allows for proactive maintenance, improving system reliability and reducing downtime.
The 3300 5mm proximity probe is designed to be integrated with Bently Nevada’s 3300 XL series and 3500 series machinery monitoring systems. It provides accurate displacement and vibration measurements, enabling effective predictive maintenance and fault detection.
Product Specifications
| Feature | Specification |
|---|---|
| Probe Type | 5mm Proximity Probe |
| Measurement Range | 5mm |
| Total Length | 0.5 meters |
| Weight | 0.162 kg |
| Output Type | Analog Output (compatible with 3300 XL series) |
| Material | Corrosion-resistant stainless steel |
| Operating Temperature Range | -40°C to +120°C |
| Signal Conditioning | Compatible with 3300 XL and 3500 series systems |
| Accuracy | ±0.05% of full scale |
| Sensitivity | High sensitivity for vibration and displacement monitoring |
| Installation | Easy integration with existing monitoring systems |
Applications
The Bently Nevada 330173-00-13-05-02-00 proximity probe is used for condition monitoring in various industrial applications, including:
-
Condition Monitoring of Rotating Machinery: Used to monitor turbines, compressors, generators, and pumps, providing real-time data on machinery health and performance.
-
Vibration and Displacement Measurement: Measures vibration levels and displacement in rotating machinery, helping to detect imbalances, misalignments, and other faults.
-
Power Generation: This probe is widely used in gas turbines, steam turbines, and generators in power plants, helping to ensure the reliability of critical systems.
-
Oil & Gas Industry: Ideal for monitoring equipment such as pumps, compressors, and motors in harsh and remote environments, ensuring consistent operation.
-
Manufacturing: Used in manufacturing processes to monitor the health of high-speed rotating machinery, minimizing downtime and improving operational efficiency.
Product Advantages
-
Non-Contact Measurement: The probe uses non-contact technology, reducing wear and tear on both the probe and the machinery, ensuring a longer service life and reliable performance.
-
High Precision: With an accuracy of ±0.05%, the 3300 proximity probe provides precise measurements for critical machinery monitoring.
-
Durability: Made from corrosion-resistant stainless steel, the probe is designed to withstand harsh industrial conditions, including high temperatures, vibration, and exposure to chemicals.
-
Wide Temperature Range: The probe operates within a temperature range of -40°C to +120°C, making it suitable for various environmental conditions.
-
Flexible Integration: It is fully compatible with Bently Nevada 3300 XL and 3500 series monitoring systems, providing easy integration into existing setups.
-
Reliable Performance: The 3300 proximity probe is engineered for continuous use in demanding environments, providing dependable measurements with minimal maintenance.
-
Cost-Effective: The probe offers a cost-effective solution for high-precision vibration and displacement monitoring, reducing the need for frequent maintenance and minimizing downtime.
FAQ
1. How does the Bently Nevada 330173-00-13-05-02-00 proximity probe work?
The 3300 proximity probe uses electromagnetic induction to detect small displacements in machinery without making physical contact, offering high-precision vibration and displacement measurements.
2. What output does the 3300 proximity probe provide?
The probe provides an analog output, which can be integrated into Bently Nevada 3300 XL and 3500 series systems for real-time monitoring.
3. What is the accuracy of the 3300 proximity probe?
The 3300 proximity probe has an accuracy of ±0.05% of full scale, offering precise and reliable measurements for effective condition monitoring.
4. Can the probe measure both vibration and displacement?
Yes, the 3300 proximity probe is designed to measure both vibration and displacement in rotating machinery, providing comprehensive health monitoring.
5. What materials is the 3300 proximity probe made of?
The probe is made from corrosion-resistant stainless steel, which ensures durability and long-term performance even in harsh environments.
6. What temperature range can the 3300 proximity probe operate in?
The 3300 proximity probe operates in a temperature range of -40°C to +120°C, making it suitable for a variety of industrial applications.
7. Is the 3300 proximity probe easy to install?
Yes, the 3300 proximity probe is designed for easy integration into Bently Nevada 3300 XL and 3500 series systems, minimizing setup time and effort.
8. Can the probe be used in high-vibration environments?
Yes, the 3300 proximity probe is specifically designed for high-vibration environments, making it ideal for monitoring critical rotating machinery in industrial applications.
9. What kind of machinery can the 3300 proximity probe monitor?
The probe is used to monitor various rotating machinery such as turbines, generators, pumps, and motors in industries such as power generation and oil & gas.
10. How often does the 3300 proximity probe require maintenance?
The 3300 proximity probe is designed for low maintenance due to its non-contact measurement technology, offering long-term reliability with minimal upkeep.
