Product Overview

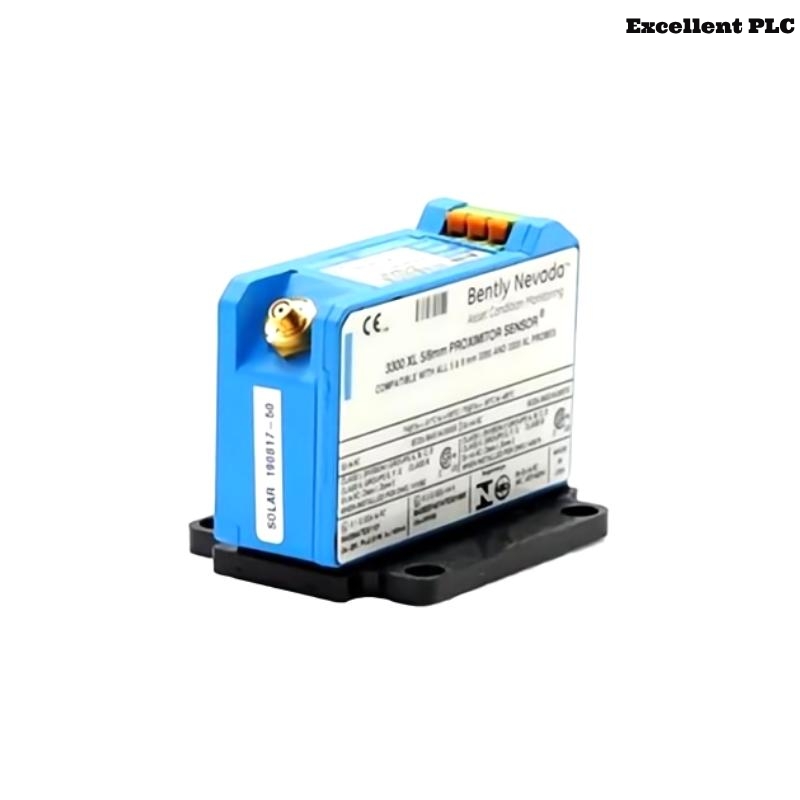

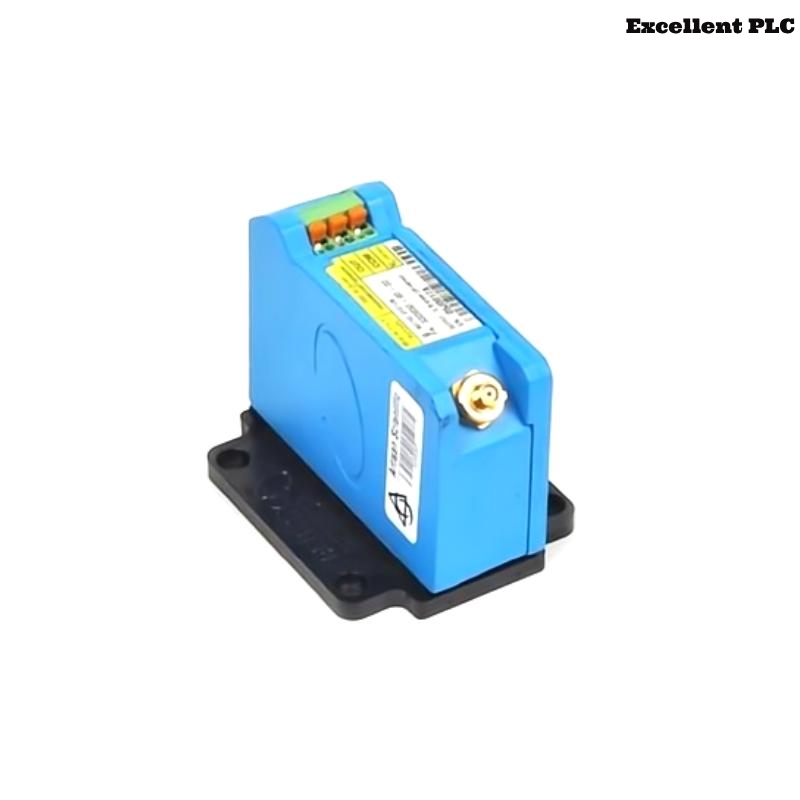

The 330180-1E05 Proximitor Sensor is part of Bently Nevada’s 3300 XL 8mm Proximity Transducer System, which includes a probe, extension cable, and Proximitor sensor. This system is engineered to measure the distance between the probe tip and the observed surface, providing critical data for assessing machine health. The 3300 XL series is known for its high performance, reliability, and compliance with industry standards, making it a preferred choice for condition monitoring and machinery protection.
Product Specifications
The following table outlines the key specifications of the Bently Nevada 330180-1E05 3300 XL 8mm Proximitor Sensor:
| Parameter | Specification |
| Probe Tip Diameter | 8 mm |
| Linear Range | 2 mm (approximately 80 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Power Supply Voltage | -24 VDC nominal |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Probe Pressure Rating | Up to 34 bar (500 psi) |
| Weight | 0.246 kg |
| Total Length | 0.5 m |
| Connector Type | ClickLoc™ connectors with corrosion-resistant, gold-plated contacts |
Applications
The 330180-1E05 Proximitor Sensor is utilized in a wide range of industrial applications, including:
-
Rotating Equipment Monitoring: Measures shaft position and vibration in turbines, compressors, pumps, and motors.
-
Thrust Position Monitoring: Assesses axial displacement in thrust bearing applications.
-
Eccentricity Measurement: Evaluates shaft eccentricity in large rotating machinery.
-
Condition Monitoring Systems: Integrates with Bently Nevada’s 3500 series machinery protection systems for continuous monitoring.
-
Hydrocarbon Processing Industries: Suitable for use in environments with hazardous gases and liquids.
Advantages
The Bently Nevada 330180-1E05 offers several notable advantages:
-
High Accuracy and Linearity: Provides precise measurements essential for effective machine diagnostics.
-
Robust Environmental Tolerance: Operates reliably in extreme temperatures and harsh industrial conditions.
-
Enhanced RFI/EMI Immunity: Minimizes interference from radio frequency and electromagnetic sources, allowing installation in various enclosures without special shielding.
-
Ease of Installation and Maintenance: ClickLoc™ connectors facilitate secure connections without the need for special tools.
-
Interchangeability: Supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.
-
Compliance with Industry Standards: Meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 330180-1E05 Proximitor Sensor?
-
It measures the distance between the probe tip and a conductive surface, providing data on vibration and position for machinery monitoring.
-
-
Can the 330180-1E05 be used in high-temperature environments?
-
Yes, it operates effectively in temperatures ranging from -35°C to +177°C (-31°F to +350°F).
-
-
Is the sensor compatible with other Bently Nevada systems?
-
Yes, it is designed to integrate seamlessly with Bently Nevada’s 3500 series monitoring systems.
-
-
What type of machinery is the sensor typically used with?
-
It is commonly used with turbines, compressors, pumps, and motors for monitoring shaft position and vibration.
-
-
Does the sensor require special shielding against electromagnetic interference?
-
No, it has enhanced RFI/EMI immunity, allowing installation without special shielded conduit or metallic housings.
-
-
How is the sensor installed?
-
It features ClickLoc™ connectors for secure, tool-free installation.
-
-
What is the linear measurement range of the sensor?
-
It has a linear range of 2 mm (80 mils).
-
-
Is the sensor resistant to corrosive environments?
-
Yes, it is designed with materials and construction that withstand corrosive industrial environments.
-
-
Can the sensor be used in hazardous locations?
-
Yes, it is suitable for use in environments with hazardous gases and liquids, common in hydrocarbon processing industries.
-
-
What maintenance is required for the sensor?
-
It requires minimal maintenance; however, regular inspections are recommended to ensure optimal performance.
-
Related Models in the Same Series or Family (3300 XL Series)
| Model Number | Description | Key Feature |
| 330180-51-00 | 3300 XL 8mm Proximitor Sensor | Standard version with 5m system length |
| 330180-90-00 | 3300 XL 8mm Proximitor Sensor | For hazardous area use |
| 330180-91-00 | 3300 XL 8mm Proximitor Sensor | Enhanced temperature tolerance |
| 330130-040-00-00 | 3300 XL 8mm Proximity Probe | Compatible probe for 3300 XL sensors |
| 330105-02-12-10-02-CN | 3300 XL Extension Cable (5 meters) | Extension cable for complete system |
| 330780-91-05 | Proximitor Sensor Mounting Bracket | Mounting accessory for XL series sensors |
| 330106-05-30-10-02-CN | 3300 XL 11mm Proximity Probe | Larger tip diameter for specific applications |
| 330104-00-10-10-02-CN | 3300 XL 5mm Proximity Probe | Alternative probe size for tight installations |
Popular Models from Bently Nevada Brand
| Model Number | Description | Key Application |
| 3500/22M | Transient Data Interface (TDI) | For integration with 3500 Monitoring System |
| 3500/42M | Proximitor/Seismic Monitor | Multi-channel monitoring unit |
| 3500/33 | 16-Channel Relay Module | Machinery protection and shutdown logic |
| 330130-080-00-00 | 3300 XL 8mm Proximity Probe | Extended probe length (8m cable) |
| 330103-00-05-10-02-CN | 3300 XL 5mm Proximity Probe | Used in small clearance applications |
| 330500 | Velomitor Piezo-Velocity Sensor | Vibration monitoring in rugged conditions |
| 7200 Series | Older generation Proximitor System | Legacy system support |
| ADRE 408 DSPi | Portable Vibration Data Acquisition System | Field data collection and diagnostics |
