Product Overview

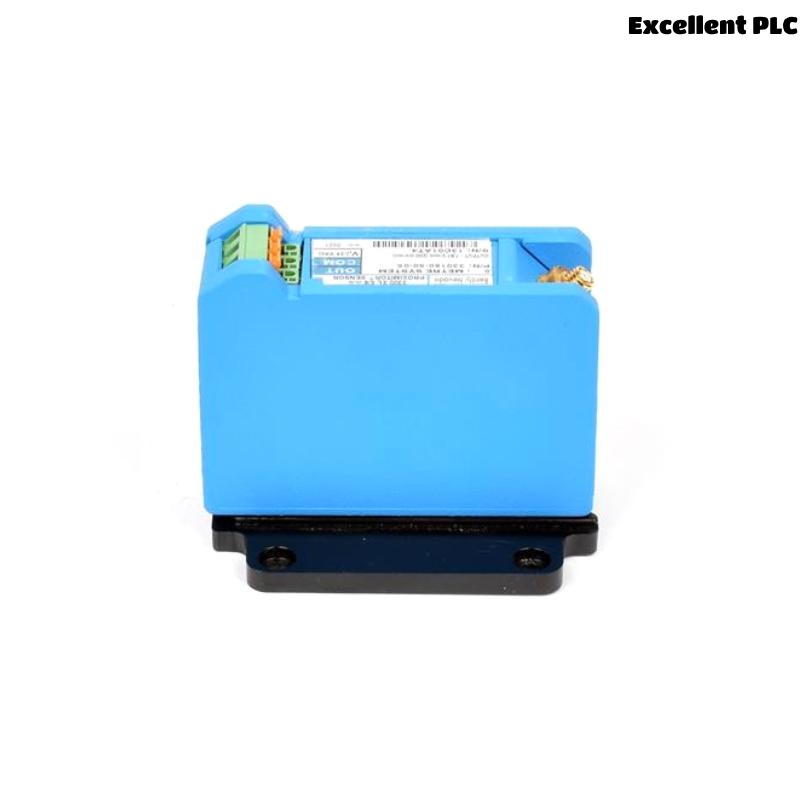

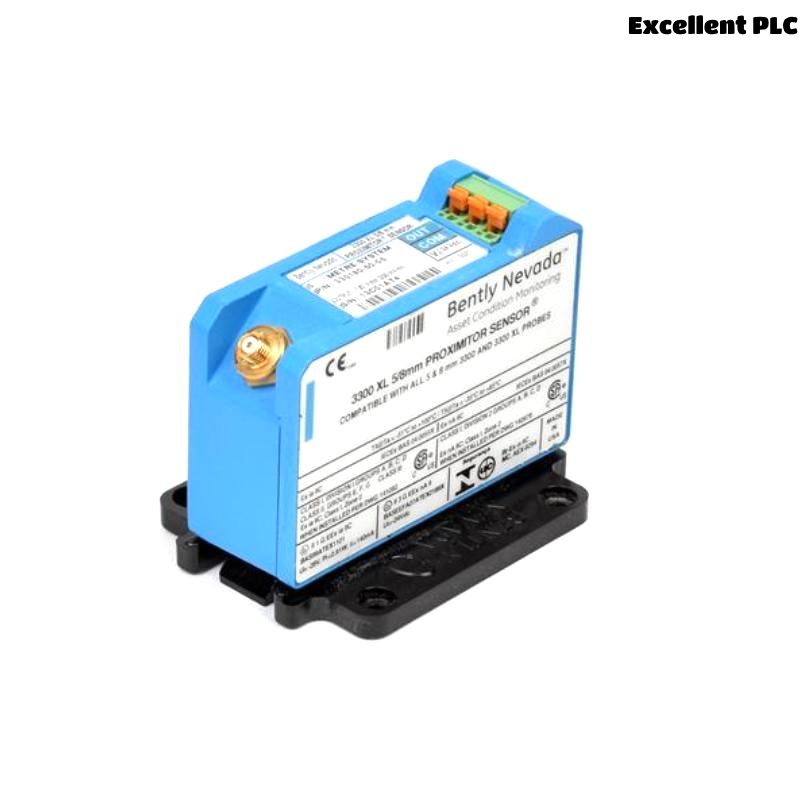

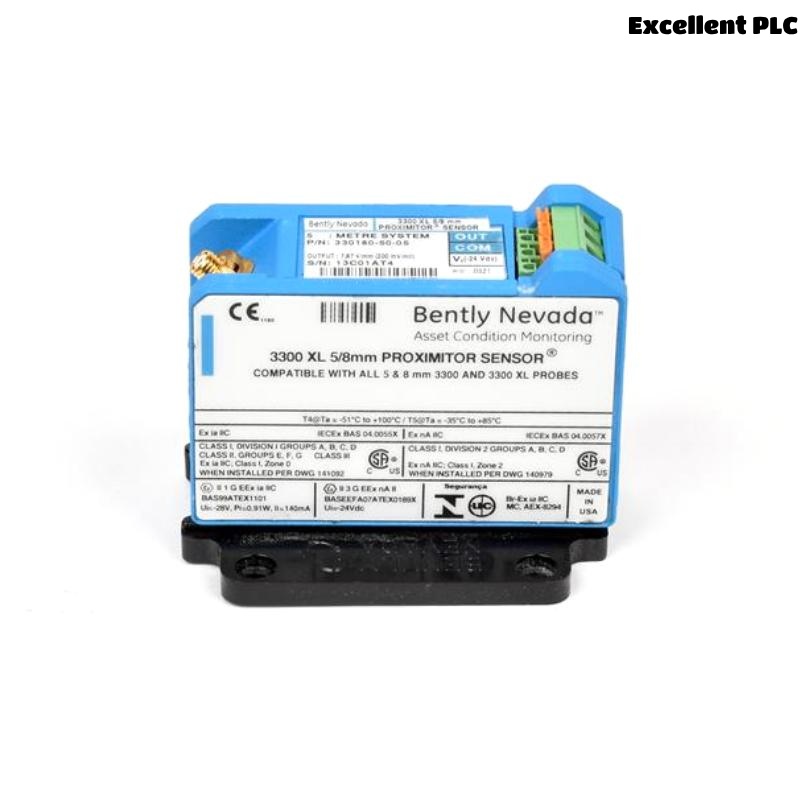

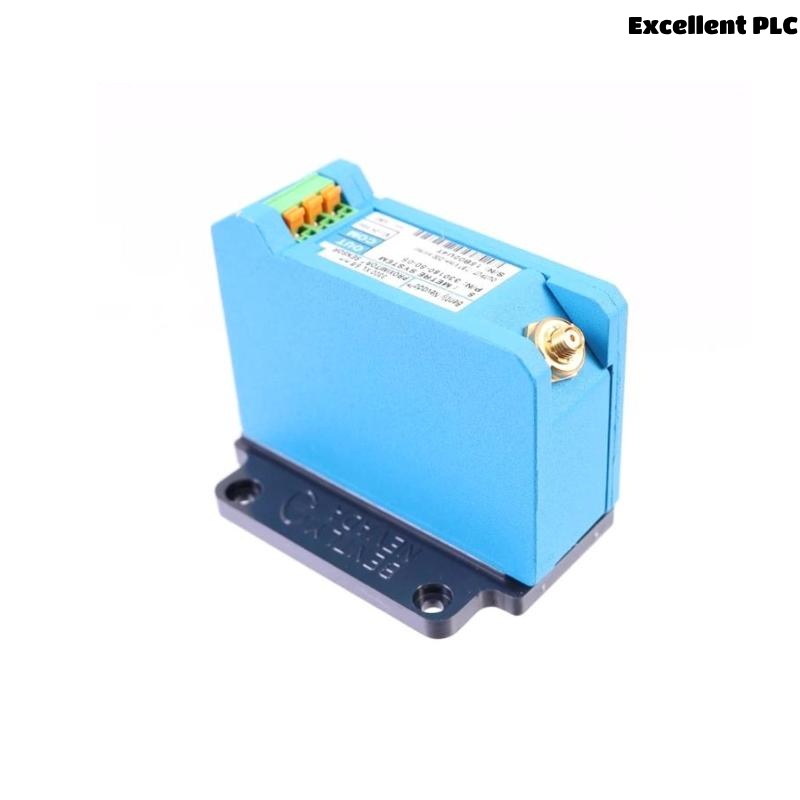

The Bently Nevada 330180-50-05 is a component of the 3300 XL 8 mm Proximity Transducer System. It provides high-accuracy, non-contact measurements of shaft vibration and position. This model is commonly used in fluid-film bearing machines for condition monitoring and protection.
Key Features
-
Compatible with all 3300 XL 8 mm probes and extension cables
-
Provides output voltage proportional to shaft displacement
-
High EMI/RFI immunity – ideal for industrial environments
-
Complies with API 670 standard
-
Finger-tight ClickLoc connectors – no tools required
Applications
-
Radial and axial shaft vibration monitoring
-
Shaft position and thrust position measurement
-
Keyphasor signal generation
-
Speed detection on rotating equipment
-
Turbomachinery condition monitoring
Product Advantages
-
Interchangeability: Probes, cables, and sensors can be replaced without recalibration
-
Robust design: Resistant to oil ingress (FluidLoc), corrosion, and mechanical stress
-
Compact installation: DIN-rail and panel-mount options available
-
Wide temperature and environmental tolerance
-
Industry-standard compliance ensures reliable operation
Technical Specifications
| Parameter | Value |
|---|---|
| System Model | 330180-50-05 |
| Total System Length | 5.0 meters |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Output Resistance | 50 Ω |
| Temperature Range – Probe | -52°C to +177°C (standard), up to +218°C (ETR) |
| Temperature Range – Sensor | -52°C to +100°C (operation), +105°C (storage) |
| Pressure Sealing (probe tip) | Viton® O-ring sealed |
| Connector Type | Gold-plated ClickLoc (finger-tight) |
| Total Weight | 0.246 kg |
| Dimensions (Sensor Housing) | DIN rail mount: 89.4 mm (3.52 in) width |
FAQs
Q1: Is the 330180-50-05 compatible with older 3300 systems?
A1: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
Q2: What is the output signal of this sensor?
A2: It provides a voltage output proportional to the gap distance, used to measure vibration or position.
Q3: Can this sensor be installed on a DIN rail?
A3: Yes, it supports both DIN rail and traditional panel mount installations.
Q4: Does it require a specific power supply?
A4: It operates within -17.5 Vdc to -26 Vdc, with -23 Vdc minimum when using intrinsic safety barriers.
Q5: What is the recommended gap setting?
A5: -9 Vdc, approximately 1.27 mm (50 mils).
Q6: Is recalibration needed when replacing components?
A6: No, all components are fully interchangeable without the need for bench calibration.
Q7: Can the system work in high-temperature areas?
A7: Yes, extended temperature range versions support up to +260°C.
Q8: What is the cable bend radius requirement?
A8: The minimum cable bend radius is 25.4 mm (1.0 inch).
Q9: How is the sensor protected from electromagnetic interference?
A9: The sensor is highly immune to EMI/RFI and complies with CE standards.
Q10: What material is the sensor housing made of?
A10: The sensor housing is made of A308 aluminum.
Related Models (Same Series)
| Model | Description | Length | Weight |
|---|---|---|---|
| 330180-51-05 | 5 m system, DIN mount | 5.0 m | 0.246 kg |
| 330180-90-05 | 9 m system, panel mount | 9.0 m | 0.276 kg |
| 330180-91-05 | 9 m system, DIN mount | 9.0 m | 0.276 kg |
| 330130-050-00 | 5 m extension cable, standard | 5.0 m | 0.17 kg |
| 330101-00-20-10 | 8 mm probe, 2.0 in case, 1.0 m cable | 1.0 m | 0.15 kg |
| 330192-00-20-50 | ETR probe with armor, 5.0 m total length | 5.0 m | 0.35 kg |
