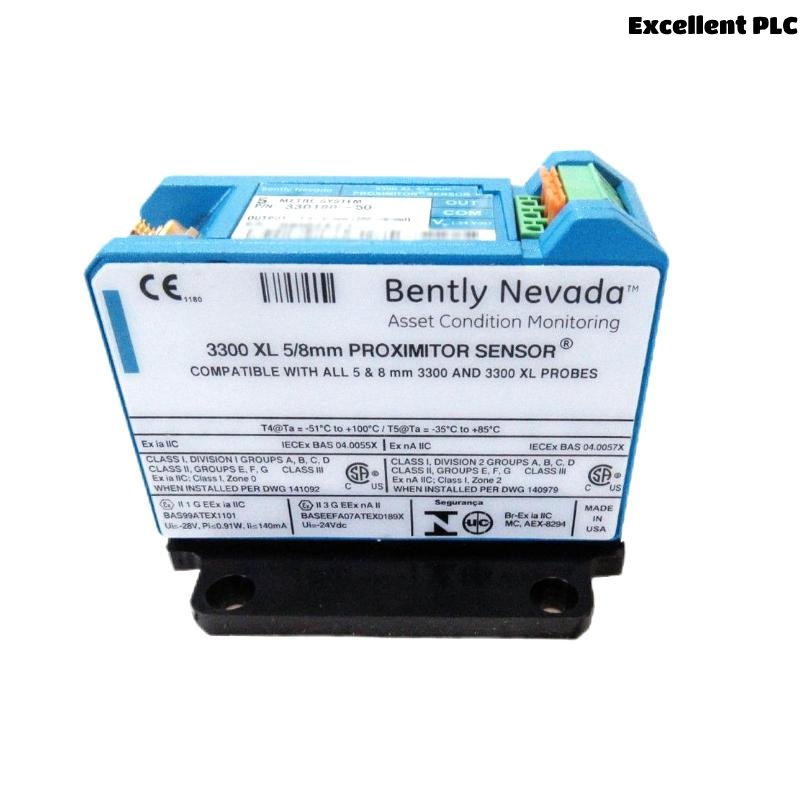

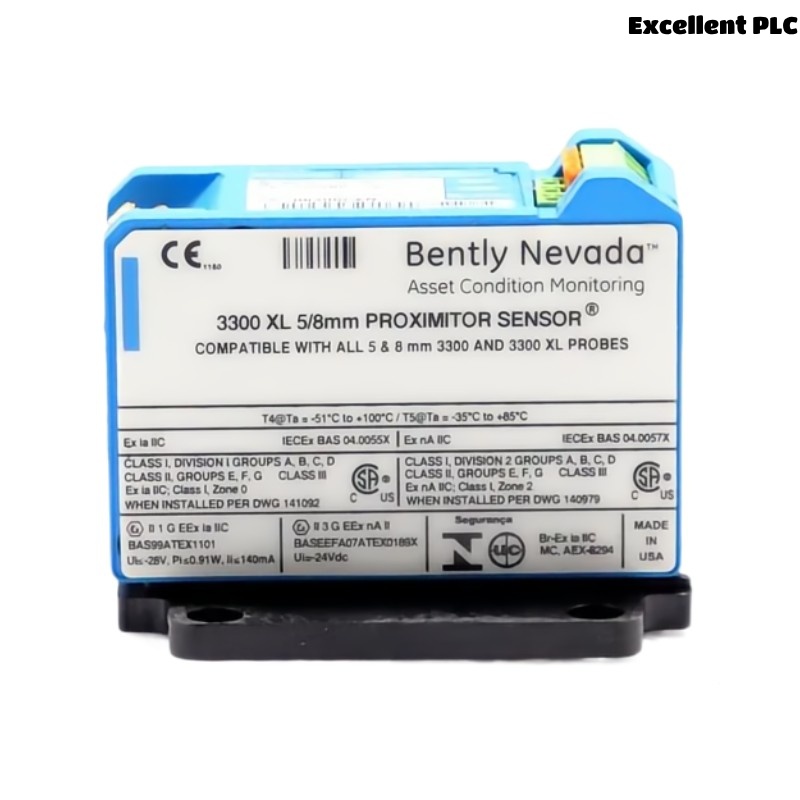

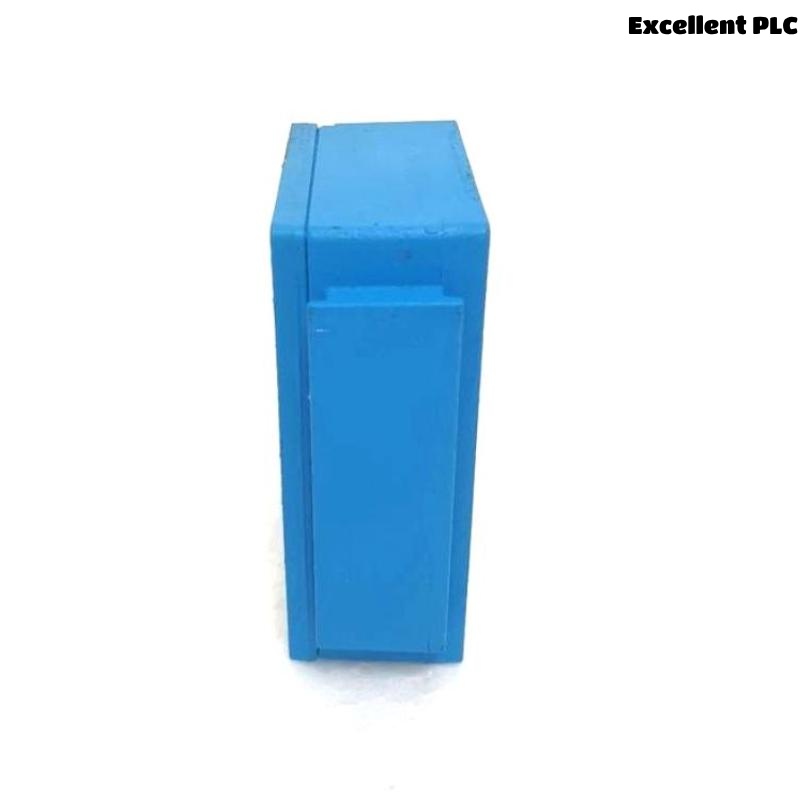

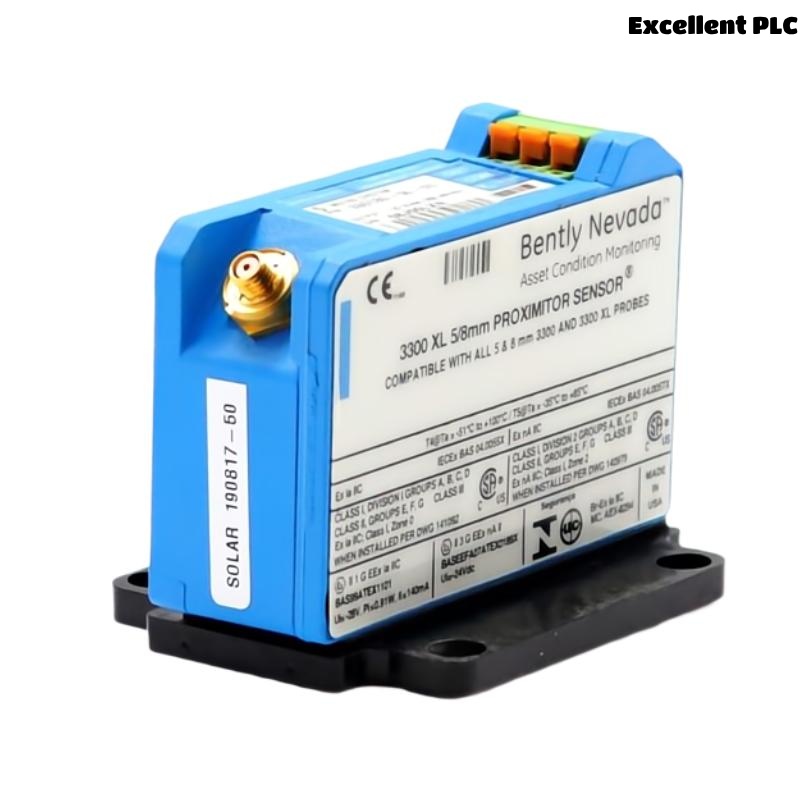

Bently Nevada 330180-50-CN 3300 XL Proximitor Sensor

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Description

The 330180-50-CN is part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System, offering precise non-contact vibration and position measurements. It consists of a proximity probe, extension cable, and Proximitor sensor. Designed for fluid-film bearing machines, it complies with API 670 and ensures full component interchangeability without the need for recalibration.

---

Applications

• Shaft vibration monitoring

• Axial thrust position measurement

• Speed and Keyphasor reference sensing

• Steam/gas turbine protection

• Critical rotating machinery diagnostics

---

Advantages

• Fully API 670 compliant

• Backward compatibility with non-XL 3300 components

• Resistant to RFI/EMI for improved performance

• Durable ClickLoc connectors with no tools required

• Extended temperature range versions available

• Fast SpringLoc terminal strip wiring

---

Technical Specifications

---

FAQs

Q1: What is the function of the 330180-50-CN sensor?
A1: It measures shaft position and vibration using eddy current technology.

Q2: What system length does the -50-CN model support?
A2: 5.0 meters, including the probe and extension cable.

Q3: Is the sensor compliant with API 670?
A3: Yes, it meets mechanical, accuracy, and linearity requirements of API 670.

Q4: Can components be mixed between XL and non-XL systems?
A4: Yes, but the system’s performance will default to the lower (non-XL) specs.

Q5: What is the output signal range?
A5: Output voltage ranges from -1 Vdc to -17 Vdc over the 2 mm linear range.

Q6: Does it require calibration with specific materials?
A6: Standard calibration is for AISI 4140 steel; other materials available upon request.

Q7: What is the recommended gap setting?
A7: -9 Vdc, corresponding to ~1.27 mm (50 mils) gap from the target.

Q8: Is it suitable for high-temperature environments?
A8: Yes, ETR versions handle up to 260°C for cables and 218°C for probe tips.

Q9: What is the minimum shaft diameter for effective use?
A9: Minimum recommended is 76.2 mm (3 in) for accurate radial measurement.

Q10: Is the sensor suitable for hazardous environments?
A10: Yes, it’s certified for ATEX, CSA, IECEx with Zone 0/Zone 2 approvals.

---
