Product Overview

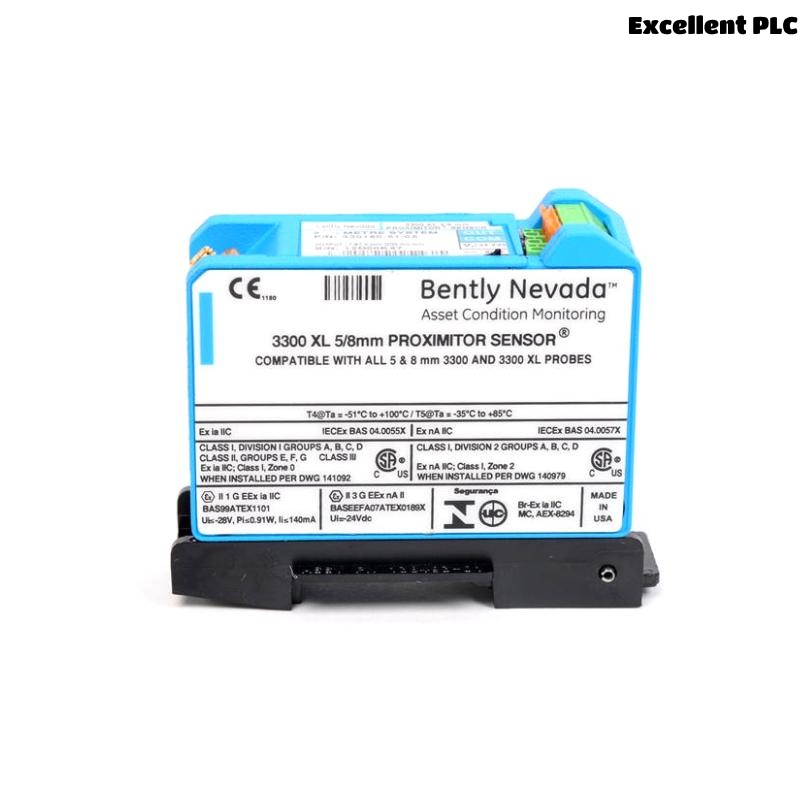

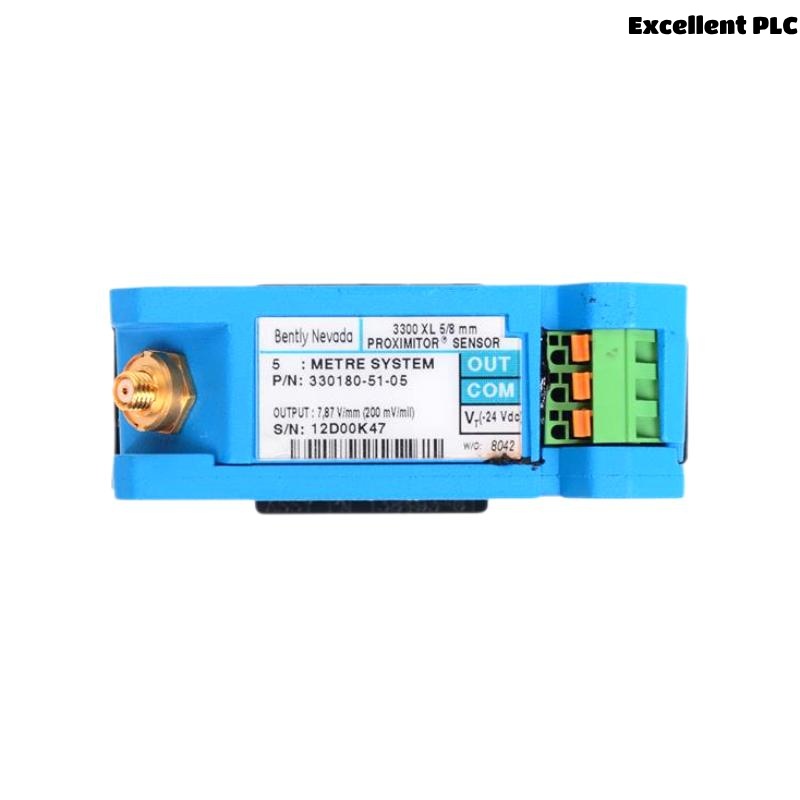

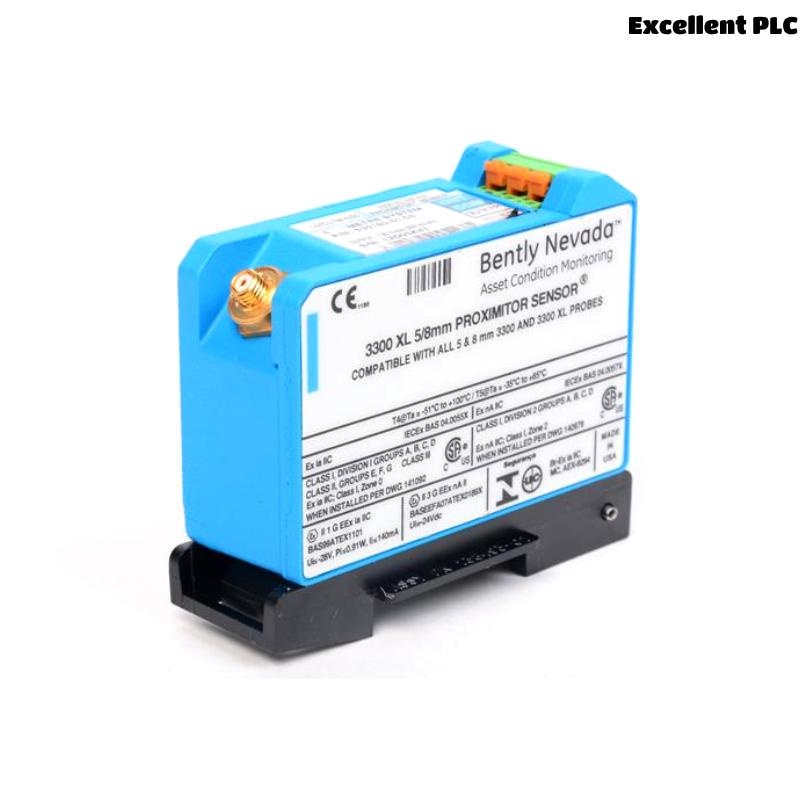

The Bently Nevada 330180-51-10 is a high-precision 8 mm Proximitor Sensor from the trusted 3300 XL series, designed for continuous monitoring of machinery shaft position, vibration, and displacement in critical industrial applications. The Proximitor sensor operates on the eddy-current principle, providing accurate, reliable, and repeatable measurements with robust performance in harsh environments.
Widely used in turbomachinery, generators, motors, and pumps, this sensor enables early detection of mechanical faults to prevent costly downtime. With its rugged construction and exceptional stability, the 330180-51-10 sensor ensures long-term reliability and minimal maintenance requirements.
Key Features
-
Eddy-Current Proximity Sensing Technology for precise, non-contact measurement
-
8 mm Probe Tip Diameter suitable for a wide range of industrial machinery
-
Robust Construction withstands harsh industrial environments
-
High Sensitivity and Linearity over the measurement range
-
Wide Temperature Operating Range for use in extreme conditions
-
Low Noise and High Stability Output
-
Compatible with Bently Nevada 3300 XL Monitoring Systems
-
Simple Installation and Calibration
-
Long Cable Length Capability for flexible sensor placement
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330180-51-10 |
| Product Type | 8 mm Proximitor Sensor |
| Measurement Principle | Eddy Current |
| Diameter | Total Length：5.0 meters |
| Measurement Range | Typically 0.25 to 2.54 mm (0.010 to 0.100 inches) |
| Sensitivity | Approx. 50 mV/mil (2 mV/μm) |
| Linearity | ±1% full scale |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Cable Length | Up to 150 feet (45.7 meters) standard; longer cables optional |
| Output Type | AC Signal |
| Connector Type | Bayonet or compatible connector |
| Housing Material | Stainless steel |
| Weight | 0.246 kg |
| Compliance | Meets industrial and safety standards |
Industry Applications
-
Turbomachinery Monitoring: Shaft vibration and position monitoring for turbines and compressors
-
Power Generation: Monitoring of generator shafts and motors for early fault detection
-
Petrochemical Plants: Vibration monitoring of pumps and rotating equipment
-
Pulp & Paper: Machinery protection and condition monitoring
-
Mining and Minerals: Heavy machinery monitoring for maintenance scheduling
-
Manufacturing Plants: Industrial machine condition monitoring to prevent failures
Product Advantages
-
High Accuracy and Reliability: Provides precise, consistent measurements vital for equipment health
-
Non-Contact Measurement: Prevents wear and mechanical interference with the shaft
-
Durable Construction: Suitable for extreme temperature and vibration conditions
-
Long-Term Stability: Ensures minimal drift and maintenance requirements
-
Flexible Installation: Compatible with long cable runs and easy to integrate with monitoring systems
-
Proven Industry Standard: Trusted globally in critical rotating equipment monitoring
-
Improved Asset Management: Enables predictive maintenance and reduces unplanned downtime
Frequently Asked Questions (FAQ)
-
Q: What type of measurement principle does the 330180-51-10 use?
A: It uses the eddy-current proximity sensing principle. -
Q: What is the probe tip diameter?
A: The probe tip diameter is 8 mm. -
Q: What is the typical measurement range?
A: Typically from 0.25 to 2.54 mm (0.010 to 0.100 inches). -
Q: Is this sensor compatible with other Bently Nevada systems?
A: Yes, it is designed to work with the 3300 XL series monitoring systems. -
Q: What is the operating temperature range?
A: It operates between -40°C to +121°C (-40°F to 250°F). -
Q: Can the sensor cable be extended?
A: Yes, standard cable length is up to 150 feet (45.7 m), with options for longer cables. -
Q: What type of output signal does this sensor provide?
A: It provides an AC output signal proportional to shaft displacement. -
Q: How is the sensor mounted?
A: The sensor features a robust stainless steel housing and uses a bayonet-style connector for mounting. -
Q: What maintenance is required?
A: The sensor requires minimal maintenance due to its non-contact operation and rugged design. -
Q: Is the sensor suitable for hazardous environments?
A: Yes, it meets industrial safety standards suitable for hazardous environments when installed with appropriate precautions.
