Product Overview

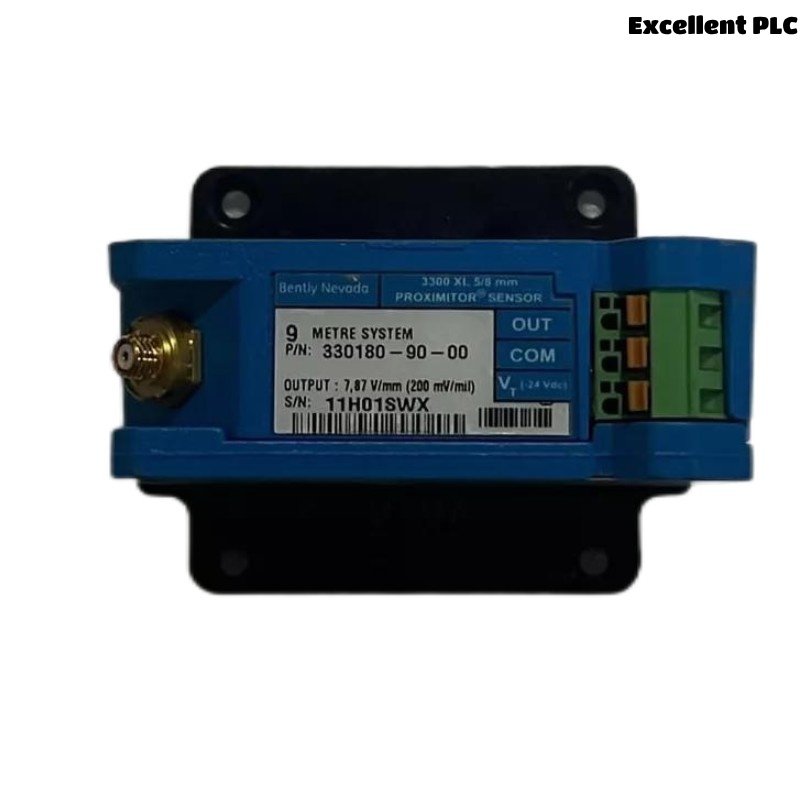

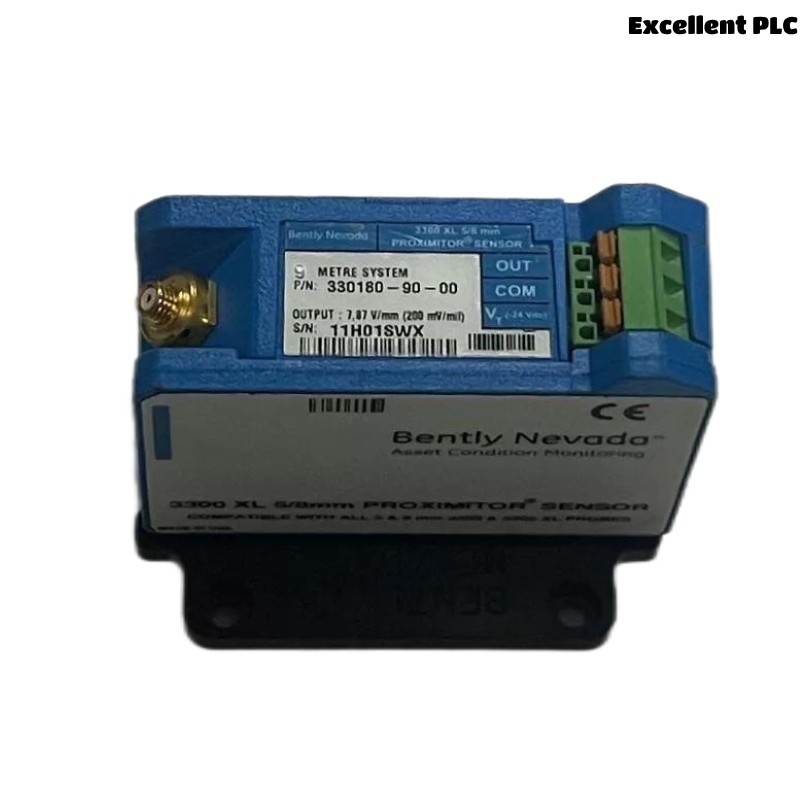

The Bently Nevada 330180-90-00 is a specialized 8 mm Proximitor Sensor in the renowned 3300 XL series, designed for precise, non-contact measurement of shaft displacement and vibration in critical rotating machinery. Employing proven eddy-current sensing technology, the sensor delivers highly accurate and reliable signals for condition monitoring and machinery protection.
This model is optimized for applications requiring robust performance in harsh environments, such as turbines, motors, compressors, and pumps. With a rugged construction and exceptional sensitivity, the 330180-90-00 sensor is ideal for early fault detection, helping to prevent costly downtime and extend equipment life.
Key Features
-
Eddy-Current Proximity Sensing for accurate, contactless measurements
-
8 mm Probe Diameter suitable for various industrial equipment
-
Rugged Stainless Steel Housing for durability in demanding environments
-
High Sensitivity and Linear Output over the measurement range
-
Wide Operating Temperature Range (-40°C to +121°C)
-
Stable, Low-Noise Output Signal
-
Compatibility with 3300 XL Monitoring Systems
-
Easy Installation with Bayonet Connector
-
Supports Long Cable Lengths for flexible sensor positioning
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330180-90-00 |
| Product Type | 8 mm Proximitor Sensor |
| Measurement Principle | Eddy Current |
| Diameter | Total Length：5.0 meters |
| Measurement Range | Typically 0.25 to 2.54 mm (0.010 to 0.100 inches) |
| Sensitivity | Approx. 50 mV/mil (2 mV/μm) |
| Linearity | ±1% full scale |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Cable Length | Standard up to 150 feet (45.7 meters); extended cables optional |
| Output Type | AC Signal |
| Connector Type | Bayonet-style connector |
| Housing Material | Stainless steel |
| Weight | 0.246 kg |
| Compliance | Meets industrial and safety standards |
Industry Applications
-
Turbomachinery Monitoring: Shaft vibration and position sensing in turbines and compressors
-
Power Generation: Monitoring of generators and motors for early fault detection
-
Oil & Gas: Condition monitoring of pumps, compressors, and rotating machinery
-
Mining and Minerals: Equipment protection through vibration monitoring
-
Pulp & Paper: Machinery condition monitoring to avoid downtime
-
General Industrial Automation: Machine health monitoring and predictive maintenance
Product Advantages
-
Accurate and Reliable Measurements essential for machinery protection
-
Non-Contact Sensing eliminates wear and reduces maintenance
-
Durable Construction withstands harsh temperature and environmental conditions
-
Long-Term Stability ensures consistent performance over time
-
Flexible Installation supports extended cable runs and various mounting configurations
-
Seamless Integration with Bently Nevada 3300 XL systems
-
Enables Predictive Maintenance to reduce unplanned outages
Frequently Asked Questions (FAQ)
-
Q: What sensing technology is used in the 330180-90-00?
A: It uses eddy-current proximity sensing for non-contact measurement. -
Q: What is the probe diameter?
A: The probe diameter is 5 meters. -
Q: What measurement range does the sensor support?
A: Typically 0.25 to 2.54 mm (0.010 to 0.100 inches). -
Q: Is this sensor compatible with other monitoring systems?
A: Yes, it is compatible with Bently Nevada 3300 XL monitoring systems. -
Q: What is the operating temperature range?
A: The sensor operates between -40°C and +121°C (-40°F to +250°F). -
Q: Can the sensor cable be extended?
A: Yes, standard cable length is up to 150 feet (45.7 meters), with options for longer cables. -
Q: What type of output signal does the sensor provide?
A: It outputs an AC signal proportional to shaft displacement. -
Q: How is the sensor installed?
A: It uses a bayonet-style connector for easy and secure installation. -
Q: What maintenance is required?
A: Minimal maintenance due to rugged design and non-contact operation. -
Q: Is the sensor suitable for harsh environments?
A: Yes, it meets industrial standards and is designed for harsh conditions.
