Product Overview

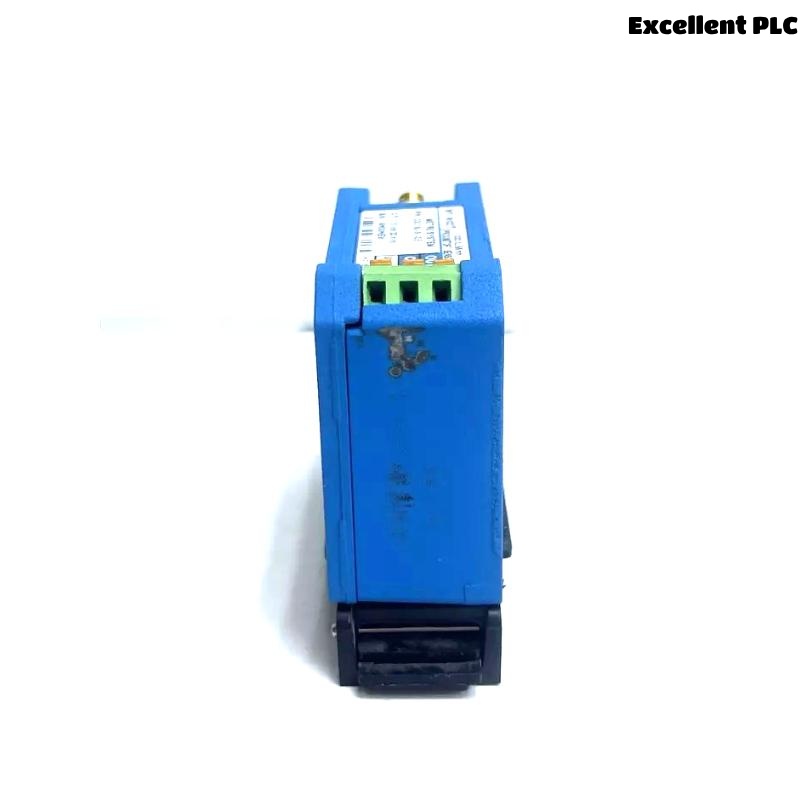

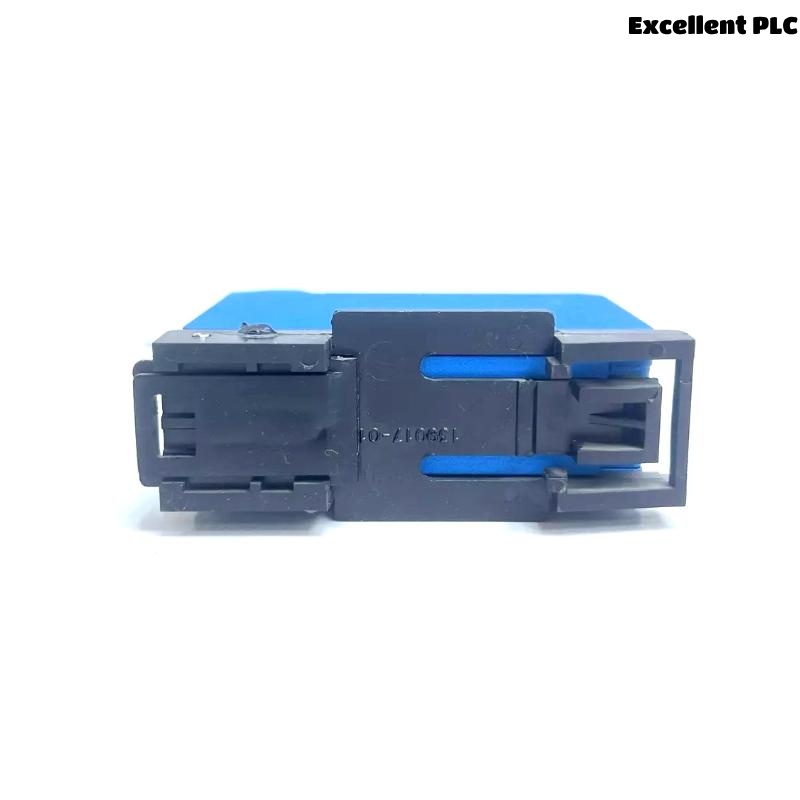

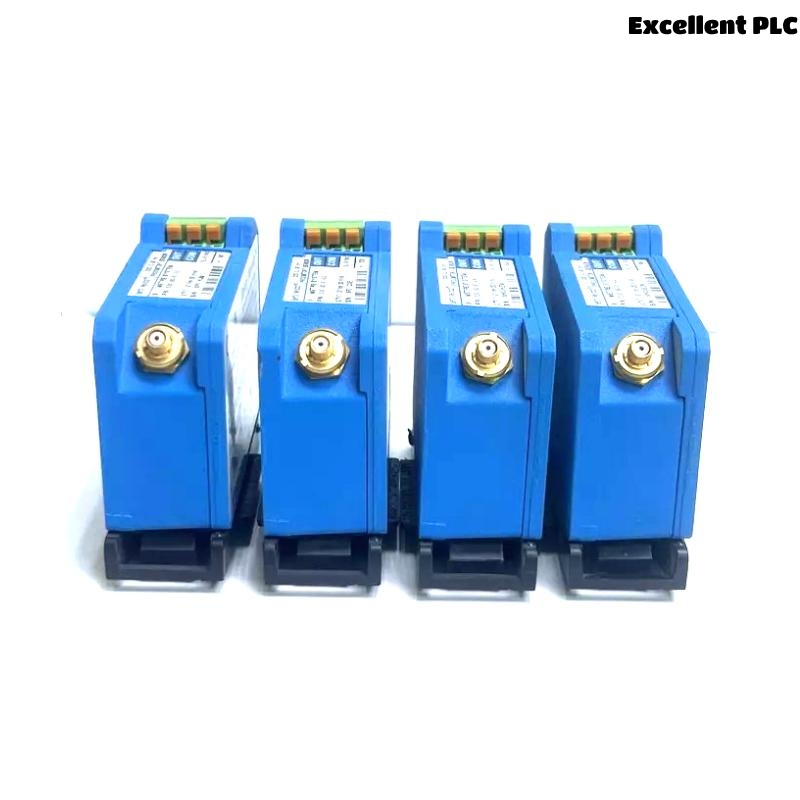

The Bently Nevada 330180-91-BR 3300 XL 8 mm Proximitor Sensor is a high-performance displacement sensor designed for precise vibration and position monitoring of rotating machinery. As a key component of the trusted 3300 XL monitoring system, this sensor delivers accurate and reliable measurements essential for machinery condition monitoring and predictive maintenance programs.
Constructed with rugged materials for industrial durability, the 330180-91-BR model supports extended operational life in harsh environments. It works seamlessly with 8 mm proximity probes from the 3300 XL series and provides a stable output signal proportional to shaft displacement, enabling early detection of machinery faults and helping avoid costly unplanned downtime.
Key Features
-
Compatible with 8 mm Proximity Probes: Designed specifically for use with 3300 XL 8 mm probes for high-precision displacement sensing.
-
Robust Industrial Design: Constructed for durability and reliable operation in demanding environments.
-
Stable Output Signal: Provides a voltage output proportional to shaft displacement for accurate vibration monitoring.
-
Sealed Electronics: Enclosed to protect against dust, moisture, and other contaminants.
-
Wide Operating Temperature: Suitable for use in environments ranging from -40°C to +105°C (-40°F to +221°F).
-
Easy Integration: Designed to fit seamlessly within the Bently Nevada 3300 XL system architecture.
-
Proven Reliability: Engineered to provide consistent, long-term performance under industrial conditions.
Technical Specifications
| Specification | Description |
|---|---|
| Product Model | 330180-91-BR |
| Product Type | 3300 XL 8 mm Proximitor Sensor |
| Input Signal | Compatible with 8 mm Proximity Probes |
| Output Signal | Voltage proportional to displacement |
| Operating Temperature | -40°C to +105°C (-40°F to +221°F) |
| Housing Material | Rugged industrial-grade enclosure |
| Dimensions | Total Length: 9.0 meters |
| Weight | 0.246 kg |
| Connector Type | Industry-standard connector compatible with 3300 XL series |
| Certifications | CE, RoHS |
Typical Applications
The Bently Nevada 330180-91-BR 3300 XL 8 mm Proximitor Sensor is widely used for:
-
Power Generation: Monitoring turbines, generators, and motors for vibration and shaft position.
-
Oil & Gas: Condition monitoring of compressors, pumps, and other critical rotating machinery.
-
Petrochemical Industry: Ensuring safety and reliability of rotating equipment in harsh chemical environments.
-
Manufacturing: Vibration analysis on spindles, motors, and production equipment.
-
Water & Wastewater Treatment: Monitoring pump and motor health for uninterrupted operation.
-
Mining & Metals: Detecting mechanical issues in heavy machinery such as crushers and mills.
Product Advantages
-
High Accuracy: Provides precise displacement measurement for early fault detection.
-
Durability: Rugged design withstands industrial stresses and environmental conditions.
-
Reliable Signal Output: Stable voltage output simplifies integration with monitoring systems.
-
Environmental Protection: Sealed electronics reduce risk of failure due to contamination.
-
System Compatibility: Designed for seamless operation within the 3300 XL monitoring system.
-
Reduced Downtime: Enables predictive maintenance, helping avoid unexpected machinery failures.
Frequently Asked Questions (FAQ)
-
What type of probes is the 330180-91-BR sensor compatible with?
It is compatible with the 3300 XL 8 mm proximity probes. -
What output signal does this Proximitor sensor provide?
It outputs a voltage proportional to the shaft displacement. -
What is the operating temperature range?
The sensor operates from -40°C to +105°C (-40°F to +221°F). -
Is the sensor designed for harsh industrial environments?
Yes, it features a rugged enclosure and sealed electronics for protection. -
What are the approximate dimensions of the sensor?
Approximately Total Length: 9.0 meters. -
How heavy is the sensor?
The sensor weighs about 0.246kg. -
Is the sensor compatible with existing Bently Nevada 3300 XL systems?
Yes, it integrates seamlessly with 3300 XL monitoring systems. -
What industries typically use this sensor?
Power generation, oil & gas, petrochemical, manufacturing, water treatment, and mining. -
What type of connector does the sensor use?
It uses industry-standard connectors compatible with the 3300 XL series. -
How does the sensor help with machinery maintenance?
By providing accurate vibration and displacement data, it enables early fault detection and predictive maintenance.
