Product Overview

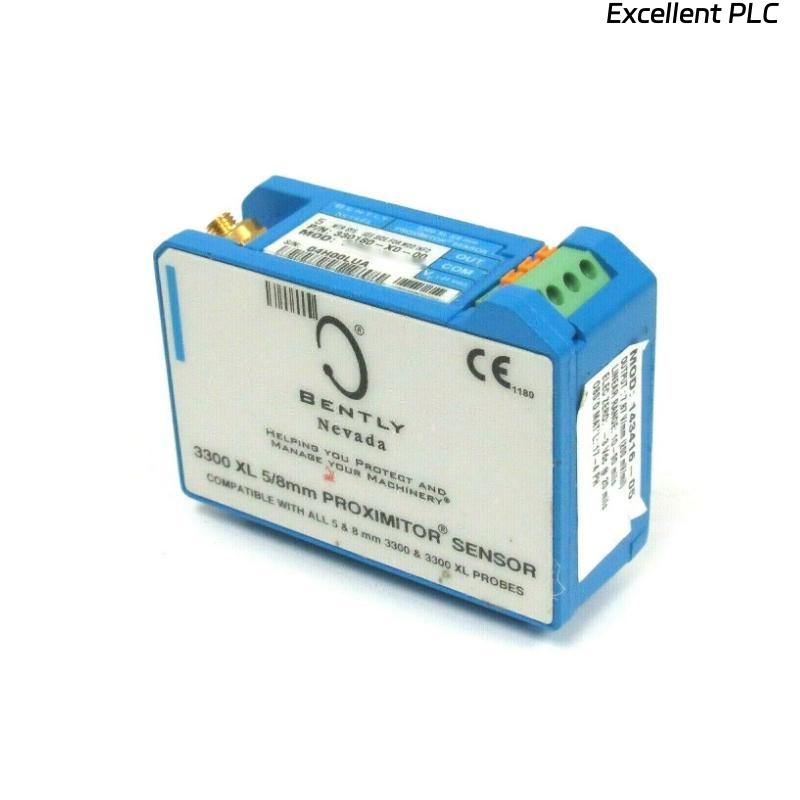

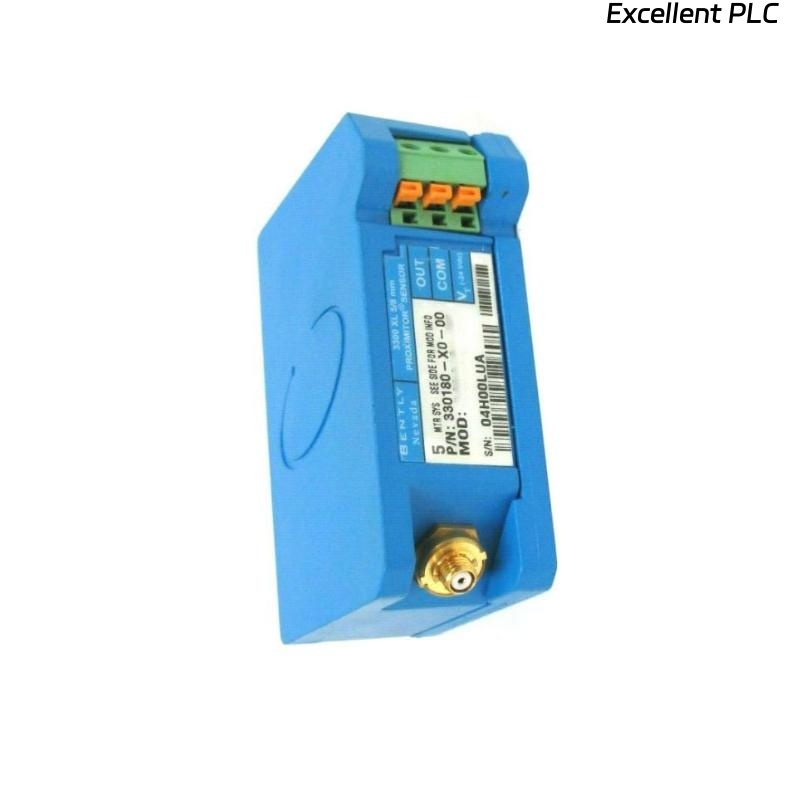

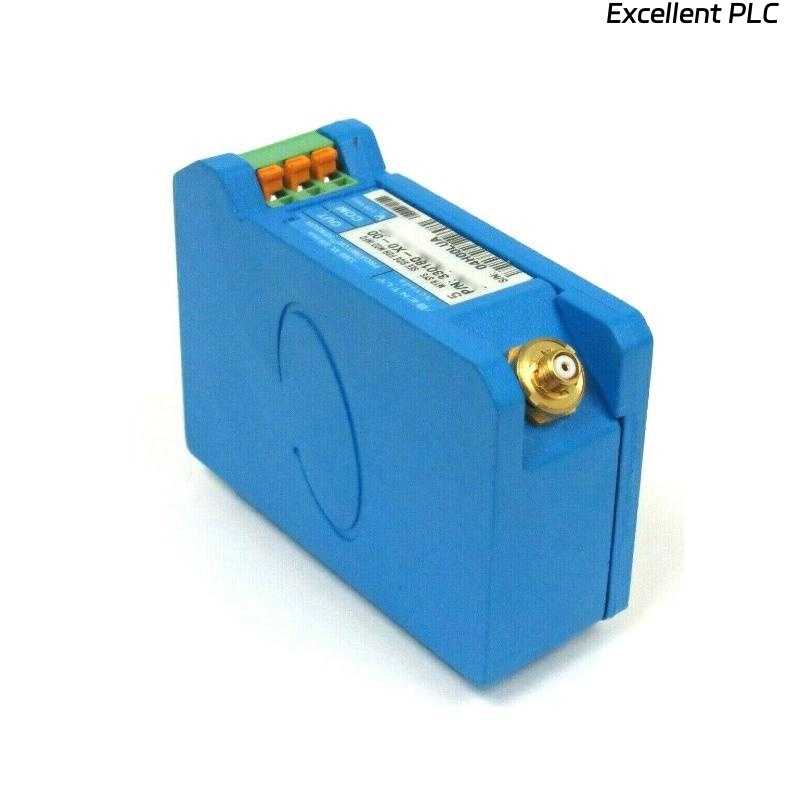

The Bently Nevada 330180-X0-00 143416-107 is an 8mm Proximitor Sensor designed for precise proximity measurement and machinery protection within the 3300 XL monitoring system. This sensor provides reliable shaft displacement and vibration monitoring for rotating machinery, essential for early fault detection and condition-based maintenance. Built with durable materials, it withstands harsh industrial environments, ensuring continuous, accurate performance.
Key Features
-
8mm probe diameter for accurate proximity sensing
-
Compatible with Bently Nevada 3300 XL machinery protection system
-
High sensitivity and stable output for precise measurement
-
Rugged design suitable for extreme temperature and vibration conditions
-
Supports extended cable lengths for flexible installation
-
Helps detect shaft displacement, vibration, and other mechanical issues early
-
Easy to install with standard connectors
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Proximity Probe) |
| Model Number | 330180-X0-00 |
| Part Number | 143416-107 |
| Manufacturer | Bently Nevada (Baker Hughes Company) |
| Probe Diameter | 8 mm |
| Probe Length | 50 mm |
| Measurement Range | 0 to 50 mils (0 to 1.27 mm) |
| Output Signal | AC voltage proportional to displacement |
| Operating Temperature | -40°C to +121°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 100 g, 10 to 2,000 Hz |
| Shock Resistance | 100 g, 11 ms |
| Cable Length | Up to 20 m (customizable) |
| Connector Type | Integral connector or cable termination options |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
Industry Applications
-
Power Generation Turbines
-
Industrial Compressors
-
Pumps and Motors
-
Gas and Steam Turbines
-
Oil and Gas Industry Equipment
-
Manufacturing Plant Machinery
-
Aerospace and Defense Rotating Equipment
-
Marine Propulsion Systems
Product Advantages
-
Provides precise and reliable proximity measurement to protect machinery
-
Durable and rugged construction suitable for harsh environments
-
Fully compatible with 3300 XL systems for seamless integration
-
Long cable support allows flexible sensor placement
-
High resistance to vibration and shock ensures sensor longevity
-
Facilitates early detection of mechanical faults for predictive maintenance
-
Easy installation with standard connectors and mounting options
Frequently Asked Questions (FAQ)
1. What is the probe diameter?
The probe diameter is 8 mm.
2. What is the measurement range?
0 to 50 mils (0 to 1.27 mm).
3. What kind of output signal does it provide?
AC voltage proportional to displacement.
4. Is it compatible with 3300 XL monitoring systems?
Yes, it is designed specifically for 3300 XL systems.
5. What is the operating temperature range?
-40°C to +121°C.
6. How resistant is the sensor to vibration and shock?
It withstands 100 g vibration (10 to 2,000 Hz) and 100 g shock for 11 ms.
7. What cable lengths are available?
Standard cable lengths up to 20 meters; custom lengths available.
8. What is the sensor weight?
Approximately 0.246 kg.
9. Which industries typically use this sensor?
Power generation, oil and gas, aerospace, marine, and manufacturing.
10. How easy is the installation?
Straightforward installation with integral connectors or cable termination options.
Related Models
| Model Number | Description |
|---|---|
| 330104-01-05-50-02-00 | 3300 XL 8mm Proximitor Sensor |
| 330104-01-05-05-02-05 | 3300 XL 8mm Proximitor Sensor |
| 330180-X2-00 | 3300 XL 8mm Proximitor Sensor (Alternate) |
| 330101-00-14-10-02-05 | 3300 XL 8mm Proximitor Sensor |
