Product Overview

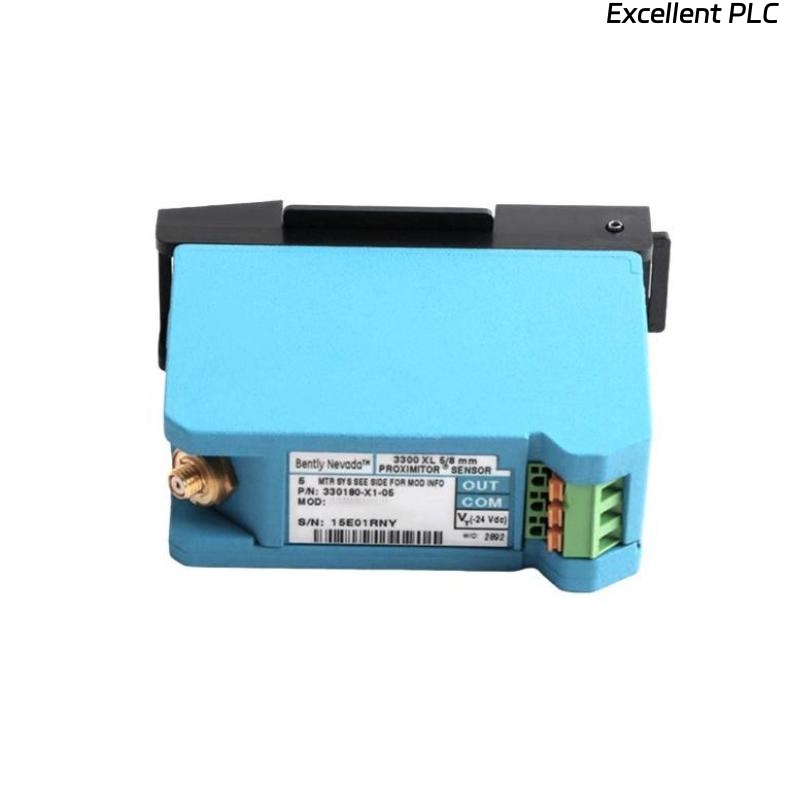

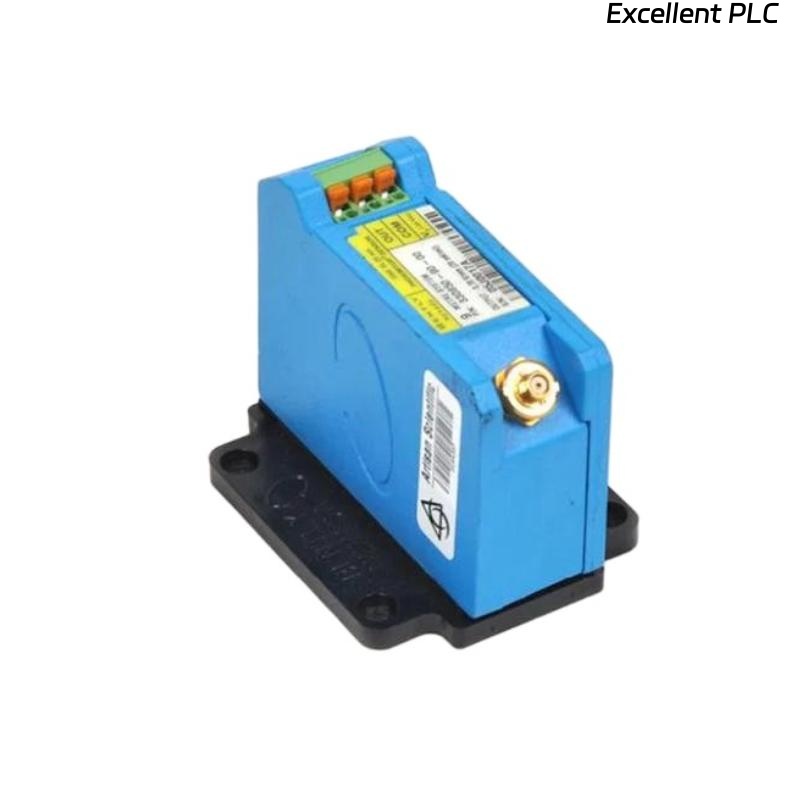

The Bently Nevada 330180-X0-05 143416-05 is an 8mm Proximitor Sensor tailored for the 3300 XL machinery protection system. It offers precise shaft displacement and vibration monitoring essential for maintaining the health and safety of rotating machinery such as turbines, compressors, and pumps. Built to withstand harsh industrial conditions, this sensor ensures reliable and accurate measurement for effective condition monitoring and predictive maintenance.
Key Features
-
8mm probe diameter delivering precise and reliable proximity measurement
-
Compatible with Bently Nevada 3300 XL protection systems
-
Stable AC voltage output proportional to shaft displacement
-
Robust and rugged design suitable for extreme temperatures and vibration
-
Supports long cable lengths for flexible installation
-
Facilitates early detection of machinery faults and helps avoid downtime
-
Easy to install with standard connectors
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Proximity Probe) |
| Model Number | 330180-X0-05 |
| Part Number | 143416-05 |
| Manufacturer | Bently Nevada (Baker Hughes Company) |
| Probe Diameter | 8 mm |
| Probe Length | 50 mm |
| Measurement Range | 0 to 50 mils (0 to 1.27 mm) |
| Output Signal | AC voltage proportional to displacement |
| Operating Temperature | -40°C to +121°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 100 g, 10 to 2,000 Hz |
| Shock Resistance | 100 g, 11 ms |
| Cable Length | Up to 20 m (customizable) |
| Connector Type | Integral connector or cable termination options |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
Industry Applications
-
Power Generation Turbines
-
Industrial Compressors
-
Pumps and Motors
-
Gas and Steam Turbines
-
Oil and Gas Industry Equipment
-
Manufacturing Plant Machinery
-
Aerospace and Defense Rotating Equipment
-
Marine Propulsion Systems
Product Advantages
-
Provides accurate and stable proximity measurement to protect critical machinery
-
Rugged design ensures long-term durability in harsh environments
-
Fully compatible with the 3300 XL system for seamless integration
-
Supports flexible sensor placement with long cable options
-
High vibration and shock resistance extends sensor lifespan
-
Enables early fault detection, reducing unscheduled downtime
-
Simple installation with integral connector or cable termination
Frequently Asked Questions (FAQ)
1. What is the probe diameter of this sensor?
The probe diameter is 8 mm.
2. What is the measurement range?
0 to 50 mils (0 to 1.27 mm).
3. What type of output signal is provided?
AC voltage proportional to shaft displacement.
4. Is this sensor compatible with the 3300 XL system?
Yes, it is designed specifically for 3300 XL systems.
5. What is the operating temperature range?
-40°C to +121°C.
6. How resistant is the sensor to vibration and shock?
It withstands 100 g vibration (10 to 2,000 Hz) and 100 g shock for 11 ms.
7. What cable lengths are available?
Standard cable lengths up to 20 meters; custom lengths available.
8. What is the weight of the sensor?
Approximately 0.246 kg.
9. In which industries is this sensor commonly used?
Power generation, oil and gas, aerospace, marine, and manufacturing.
10. How easy is the installation process?
Installation is straightforward with integral connector or cable termination options.
