Product Introduction

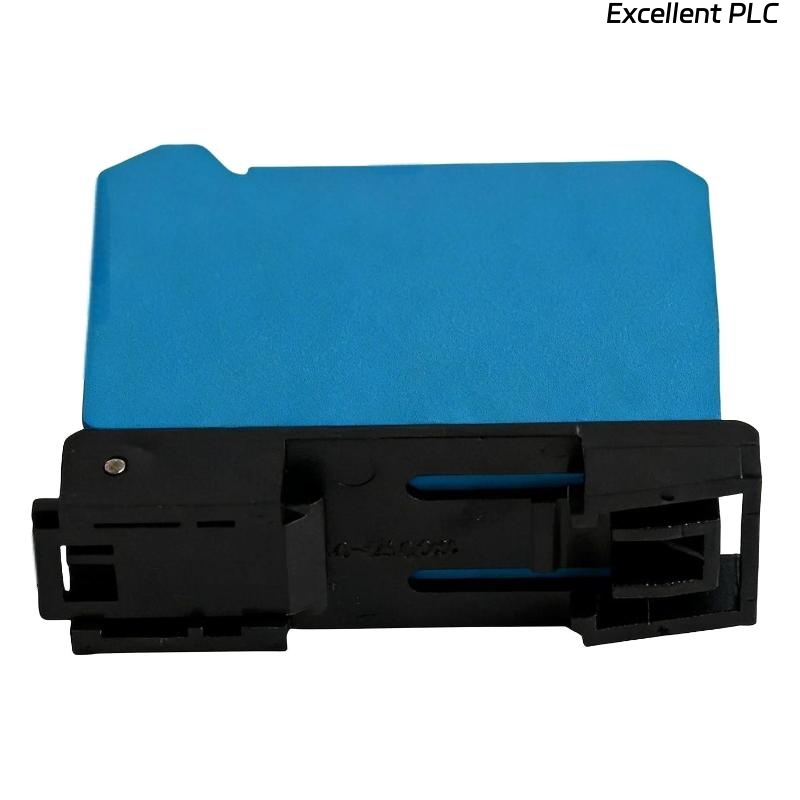

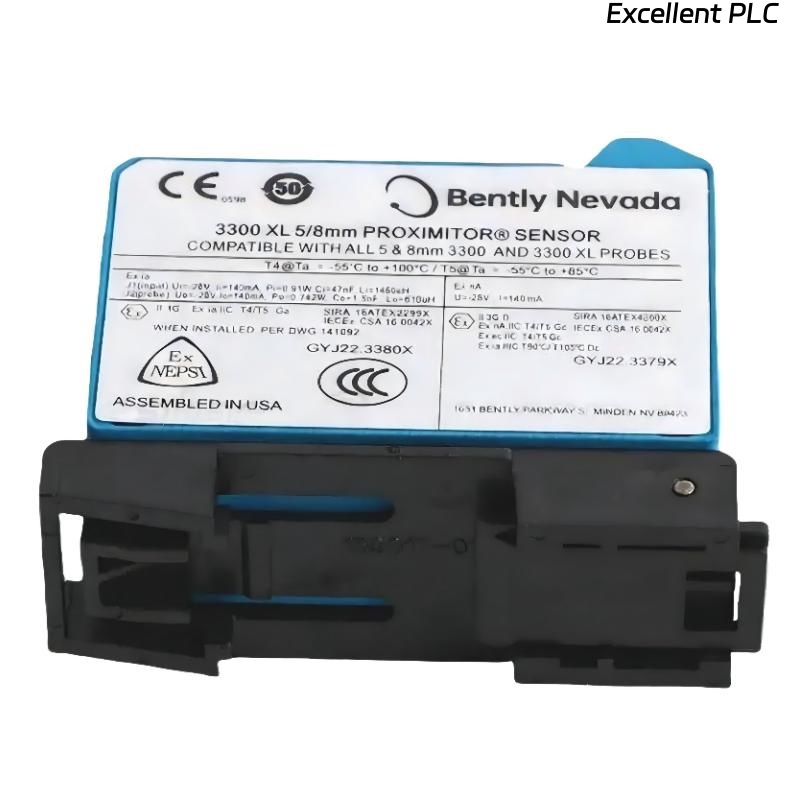

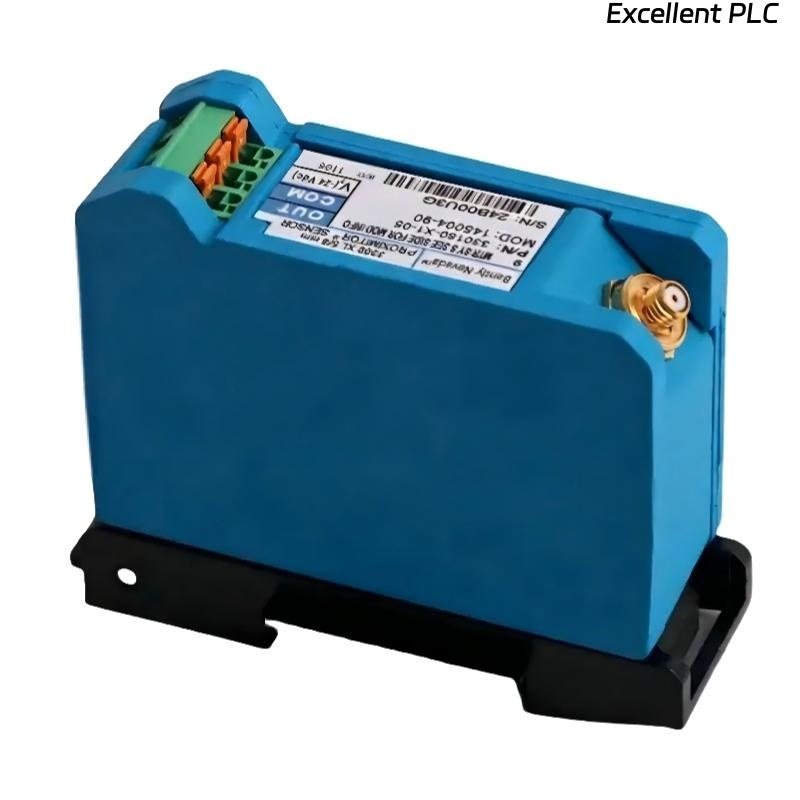

The Bently Nevada 330180-X1-00 145004-138 3300 XL 8 mm Proximitor Sensor is a high-precision sensor designed for monitoring shaft vibration and displacement in critical rotating machinery. As part of the 3300 XL series, this sensor delivers accurate, reliable, and non-contact measurements, making it ideal for predictive maintenance and machinery protection systems.
Engineered with advanced eddy current technology, the sensor provides consistent and repeatable feedback under harsh industrial conditions, including exposure to vibration, oil, and temperature variations. Its 8 mm probe interface ensures compatibility with standard shafts and Proximitor systems, while the robust design ensures long-term reliability in demanding applications.
This Proximitor sensor is widely used in power generation, oil and gas, and manufacturing industries, supporting critical machinery by detecting early signs of misalignment, imbalance, or wear, ultimately reducing unplanned downtime and maintenance costs.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300 XL Proximitor Sensor |
| Model Number | 330180-X1-00 145004-138 |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy Current (Non-contact) |
| System Compatibility | 3300 XL Proximitor System |
| Output Type | Analog voltage proportional to shaft displacement |
| Operating Environment | Industrial – resistant to oil, vibration, and temperature variations |
| Connector Type | Standard 3300 XL coaxial connector |
| Mounting Type | Threaded sensor housing |
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg |
Applications
• Turbine Monitoring – Measures shaft vibration and displacement in steam, gas, and hydro turbines.
• Compressors and Pumps – Monitors machinery condition to detect early faults and prevent failures.
• Industrial Motors – Provides precise displacement feedback for motors in manufacturing and process plants.
• Condition-Based Maintenance – Enables predictive maintenance through real-time vibration data.
• Rotating Equipment – Suitable for fans, gearboxes, and other high-speed industrial machines.
• High-Precision Monitoring – Ensures accurate detection of shaft misalignment or imbalance.
Advantages
• High Accuracy – Eddy current technology delivers precise and repeatable non-contact measurements.
• Compact and Robust – Small form factor allows installation in tight spaces without sacrificing performance.
• Reliable in Harsh Environments – Resistant to oil, dust, vibration, and temperature fluctuations.
• System Compatibility – Fully integrates with 3300 XL Proximitor monitoring systems.
• Long-Term Stability – Maintains consistent performance over extended periods of industrial operation.
• Early Fault Detection – Supports predictive maintenance strategies to reduce downtime.
