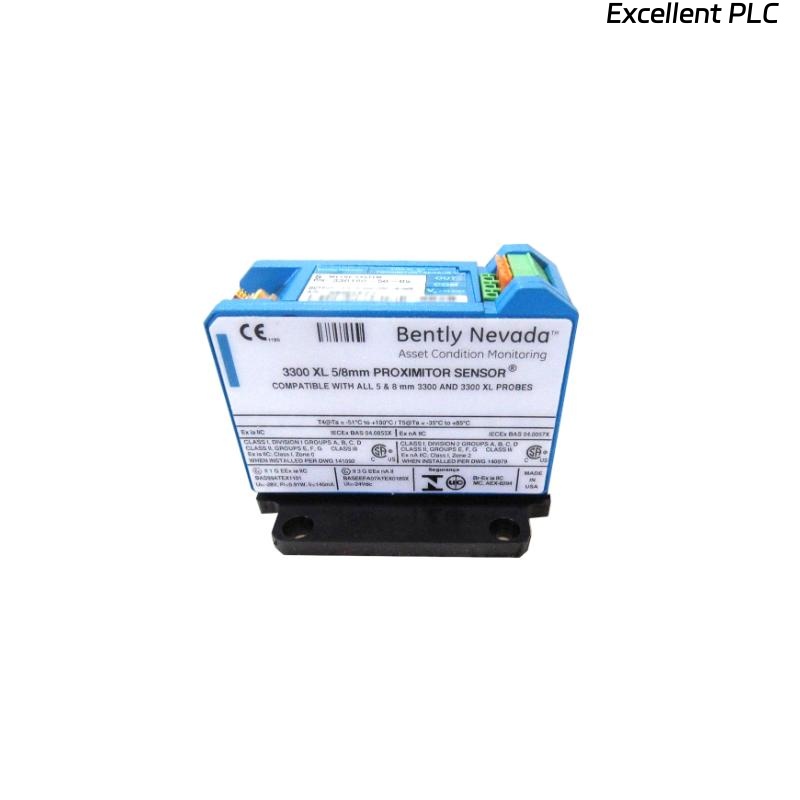

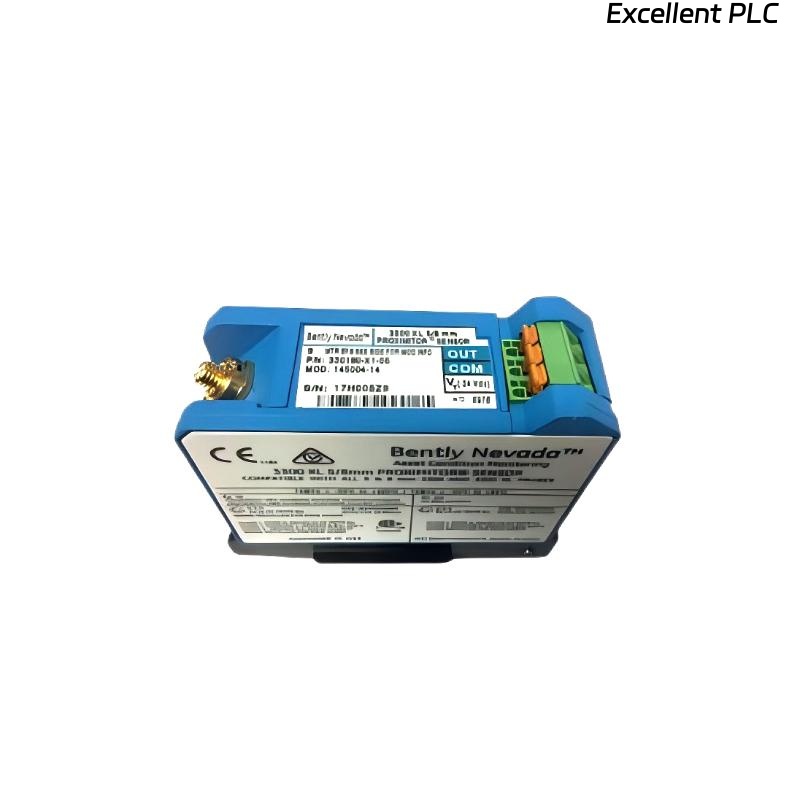

Bently Nevada 330180-X1-00 145004-30 3300 XL 8mm Proximity Sensor

Product Introduction

The Bently Nevada 330180-X1-00 145004-30 3300 XL 8mm Proximity Sensor is a part of the 3300 XL series, renowned for its high precision, reliability, and ability to withstand harsh industrial environments. This sensor is designed specifically for rotating machinery monitoring, providing real-time data to ensure machinery health in applications like motors, pumps, compressors, and turbines. Its 8mm proximity capability makes it ideal for precise measurement of vibration and displacement in critical assets.

With its compact design of 81.3 × 35.1 × 63.5 mm and a weight of 0.246 kg, the sensor can be easily integrated into existing systems with limited space. The sensor operates non-contact technology, which minimizes wear and tear, contributing to the longevity and consistent performance of the system it monitors.

The 3300 XL Proximity Sensor is built to function under extreme temperatures ranging from -40°C to +85°C and is designed with IP67 protection, making it ideal for applications in severe industrial environments. Whether in condition monitoring, vibration analysis, or predictive maintenance systems, this sensor plays a critical role in ensuring that machinery operates optimally, preventing downtime and costly repairs.

Product Parameters

Product Applications

1. Rotating Equipment Monitoring: The 3300 XL 8mm Proximity Sensor is primarily used to monitor the health of rotating machinery such as motors, compressors, turbines, and pumps. It measures vibration and displacement, helping operators detect early signs of misalignment, imbalance, and bearing failures before they lead to unplanned downtimes.

2. Predictive Maintenance Systems: This proximity sensor plays a key role in predictive maintenance systems, where real-time measurements and data collection are used to forecast potential failures. The sensor’s ability to continuously measure displacement helps maintenance teams identify wear and tear, ensuring early interventions and optimized asset performance.

3. Condition Monitoring: In industrial applications, the sensor aids in condition monitoring, where it provides detailed readings to track the health of critical machinery. The sensor’s analog output can be directly fed into condition monitoring systems, allowing continuous data collection and analysis of machine vibrations and displacements.

4. Power Generation: The 3300 XL 8mm Proximity Sensor is used extensively in power generation plants to monitor generators and turbines. It helps detect unwanted vibrations and misalignments that could compromise the performance of these critical assets, reducing the risk of catastrophic failures and enhancing system uptime.

Product Advantages

1. High Precision and Reliability: The 8mm measurement range offers excellent accuracy in detecting small variations in displacement. The non-contact technology ensures continuous measurement without causing wear or degradation of the sensor or machinery being monitored.

2. Robust Design for Harsh Environments: Built with an IP67 protection rating, this proximity sensor is designed to withstand extreme industrial conditions. It is dustproof and resistant to water ingress, making it ideal for installation in harsh environments, such as oil rigs, power plants, and manufacturing floors.

3. Wide Operating Temperature Range: The sensor operates efficiently in a temperature range of -40°C to +85°C, which makes it suitable for applications in diverse environments, including outdoor machinery, high-temperature industrial zones, and cold storage facilities.

4. Compact and Easy to Install: The sensor’s compact size (81.3 × 35.1 × 63.5 mm) and lightweight design (0.246 kg) make it easy to integrate into space-constrained environments. Its direct mounting feature allows for quick and straightforward installation in existing setups.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The sensor measures 8mm from the target surface.

2. What are the dimensions of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The dimensions are 81.3 × 35.1 × 63.5 mm.

3. What is the weight of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The sensor weighs 0.246 kg.

4. What is the output type of the sensor?

   • The sensor provides a DC Voltage output, suitable for integration with industrial control systems.

5. What is the operating temperature range of the sensor?

   • The sensor operates within -40°C to +85°C.

6. Can the Bently Nevada 3300 XL 8mm Proximity Sensor be used in hazardous environments?

   • Yes, with its IP67 protection rating, it is dustproof and resistant to water ingress, making it suitable for harsh industrial conditions.

7. How does the sensor detect displacement?

   • The sensor uses non-contact proximity technology to measure displacement and vibration, providing highly accurate readings without physical wear.

8. What is the main application of this proximity sensor?

   • The primary application is in the monitoring of rotating machinery, such as motors, compressors, turbines, and pumps.

9. How is the Bently Nevada 3300 XL 8mm Proximity Sensor mounted?

   • The sensor is designed for direct mounting, which allows for straightforward installation into machinery and control systems.

10. What industries benefit from the Bently Nevada 3300 XL 8mm Proximity Sensor?

    • Industries such as power generation, oil & gas, manufacturing, and automotive all benefit from the sensor’s capabilities in machinery monitoring and predictive maintenance.
