Product Overview

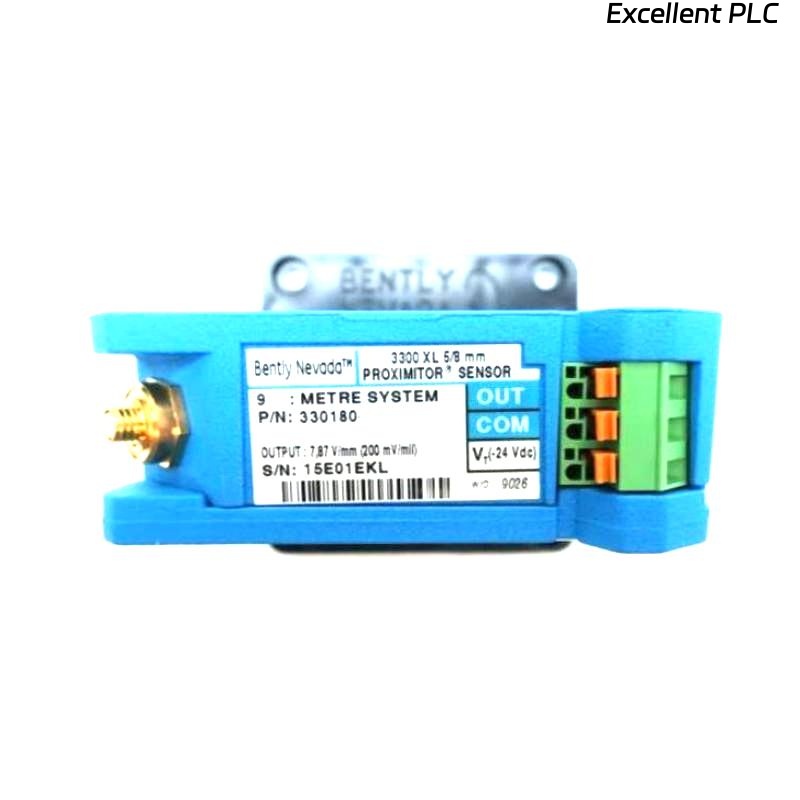

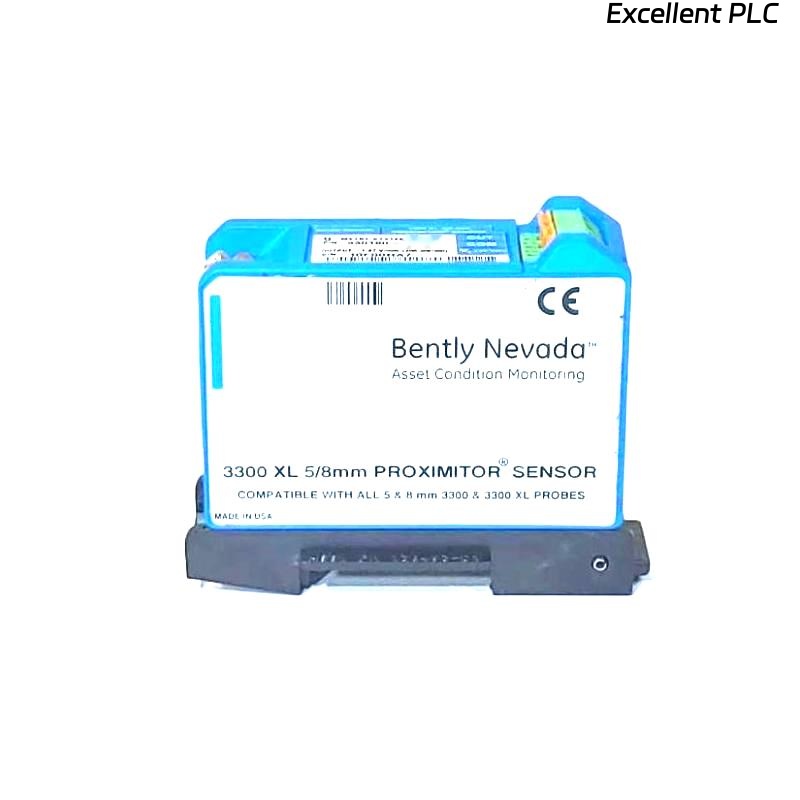

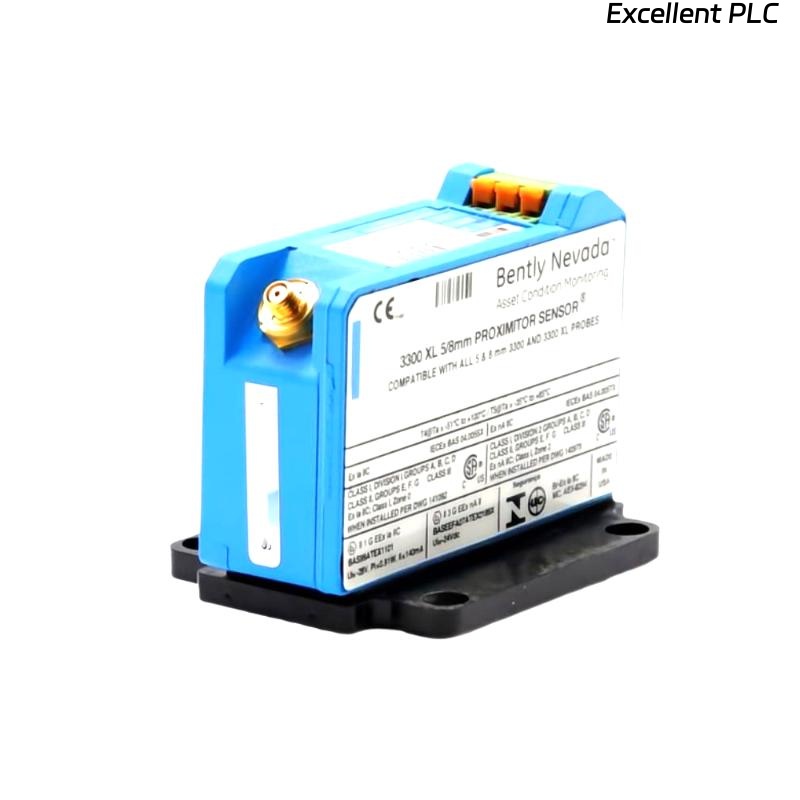

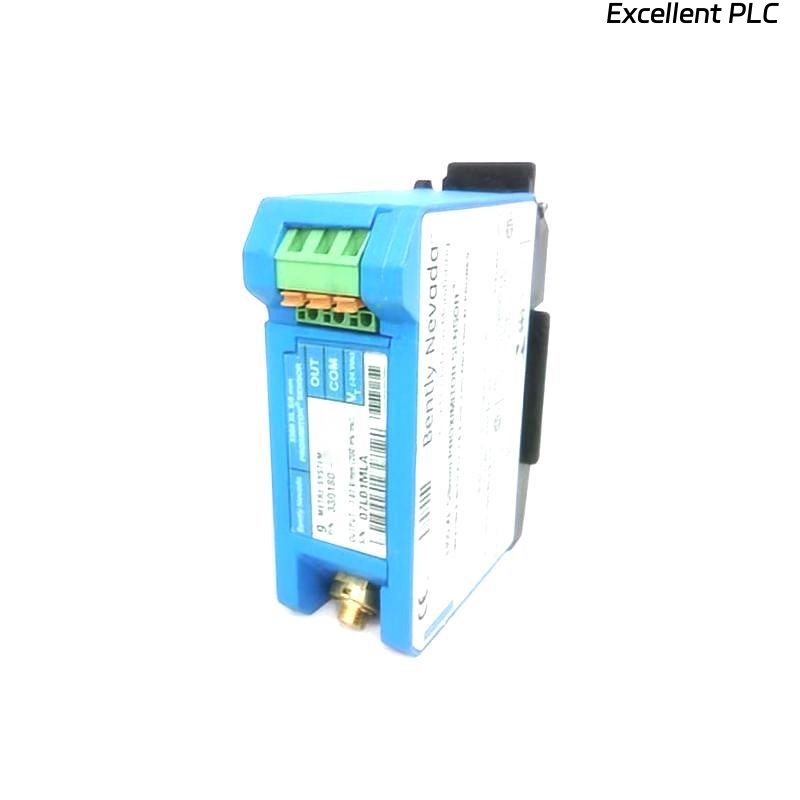

The Bently Nevada 330180-X1-05 143416-13 3300 XL Proximitor Sensor is a key component of the 3300 XL 8 mm Proximity Transducer System. This sensor works with an 8 mm probe and extension cable to deliver accurate, linear measurements of static and dynamic parameters such as shaft vibration, position, and speed in fluid-film bearing machinery. It fully complies with API 670 standards for mechanical configuration, linear range, and temperature stability.
Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Probes | 3300-series 5 mm, 3300 XL 8 mm |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Supply Sensitivity | < 2 mV output change per volt input change |
| Linear Range | 2 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5 m & 1 m systems) |
| Frequency Response | 0–10 kHz, +0 / -3 dB |
| Operating Temperature | -52°C to +100°C |
| Storage Temperature | -52°C to +105°C |
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg |
| Mounting Options | Panel mount, DIN mount, or no hardware |
| Compliance | API 670, CE Mark, FCC Part 15, RoHS, SIL 2 & SIL 3 |
Applications
-
Shaft vibration monitoring in turbines, compressors, pumps, and motors
-
Radial and axial position measurements
-
Keyphasor reference signal generation
-
Speed and overspeed protection systems
-
Condition monitoring in hazardous and industrial environments
Advantages
-
High Accuracy – Meets API 670 standard for precision and stability
-
Interchangeability – No need for component matching or calibration
-
Enhanced RFI/EMI Immunity – Suitable for installations in fiberglass housings without extra shielding
-
Flexible Mounting – Supports panel or DIN-rail installation
-
Rugged Design – Gold-plated ClickLoc connectors prevent loosening
-
Extended Temperature Capability – Compatible with high-temperature ETR probes and cables
FAQ
Q1: What is the function of the 330180-X1-05 Proximitor Sensor?
A1: It converts the signal from the proximity probe into a voltage output proportional to the target’s distance, enabling vibration and position measurements.
Q2: Is it compatible with non-XL 3300 components?
A2: Yes, it is backward-compatible with non-XL 3300 5 mm and 8 mm components.
Q3: Does it require calibration?
A3: It is factory-calibrated to AISI 4140 steel; recalibration is only needed for other target materials.
Q4: Can it be used in hazardous areas?
A4: Yes, it has CSA, ATEX, and IECEx hazardous area approvals.
Q5: What is the recommended gap setting for radial vibration?
A5: Approximately -9 Vdc, corresponding to a 1.27 mm (50 mil) gap.
Q6: Can it be mounted on DIN rail?
A6: Yes, DIN rail mounting is supported.
Q7: What is the maximum field wiring length to the monitor?
A7: Up to 305 meters (1,000 feet) is supported.
Q8: What is the frequency response range?
A8: 0 to 10 kHz with ±3 dB accuracy.
Q9: What is the environmental sealing material?
A9: The probe seal uses a Viton® O-ring for differential pressure sealing.
Q10: Is it suitable for extended temperature applications?
A10: Yes, when used with ETR probes and cables, it operates up to +260°C cable temperature.
Related Models – Same Series
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 330180-50-05 | 5 m system length, panel mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-51-05 | 5 m system length, DIN mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-90-05 | 9 m system length, panel mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-91-05 | 9 m system length, DIN mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-10-05 | 1 m system length, panel mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-11-05 | 1 m system length, DIN mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
