Product Description

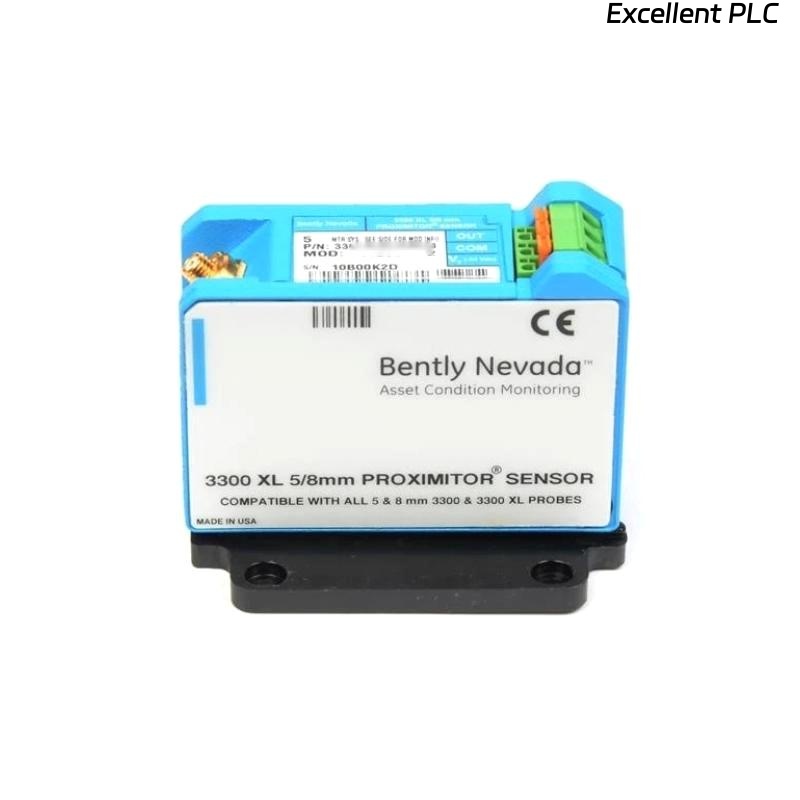

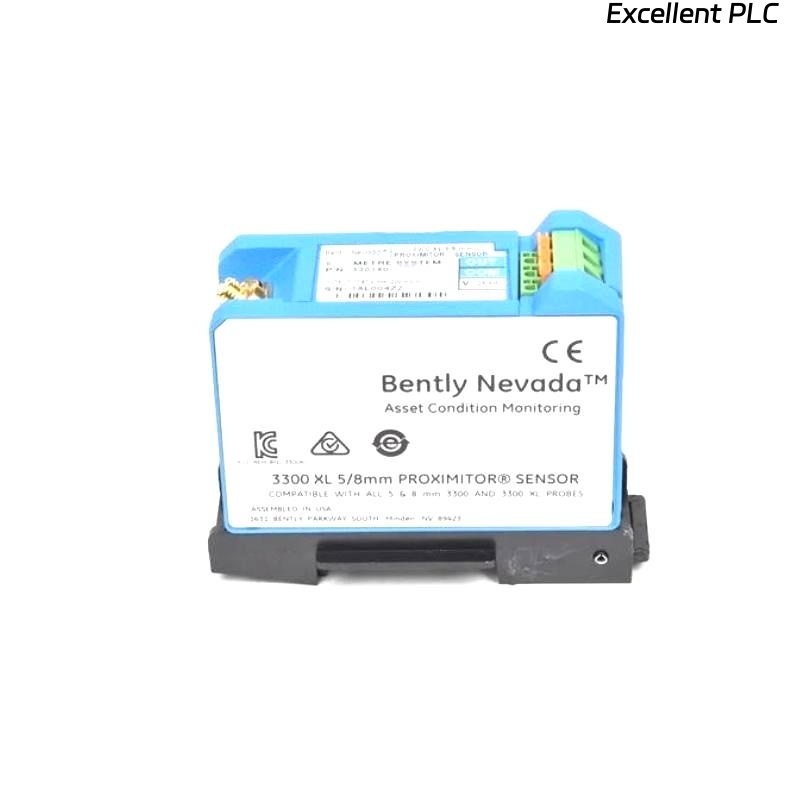

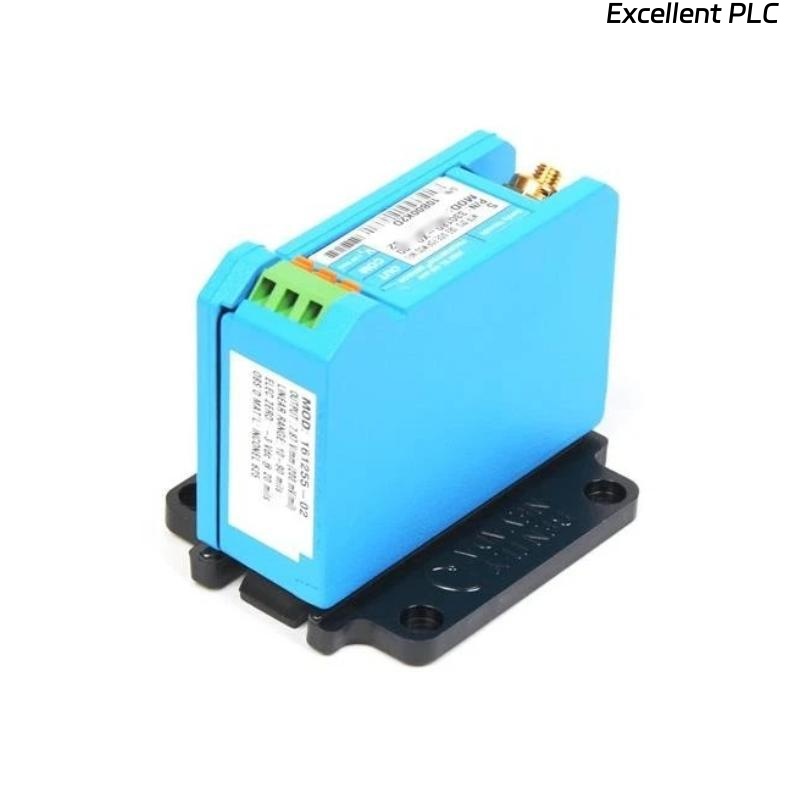

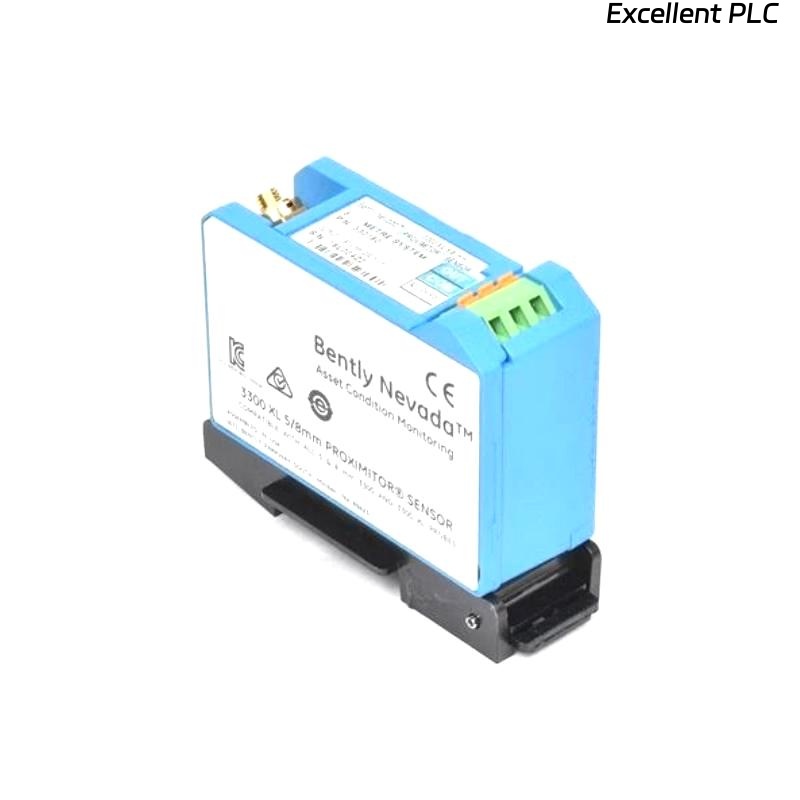

The Bently Nevada 330180-X1-05 143416-60 3300 XL Proximitor Sensor is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurements on fluid-film bearing machines. It provides a voltage output proportional to the distance between the probe tip and a conductive target, supporting both static and dynamic measurements. This model offers enhanced RFI/EMI immunity, SpringLoc terminal strips for tool-free wiring, and compatibility with both DIN-rail and panel mounting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Compatible Probes | 3300 XL 8 mm, 3300-series 5 mm Probes |
| Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc (~1.27 mm / 50 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Operating Temp. (Sensor) | -52°C to +100°C |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
| Mounting | DIN-rail or panel mount |
| Compliance | API 670, CE, FCC, RoHS, SIL 2/3 |
| Environmental Protection | High immunity to RFI/EMI |
Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Shaft position measurements in rotating machinery
-
Keyphasor reference and speed detection
-
Use in hazardous areas with appropriate approvals
-
Extended temperature range applications with ETR components
Advantages
-
Full compliance with API 670 for high accuracy and stability
-
Backward compatibility with older 3300 series components
-
Tool-free wiring with SpringLoc terminal strips
-
High RFI/EMI immunity reduces installation complexity
-
Gold-plated ClickLoc connectors ensure secure and corrosion-resistant connections
-
Robust mechanical design for harsh industrial environments
FAQ
Q1: What is the primary function of the 330180-X1-05 Proximitor Sensor?
A1: It measures shaft vibration and position by detecting the distance between a probe and a conductive target.
Q2: Can this sensor be used in hazardous environments?
A2: Yes, it has CSA, ATEX, and IECEx approvals for various hazardous area classifications.
Q3: What is the recommended mounting method?
A3: It can be mounted on DIN-rail or in a panel configuration.
Q4: Is it compatible with older Bently Nevada probes?
A4: Yes, it is fully compatible with non-XL 3300 5 mm and 8 mm probes.
Q5: Does it meet API 670 standards?
A5: Yes, it complies fully with API 670 specifications for mechanical configuration and performance.
Q6: What is the standard linear range?
A6: 2 mm (80 mils), from 0.25 mm to 2.3 mm.
Q7: What type of connectors are used?
A7: Gold-plated ClickLoc connectors with a locking mechanism.
Q8: What is the frequency response?
A8: 0 to 10 kHz, +0 / -3 dB.
Q9: Can it handle high-temperature applications?
A9: Yes, with Extended Temperature Range (ETR) probes and cables.
Q10: What is the weight of the unit?
A10: 0.246 kg.
Related Models (Same Series)
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 330180-X1-50 | 3300 XL Proximitor Sensor, 5 m | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-X1-90 | 3300 XL Proximitor Sensor, 9 m | 81.3 x 35.1 x 63.5 | 0.246 |
| 330130-030-00-00 | Standard Extension Cable 3 m | — | — |
| 330101-05 | 3300 XL 8 mm Probe, 5 m | — | — |
| 330192 | 3300 XL 8 mm ETR Probe | — | — |
| 330105 | 3300 XL Reverse Mount Probe | — | — |
