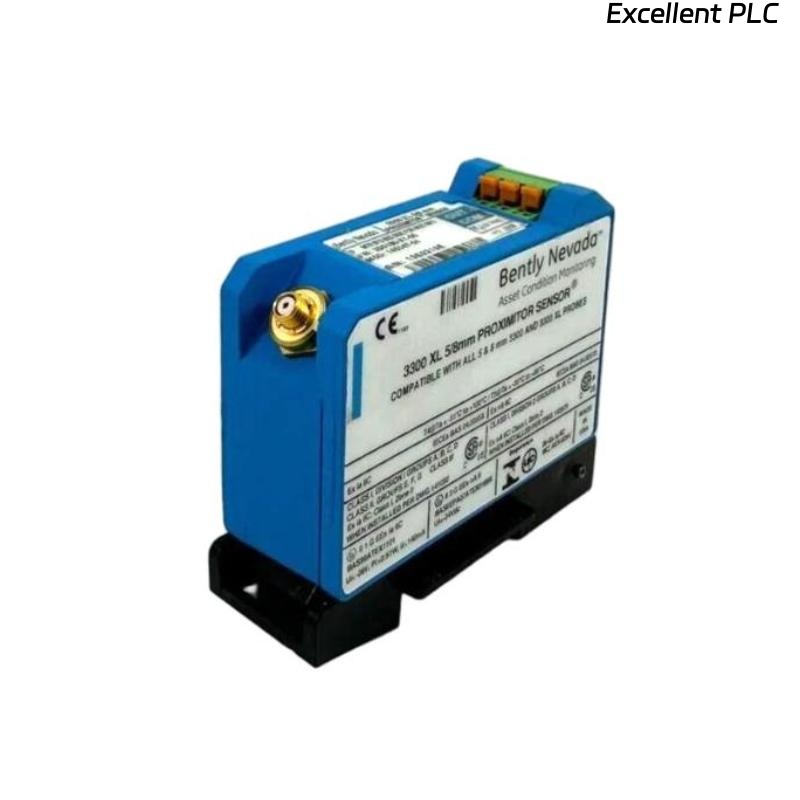

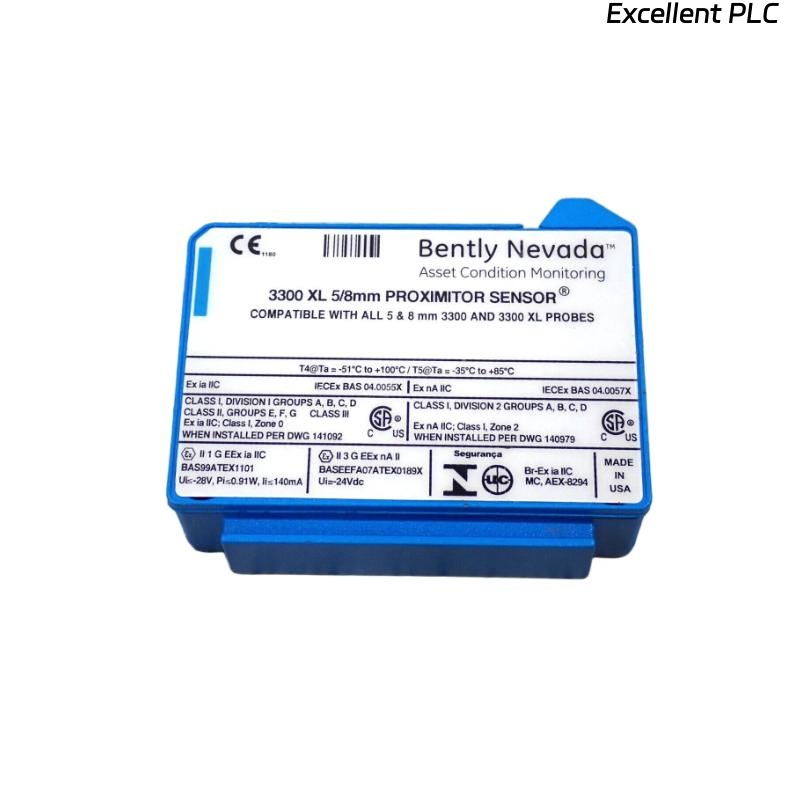

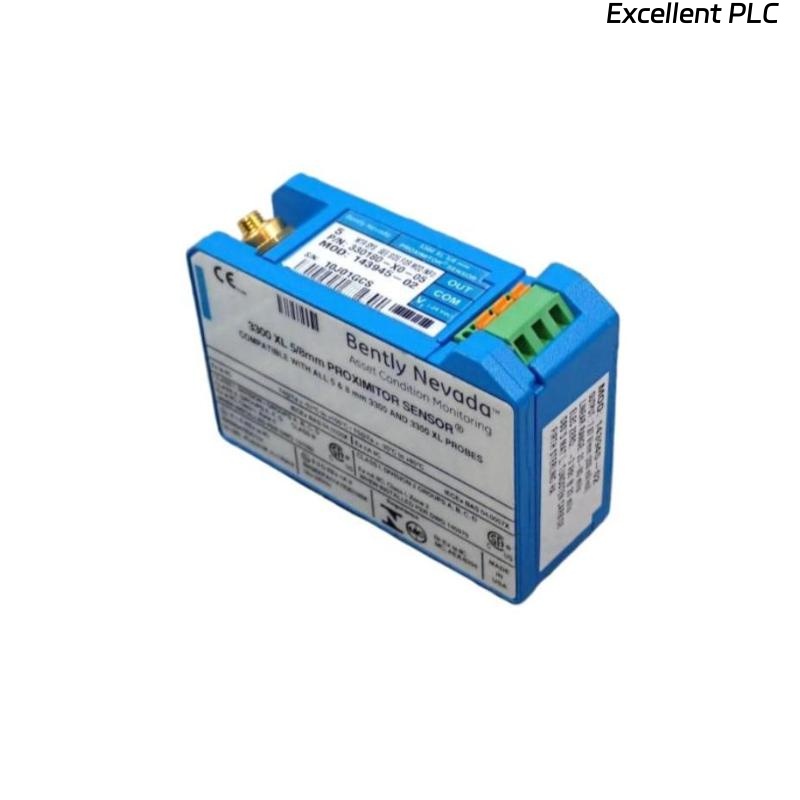

Bently Nevada 330180-X1-05 143945-04 3300 XL 8mm Preamplifier Sensor

Product Overview

The Bently Nevada 330180-X1-05 143945-04 3300 XL 8mm Preamplifier Sensor is a sophisticated component used in conjunction with Bently Nevada’s proximity probes to measure shaft displacement in rotating machinery. This preamplifier sensor is designed to amplify the output signal from the proximity probe, ensuring that accurate and clear displacement data is sent to the monitoring system. It is part of the 3300 XL series and is specifically engineered to work seamlessly with 8mm proximity probes in a variety of industrial applications.

The 3300 XL preamplifier sensor is a key component for predictive maintenance systems, enabling early detection of mechanical issues such as misalignment, imbalance, and bearing wear. By improving the signal quality from the probe, this sensor allows for more precise and reliable monitoring of rotating machinery, thereby enhancing overall operational safety and reducing unplanned downtime.

Technical Specifications

Applications

The Bently Nevada 330180-X1-05 143945-04 3300 XL 8mm Preamplifier Sensor is essential in a wide range of industrial machinery applications:

• Turbines and Compressors: Helps monitor shaft displacement in rotating equipment, detecting issues such as imbalance or misalignment early on.

• Motors and Pumps: Used to monitor shaft movement, preventing mechanical failures by detecting misalignment, imbalance, and wear.

• Generators: Works with proximity probes to track shaft displacement in generator systems, helping identify faults before they lead to breakdowns.

• Fans and Blowers: Monitors displacement to ensure smooth operation and prevent failure due to imbalance or misalignment.

• Rotating Equipment Systems: Commonly used for monitoring shafts in turbines, pumps, and other equipment in industrial settings to detect faults such as bearing wear and imbalance.

Advantages

1. Signal Amplification: The preamplifier sensor enhances the signal from the proximity probe, ensuring clearer data transmission and improving the reliability of measurements.

2. Compact and Durable: With dimensions of 81.3 x 35.1 x 63.5 mm and a rugged aluminum housing, the sensor is designed for long-term use in harsh industrial environments.

3. Wide Temperature Range: Capable of operating in temperatures from -40°C to +85°C, making it suitable for use in various industrial climates.

4. Water and Dust Resistance: With an IP67 rating, the sensor is protected against dust and water, enabling use in challenging environments without risk of damage.

5. Easy Integration: The 4-20 mA output signal allows seamless integration with most industrial monitoring systems, making it an excellent choice for existing setups.

6. Low Maintenance: The robust design ensures long service life with minimal maintenance requirements, reducing downtime and operational costs.

FAQ

1. What is the primary function of the 3300 XL 8mm preamplifier sensor?
   The preamplifier sensor is used to amplify the signal from the proximity probe, ensuring that the output signal is clear and accurate for machine monitoring.

2. What is the operating temperature range of the 3300 XL 8mm preamplifier sensor?
   The sensor operates in a temperature range of -40°C to +85°C, making it versatile for use in a variety of industrial environments.

3. What type of output signal does the 3300 XL 8mm preamplifier sensor provide?
   The sensor provides a 4-20 mA output signal, which is compatible with most vibration monitoring systems.

4. How does the preamplifier sensor improve signal quality?
   By amplifying the weak signal from the proximity probe, the sensor improves the signal-to-noise ratio, providing more reliable and precise displacement data.

5. What materials are used in the construction of the preamplifier sensor?
   The sensor is housed in a durable aluminum casing, providing protection from environmental factors and mechanical damage.

6. What is the input voltage range for the 3300 XL preamplifier sensor?
   The sensor operates within an input voltage range of 18 to 30 VDC.

7. Can the preamplifier sensor be used in hazardous environments?
   While the sensor is robust and durable, certain hazardous environments may require additional certifications, such as ATEX, to ensure safe operation.

8. How is the preamplifier sensor mounted?
   The sensor is designed for panel mounting, making it easy to integrate into control systems and monitoring panels.

9. What is the protection rating of the 3300 XL 8mm preamplifier sensor?
   The sensor has an IP67 protection rating, meaning it is fully protected against dust and can withstand immersion in water up to a certain depth.

10. What makes the 3300 XL 8mm preamplifier sensor reliable?
    The sensor’s durable construction, reliable signal amplification, and ease of integration into existing systems make it a dependable component for rotating machinery monitoring.
