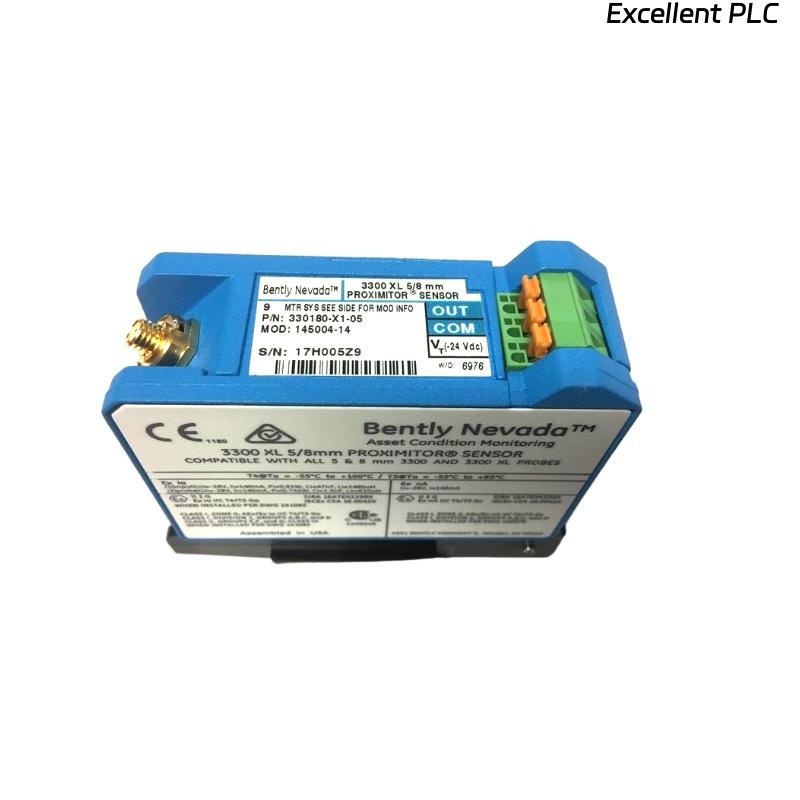

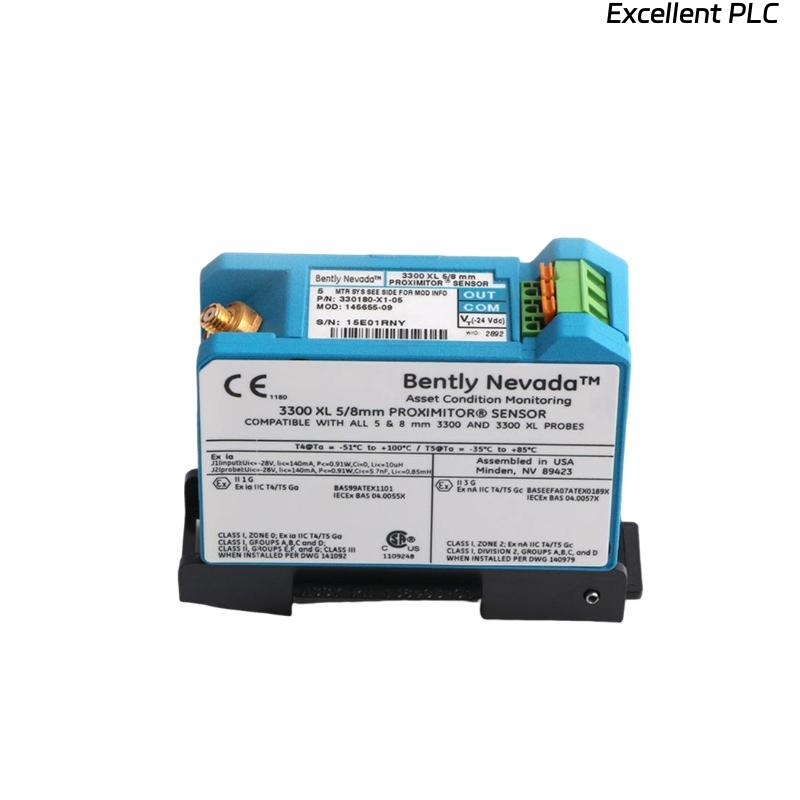

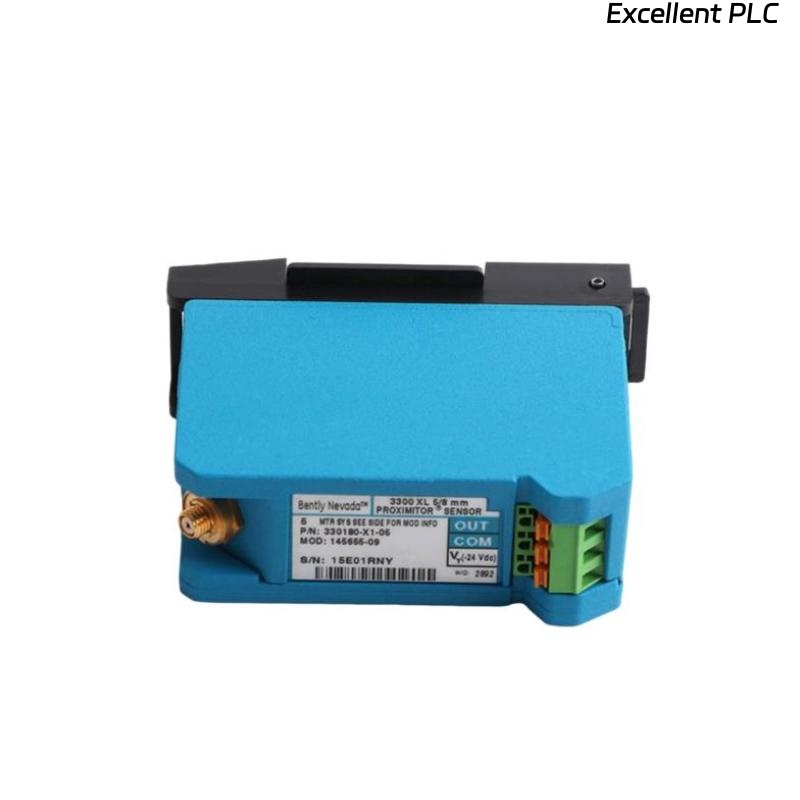

Bently Nevada 330180-X1-05 145004-14 3300 XL 8mm Front-End Sensor

Product Overview

The Bently Nevada 330180-X1-05 145004-14 3300 XL 8 mm front-end sensor is designed to work seamlessly with Bently Nevada’s 3300 XL proximity probes and other displacement sensors. It acts as an essential component for advanced machinery monitoring, offering high accuracy and durability in a wide range of industrial applications. The 3300 XL front-end sensor provides real-time monitoring of machinery health by measuring the displacement or vibration of critical rotating machinery components, such as shafts, rotors, and bearings.

This front-end sensor is particularly used in high-performance, large industrial equipment such as turbines, compressors, pumps, and motors. The design ensures minimal maintenance, exceptional longevity, and high environmental resistance, making it ideal for both predictive maintenance and condition monitoring systems.

The sensor’s high sensitivity ensures precise readings, enabling operators to detect early signs of faults like misalignment, imbalance, or mechanical wear, reducing the risk of unexpected failures.

Technical Specifications

Applications

The 3300 XL 8 mm front-end sensor is engineered for use in a variety of industries to monitor the health of critical machinery. Some key applications include:

• Vibration Monitoring: Continuously monitors vibration levels in equipment like turbines and motors, helping detect misalignments and imbalance issues early on.

• Condition Monitoring: Detects early signs of wear, misalignment, or imbalance by continuously measuring displacement in rotating machinery.

• Preventive Maintenance: Provides data for predictive maintenance systems, allowing engineers to take action before machinery failure occurs.

• High-Temperature Environments: Ideal for use in environments that require high-temperature operation, such as power plants and heavy-duty industrial facilities.

• Precision Alignment: Used for aligning rotating machinery to ensure optimal operation and prevent undue wear on bearings and shafts.

• Aerospace and Automotive: Applied in both the aerospace and automotive industries for engine health monitoring and quality control testing of mechanical components.

Advantages

1. Non-Contact Measurement: The front-end sensor allows for non-contact measurement, which eliminates wear and tear on the sensor and the machinery.

2. High Sensitivity: With an accuracy of ±0.1% of Full Scale, the sensor provides highly accurate readings for detecting small displacements in critical machinery.

3. Wide Temperature Range: The sensor operates in extreme environments with a temperature range of -40°C to +120°C, ensuring performance in both cold and hot conditions.

4. IP67 Protection: With an IP67 rating, the sensor is resistant to dust, moisture, and water ingress, making it ideal for use in industrial settings where harsh conditions are common.

5. Durable Design: Constructed from stainless steel, the sensor is durable and corrosion-resistant, suitable for tough environments like factories, turbines, and offshore rigs.

6. Improved Machine Efficiency: By providing precise real-time monitoring, it helps in optimizing machine efficiency and reducing unplanned downtimes.

7. Compact and Lightweight: Despite its robust design, the sensor is compact and lightweight, weighing only 0.246 kg, making it easy to integrate into existing machinery systems.

8. Easy Integration: The 4-20 mA output signal ensures easy integration into existing vibration monitoring and predictive maintenance systems.

9. Minimal Maintenance: The sensor requires minimal maintenance due to its durable construction and non-contact measurement, reducing maintenance costs.

10. Versatility: Suitable for a wide range of industrial applications, from power generation to aerospace, providing flexibility across multiple sectors.

FAQ

1. What is the output signal type of the 3300 XL front-end sensor?
   The sensor provides a 4-20 mA output signal, making it easy to integrate into existing monitoring systems.

2. What is the measurement range of the 3300 XL 8 mm front-end sensor?
   The measurement range of the sensor is ±8 mm, ensuring precise displacement and vibration measurements.

3. What is the accuracy of the 3300 XL front-end sensor?
   The sensor offers ±0.1% of Full Scale accuracy, ensuring highly accurate readings for vibration and displacement.

4. Can the 3300 XL front-end sensor be used in extreme temperatures?
   Yes, the sensor operates in a temperature range of -40°C to +120°C, making it suitable for both high and low-temperature environments.

5. Is the 3300 XL front-end sensor resistant to dust and water?
   Yes, the sensor has an IP67 protection rating, providing resistance to dust, moisture, and water ingress.

6. What industries use the 3300 XL front-end sensor?
   The sensor is used in power generation, aerospace, automotive, and oil and gas industries for monitoring critical machinery.

7. Does the 3300 XL front-end sensor work with other proximity probes?
   Yes, it works seamlessly with Bently Nevada’s 3300 XL proximity probes for comprehensive machinery health monitoring.

8. How does the non-contact measurement feature of the sensor benefit machinery monitoring?
   Non-contact measurement minimizes wear and tear, extending both the sensor’s and the machinery’s lifespan.

9. What is the material used for the housing of the 3300 XL front-end sensor?
   The housing is made of stainless steel, offering excellent durability and resistance to corrosion.

10. Can the 3300 XL front-end sensor detect misalignment in machinery?
    Yes, the sensor is capable of detecting misalignment by continuously measuring displacement and vibration in rotating machinery.
