Product Introduction

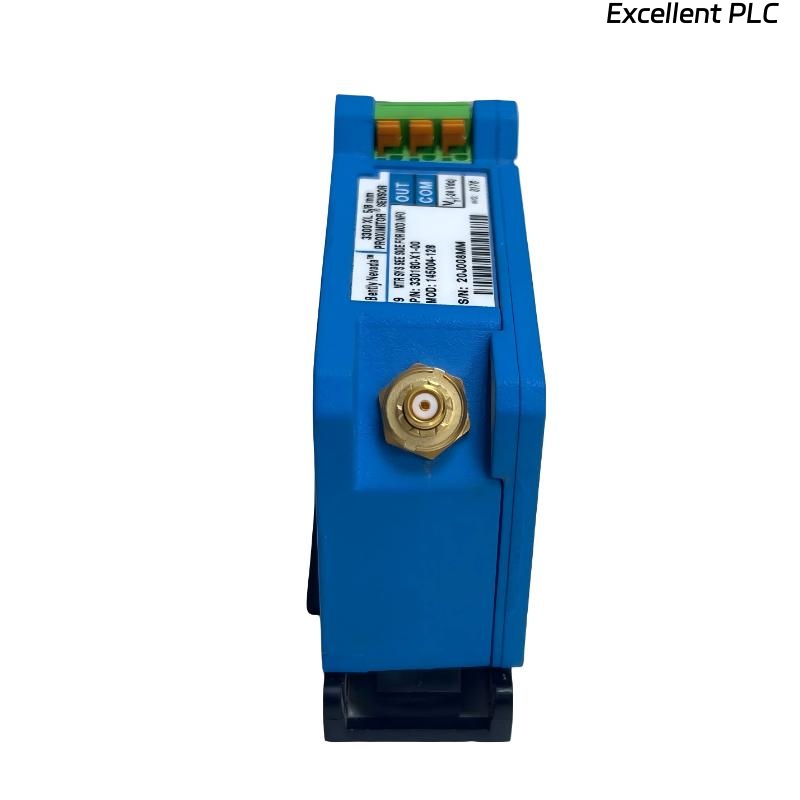

The Bently Nevada 330180-X1-05 (145004-37) is a 3300 XL series 8 mm proximitor sensor designed to provide signal conditioning and power for proximity probe-based displacement measurement systems. Acting as the interface between the probe and the monitoring system, the proximitor converts raw eddy-current signals into stable, calibrated outputs suitable for continuous machinery monitoring.
As a core component of the 3300 XL proximity system, this sensor is engineered to deliver consistent performance in demanding industrial environments. It is widely deployed in vibration, axial position, and thrust measurement applications, supporting both machinery protection and condition monitoring strategies.
Product Specifications
| Parameter | Description |
|---|---|
| Product Series | Bently Nevada 3300 XL |
| Model Number | 330180-X1-05 |
| Alternate Number | 145004-37 |
| Product Type | Proximitor Sensor |
| Compatible Probe | 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy current signal conditioning |
| System Function | Probe excitation and signal conversion |
| Output Signal | Calibrated displacement signal |
| Linearity | Optimized for 3300 XL system calibration |
| Power Supply | Supplied by monitoring system |

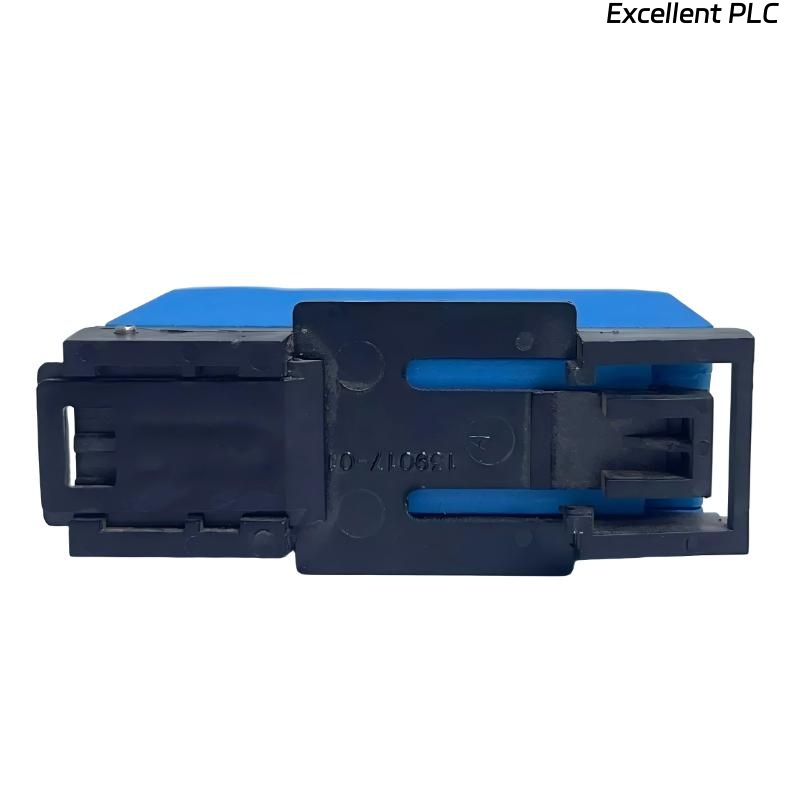

| Mounting Method | Panel or DIN rail mounting |
| Electrical Connection | Standard proximitor terminals |
| Environmental Protection | Industrial-grade electronics |
| Operating Temperature | Suitable for continuous industrial operation |
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg |
Applications
• Shaft vibration measurement systems
Provides conditioned signals for vibration monitoring when paired with 3300 XL proximity probes.
• Axial position and thrust monitoring
Used in thrust bearing applications to monitor shaft axial movement and prevent mechanical damage.
• Critical rotating machinery protection
Forms a key element in machinery protection systems for turbines, compressors, pumps, and generators.
• Integration with monitoring platforms
Commonly used with Bently Nevada 3500 series monitoring and protection systems.
Advantages
• Accurate signal conditioning
Delivers stable, calibrated outputs essential for precise displacement and vibration measurement.
• Optimized system compatibility
Designed specifically for 3300 XL 8 mm probes, ensuring correct system linearity and response.
• Reliable industrial performance
Maintains consistent operation under electrical noise, vibration, and temperature variations.
• Seamless integration with protection systems
Fully compatible with Bently Nevada monitoring architectures for continuous condition monitoring.
• Supports advanced diagnostics
Provides high-quality input signals required for vibration analysis and machinery health assessment.
